SEVEN PAR 7IP

Features

IP65 Outdoor Rated Seven Color Par Wash Luminaire
(7) 25W 7-in-1 RGBAW + Lime + UV (395nm) LEDs
3,600 Total Output Lumens | 90CRI
Individual Hue, Saturation, and Intensity Control
RGB + Seven Color 3 Channel DMX Mode
17° Beam and 33° Field Angles
Smooth Color Mixing
12 Internal Programs with Speed and Fade Control
64 Unique 7-Color Macros
Selectable Dimming Curve Modes
Adjustable LED Refresh Rate + Gamma Brightness
Flicker Free Operation for TV and FILM
DMX and RDM Protocol Support

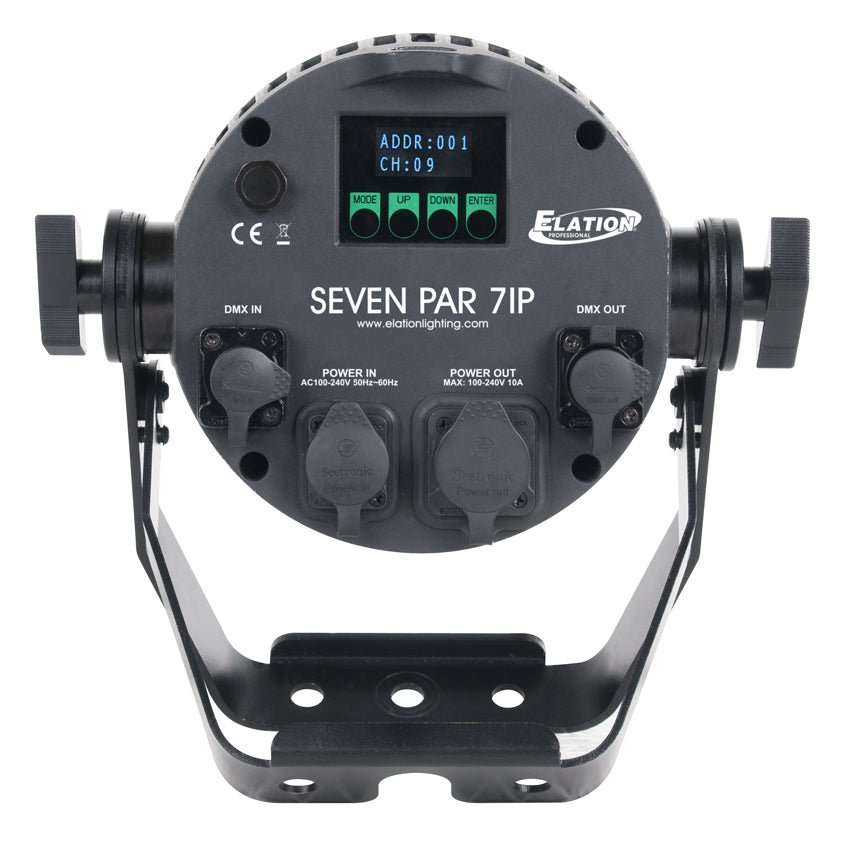

IP65 Rated 5pin DMX and Power In/Out

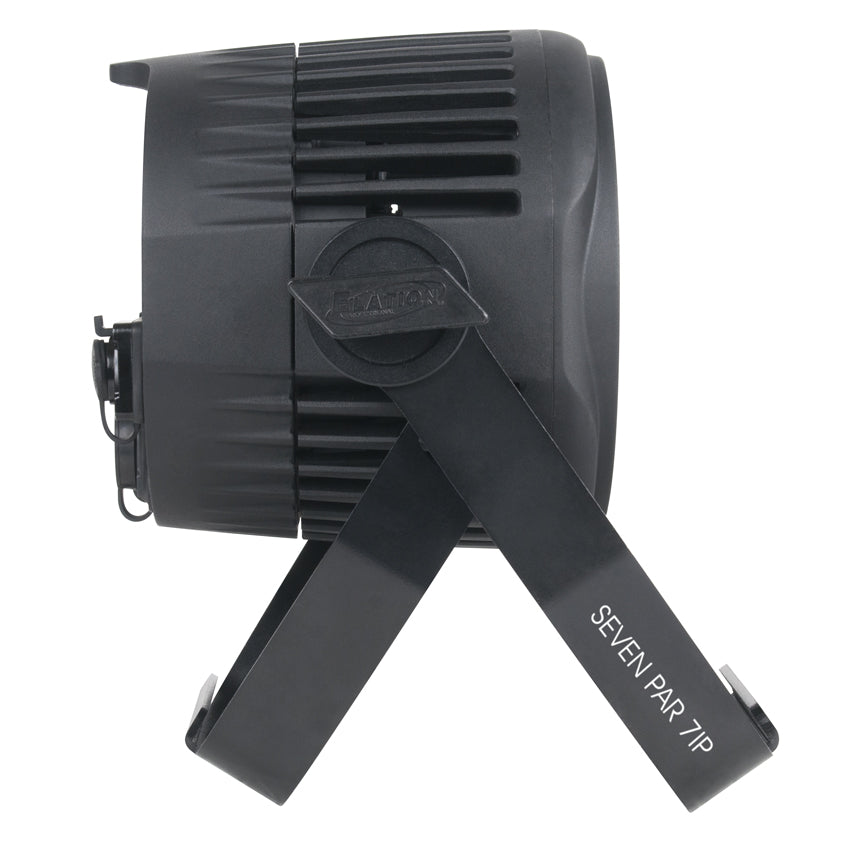

Dual Adjustable Yoke / Floor Stand
Multiple Unit Power Linking
Rugged Powder Coated Die-Cast Aluminum Exterior

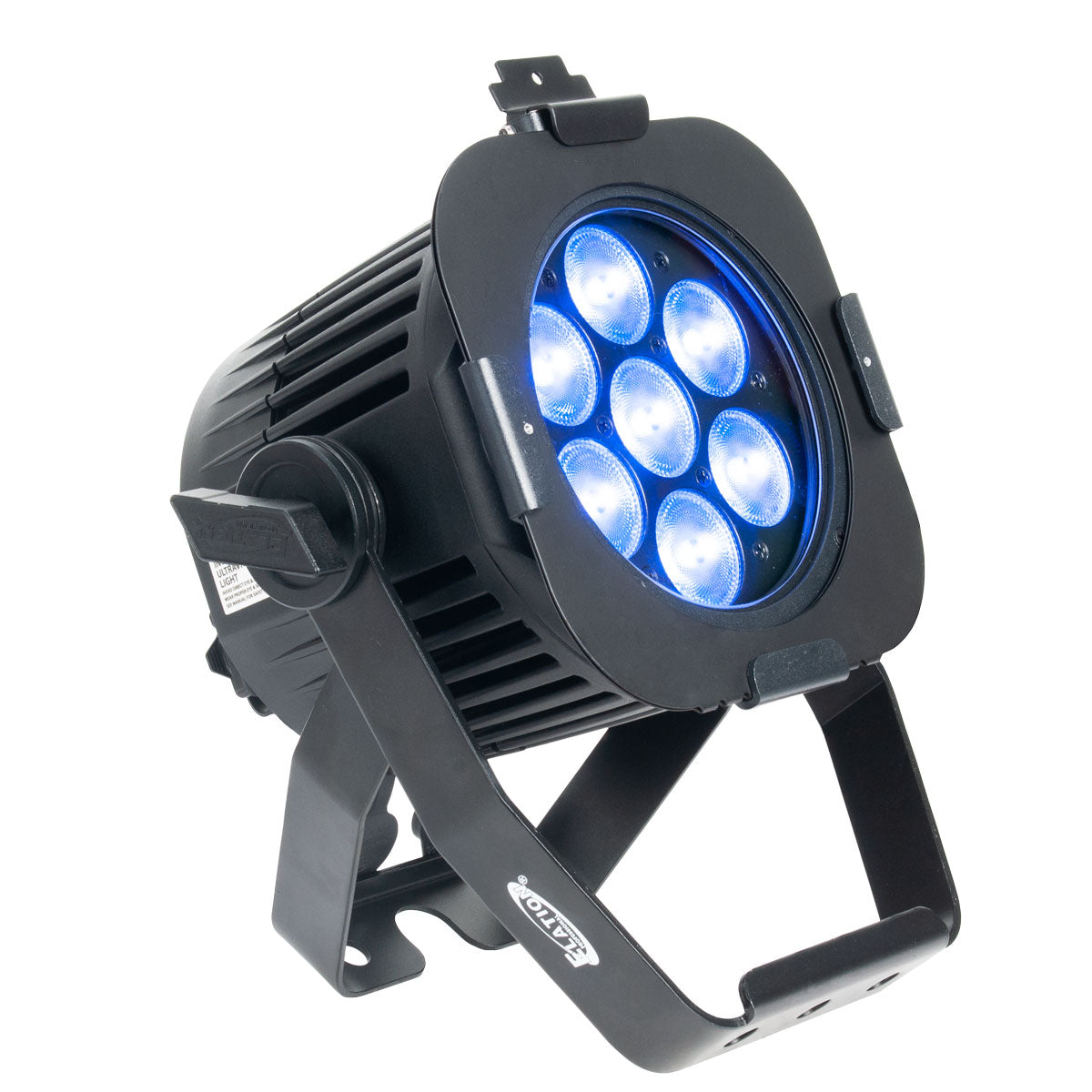

Gel Frame and Gel Frame Holder Included

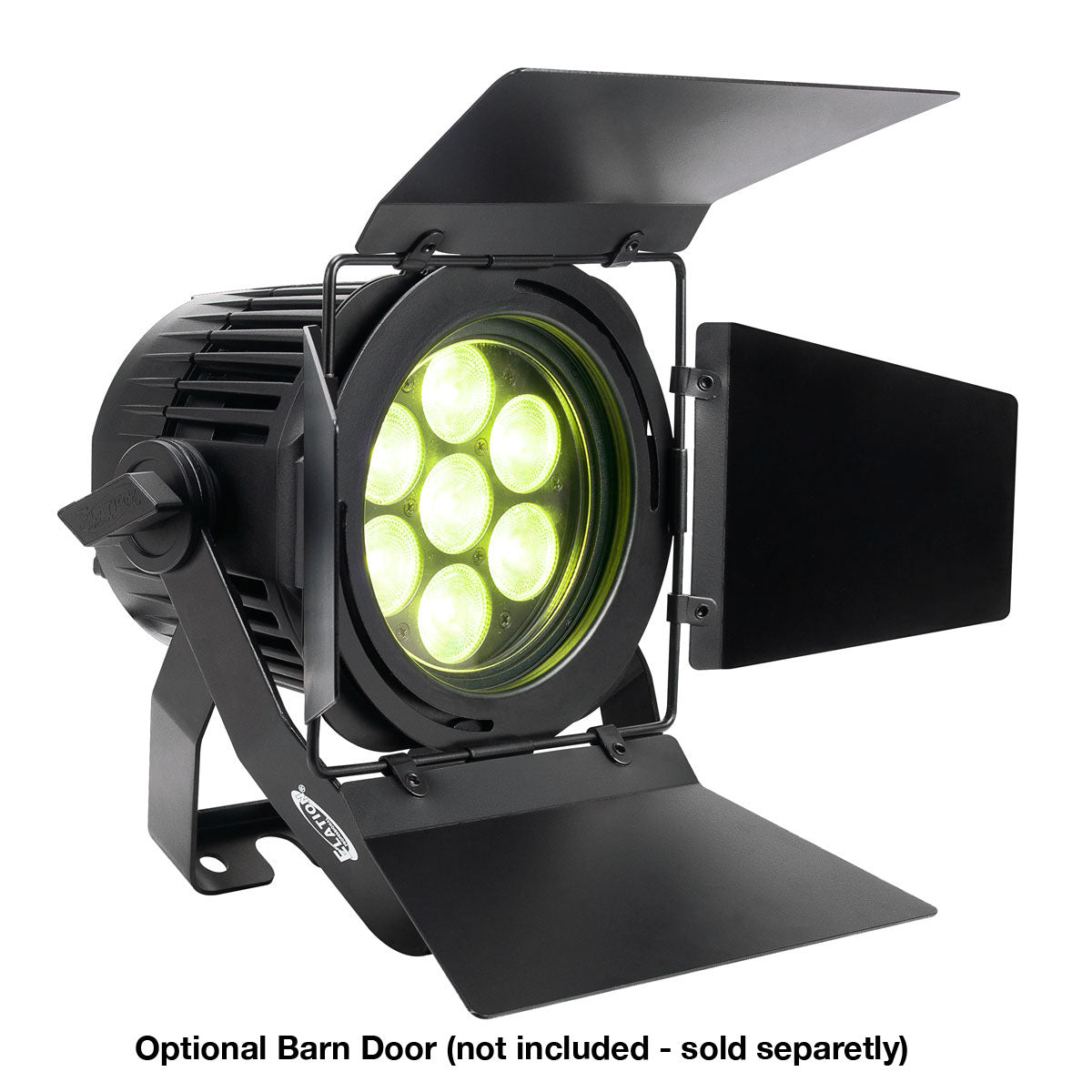

Optional 4-Leaf Barn Door Available

Resources

Specifications Sheet

User Manual

Photometric Test Report

Photometric IES File

DMX Traits

Dimensional Drawing

CAD Drawing

Specifications

SOURCE
(7) 25W 7-IN-1 RGBAW + Lime + UV (395nm) LEDs
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


PHOTOMETRIC DATA
3,600 Total Lumen Output | 90CRI
6,819 LUX 634 FC @6.6’ (2m) (Full ON)

EFFECTS
Individual Hue, Saturation, and Intensity Control
RGB + Seven Color 3 Channel DMX Mode
12 Internal Program Macros with Speed and Fade Control
64 Unique 7-Color Macros
Selectable Dimming Curve Effects

COLOR
RGBAW + Lime + UV (395nm)

CONTROL / CONNECTIONS
(7) DMX Channel Modes (15 total channels)
DMX and Manual Control
4 Button Control Panel
180° Reversible OLED Menu Display
Adjustable Refresh Rate (900-28,800 (Hz)
Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
RDM (Remote Device Management) Protocol Support
IP Rated 5pin DMX and Power In/Out
With Wired Digital Communication Network

SIZE / WEIGHT

Length: 11.24” (286mm)
Width: 10.71” (272mm)
Vertical Height: 7.36” (187mm)
Weight: 11.0 lbs. (5.0kg)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
185W Max Power Consumption
5°F to 113°F (-15°C to 45°C)

APPROVALS / RATINGS
CE | IP65



Specifications and documentation subject to change without notice.
