TOMAHAWK
TOMAHAWK is a professional-grade lighting solution. Easy to use onboard LCD touch screen control panel, intuitive DMX-512 and RDM control, a durable aluminum housing, and optional wired and wireless remote control options. 85,000 cu.ft per minute 12 second continuous output blast 180°multi position fog burst 34, 8 watt RGBA LED's Durable, tour-ready, aluminum housing.
TOMAHAWK
Sale price$0.00
Related Products
TOMAHAWK

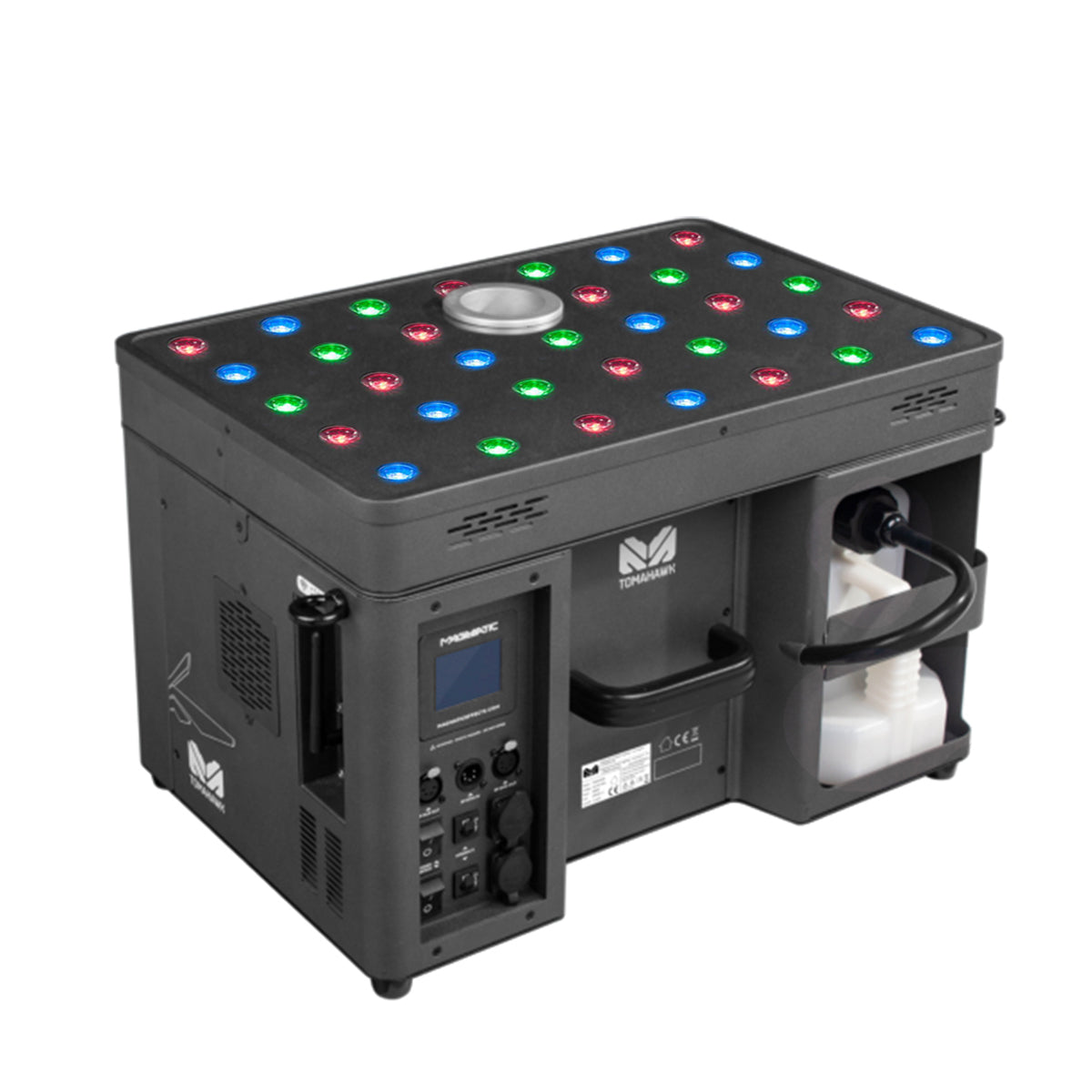

The Magmatic Tomahawk is a high velocity CO2 simulator fog machine with 34 x 8 watt, 4 in 1 RGBA LED's for creating dynamic effects. The Tomahawk can burst fog in multiple positions, rotating 180°degrees. Easy to use onboard LCD touch screen control panel, intuitive DMX-512 and RDM control, a durable aluminum housing, and optional wired and wireless remote control options.
85,000 cu.ft per minute 12 second continuous output blast 180°multi position fog burst 34, 8 watt RGBA LED's Durable, tour-ready, aluminum housing.
Specifications
PERFORMANCE
- Rated Power: 1450W x2
- Max Output: 85,000 CFM* (cu ft/min.)
- Max Continuous Output: 12 Seconds @ Full
- Max Throw Distance: 25 Feet
- Initial Ready Time: 12 Minutes
- Cycling Ready Time: 1 Minute
- Fluid Capacity: 5.6L
- Fluid Consumption: 420ml/min.
COMPATIBLE FLUIDS
- Atmosity Extreme Filtered Fog Fluid (AEF-2L)
- Atmosity Extreme Filtered Fog Fluid (AEF-4L)
- Atmosity Extreme Filtered Fog Fluid (AEF-20L
- Atmosity Quick Dissolving Fog Fluid (AFF-2L)
- Atmosity Quick Dissolving Fog Fluid (AFF-4L)
- Atmosity Quick Dissolving Fog Fluid (AFF-20L)
CONSTRUCTION
- Thermally Protected Heat Exchanger
- Advanced HPA (high pressure air) Pump Technology
- Energy Saving Mode with Auto-Clean Process
- Sealed Fluid Reservoir
- External Visual Fluid Level Detection
CONTROL
- 4 DMX Channel Modes (1 / 5 / 6 / 37)
- Onboard LCD Touch Control Panel
- DMX-512 and RDM Protocol Support
- Optional Magfly Wireless DMX Receiver
- Optional RF Wireless and Wired Remotes
CONNECTIONS
- 5-pin locking XLR, In/Out DMX Connections
- 4-pin connection for optional wired remote
- IP65 x2, Locking Input Power Connections
- With Wired Digital Communication Network
SIZE / WEIGHT
- Length: 23.03 in. (585mm)
- Width: 15.43 in. (392mm)
- Height: 13.58 in. (345mm)
- Weight: 79.36 lbs. (36kg)
ELECTRICAL
- AC 100-120V - 50/60Hz
- 20A x2 (NFB) Resettable Breakers
- Max Power Consumption: 3260W
THERMAL
- Maximum Ambient Temperature (Ta max) 104°F (40°C)
- Exterior Surface Temperature, Steady State: 140°F (60°C)
APPROVALS / RATINGS
- CE | cETLus (pending) | IP22
Specifications and documentation subject to change without notice.
