TVL CYC RGBW
TVL CYC RGBW
The TVL CYC RGBW™ theatre-style cyclorama wall wash luminaire that delivers a smooth and even field of seamlessly blended colors onto cycloramas, backcloths, scenery or any surface. Features include an energy-efficient 150W RGBW COB LED engine, a 90° x 113° elliptical beam angle, 8-leaf adjustable/removable barn doors, 64 internal color macros, smooth color mixing and dimming, linear variable white color temperature presets (7200K - 3200K), variable LED refresh rate frequency and gamma brightness, selectable dimming curve and strobe effects, 5pin DMX and locking Power Cable in/out connections, (4) button control panel, 180° reversible LCD menu display, 170W max power consumption, multiple unit power linking, and a multi-voltage universal auto switching power supply (100-240v).
Features
150W COB RGBW LED
90° x 113° Elliptical Beam Angle
64 Internal Color Macros
Smooth Color Mixing and 16bit Dimming
Variable LED Refresh Rate Frequency
Variable LED Gamma Brightness
Flicker Free Operation for TV and FILM
Selectable Dimming Curve and Strobe Effects
Linear Variable White Color Temp Presets (7200K - 3200K)

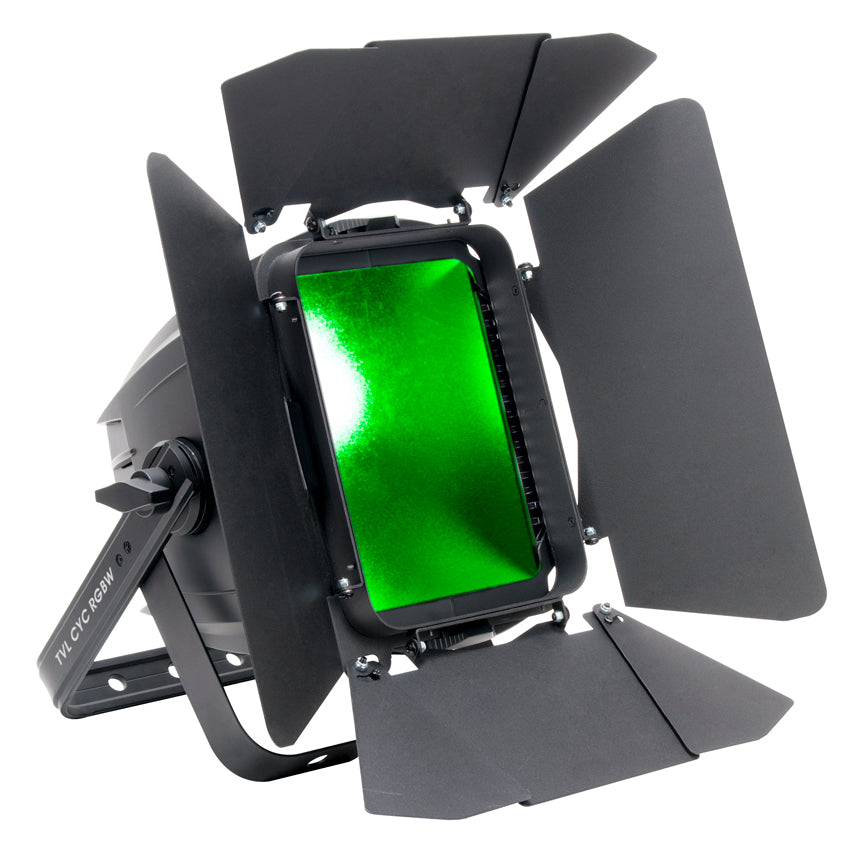

8-Leaf Adjustable/Removable Barn Doors Included
Resources
Specification information
Guides/ Manuals
PHOTOMETRIC DATA
PHOTOMETRIC DATA
DMX/ RDM Traits
Drawings
CAD File
CAD File
Related Categories
Specifications
150W COB RGBW LED
20,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA (Full ON)
3,536 LUX 328 FC @3.3’ (1m)
EFFECTS
64 Internal Color Macros
Smooth Color Mixing and 16bit Dimming
Variable LED Refresh Rate Frequency
Variable LED Gamma Brightness
Selectable Dimming Curves and Electronic Strobe
Linear Variable White Color Temp Presets (7200K - 3200K)
COLOR
RGBW Color Mixing

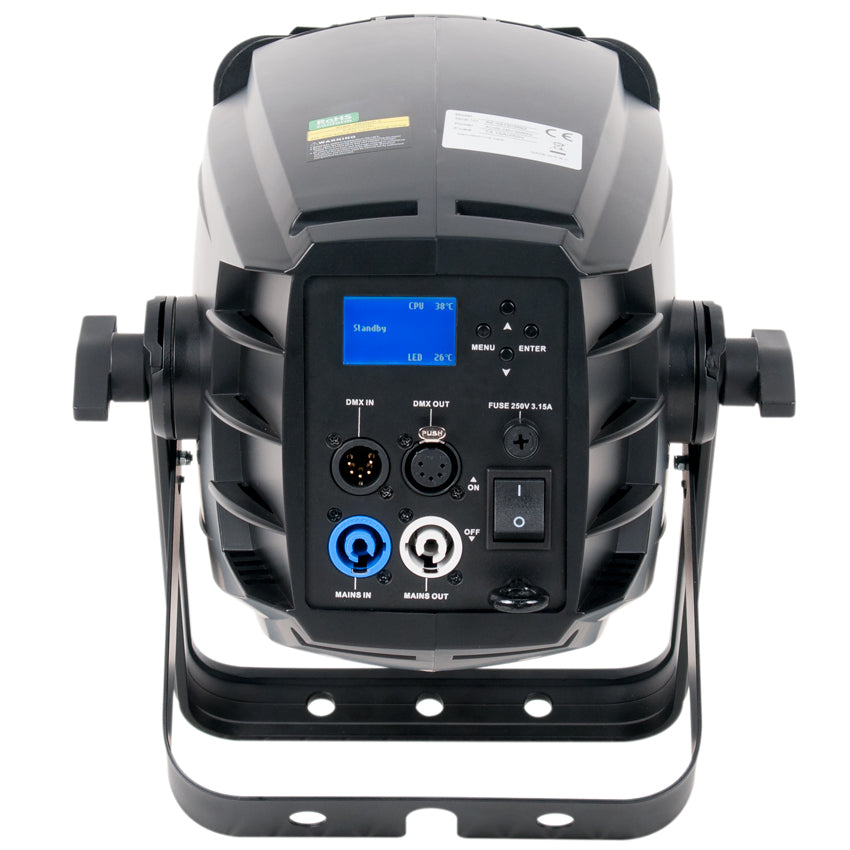

CONTROL / CONNECTIONS
(6) DMX Channel Modes (4 / 6 / 7 / 8 / 10 / 14)
4 Button Control Panel
180° Reversible LCD Menu Display
5pin DMX In/Out
Locking Power Cable In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 16.7" (425mm)
Width: 14.3" (364mm)
Vertical Height: 16.5" (419mm)
Weight: 13.0 lbs. (5.9 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
170W Max Power Consumption
5F to 113°F (-15°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP20
Specifications and documentation subject to change without notice.
