TVL PANEL DW
Discontinued
Dynamic White LED Panel Fixture
TVL PANEL DW is a professional-grade lighting solution.
TVL PANEL DW
Sale price$0.00
TVL PANEL DW
The TVL PANEL DW™ is a softlight luminaire featuring (480) Cool White and (480) Warm White LEDs, 115° beam angle, 8-leaf adjustable / removable barn doors, linear white color temperature range (3,200K - 5,800K), smooth 16bit dimming curve mode effects, adjustable LED refresh frequency and gamma brightness for flicker free operation for TV and FILM, 5pin DMX, RJ45 ethernet (Art-NET) and IP65 Locking Power connections, (4) button menu control panel, dimmer and color temperature rotary control dials, 180° reversible LCD menu display, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (100-240v). Optional SNAPGRID 40° light control grid available.
Dynamic White 115° Beam TVL Panel SoftLight
Linear White Color Temp Range (3,200K - 5,800K)
Smooth 16bit Dimming Curve Mode Effects

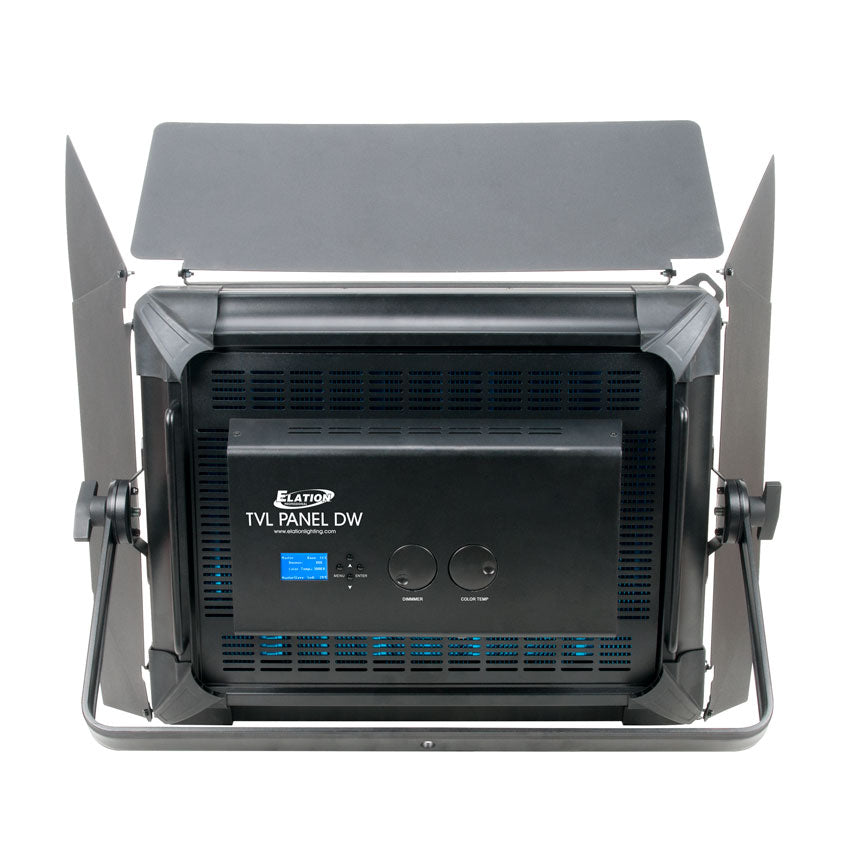

Dimmer and Color Temperature Rotary Control Dials

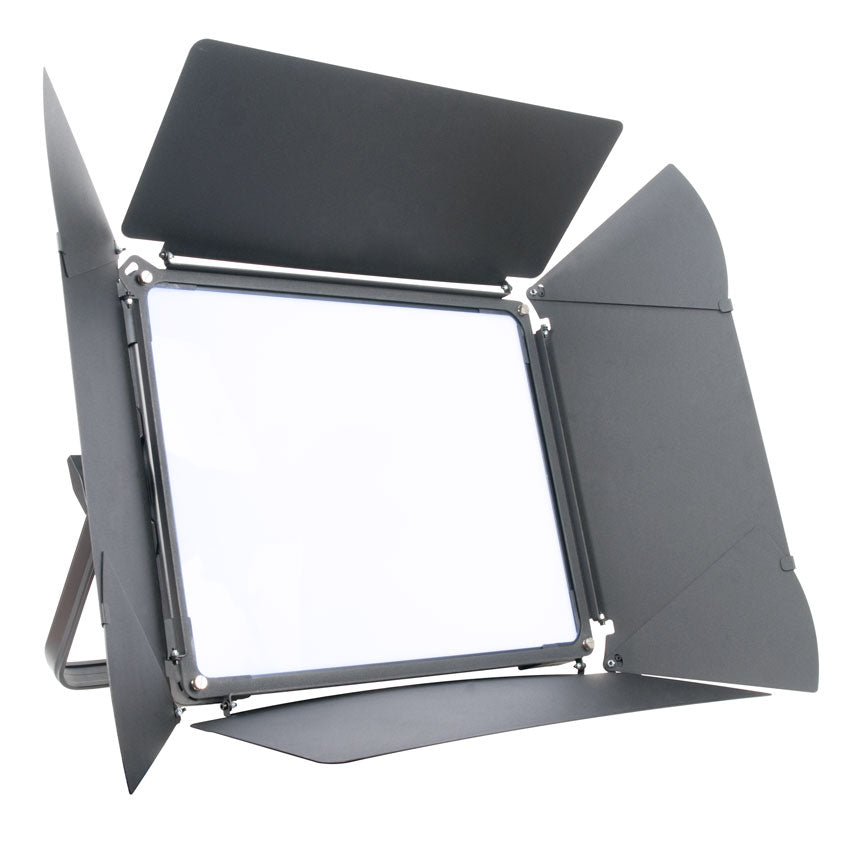

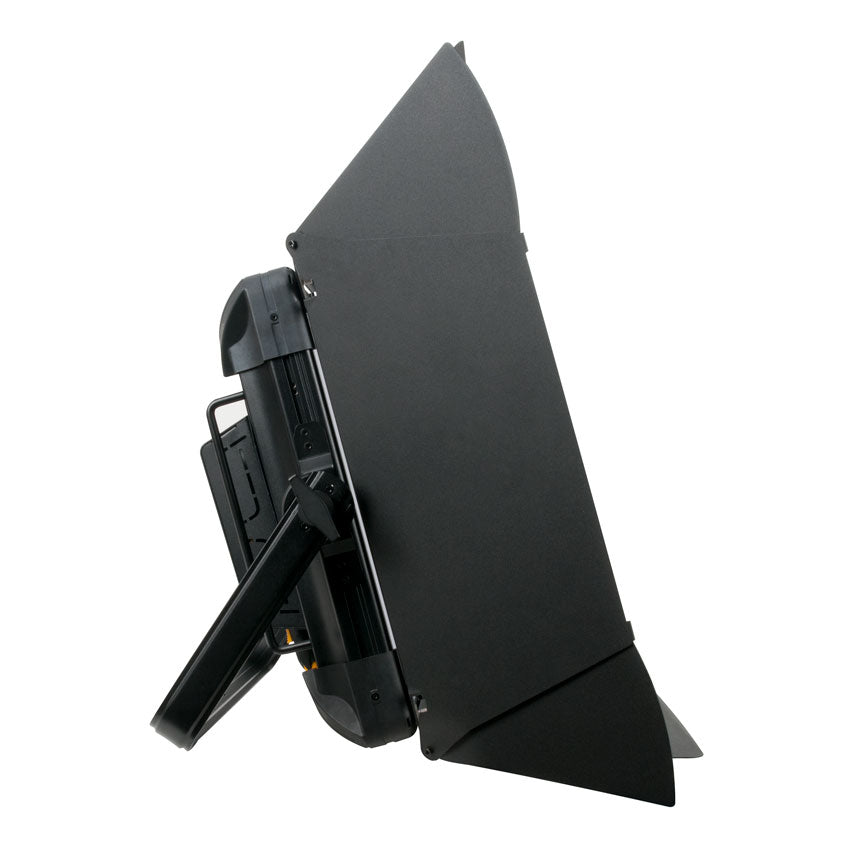

8-Leaf Adjustable / Removable Barn Doors Included
Adjustable LED Refresh Rate and Gamma Brightness
Flicker Free Operation for TV and FILM
Optional SNAPGRID 40° Light Control Grid Available.
Specifications
SOURCE
(480) Cool White and (480) Warm White LEDs
20,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
>95CRI | 13,000 Total Lumens
1,117 LUX 104 FC @6.6 ft (2m) Full ON 4,200K >95CRI
1,105 LUX 103 FC @6.6 ft (2m) CW 5800K >95CRI
1,076 LUX 100 FC @6.6 ft (2m) WW 3200K >97CRI
COLOR
Cool White / Warm White
EFFECTS
3,200K - 5,800K Linear Variable White Color Temp Control
Electronic Strobe and Variable Dimming Curve Modes
CONTROL / CONNECTIONS
6 DMX Channel Modes (7 total channels)
4 Button Control Panel
2 Rotary Control Dials (Dimmer and Color Temperature)
Adjustable Refresh Rate (900-25,000 Hz)
Adjustable Gamma Brightness (2.0-2.8)
180° Reversible LCD Menu Display
5pin DMX In/Out
(480) Cool White and (480) Warm White LEDs
20,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
>95CRI | 13,000 Total Lumens
1,117 LUX 104 FC @6.6 ft (2m) Full ON 4,200K >95CRI
1,105 LUX 103 FC @6.6 ft (2m) CW 5800K >95CRI
1,076 LUX 100 FC @6.6 ft (2m) WW 3200K >97CRI
COLOR
Cool White / Warm White
EFFECTS
3,200K - 5,800K Linear Variable White Color Temp Control
Electronic Strobe and Variable Dimming Curve Modes
CONTROL / CONNECTIONS
6 DMX Channel Modes (7 total channels)
4 Button Control Panel
2 Rotary Control Dials (Dimmer and Color Temperature)
Adjustable Refresh Rate (900-25,000 Hz)
Adjustable Gamma Brightness (2.0-2.8)
180° Reversible LCD Menu Display

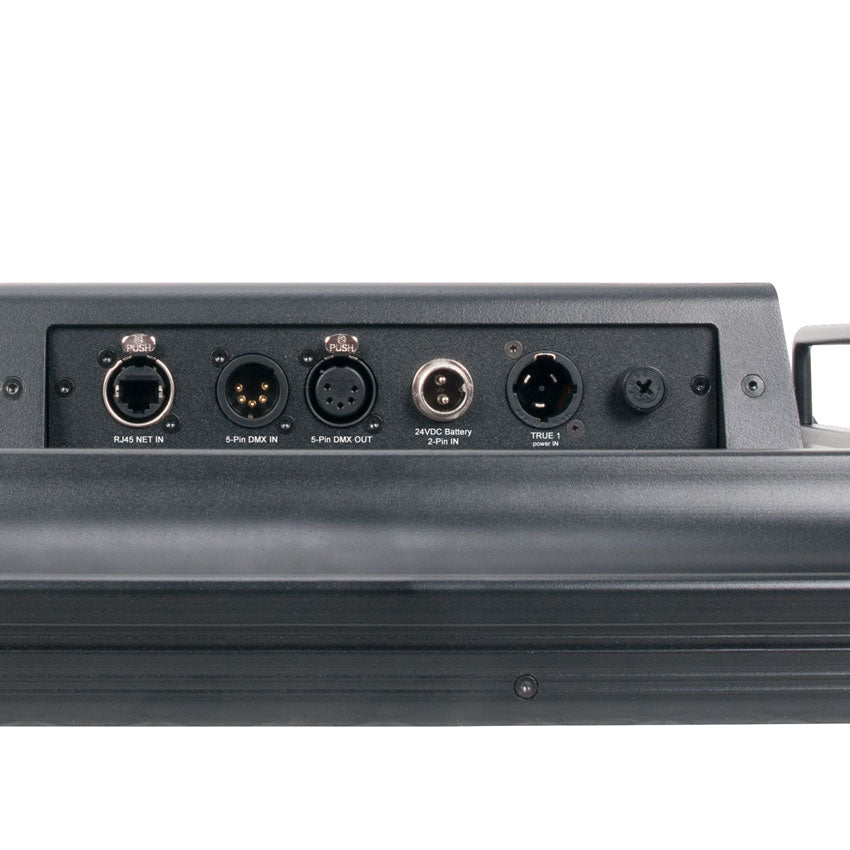

5pin DMX In/Out
Stand Alone or Primary/Secondary Set Up
RJ45 ethernet (Art-NET) In
Locking IP65 Power Cable
With Wired Digital Communication Network
SIZE / WEIGHT (w/Barn Doors attached)
Length: 34.3” (871.8mm)
Width: 12.7” (321.4mm)
Vertical Height: 27.2” (691.2mm)
Weight: 28.0 lbs. (12.7 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
199W Max Power Consumption
32F to 104°F (0°C to 40°C)
APPROVALS / RATINGS
CE | cETLus | IP20
Specifications and documentation subject to change without notice.
RJ45 ethernet (Art-NET) In
Locking IP65 Power Cable
With Wired Digital Communication Network
SIZE / WEIGHT (w/Barn Doors attached)
Length: 34.3” (871.8mm)
Width: 12.7” (321.4mm)
Vertical Height: 27.2” (691.2mm)
Weight: 28.0 lbs. (12.7 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
199W Max Power Consumption
32F to 104°F (0°C to 40°C)
APPROVALS / RATINGS
CE | cETLus | IP20
Specifications and documentation subject to change without notice.
Downloads
Cad drawing
Dimensional drawings
Dmx traits
Ies files
Photometrics
Specification sheet
User manual
Vectorworks symbol
TVL PANEL DW Parts & Service
Our TVL PANEL DW Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your TVL PANEL DW. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
