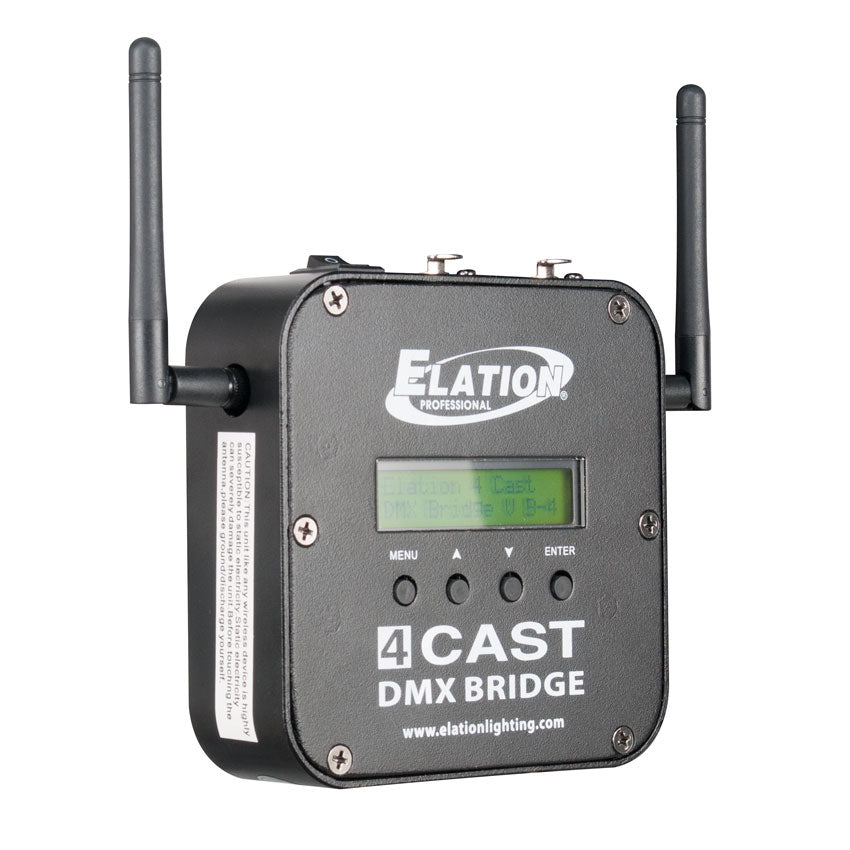

4Cast DMX Bridge
4Cast DMX Bridge
4CAST DMX BRIDGE creates a private standalone 2.4 GHz DSSS (Direct Sequence Spread Spectrum) WiFi network, which coexists in busy RF environments alongside other wireless technologies. No existing network infrastructure is required, or it connects to an external network. 4CAST DMX BRIDGE sends constant and reliable wireless DMX signals to compatible DMX devices via DMX-512, Art-Net, sACN, or E-FLY.
Features include separate WiFi and an E-FLY wireless antenna, (3) 5pin DMX outputs, a mini USB port, a 4-button control panel, an LCD system menu display with an LED network activity signal indicator, on/off switch, an external DC 9-12V power supply, a mini omega bracket for easy clamp/truss mounting, a magnetic back for easy attachment to metal surfaces, and easy configuration from a PC connected via USB Mini B port using the 4Cast Bridge Setup Windows app or over Wi-Fi using the ELATION 4Cast Config iOS app.
Features
Seamless Wireless Bridge To DMX Compatible Devices
Supports Standard Network Protocols, Art-Net, sACN and eFly
Private Standalone 2.4 GHz DSSS WiFi Network
No Existing Network Needed or Connect to External Network
Supports up to 4 DMX Universes (3 wired and 1 E-FLY wireless)
Control Compatible eFly Devices up to 2,500 Feet Away
14 E-FLY Wireless Channels

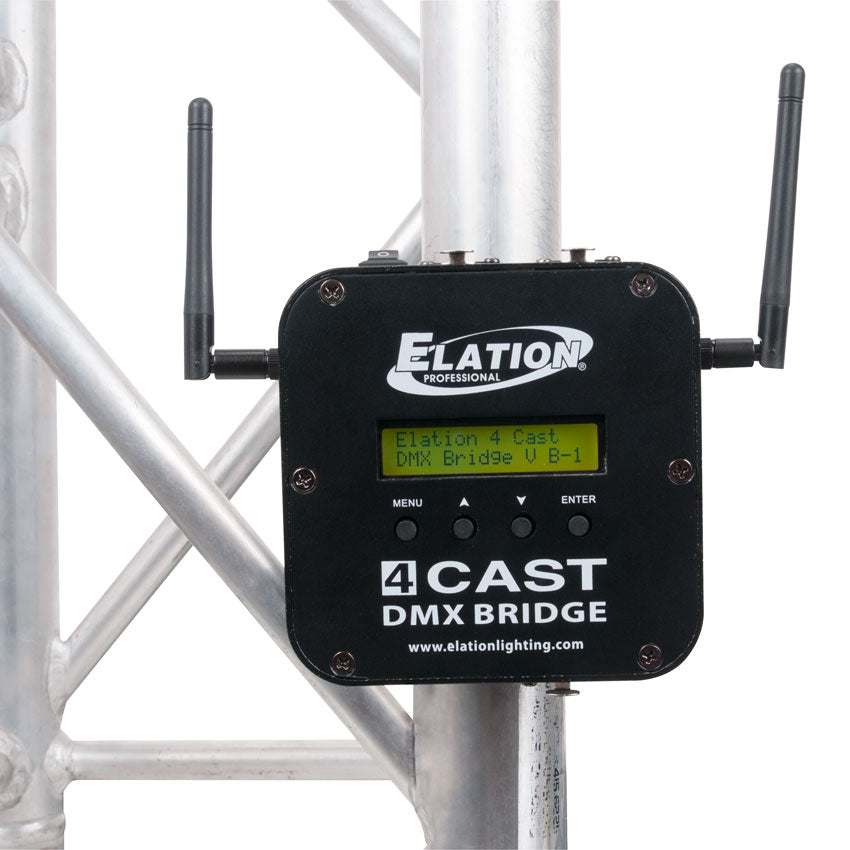

Easy Clamp/Truss Mounting

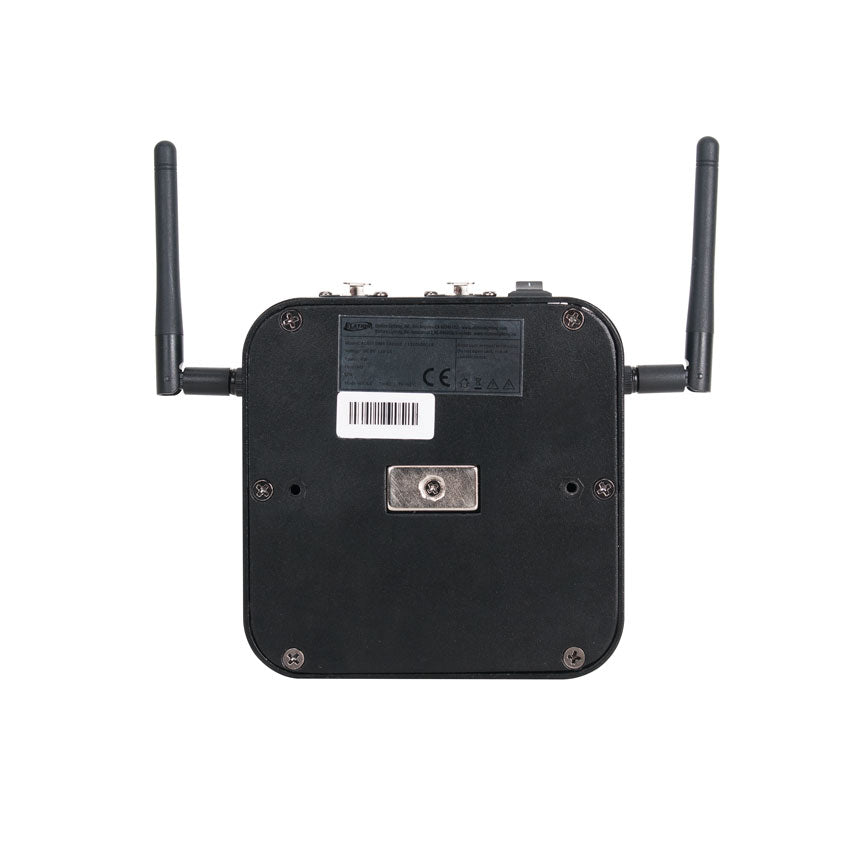

Magnetic Back for Easy Attachment to Metal Surfaces
Easy Configuration Using Windows or iOS Apps
Dedicated control App, "eCast", available in the Apple App Store
Resources
Guides/ Manuals
Drawings
Software Downloads
Related Categories
Specifications
eCast compatibility: Compatible with iPad only. Requires iOS 9.3 or later.
Download the Elation eCast App* for free from the App Store:
*Compatible with 4Cast DMX Bridge only.
https://itunes.apple.com/us/app/elation-ecast/id1339818459?mt=8
4Cast DMX Bridge and eCast App User Discussion Group:
https://www.facebook.com/groups/479787609147217/
CONTROL / CONNECTIONS
Private Standalone 2.4GHz DSSS WiFi Network*
*Up To 75 feet (22.8m) WiFi Range
(4) DMX Universes
Supports Standard Networking Protocols,DMX-512, Art-Net, sACN, and E-FLY**
**Up To 2,500 feet (762m) E-FLY Range
4Cast Bridge Windows and iOS Apps

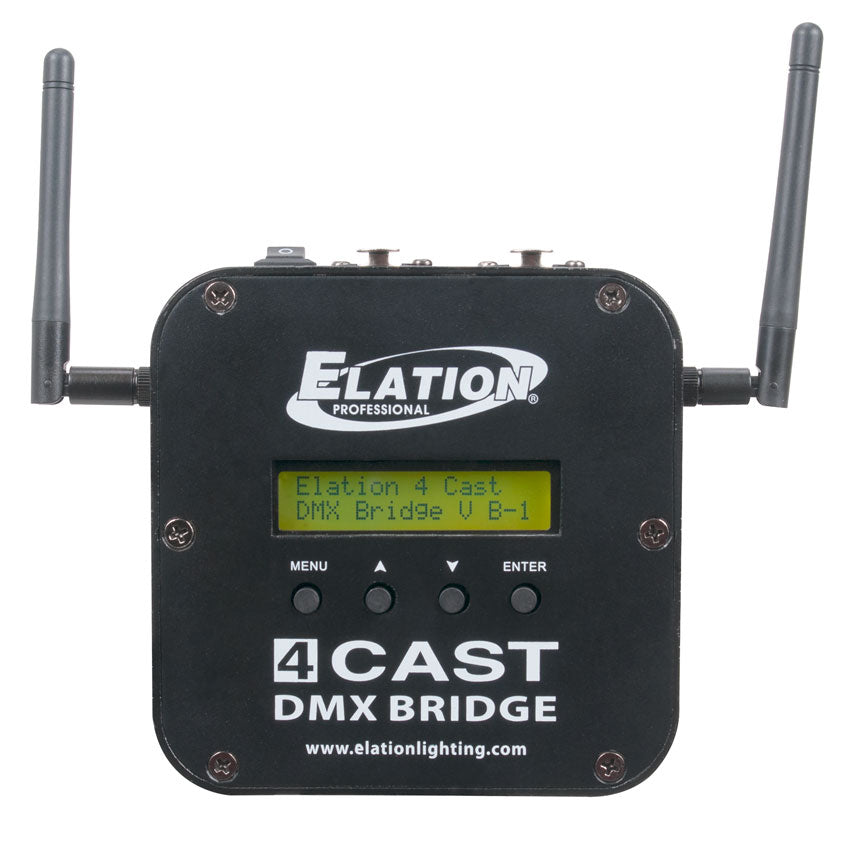

4-Button Control Panel
LCD System Menu Display
Separate WiFi and E-FLY Antennas

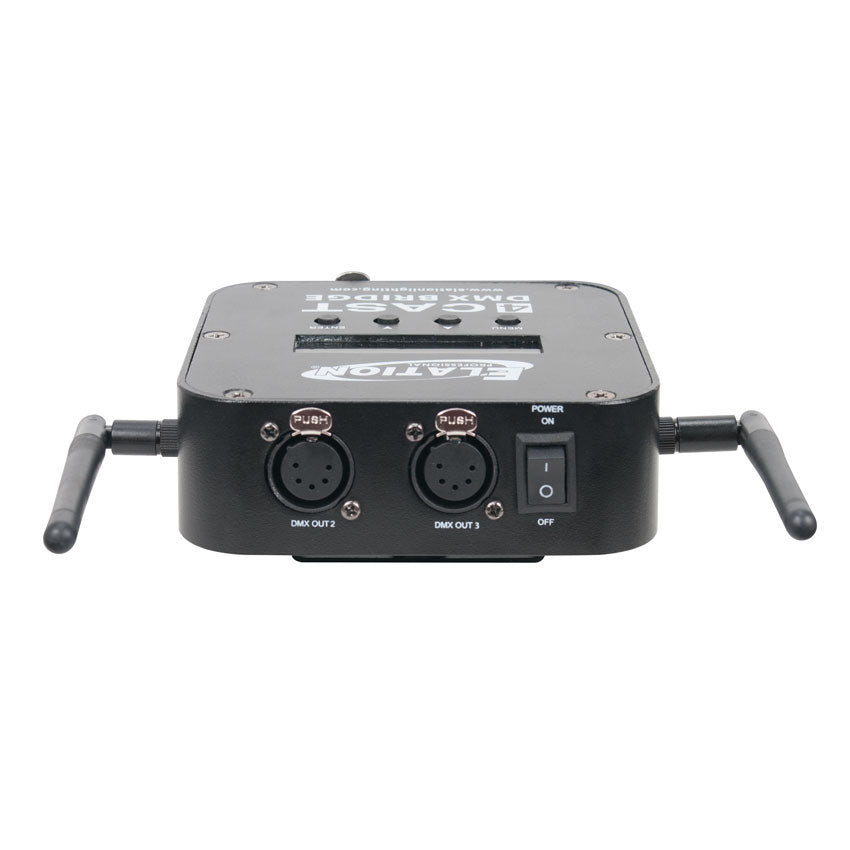

(3) 5pin DMX Outputs

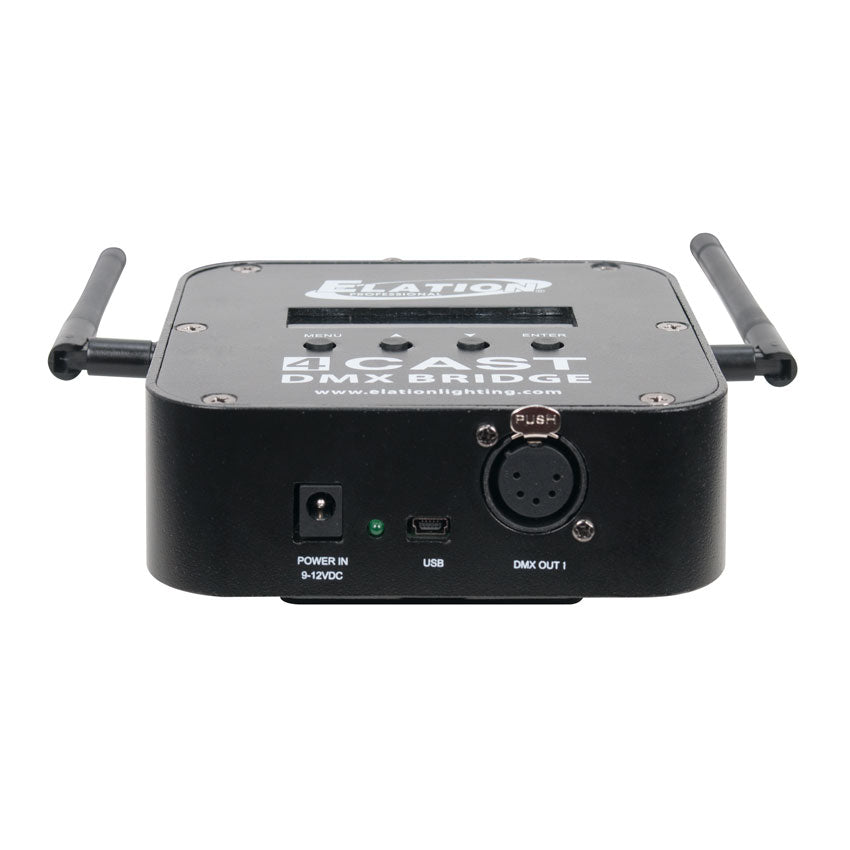

(1) Mini USB Port
SIZE / WEIGHT
Length: 4.92" (125mm)
Width: 6.88" (175mm)
Vertical Height: 2.44" (62mm)
Weight: 1.06 lbs. (0.48kg)
ELECTRICAL
DC 9-12V 1Amp
APPROVALS
CE | cETLus
Apple, the Apple logo, iPhone, iPad, and iPod Touch are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.
Specifications and documentation subject to change without notice.
