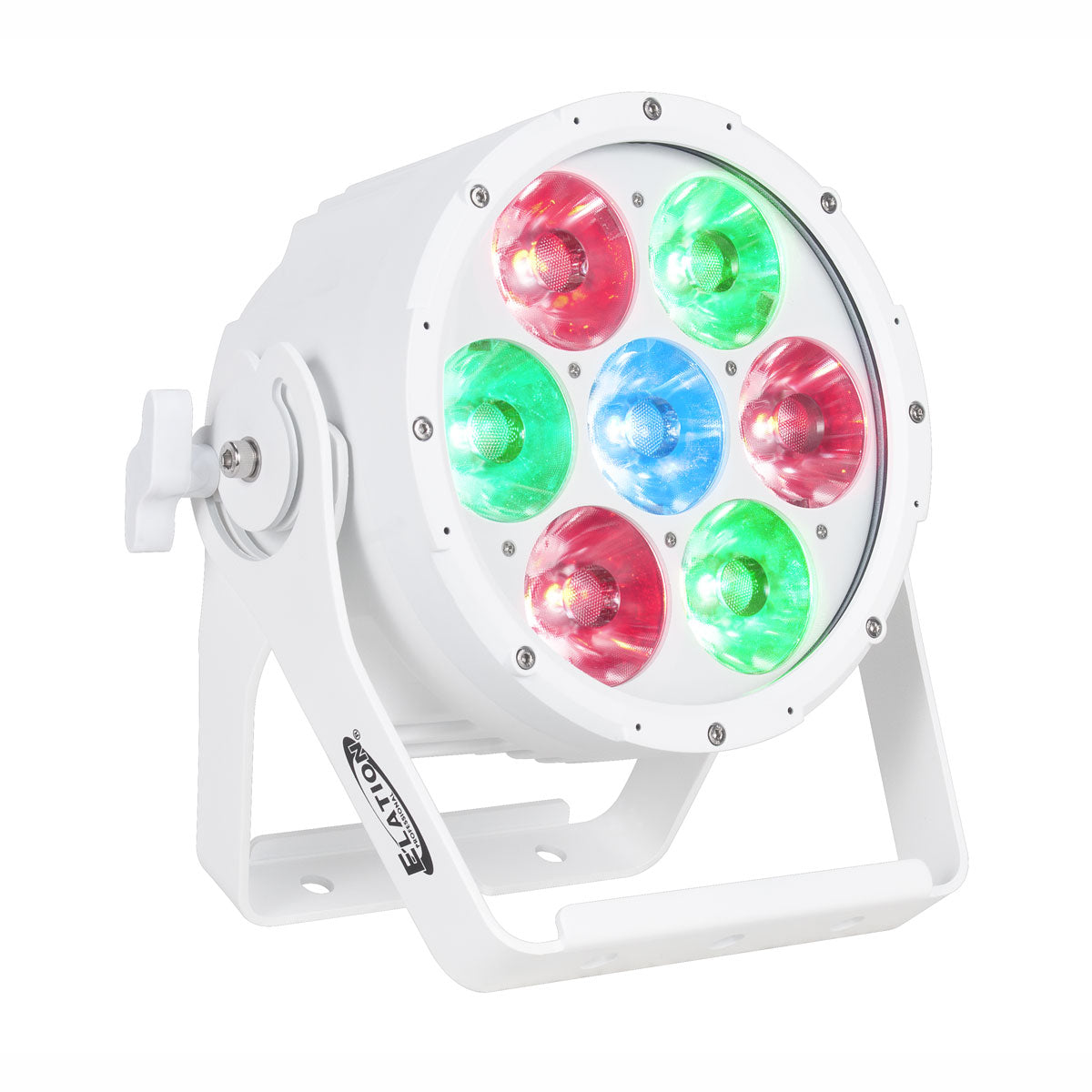

The IP65 outdoor rated ACL PAR 200IPWH™ includes the same features as the standard ACL PAR 200 model but with a special added White Marine Grade exterior coating and Hard Wired (bare wire) IP rated power/data combo in/out cables attached, designed for permanent marine/coastal environment installations.
Featuring (7) individual 15W RGBW 4-in-1 LEDs and the new advanced collimator optic lens, producing a laser-like homogenized 4° color-changing beam from each lens which combined produce a 11° beam angle. Features include full individual pixel control, strobe, and selectable dimming curve effects, DMX, RDM (Remote Device Management) support, IP-rated 5 conductor hard wire DMX and power in/out cables, (4) touch control pads, LCD menu display, 110W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).
Features
IP65 Outdoor Rated Par Luminaire
Special White Marine Grade Exterior Coating

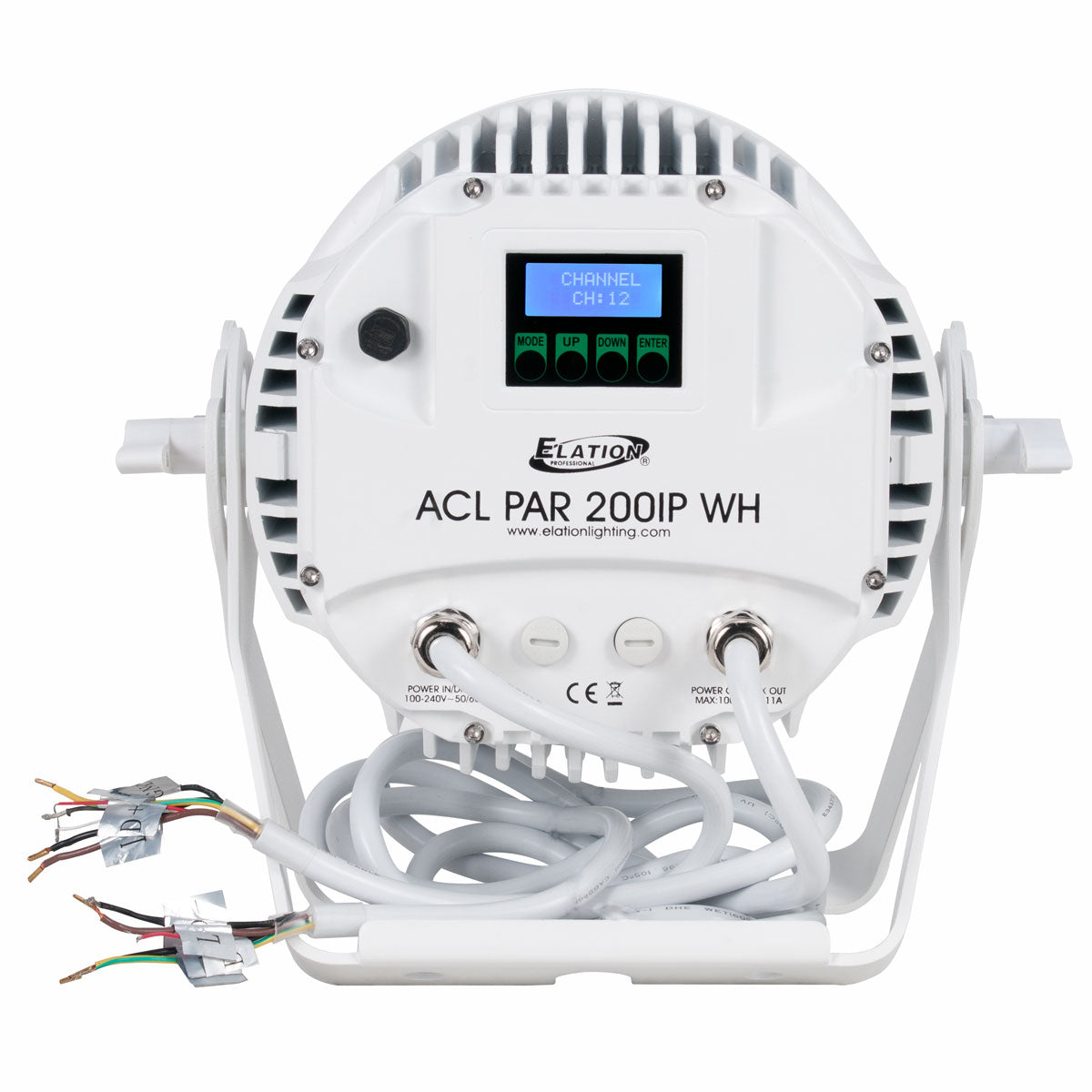

Hard Wired (Bare Wire) IP Rated Power/Data Combo In/Out Cables Attached
New Advanced Collimator Lens

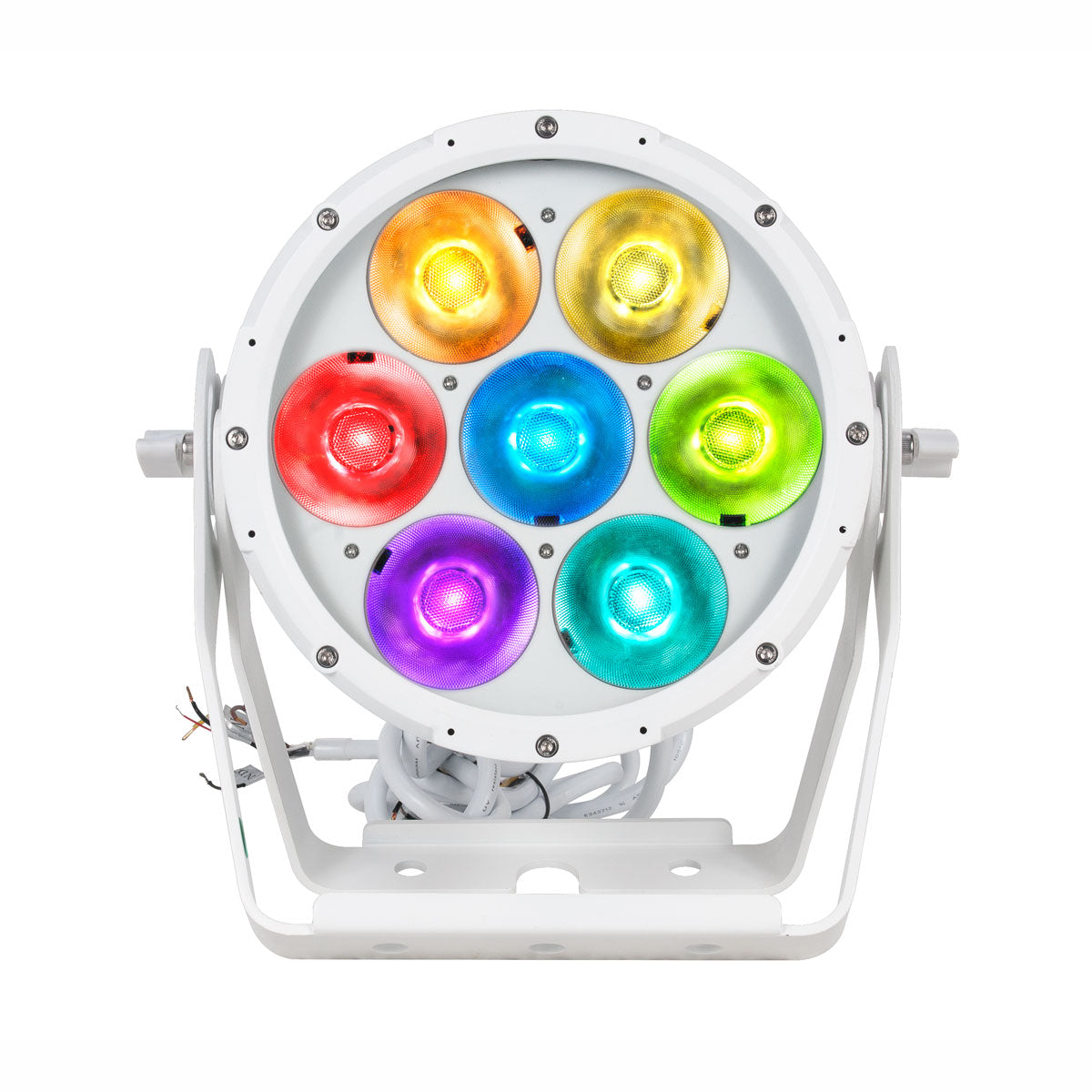

(7) Pixel Control RGBW 4-in1 LEDs
Laser-Like Homogenized 4° Color Changing Beams
Strobe and Selectable Dimming Curves
Flicker Free Operation for Broadcast TV and FILM
Resources
Specification information
Guides/ Manuals
PHOTOMETRIC DATA
PHOTOMETRIC DATA
DMX/ RDM Traits
Drawings
CAD File
CAD File
- ACL PAR 200IP Vectorworks 2014 Symbol
- ACL PAR 200IP Vectorworks 2015 Symbol
- ACL PAR 200IP Vectorworks 2016 Symbol
Related Categories
Specifications
(7) 15W RGBW 4-in-1 LEDs
100,000 Hour Average Lamp Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
EFFECTS
Individual Pixel Control
Strobe and Selectable Dimming Curves
COLOR
RGBW
CONTROL / CONNECTIONS
(11) DMX Channel Modes:
(4CH1:04 / 4CH2:04 / 6 / 8 / 10 / 12 / 27 / 28 / 30 / 32 / 35)
RDM (Remote Device Management)
4 Touch Control Pads
LCD Menu Display
Hard Wired (Bare Wire) IP Rated Power/Data Combo In/Out Cables Attached
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 12.3” (313mm)
Width: 6.9” (174.5mm)
Vertical Height: 11.8” (300mm)
Weight: 14.0 lbs. (6.4 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
110W Max Power Consumption
Power Linking: 9pcs Max @110V / 21pcs Max @230V
5F to 113°F (-15°C to 45°C)
APPROVALS / RATINGS
CE | IP65
Specifications and documentation subject to chance without notice.
