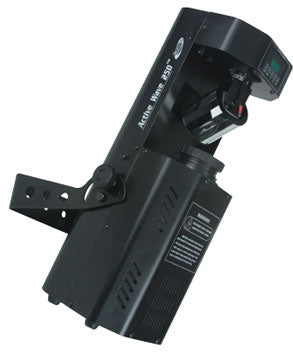

Active Wave 250
Features
High Output Intelligent Lighting Fixture
BARREL Mirror Effect
Control Features
• USITT DMX-512 6 DMX Channels (8-bit)
• 4 Digit LED display
• 3 Pin XLR Serial input/output
• Pan postitions barreled mirror
• Tilt rotates mirror at different speeds
Features & Specs
• 19º Beam Angle
• Manual Focus

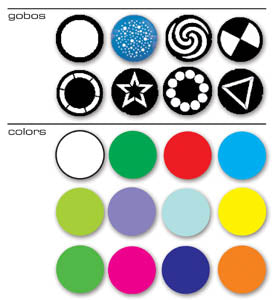

• 11 colors + white
• 7 gobos + spot
• 1 Glass Dichro Gobo
• Color & Gobo Scroll
• Gobo Shake Effect
• Rotating gobos
• Primary/Secondary Operation
• Linkable with ACTIVE SCAN-250
• Sound activated built-in programs
• Mechanical Dimming 0-100%
• Mechanical Shutter
• Strobe & Pulse effect
• Variable Speed Strobe (1-15fps)
• Fan Cooled
GOBO SIZE: 26.9mm x 23mm
Technical Specifications
• Lamp: MSD250/2 (250W, 8500K, 2000H)
• Dimensions (LxWxH): 10.25” x 11.75” x 25.5”
(260x299x650mm)
• Weight: 30 lbs / 13.5 kgs
• Fuse 10A
• Voltage: 115V/60Hz
• Power Consumption: 300VA
BARREL Mirror Effect
Control Features
• USITT DMX-512 6 DMX Channels (8-bit)
• 4 Digit LED display
• 3 Pin XLR Serial input/output
• Pan postitions barreled mirror
• Tilt rotates mirror at different speeds
Features & Specs
• 19º Beam Angle
• Manual Focus
• 11 colors + white
• 7 gobos + spot
• 1 Glass Dichro Gobo
• Color & Gobo Scroll
• Gobo Shake Effect
• Rotating gobos
• Primary/Secondary Operation
• Linkable with ACTIVE SCAN-250
• Sound activated built-in programs
• Mechanical Dimming 0-100%
• Mechanical Shutter
• Strobe & Pulse effect
• Variable Speed Strobe (1-15fps)
• Fan Cooled
GOBO SIZE: 26.9mm x 23mm
Technical Specifications
• Lamp: MSD250/2 (250W, 8500K, 2000H)
• Dimensions (LxWxH): 10.25” x 11.75” x 25.5”
(260x299x650mm)
• Weight: 30 lbs / 13.5 kgs
• Fuse 10A
• Voltage: 115V/60Hz
• Power Consumption: 300VA
