Arena Par
Arena Par
Discontinued
SKU# ARE717

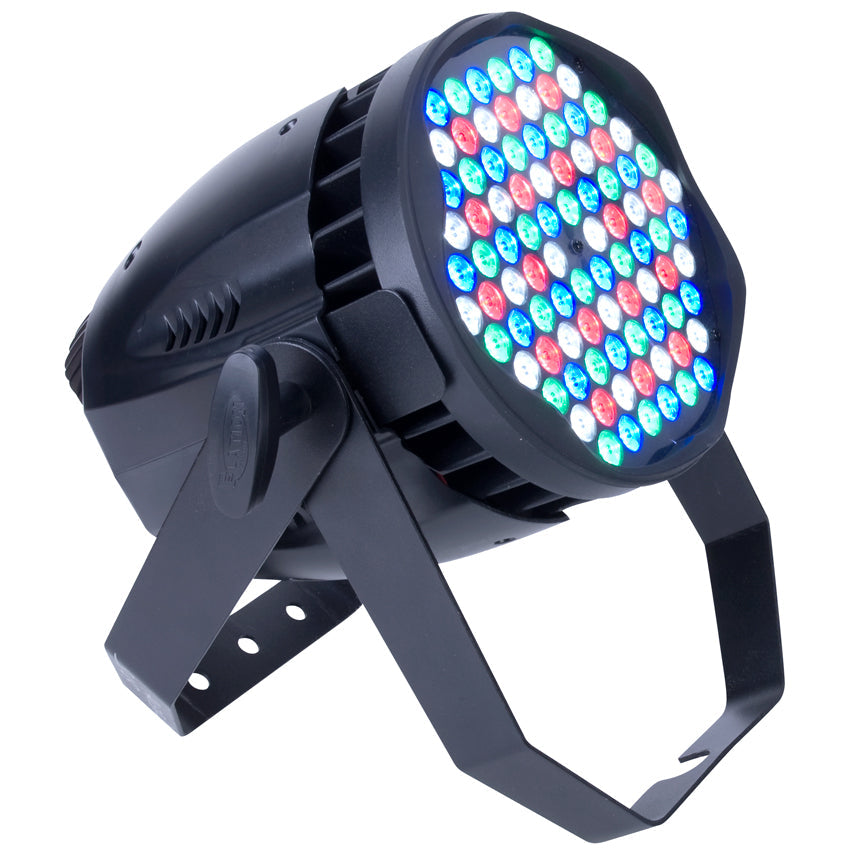

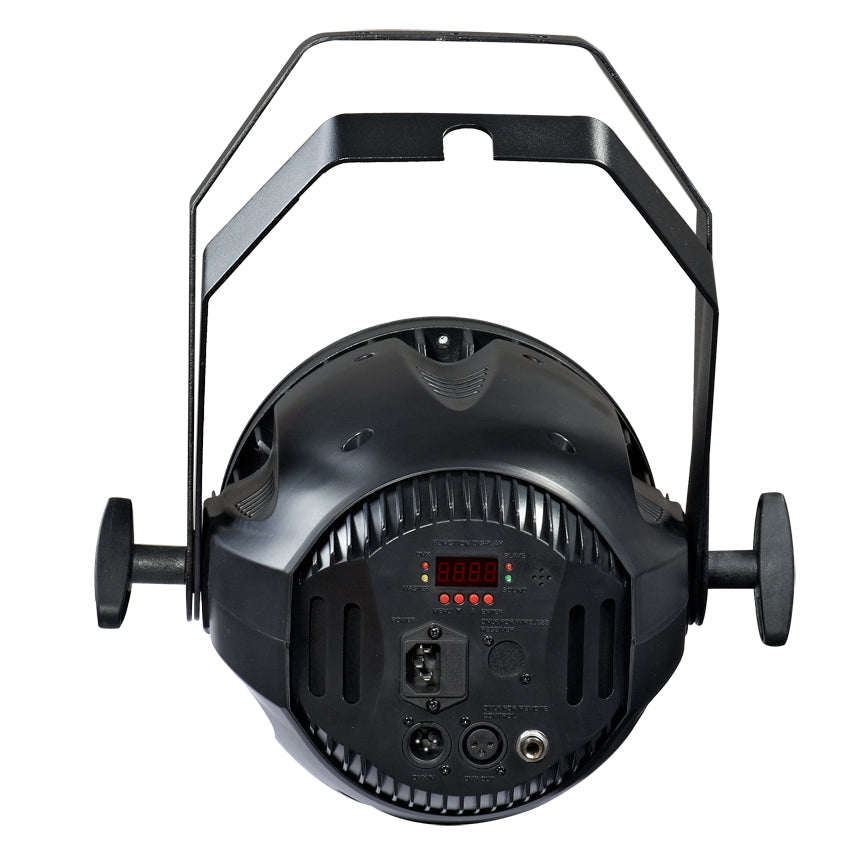

The Arena Par™ is a fan cooled die-cast aluminum RGBW par can featuring (90) RGBW LEDs, 15° standard beam angel, electronic dimming, flicker free operation for TV and FILM, 4 digit LED control display, DMX controlled via 3 DMX modes (4/5/7), Primary/Secondary modes, 3pin DMX in/out, and an integrated dual rigging yoke / floor stand.
Features
Resources
Guides/ Manuals
- Arena Par Cut Sheet
- Arena Par DMX Chart
- Arena Par User Manual
- Arena Par Photometric Data
- Arena Par IES Files
- Arena Par CAD File
Related Categories
Specifications
DMX Channels: 3 DMX modes: 4, 5, & 7
Control: USITT DMX-512, 3 pin XLR data input & output
Dimmer: Master Dimmer (7 ch mode)
Strobe: Yes
IP Rating: IP 20
Power Supply: 100 - 240v, 50/60Hz
Power Consumption: 280W
Ballast: Electronic
Cable / Plug Type: IEC input pnly
Approvals: CE Approved
Lamp: 90x 3W CREE XP-E LED - 18x Red, 24x Green, 24x Blue, 24x White
Lamp Life: 50,000 hrs. life
Lux: 11800 Lux @ 3M @ Full
Dimensions: (L x W x H) 9.25” x 11.75” x 10.5” / 234 x 299 x 265mm
Weight: 18 lbs / 7.9 kg
Rigging: Split Yoke Bracket /safety and data cable optional
