ART-1024

Features

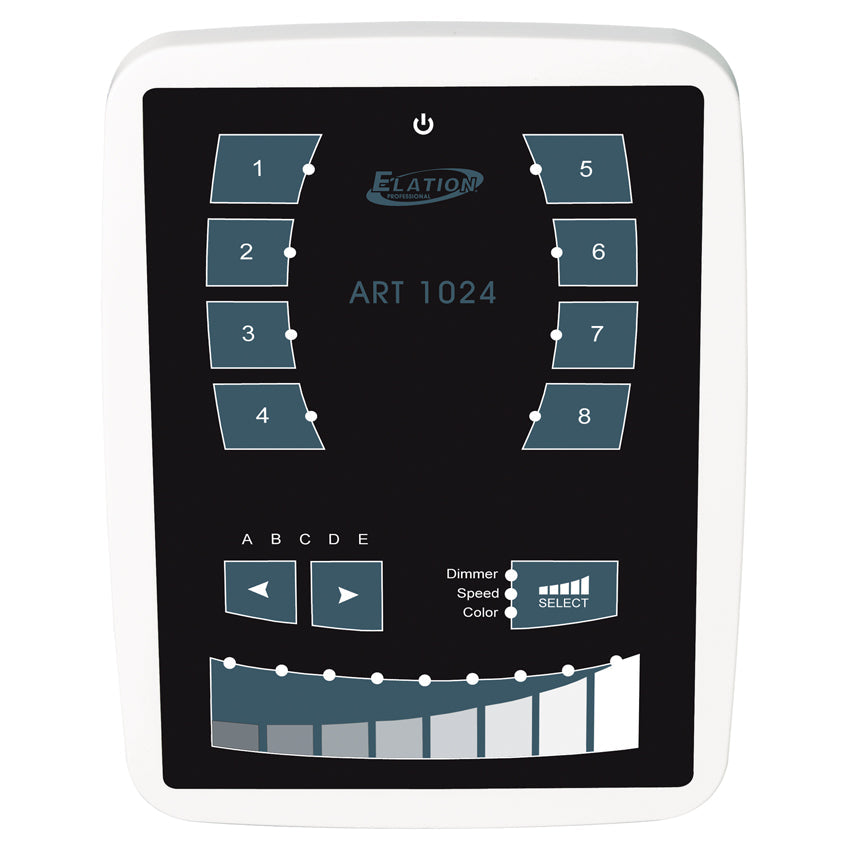

TOUCH SENSITIVE, WALL MOUNT, DMX LIGHTING CONTROLLER.

 THE NEXT GENERATION LIGHTING CONTROLLER OPTIMIZED FOR THE ARCHITECTURAL LIGHTING INDUSTRY.

 Easily create your own "ART" with the new ART-1024 wall mount controller form Elation!


• User interface 14 buttons, 1 fader, 28 leds - Touch Sensitive Keypad (extension socket rear connectors - 2x20 pins)

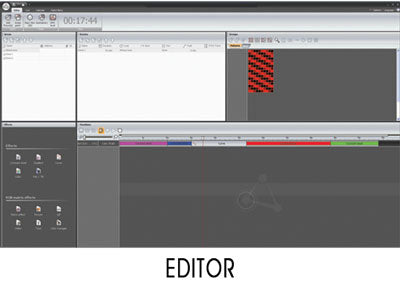

• Programming software included to run on PC

• SD Card Mini SD (included) card for stand alone memory use (Built-in features) & (front access connections - open cover)

• RESET Push button for reset operation (front access connections - open cover)

• RS232 RS232 serial communication for external synchronization (extension socket rear connectors - 2x20 pins)

• Output relay Automatic stand by 5V signal (extension socket rear connectors - 2x20 pins)

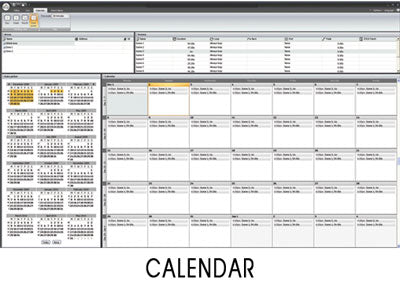

• Real time clock and calendar, 10 minutes saving without power (Built-in features)

• IR Receiver* Easy learning triggering from any 36Khz remote control (Built-in features)

• DMX Output #1 Universe 1, 512 channels DMX512 Output (screw-terminal rear connector - 9 pins)

• DMX Output #2* Universe 2, 512 channels DMX512 Output (extension socket rear connectors - 2x20 pins)

• USB USB 2.0 communication for PC/software (extension socket rear connectors - 2x20 pins)

• Ethernet** Advanced networking features (front access connections - open cov

 Package Content: Interface, SD card, user manual, cdrom, USB cable, power supply (*)
 PC Requirement Computer using Windows XP/VISTA 32 bits and USB 2.0
 PC Software Included: ART 1024
 Options Dedicatted remote control (**), Ethernet extesion (**)
 Safety Standards EC, EMC, ROHS
 Temperature 14°F to 122°F (-10°C to 50°C)
 Dimensions 6.62" x 5.04" x 0.45" Complete package (168 x 128 x 11,5mm)
 Weight 0.44lbs. (0,2kg) Complete package 1.32lbs. (0,6kg)

• Power Supply 9VDC 0.65A, Supplied (screw-terminal rear connector - 9 pins)

• Ports 1,2,3,4 4 Contact closure inputs, connect to ground for operating (extension socket rear connectors - 2x20 pins)

• Ports 5,6,7,8 4 Contact closure inputs, connect to ground for operating (screw-terminal rear connector - 9 pins) & (extension socket rear connectors - 2x20 pins)

• Microphone** Built-in microphone for sound to light effect (Built-in features)

• Audio input** Audio input for sound to light effect (extension socket rear connectors - 2x20 pins)

 (**) Advanced networking features available in middle of 2009
 Some future features will require a firmware upgrade. others may require a free exchange of the electronic card.
