PIXEL BAR 60IP Service, Support & Parts Page

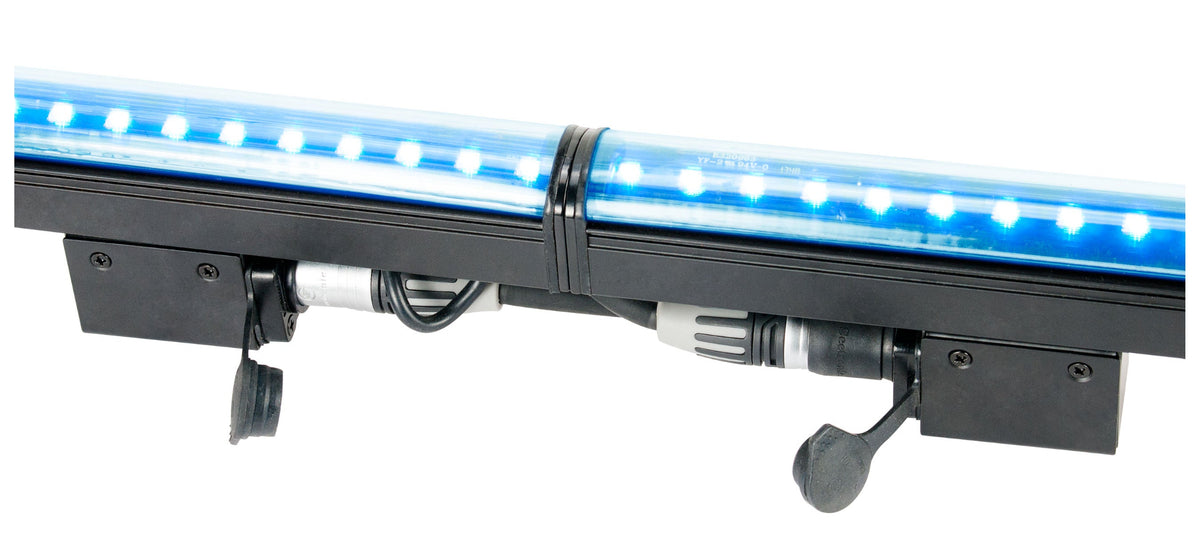

PIXEL BAR 60IP is a professional-grade lighting solution. The PIXEL BAR 60IP™ is an outdoor IP65 rated LED pixel bar featuring (60) tri-color RGB SMD LEDs with a 16mm pixel pitch, a refresh rate of 44,000Hz for flicker free operation for broadcast TV and FILM applications, and measures 1 meter (3.3 feet) in length.
PIXEL BAR 60IP Service, Support & Parts Page
PIXEL BAR 60IP is a professional-grade lighting solution. The PIXEL BAR 60IP™ is an outdoor IP65 rated LED pixel bar featuring (60) tri-color RGB SMD LEDs with a 16mm pixel pitch, a refresh rate of 44,000Hz for flicker free operation for broadcast TV and FILM applications, and measures 1 meter (3.3 feet) in length.
Downloads
| Filename | Document type | File type |
|---|---|---|
| Pixel Bar 60IP - 2D Cad Drawing | CAD Drawing | DWG |
| Pixel Bar 60IP - 3D Cad Drawing | CAD Drawing | DWG |
| Pixel Bar 60IP - Dimensional Drawing | Dimensional Drawings | |
| Pixel Bar 60IP - DMX Traits | DMX Traits | |
| Pixel Bar 60IP - Photometric IES Files | IES Files | ZIP |
| Pixel Bar 60IP - Photometric Test Report | Photometrics | ZIP |
| Pixel Bar 60IP - Specification Sheet | Specification Sheet | |
| Pixel Bar 60IP - User Manual | User Manual | |
| Pixel Bar 60IP - Vectorworks Symbol | Vectorworks Symbol | ZIP |
PIXEL BAR 60IP Parts
