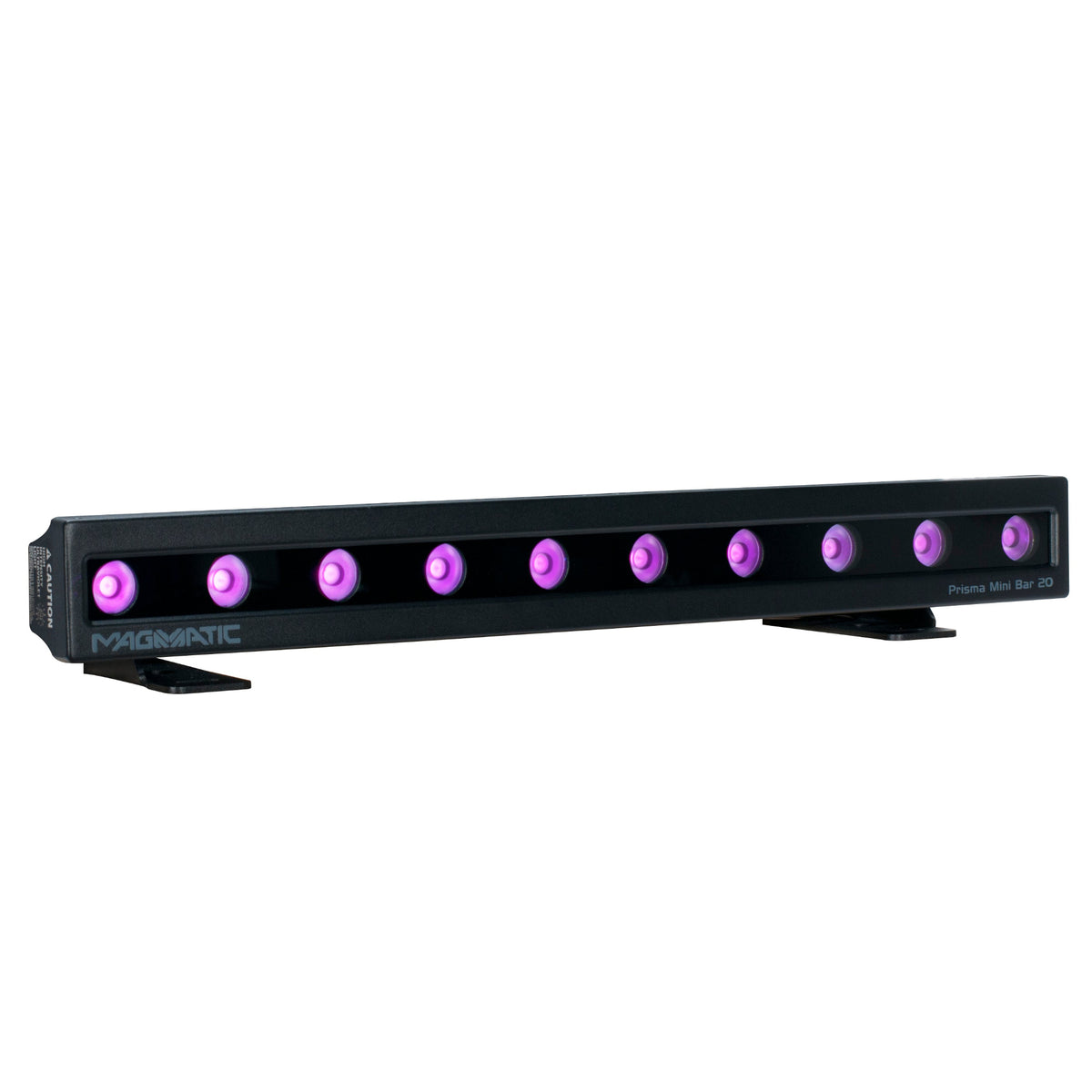

PRISMA MINI BAR 20 Service, Support & Parts Page
PRISMA MINI BAR 20 is a professional-grade lighting solution. PRISMA MINI BAR 20™ is is an IP65 rated exterior UV wash bar luminaire that produces 365nm peak true UV output with zero visible light, and an impressive 20 degree beam angle. Powered by the PRISMA DRIVER 8™ or PRISMA DRIVER 8IP™ 'Not Included' IP65 Rated Exterior High-Power UV Wash Bar Luminaire 10x 2 Watt LEDS 36.7 Volts #160;24.3W Max Power Consumption 20 Degree Narrow Beam Angle 19' 22 Gauge 2 Conductor wire with Phoenix connector Zero Visible Light Output.
PRISMA MINI BAR 20 Service, Support & Parts Page
PRISMA MINI BAR 20 is a professional-grade lighting solution. PRISMA MINI BAR 20™ is is an IP65 rated exterior UV wash bar luminaire that produces 365nm peak true UV output with zero visible light, and an impressive 20 degree beam angle. Powered by the PRISMA DRIVER 8™ or PRISMA DRIVER 8IP™ 'Not Included' IP65 Rated Exterior High-Power UV Wash Bar Luminaire 10x 2 Watt LEDS 36.7 Volts #160;24.3W Max Power Consumption 20 Degree Narrow Beam Angle 19' 22 Gauge 2 Conductor wire with Phoenix connector Zero Visible Light Output.
Downloads
| Filename | Document type | File type |
|---|---|---|
| Prisma Mini Bar 20 - 2D Cad Drawing | CAD Drawing | DWG |
| Prisma Mini Bar 20 - Dimensional Drawing | Dimensional Drawings | |
| Prisma Mini Bar 20 - User Manual | User Manual | |
| Prisma Mini Bar 20 Specification Sheet | Specification Sheet | |
| Prisma Mini Bar 3D CAD | CAD Drawing | DWG |
