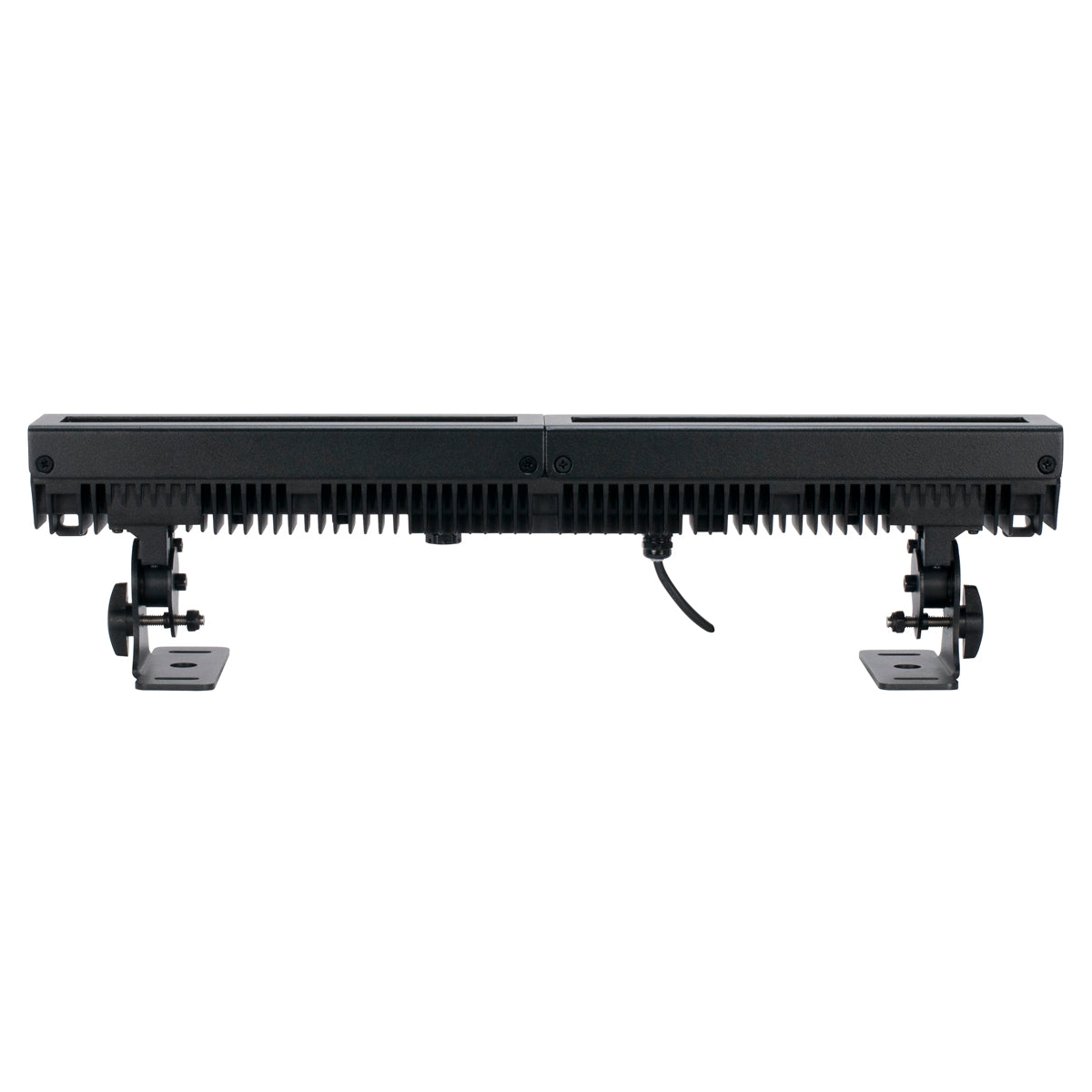

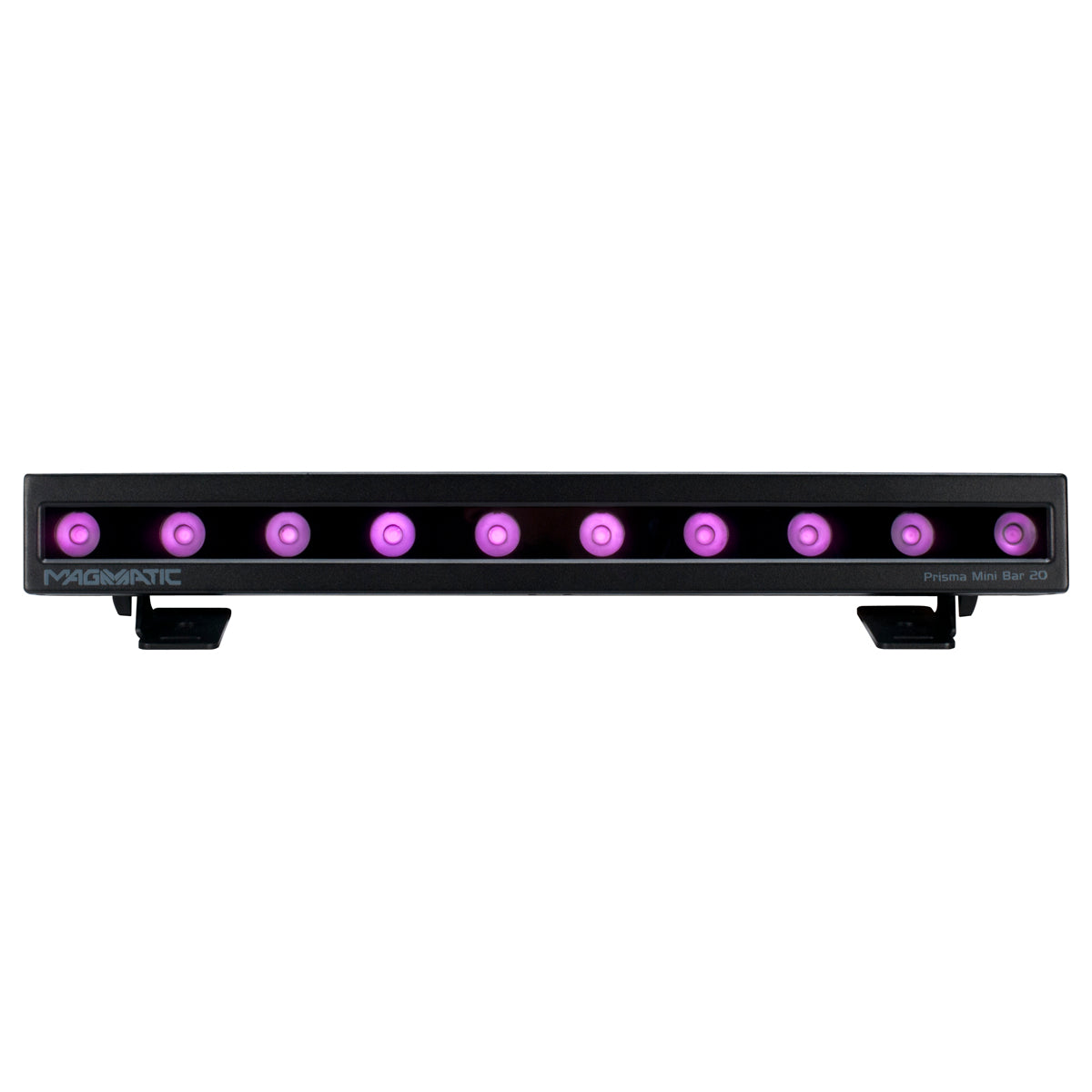

10x 2W 365nm LED IP65 20° Mini Linear Wash Fixture

PRISMA MINI BAR 20 is a professional-grade lighting solution. PRISMA MINI BAR 20™ is is an IP65 rated exterior UV wash bar luminaire that produces 365nm peak true UV output with zero visible light, and an impressive 20 degree beam angle. Powered by the PRISMA DRIVER 8™ or PRISMA DRIVER 8IP™ 'Not Included' IP65 Rated Exterior High-Power UV Wash Bar Luminaire 10x 2 Watt LEDS 36.7 Volts #160;24.3W Max Power Consumption 20 Degree Narrow Beam Angle 19' 22 Gauge 2 Conductor wire with Phoenix connector Zero Visible Light Output.

UPC: 810008261187SKU: PSB121

Related Products

PRISMA DRIVER 8PRISMA DRIVER 8
PRISMA DRIVER 8
PRISMA MINI PAR 20PRISMA MINI PAR 20
PRISMA MINI PAR 20
PRISMA MINI PAR 45PRISMA MINI PAR 45
PRISMA MINI PAR 45
PRISMA DRIVER 8IPPRISMA DRIVER 8IP
PRISMA DRIVER 8IP

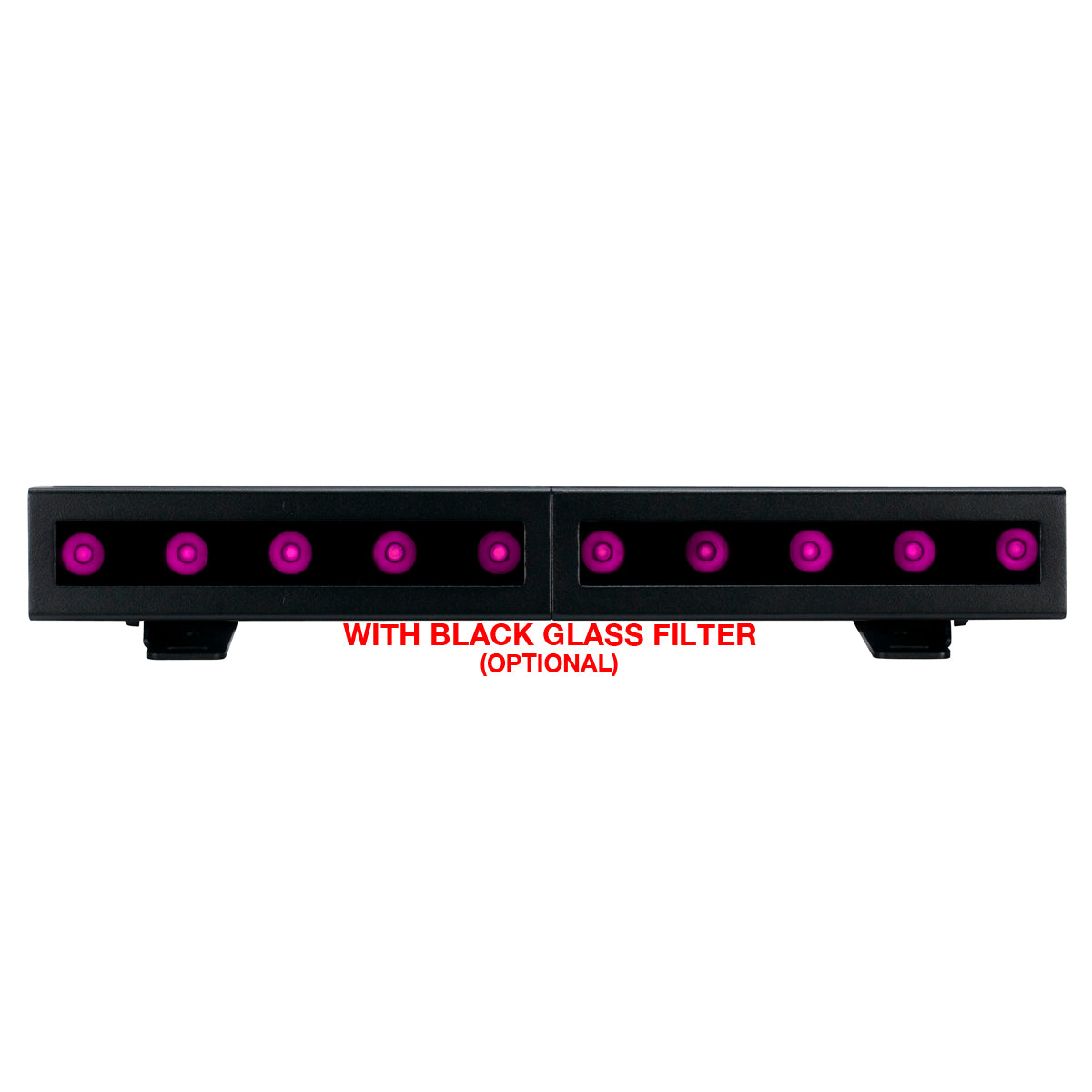

PRISMA MINI BAR BLACK GLASSPRISMA MINI BAR BLACK GLASS
PRISMA MINI BAR BLACK GLASS

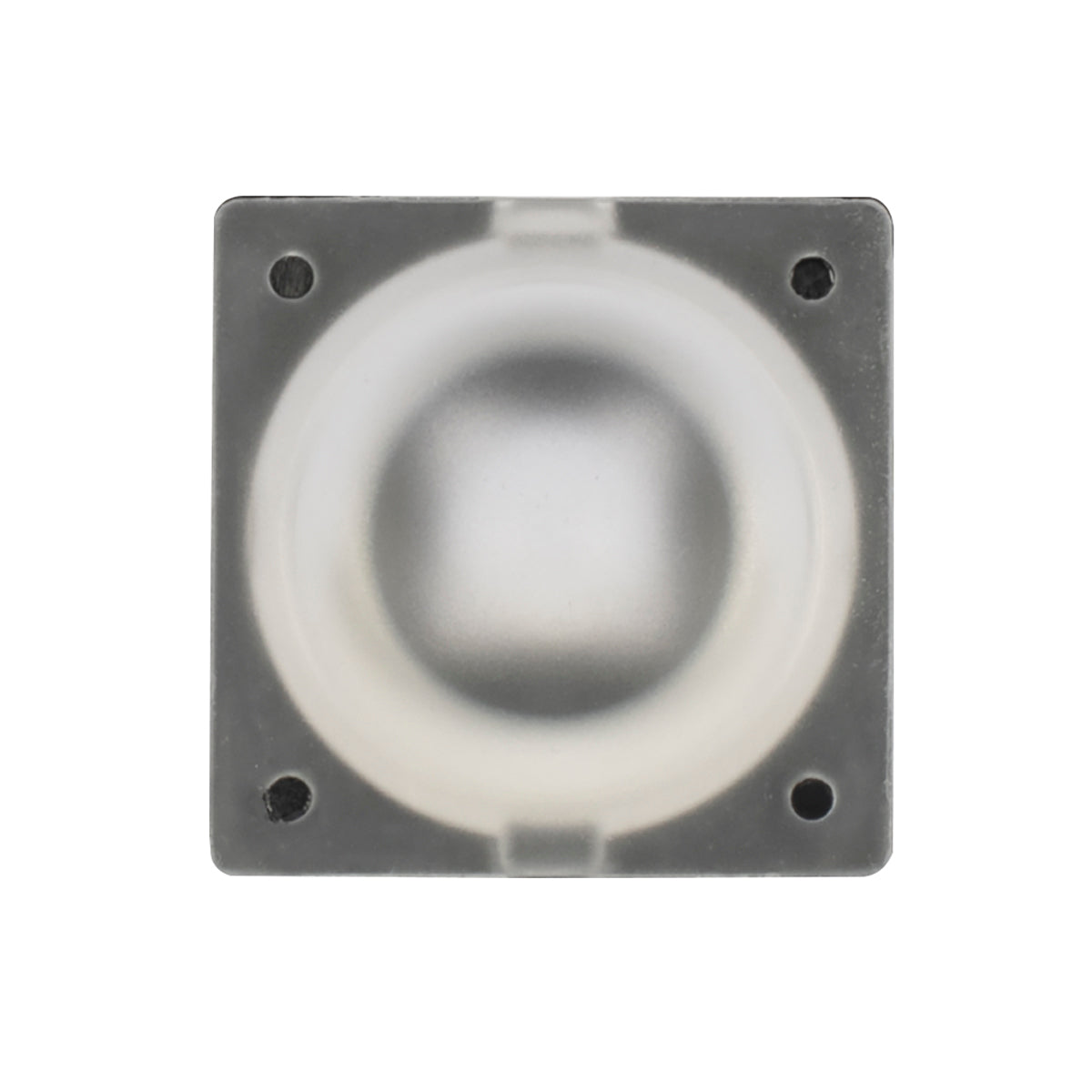

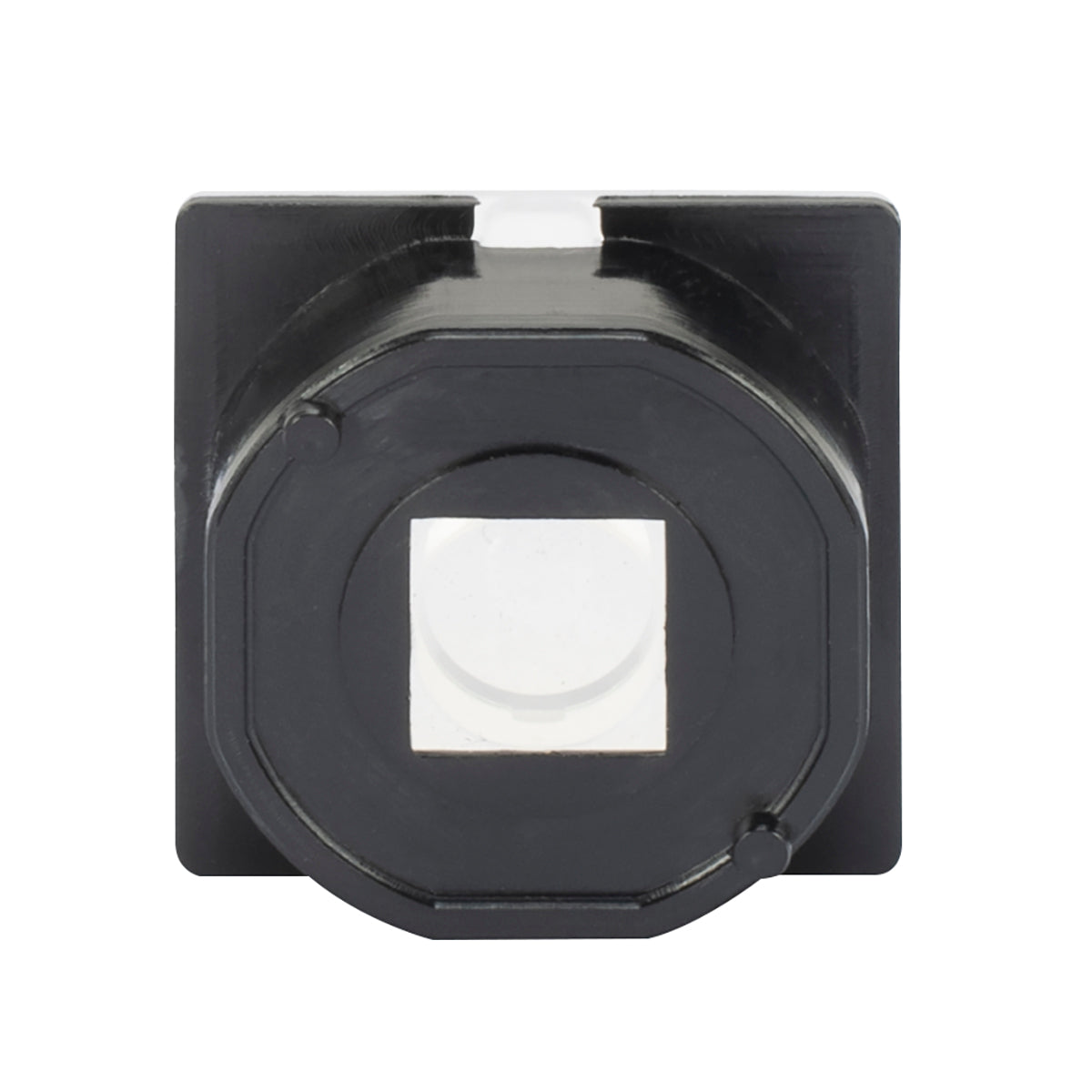

PRISMA-MB45LPRISMA-MB45L
PRISMA-MB45L

PRISMA MINI BAR 20

PRISMA MINI BAR 20™ is is an IP65 rated exterior UV wash bar luminaire that produces 365nm peak true UV output with zero visible light, and an impressive 20 degree beam angle.

Powered by the PRISMA DRIVER 8™ or PRISMA DRIVER 8IP™ 'Not Included'

  • IP65 Rated Exterior High-Power UV Wash Bar Luminaire
  • 10x 2 Watt LEDS
  • 36.7 Volts
  • 24.3W Max Power Consumption
  • 20 Degree Narrow Beam Angle
  • 19' 22 Gauge 2 Conductor wire with Phoenix connector
  • Zero Visible Light Output

Specifications

SOURCE
(10) 2W High Power UV Diode LEDs
20,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA
20 Degree Narrow Beam Angle
365nm True UV Peak Wavelength

EFFECTS
High Speed Electronic Strobe
Variable Dimming Curve Modes

CONSTRUCTION
Rugged IP65 Rated Aluminum Housing

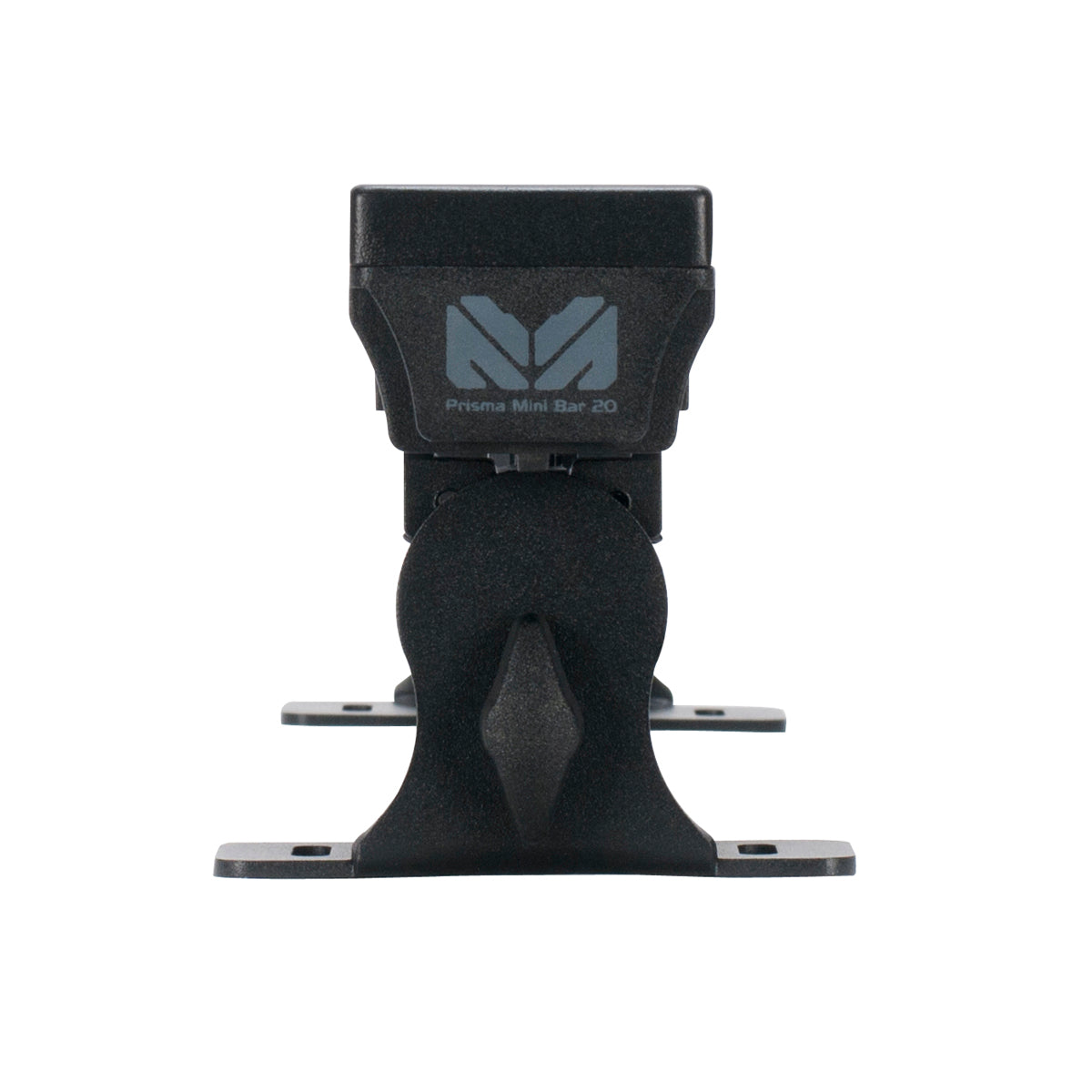

Adjustable Mounting Brackets (x2)

CONTROL (Via PRISMA DRIVER 8 or PRISMA DRIVER 8IP)
Multiple DMX Channel Modes
DMX-512 and RDM Protocol Support

CONNECTIONS
19' 22 AWG 2 Conductor wire with Phoenix connector
Minimum Cable Requirement: 22 AWG
Maximum Distance From Driver to Fixture: 40'

SIZE / WEIGHT
Length: 3.97 in. (100mm)
Width: 18.9 in. (480mm)
Vertical Height: 4.19 in. (106.5mm)
Weight: 4.2 lbs. (1.90kg)

ELECTRICAL
DC 36.7V (Via Pixel Driver 8)
24.3W Max Power Consumption

THERMAL
14°F to 113°F (-10°C to 45°C)
Air Cooled

APPROVALS / RATINGS
CE | cETLus | IP65

Specifications and documentation subject to change without notice.
