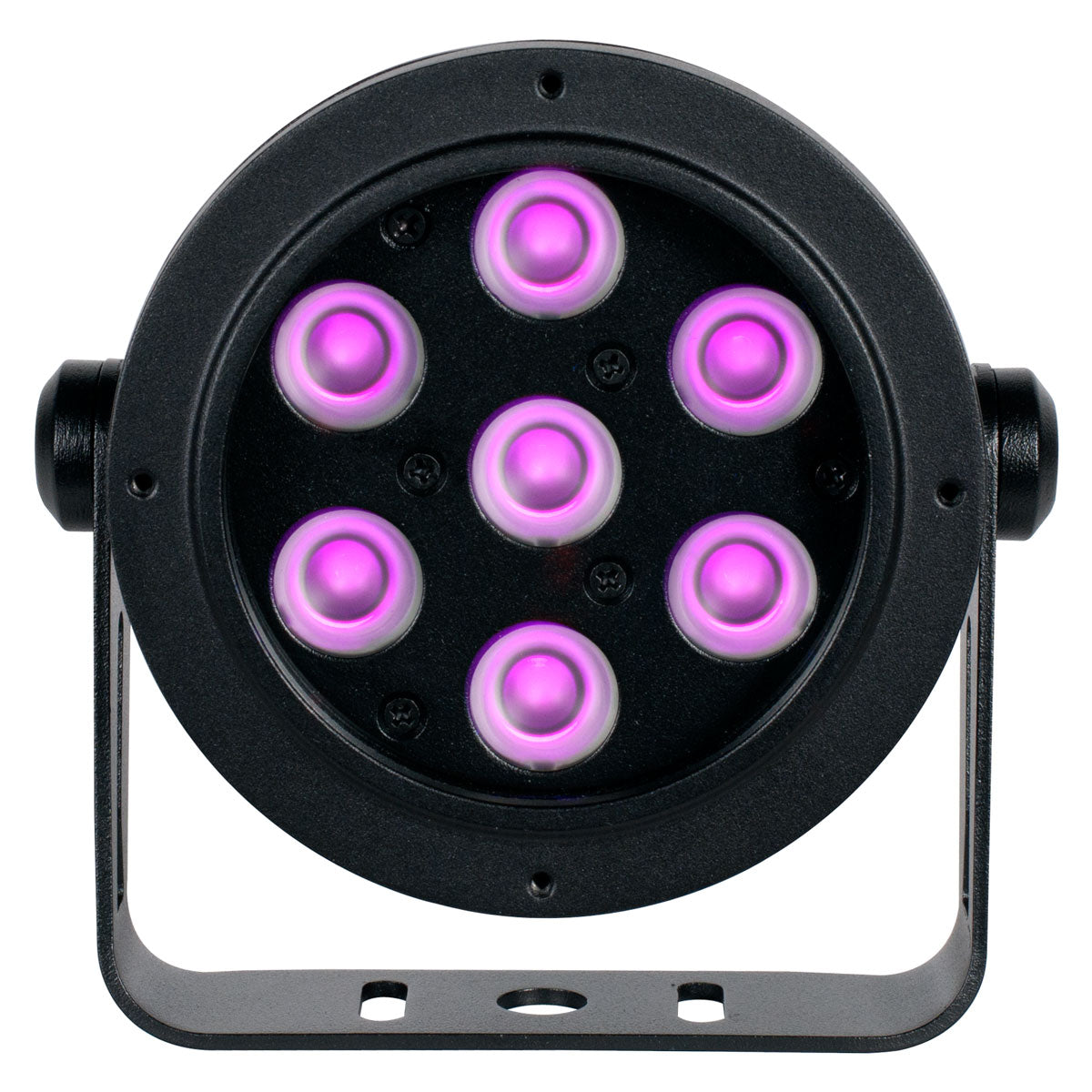

PRISMA MINI PAR 45


7x 2W 365nm LED IP65 45° Mini Par Fixture

PRISMA MINI PAR 45 is a professional-grade lighting solution. PRISMA MINI PAR 45™ is an IP65-rated exterior UV wash par luminaire that produces 365nm peak true UV output with zero visible light, and an impressive 45-degree beam angle. Powered by the PRISMA DRIVER 8™ or PRISMA DRIVER 8IP™ , 'Not Included' IP65 Rated Exterior High-Power UV Wash Par Luminaire 7x 2 Watt LEDS 19 Watt Max Power Consumption 9' 22 Gauge 2 Conductor wire with Phoenix connector 45 Degree Wide Beam Angle 365nm True UV Peak Wavelength Zero Visible Light Output.

UPC: 810008261170SKU: PSP145

PRISMA MINI PAR 45

PRISMA MINI PAR 45™ is an IP65-rated exterior UV wash par luminaire that produces 365nm peak true UV output with zero visible light, and an impressive 45-degree beam angle.

Powered by the PRISMA DRIVER 8™ or PRISMA DRIVER 8IP™, 'Not Included'

  • IP65 Rated Exterior High-Power UV Wash Par Luminaire
  • 7x 2 Watt LEDS
  • 19 Watt Max Power Consumption
  • 9' 22 Gauge 2 Conductor wire with Phoenix connector
  • 45 Degree Wide Beam Angle
  • 365nm True UV Peak Wavelength
  • Zero Visible Light Output

Specifications

SOURCE
7x 2W High Power UV Diode LEDs
20,000 Hour Average LED Life*

*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


PHOTOMETRIC DATA
45 Degree Wide Beam Angle
365nm True UV Peak Wavelength

EFFECTS
High Speed Electronic Strobe
Variable Dimming Curve Modes

CONSTRUCTION
Rugged IP65 Rated Aluminum Housing
Adjustable Mounting Yoke

CONTROL (Via PRISMA DRIVER 8 or PRISMA DRIVER 8IP)
Multiple DMX Channel Modes
DMX-512 and RDM Protocol Support

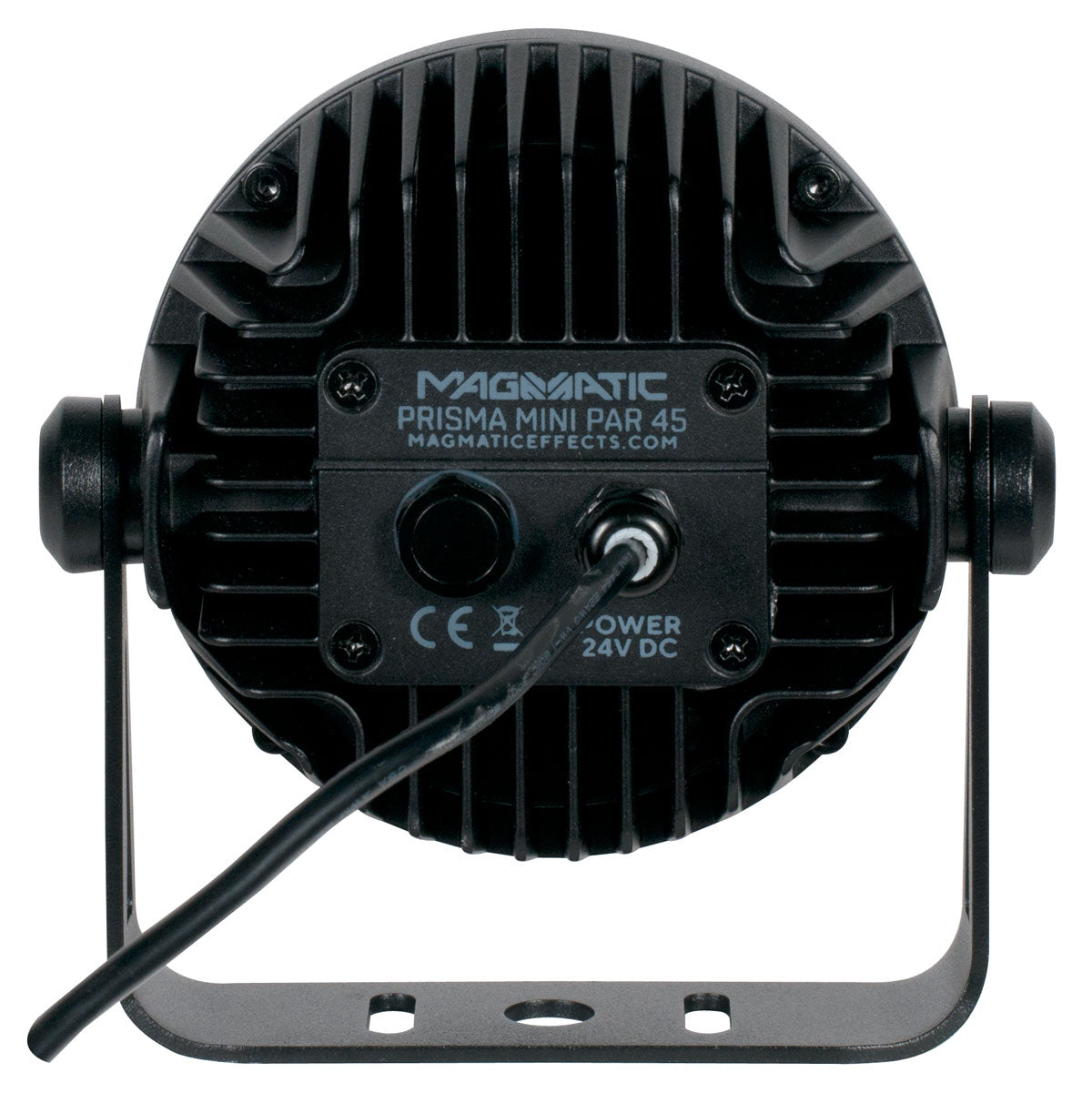

CONNECTIONS
9' 22 AWG 2 Conductor wire with Phoenix connector
Minimum Cable Requirement: 22 AWG
Maximum Distance From Driver to Fixture: 40'

SIZE / WEIGHT
Length: 5.66 in. (144mm)
Width: 2.86 in. (72.8mm)
Vertical Height: 5.64 in. (143.3mm)
Weight: 1.98 lbs. (0.9kg)

ELECTRICAL
DC 25V (Via Pixel Driver 8)
19 Watt Max Power Consumption

THERMAL
14°F to 113°F (-10°C to 45°C)
Air Cooled

APPROVALS / RATINGS
CE | cETLus | IP65

Specifications and documentation subject to change without notice.
