PRISMA MINI PAR 20


7x 2W 365nm LED IP65 20° Mini Par Fixture

PRISMA MINI PAR 20 is a professional-grade lighting solution. PRISMA MINI PAR 20™ is an IP65-rated exterior UV wash par luminaire that produces 365nm peak true UV output with zero visible light, and an impressive 20-degree beam angle. Powered by the PRISMA DRIVER 8™ or PRISMA DRIVER 8IP™ , 'Not Included' IP65 Rated Exterior High-Power UV Wash Par Luminaire 20 Degree Narrow Beam Angle 7x 2 Watt LEDS 365nm True UV Peak Wavelength 9' 22 Gauge 2 Conductor wire with Phoenix connector Zero Visible Light Output 19 Watt Max Power Consumption.

UPC: 810008261163SKU: PSP120

PRISMA MINI PAR 20

PRISMA MINI PAR 20™ is an IP65-rated exterior UV wash par luminaire that produces 365nm peak true UV output with zero visible light, and an impressive 20-degree beam angle.

Powered by the PRISMA DRIVER 8™ or PRISMA DRIVER 8IP™, 'Not Included'

  • IP65 Rated Exterior High-Power UV Wash Par Luminaire
  • 20 Degree Narrow Beam Angle

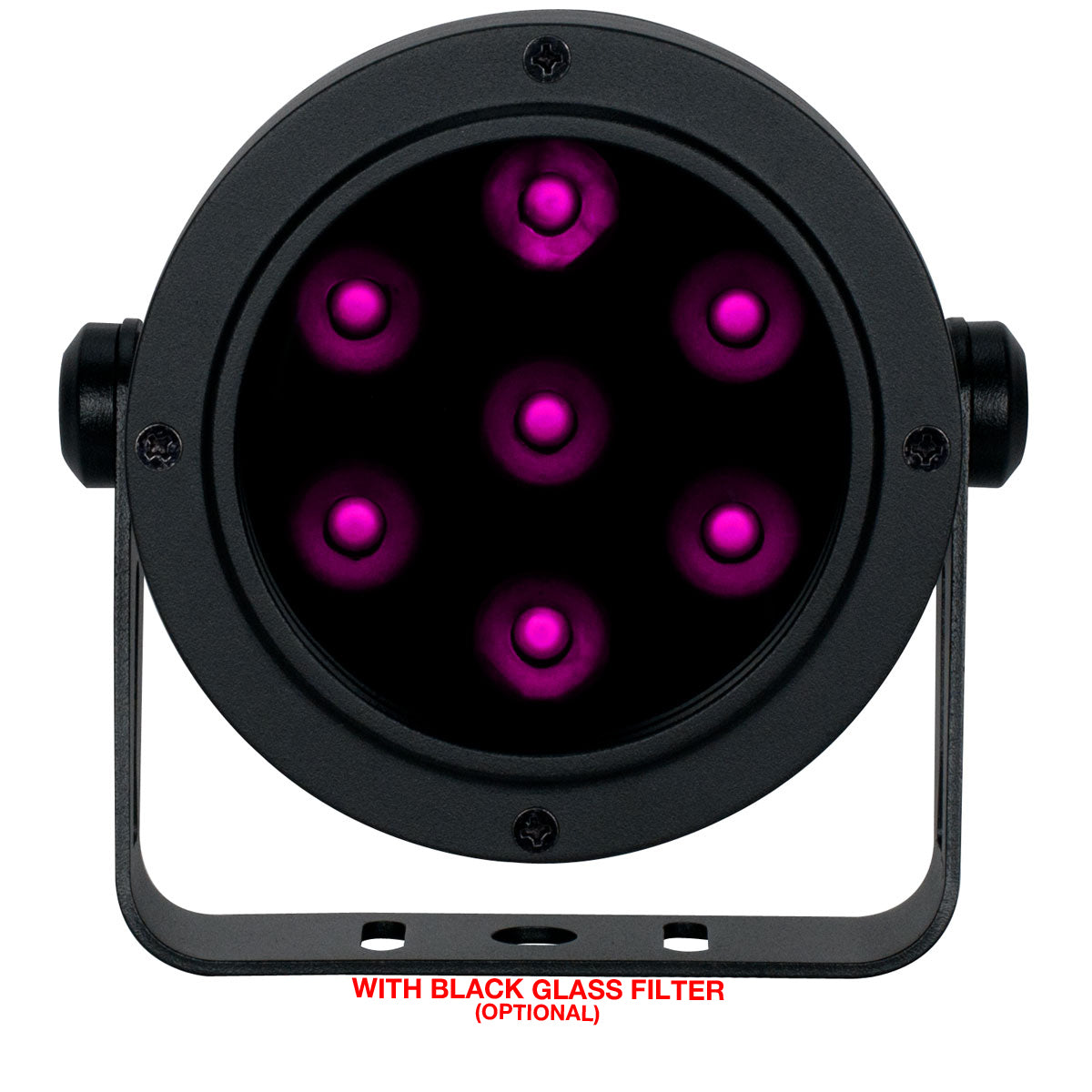

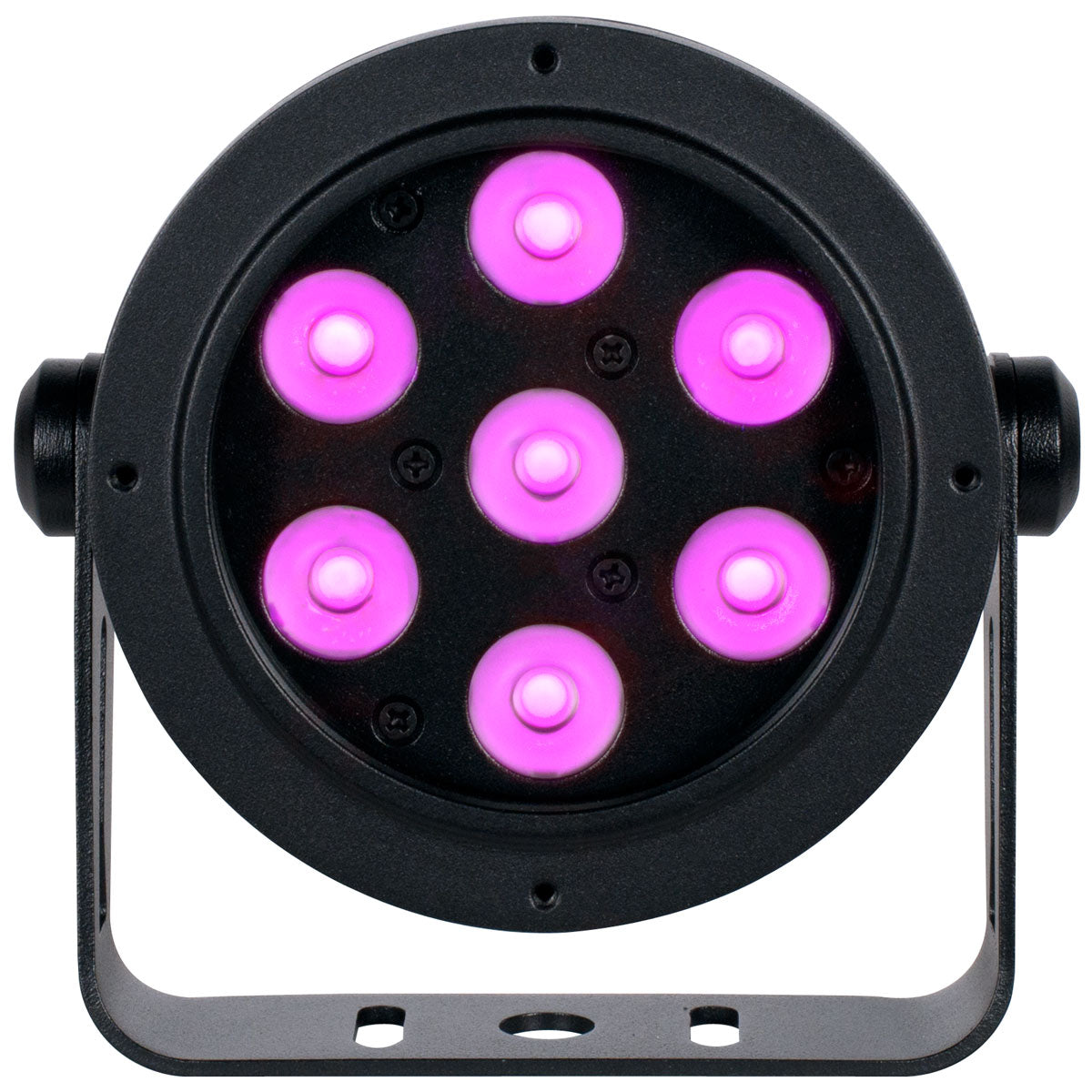

  • 7x 2 Watt LEDS
  • 365nm True UV Peak Wavelength
  • 9' 22 Gauge 2 Conductor wire with Phoenix connector
  • Zero Visible Light Output
  • 19 Watt Max Power Consumption

Specifications

SOURCE

7x 2W High Power UV Diode LEDs
20,000 Hour Average LED Life*

*Test lab conditions. May vary depending on several factors including but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


PHOTOMETRIC DATA
20 Degree Narrow Beam Angle
365nm True UV Peak Wavelength

EFFECTS
High Speed Electronic Strobe
Variable Dimming Curve Modes

CONSTRUCTION
Rugged IP65 Rated Aluminum Housing

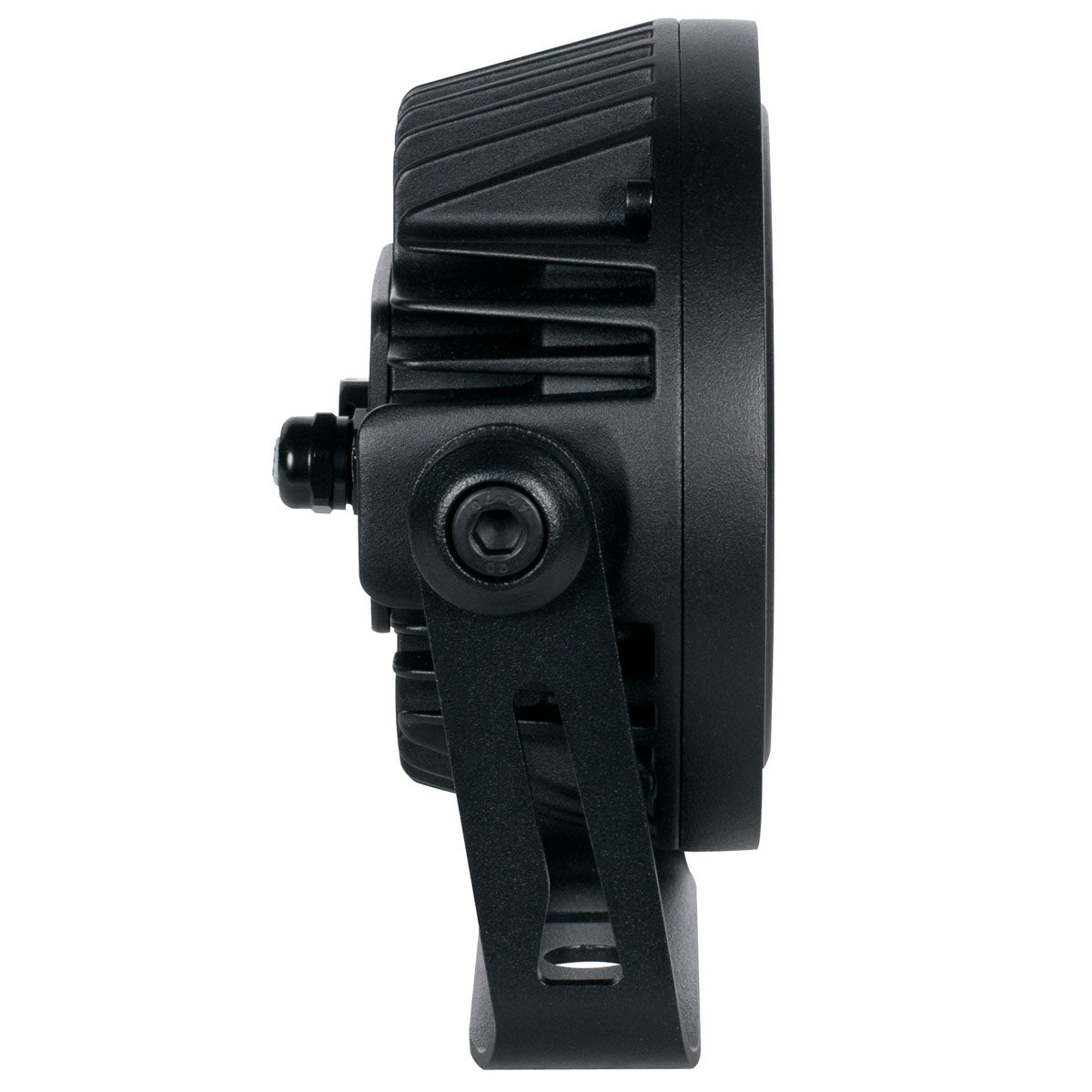

Adjustable Mounting Yoke

CONTROL (Via PRISMA DRIVER 8 or PRISMA DRIVER 8IP)
Multiple DMX Channel Modes
DMX-512 and RDM Protocol Support

CONNECTIONS
9' 22 AWG 2 Conductor wire with Phoenix connector
Minimum Cable Requirement: 22 AWG
Maximum Distance From Driver to Fixture: 40'

SIZE / WEIGHT
Length: 5.66 in. (144mm)
Width: 2.86 in. (72.8mm)
Vertical Height: 5.64 in. (143.3mm)
Weight: 1.98 lbs. (0.9kg)

ELECTRICAL
DC 25V (Via Pixel Driver 8)
19W Max Power Consumption

THERMAL
14°F to 113°F (-10°C to 45°C)
Air Cooled

APPROVALS / RATINGS
CE | cETLus | IP65


Specifications and documentation subject to change without notice.
