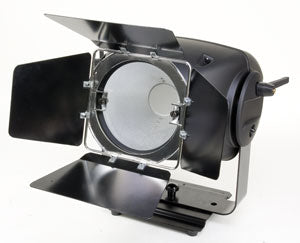

Color Tone 50

Features

Resources

Specifications Sheet

User Manual

Photometric Data

DMX Traits

Dimensional Drawing

Related Categories

Specifications


• Featuring 50W Philips StagePainter 60 1000 LED Module

• Homogenized output yielding even and superior color mixing

• Convection Cooled – No Fans (Silent Operation)

• 2 DMX Channel Modes: 3 and 7

• Selectable Color Temperature from 2700K to 6500K

• Linear electronic dimmer from 0% ~100%

• Upgradable Firmware via Elation E-Loader Programming Device

• Strobe effect with 1-18 flashes per second and pulse effect

• 3 selectable operation modes: DMX controlled, Stand alone, Manual

• Dimmer intensity from 0%~100%

• User Selectable Voltage (Internal Taps)

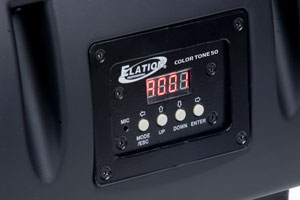

• Control board with 4-digit display and foil-keyboard

• RDMX (Remote DMX addressing from any DMX console)

• Auto test for all functions

• USITT DMX-512 Complaint

• Weight 18lbs / 8.2kg

• Size: 13.9” x 15.8” x 13.7”

• Value of each DMX-channel can be displayed on menu

• 8 User Assignable Program Presets - Internal Program: Edit and save programs to the incorporated EEPROM through the front control panel or external controller; you can save a maximum of 48 scenes, and run the saved programs by using the “run” menu on the front control panel

With Wired Digital Communication Network
