COLOUR CHORUS Series
Discontinued
The COLOUR CHORUS™ series is available in 1 (0.3m), 2 (0.6m), 4 (1.2m), and 6 foot (1.8m) fixture lengths, featuring long life individual 3W (Red, Green, Blue, Amber) LEDs, 100,000 hour average LED life, individual hue, saturation, and intensity control, LED group control, variable dimming curve modes, strobe and chase effects.
COLOUR CHORUS Series
Sale price$0.00
Replaced by
Related Products
COLOUR CHORUS Series
The COLOUR CHORUS™ series is available in 1 (0.3m), 2 (0.6m), 4 (1.2m), and 6 foot (1.8m) fixture lengths, featuring long life individual 3W (Red, Green, Blue, Amber) LEDs, 100,000 hour average LED life, individual hue, saturation, and intensity control, LED group control, variable dimming curve modes, strobe and chase effects, ArtNet™, KlingNet™ and RDM (remote device management) protocol support, 3pin and 5pin DMX, powerCon, and RJ45 in/out connections, LCD menu display with 4 button control panel, integrated rigging brackets, multiple unit power linking, rugged die-cast aluminum exterior, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (110-240v).
Individual Hue, Saturation, and Intensity Control
ArtNet™ / Klingnet™ / RDM Protocol Support
Variable Dimming Curve Modes
Multiple Unit Power Linking
Rugged Die-Cast Aluminum Exterior
Flicker Free Operation for TV and FILM
Individual Hue, Saturation, and Intensity Control
ArtNet™ / Klingnet™ / RDM Protocol Support
Variable Dimming Curve Modes
Multiple Unit Power Linking
Rugged Die-Cast Aluminum Exterior
Flicker Free Operation for TV and FILM
Specifications
SOURCE / PHOTOMETRIC DATA
Individual 3W (Red, Green, Blue ,Amber) LEDs
100,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions,
Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

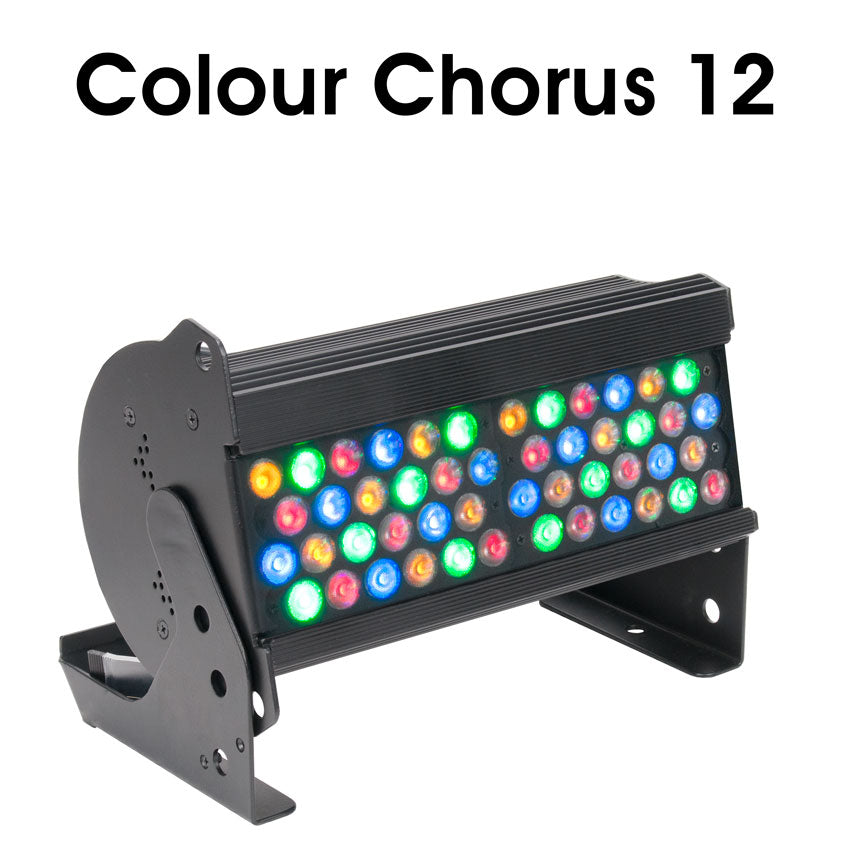

Colour Chorus 12™
(48) Total LEDs (12 per each color)
15,840 LUX (1,765 FC) @3.3’ (1m) (20° FULL ON)

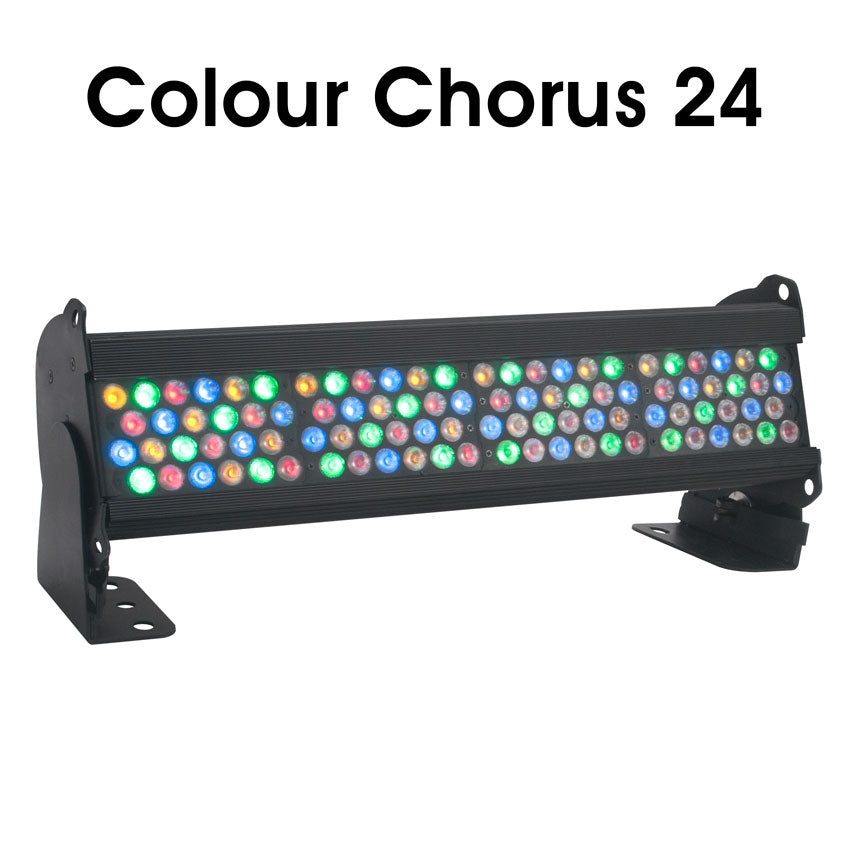

Colour Chorus 24™
(96) Total LEDs (24 per each color)
19,000 LUX (1,765 FC) @3.3’ (1m) (46° FULL ON)

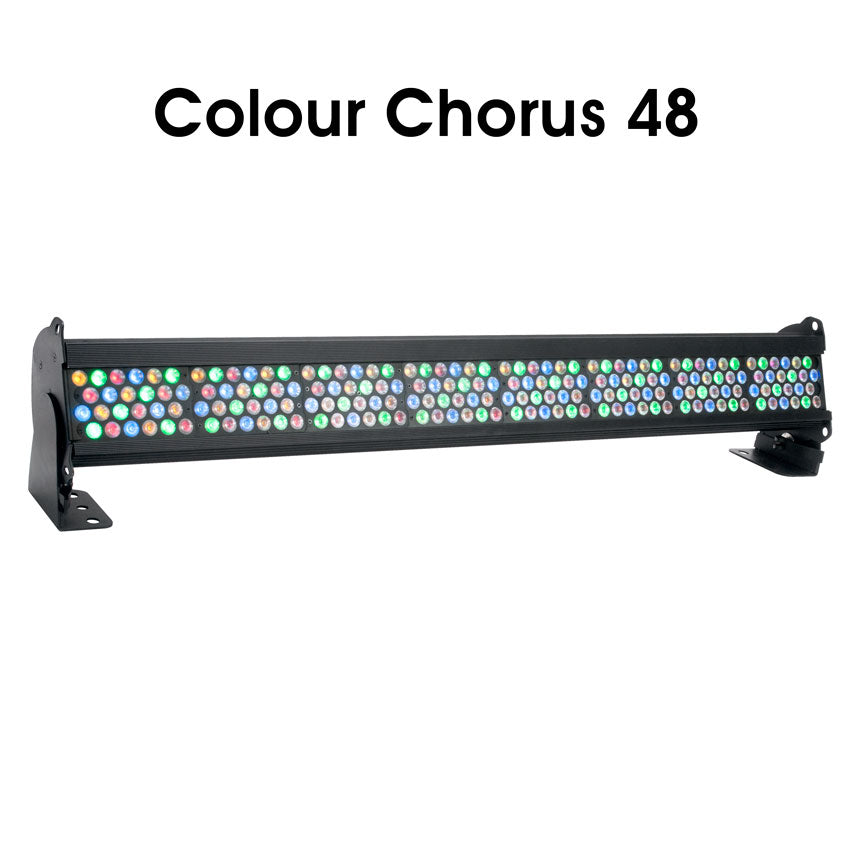

Colour Chorus 48™
(192) Total LEDs (48 per each color)
21,500 LUX (1,997 FC) @3.3’ (1m) (65° FULL ON)

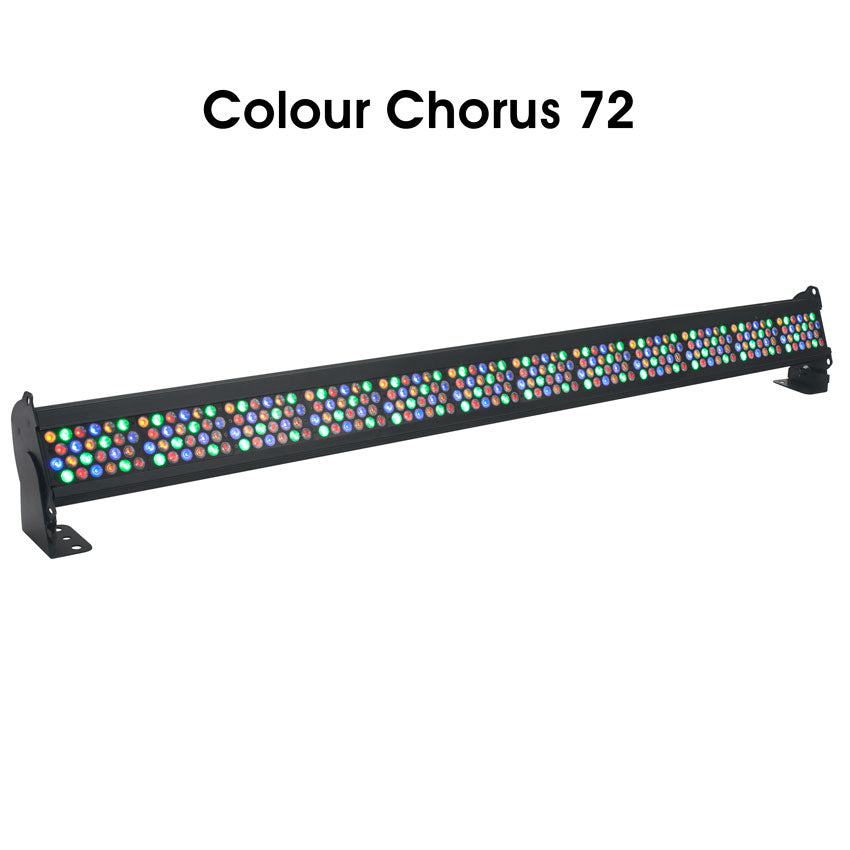

Colour Chorus72™
(288) Total LEDs (72 per each color)
23,000 LUX (2,137 FC) @3.3’ (1m) (88° FULL ON)
EFFECTS
Strobe and Chase Effects
Variable Dimming Curves
Individual Hue, Saturation, Intensity Control

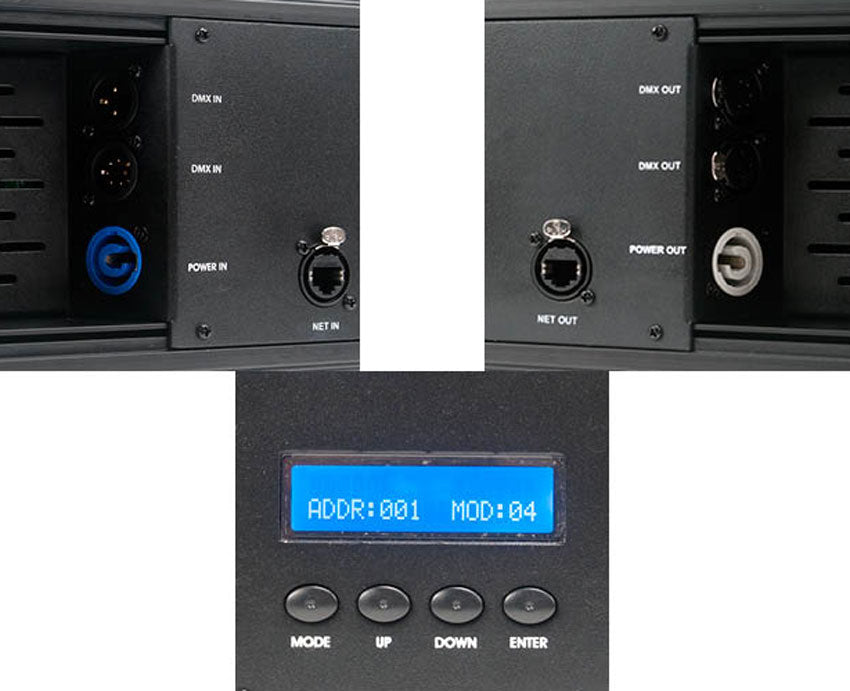

CONTROL / CONNECTIONS
Multiple DMX Channel Modes
4 Button Control Panel and LCD Menu Display
ArtNet™/ KlingNET™ / RDM Protocol Support
(2) RJ45 Ports, 3pin and 5pin DMX In/Out
powerCON Power In/Out
Multiple Unit Power Linking
With Wired Digital Communication Network
SIZE / WEIGHT
Colour Chrous 12™
Length: 12.4" (316mm)
Width: 7.0” (177.1mm)
Vertical Height: 8.9” (227.1mm)
Weight: 12.0 lbs. (5.4kg)
Colour Chorus 24™
Length: 23.8” (604mm)
Width: 7.5” (194.1mm)
Vertical Height: 7.6” (192.5mm)
Weight: 23.0 lbs. (10.4kg)
Colour Chorus 48™
Length: 46.5” (1182mm)
Width: 7.5” (194.1mm)
Vertical Height: 7.6” (192.5mm)
Weight: 37.0 lbs. (16.8kg)
Colour Chorus72™
Length: 69.3” (1760mm)
Width: 7.5” (194.1mm)
Vertical Height: 7.6” (192.5mm)
Weight: 53.0 lbs. (24.0kg)
ELECTRICAL / THERMAL
AC 110-250V - 50/60Hz
Colour Chrous 12™- 105W Max Power Consumption
Colour Chorus 24™- 200W Max Power Consumption
Colour Chorus 48™- 446W Max Power Consumption
Colour Chorus 72™- 630W Max Power Consumption
5°F to 113°F (-15°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP30
INSTALLATION
Rigging: Integrated Rigging Brackets
Working Position: Any (360°)
INCLUDED ITEMS
powerCON Cable
OPTIONAL ACCESSORIES:
LSF/C12- Light Shaping Filter 60° LENS COLOUR/DW CHORUS 12
LSF/C24- Light Shaping Filter 60° LENS COLOUR/DW CHORUS 24
LSF/C48- Light Shaping Filter 60° LENS COLOUR/DW CHORUS 48
LSF/C72- Light Shaping Filter 60° LENS COLOUR/DW CHORUS 72
Individual 3W (Red, Green, Blue ,Amber) LEDs
100,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions,
Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
Colour Chorus 12™
(48) Total LEDs (12 per each color)
15,840 LUX (1,765 FC) @3.3’ (1m) (20° FULL ON)
Colour Chorus 24™
(96) Total LEDs (24 per each color)
19,000 LUX (1,765 FC) @3.3’ (1m) (46° FULL ON)
Colour Chorus 48™
(192) Total LEDs (48 per each color)
21,500 LUX (1,997 FC) @3.3’ (1m) (65° FULL ON)
Colour Chorus72™
(288) Total LEDs (72 per each color)
23,000 LUX (2,137 FC) @3.3’ (1m) (88° FULL ON)
EFFECTS
Strobe and Chase Effects
Variable Dimming Curves
Individual Hue, Saturation, Intensity Control
CONTROL / CONNECTIONS
Multiple DMX Channel Modes
4 Button Control Panel and LCD Menu Display
ArtNet™/ KlingNET™ / RDM Protocol Support
(2) RJ45 Ports, 3pin and 5pin DMX In/Out
powerCON Power In/Out
Multiple Unit Power Linking
With Wired Digital Communication Network
SIZE / WEIGHT
Colour Chrous 12™
Length: 12.4" (316mm)
Width: 7.0” (177.1mm)
Vertical Height: 8.9” (227.1mm)
Weight: 12.0 lbs. (5.4kg)
Colour Chorus 24™
Length: 23.8” (604mm)
Width: 7.5” (194.1mm)
Vertical Height: 7.6” (192.5mm)
Weight: 23.0 lbs. (10.4kg)
Colour Chorus 48™
Length: 46.5” (1182mm)
Width: 7.5” (194.1mm)
Vertical Height: 7.6” (192.5mm)
Weight: 37.0 lbs. (16.8kg)
Colour Chorus72™
Length: 69.3” (1760mm)
Width: 7.5” (194.1mm)
Vertical Height: 7.6” (192.5mm)
Weight: 53.0 lbs. (24.0kg)
ELECTRICAL / THERMAL
AC 110-250V - 50/60Hz
Colour Chrous 12™- 105W Max Power Consumption
Colour Chorus 24™- 200W Max Power Consumption
Colour Chorus 48™- 446W Max Power Consumption
Colour Chorus 72™- 630W Max Power Consumption
5°F to 113°F (-15°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP30
INSTALLATION
Rigging: Integrated Rigging Brackets
Working Position: Any (360°)
INCLUDED ITEMS
powerCON Cable
OPTIONAL ACCESSORIES:
LSF/C12- Light Shaping Filter 60° LENS COLOUR/DW CHORUS 12
LSF/C24- Light Shaping Filter 60° LENS COLOUR/DW CHORUS 24
LSF/C48- Light Shaping Filter 60° LENS COLOUR/DW CHORUS 48
LSF/C72- Light Shaping Filter 60° LENS COLOUR/DW CHORUS 72
FIRMWARE UPDATES
Current Versions:
Colour Chorus 12: V1.06
Colour Chorus 24: V1.14
Colour Chorus 48: V1.14
Colour Chorus 72: V1.17
Downloads
Cad drawing
- COLOUR CHORUS 12 2D CAD
- COLOUR CHORUS 12 3D CAD
- COLOUR CHORUS 48 2D CAD
- COLOUR CHORUS 72 2D CAD
- COLOUR CHORUS 24 3D CAD
- COLOUR CHORUS 24 2D CAD
- COLOUR CHORUS 48 3D CAD
- COLOUR CHORUS 72 3D CAD
Dimensional drawings
- COLOUR CHORUS 12 Dimensional Drawings
- COLOUR CHORUS 24 Dimensional Drawings
- COLOUR CHORUS 72 Dimensional Drawings
- COLOUR CHORUS 48 Dimensional Drawings
Dmx traits
- COLOUR CHORUS 12 DMX Traits ver 1
- COLOUR CHORUS 48 DMX Traits ver 1
- COLOUR CHORUS 24 DMX Traits ver 1
- COLOUR CHORUS 72 DMX Traits ver 1
Ies files
Photometrics
- COLOUR CHORUS 24 Photometric Data
- COLOUR CHORUS 24 Photometric Report
- COLOUR CHORUS 48 Photometric Data
- COLOUR CHORUS 48 Photometric Report
- COLOUR CHORUS 12 Photometric Data
- COLOUR CHORUS 72 Photometric Data
- COLOUR CHORUS 72 Photometric Report
Specification sheet
User manual
- COLOUR CHORUS 72 User Manual ver 1
- COLOUR CHORUS 72 User Manual ver 1 - French
- COLOUR CHORUS 48 User Manual ver 1 - French
- COLOUR CHORUS 24 User Manual ver 1 - French
- COLOUR CHORUS 12 User Manual ver 1
- COLOUR CHORUS 12 User Manual ver 1 - French
- COLOUR CHORUS 24 User Manual ver 1
- COLOUR CHORUS 48 User Manual ver 1
Vectorworks symbol
- COLOUR CHORUS 24 Vectorworks 2016 Symbol
- COLOUR CHORUS 12 Vectorworks 2015 Symbol
- COLOUR CHORUS 72 Vectorworks 2014 Symbol
- COLOUR CHORUS 72 Vectorworks 2015 Symbol
- COLOUR CHORUS Series Vectorworks 2015 Symbols
- COLOUR CHORUS 24 Vectorworks 2014 Symbol
- COLOUR CHORUS 48 Vectorworks 2014 Symbol
- COLOUR CHORUS 12 Vectorworks 2016 Symbol
- COLOUR CHORUS 24 Vectorworks 2015 Symbol
- COLOUR CHORUS Series Vectorworks 2014 Symbols
- COLOUR CHORUS 48 Vectorworks 2016 Symbol
- COLOUR CHORUS 72 Vectorworks 2016 Symbol
- COLOUR CHORUS 48 Vectorworks 2015 Symbol
- COLOUR CHORUS Series Vectorworks 2016 Symbols
- COLOUR CHORUS 12 Vectorworks 2014 Symbol
