POLAR CRISP MAX high powered snow machine
SKU# PSC225

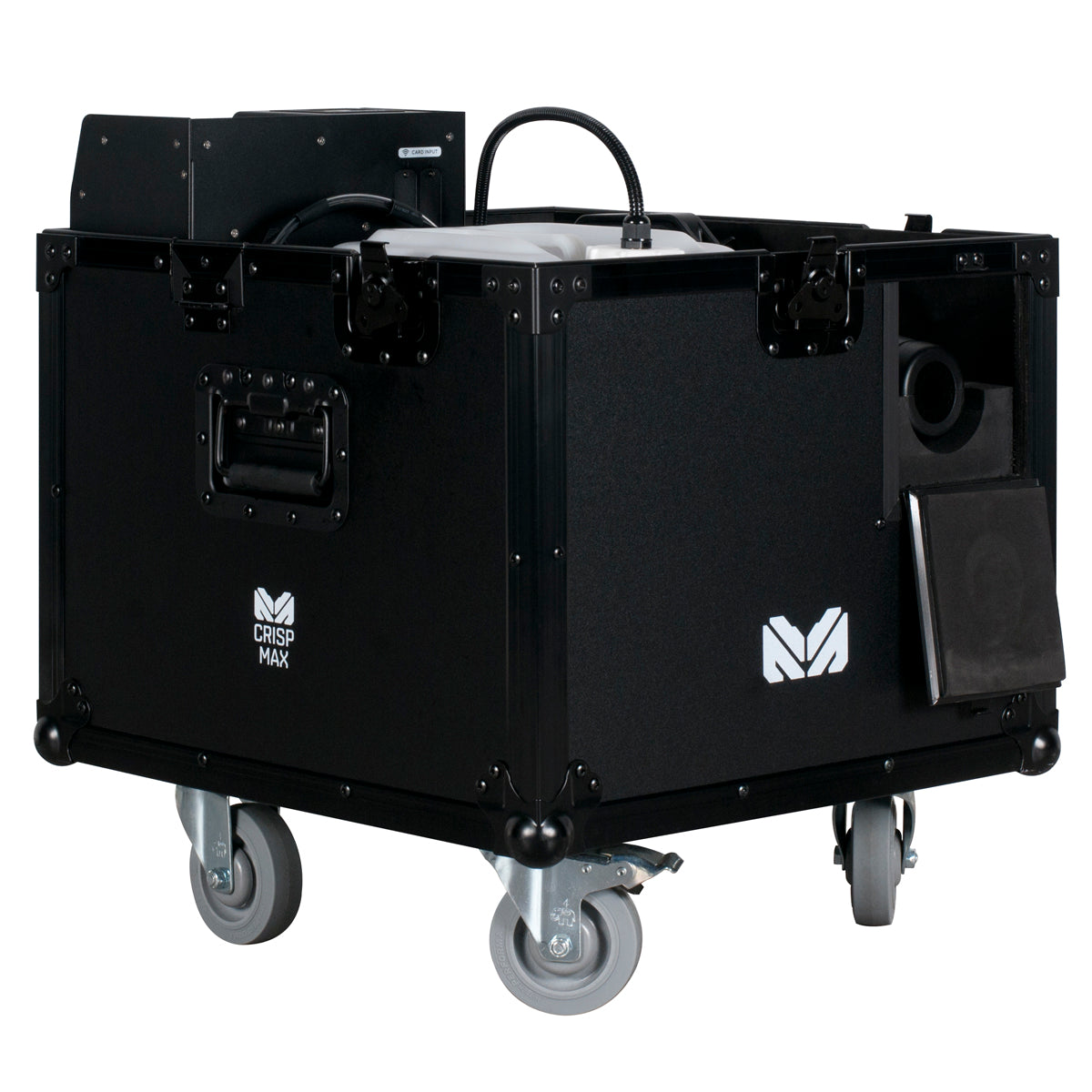

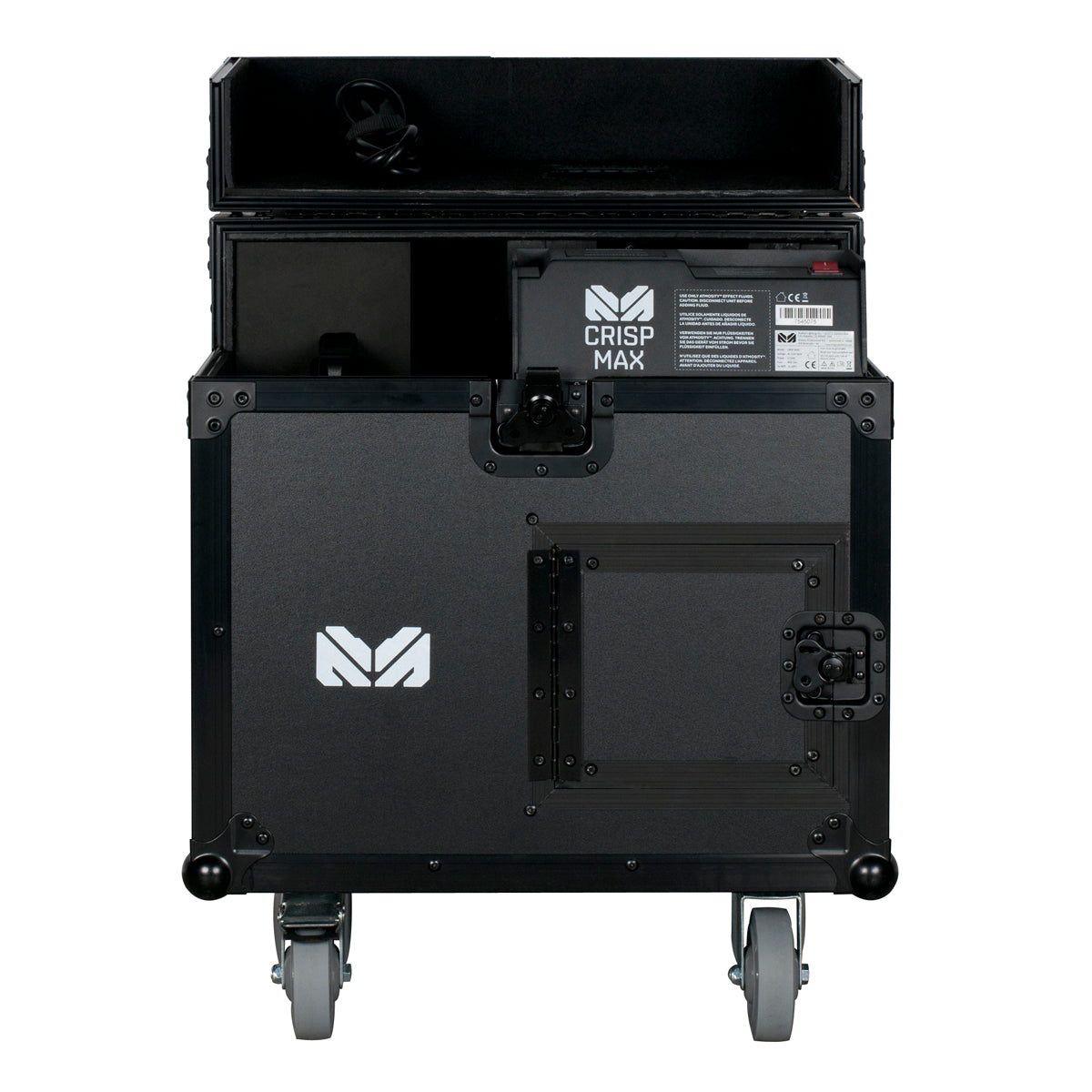

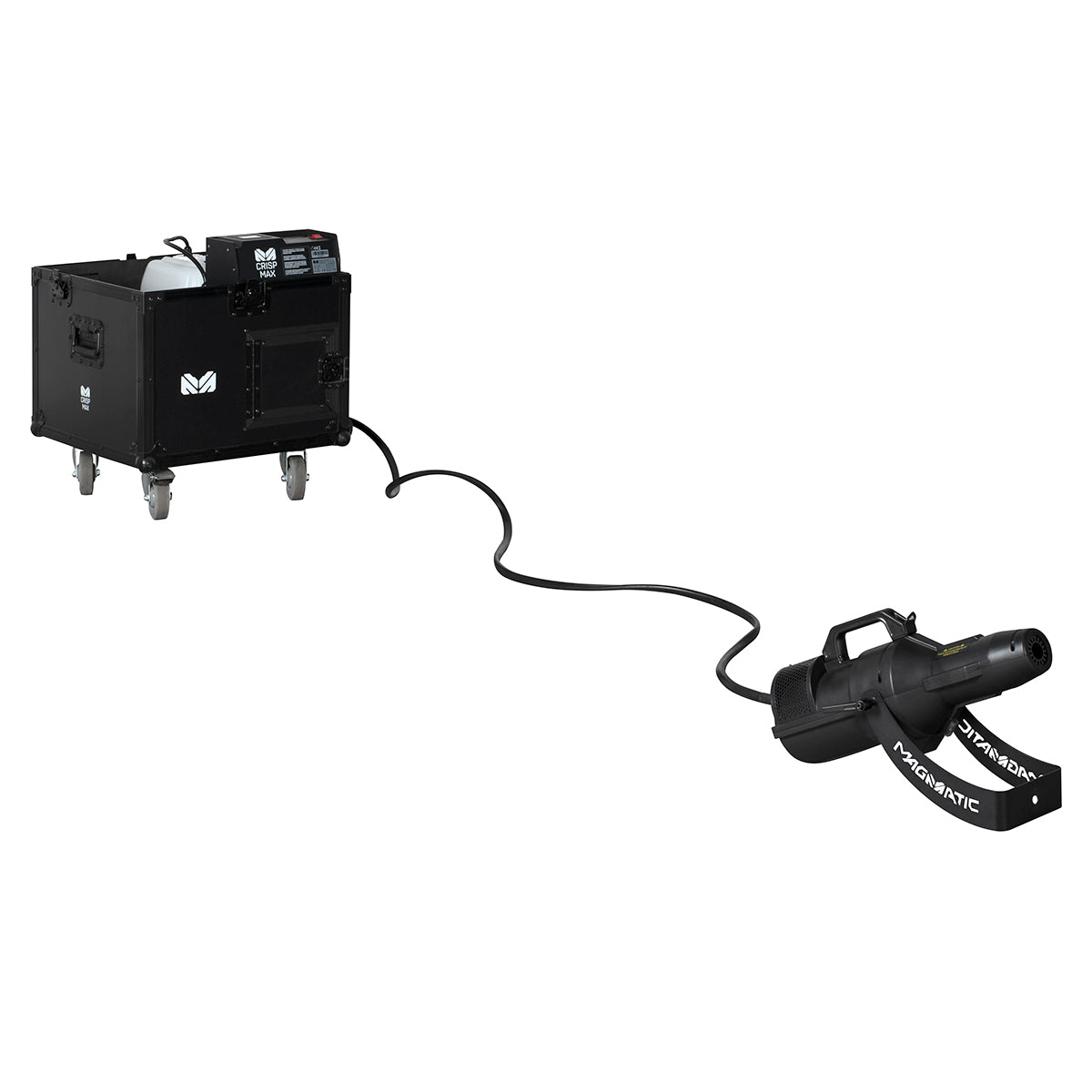

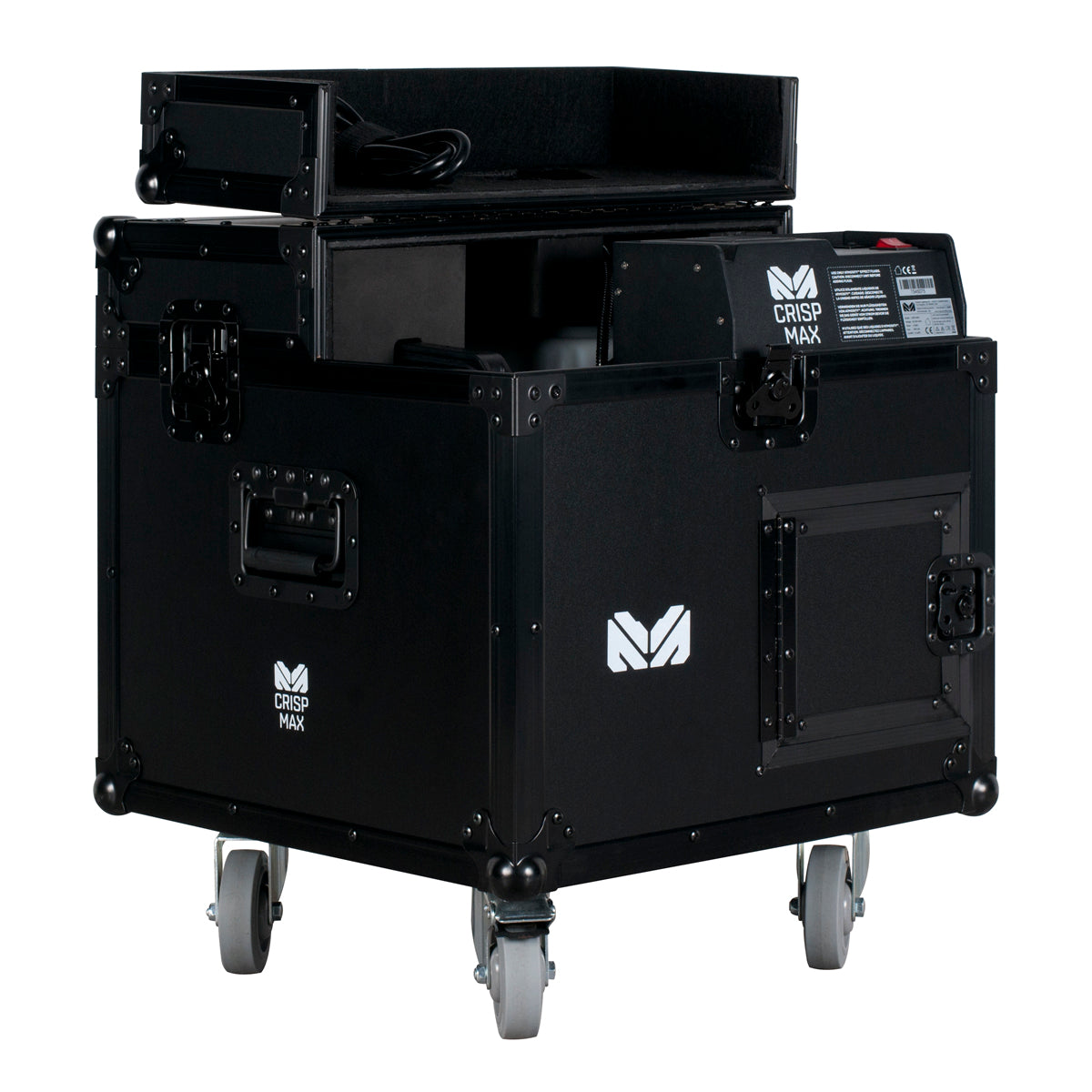

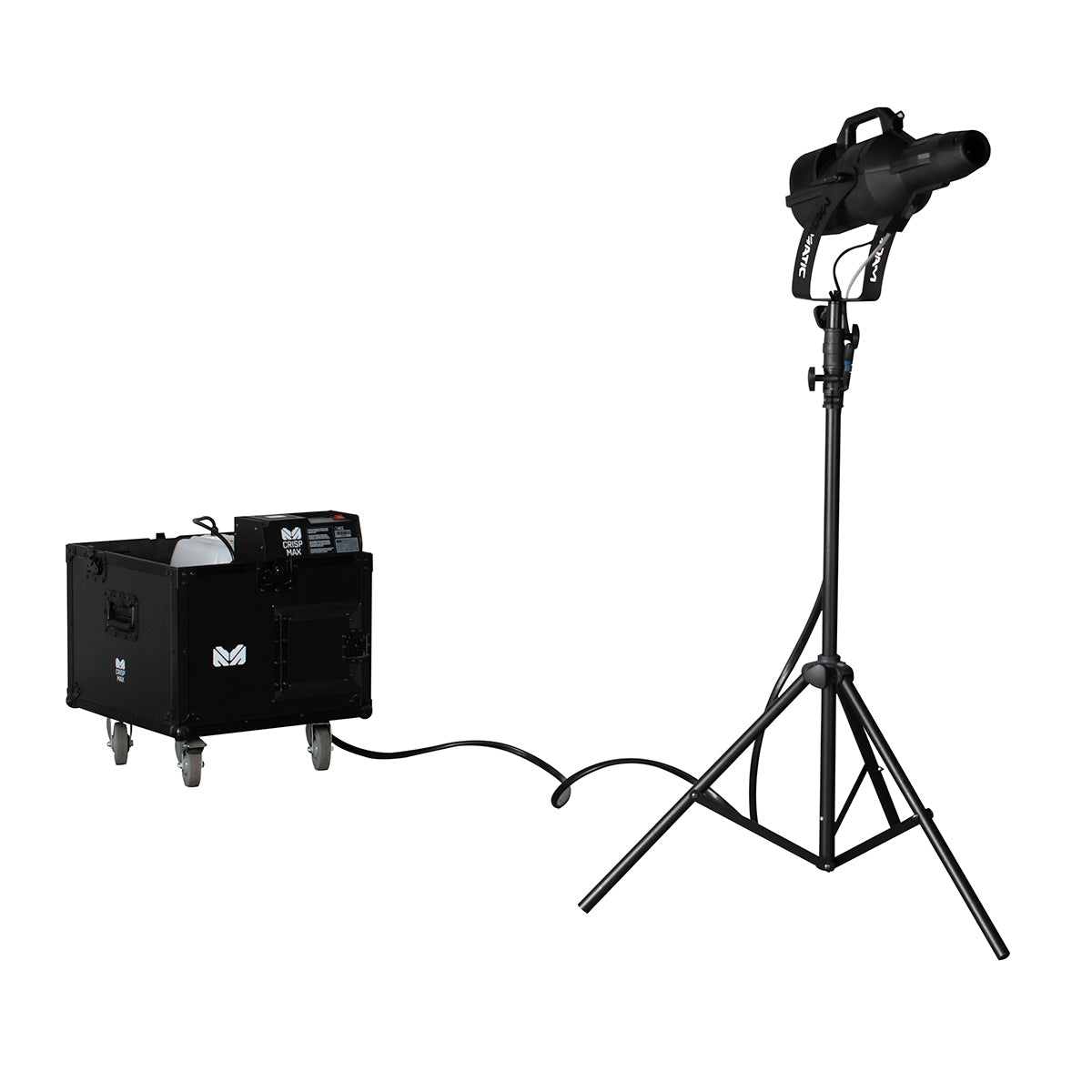

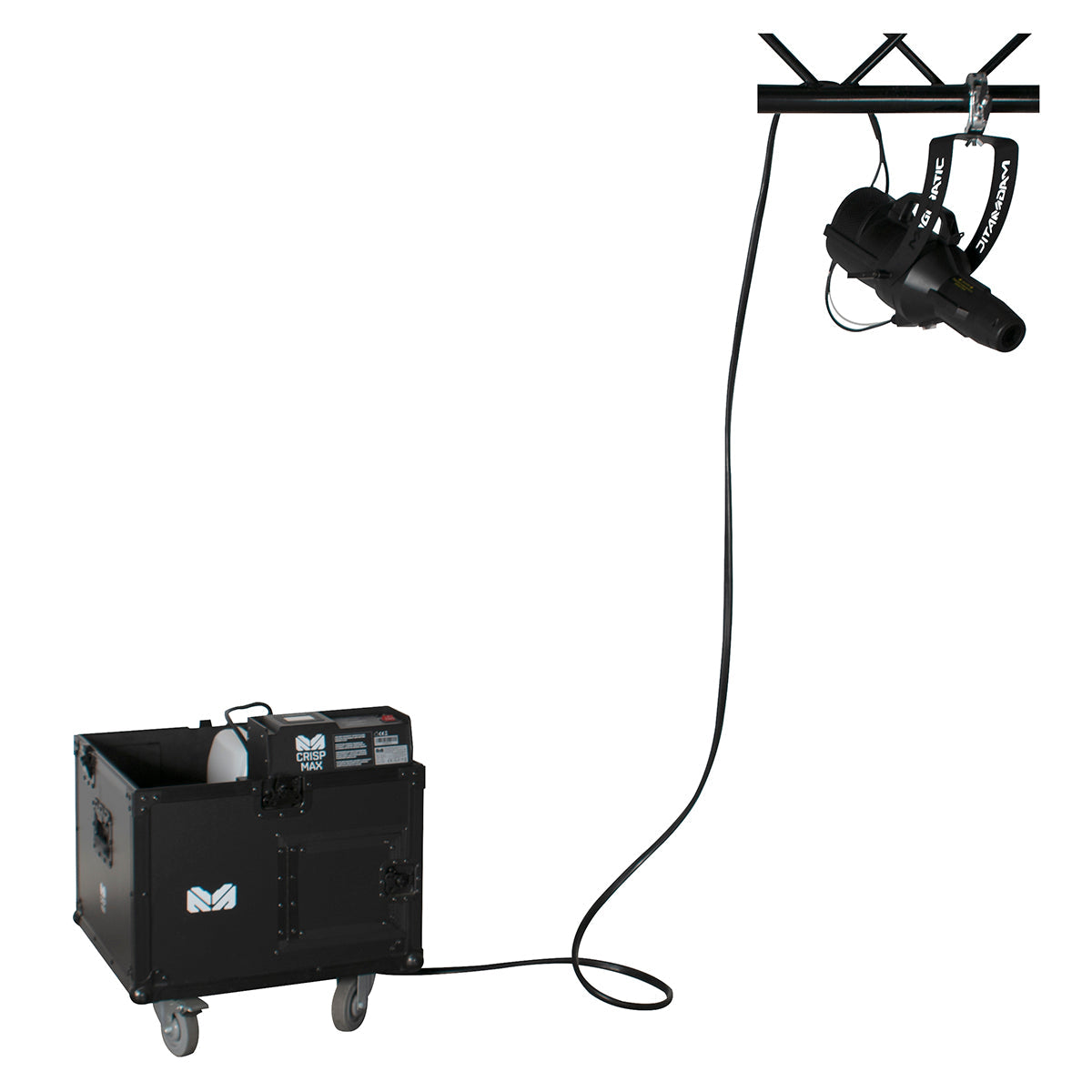

Introducing POLAR CRISP MAX™ from MAGMATIC atmospheric effects, a dependable, high-output snow machine that makes it easy to create scene-setting wintry settings. CRISP MAX is capable of producing high volumes of naturalistic snow with the capacity to adjust snowflake size for greater versatility. It includes a 20-liter fluid tank hidden inside a road case with durable casters for easier portability. The unit’s 10-meter long hose can be rigged on a standard truss or tripod stand and can extend up to 30 meters horizontally or vertically.
Features
- 1250W high-output Magmatic snow technology
- Adjustable snowflake size

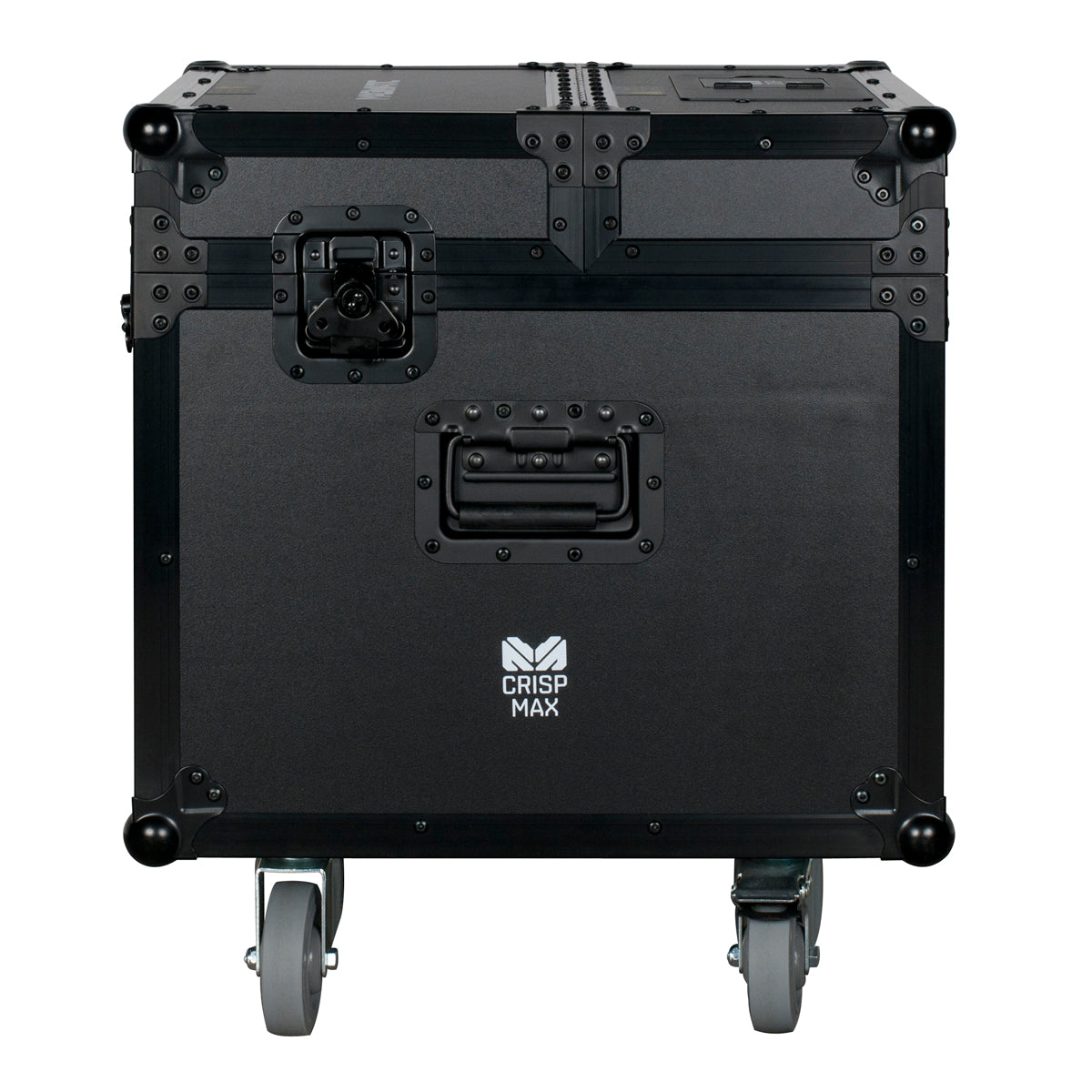

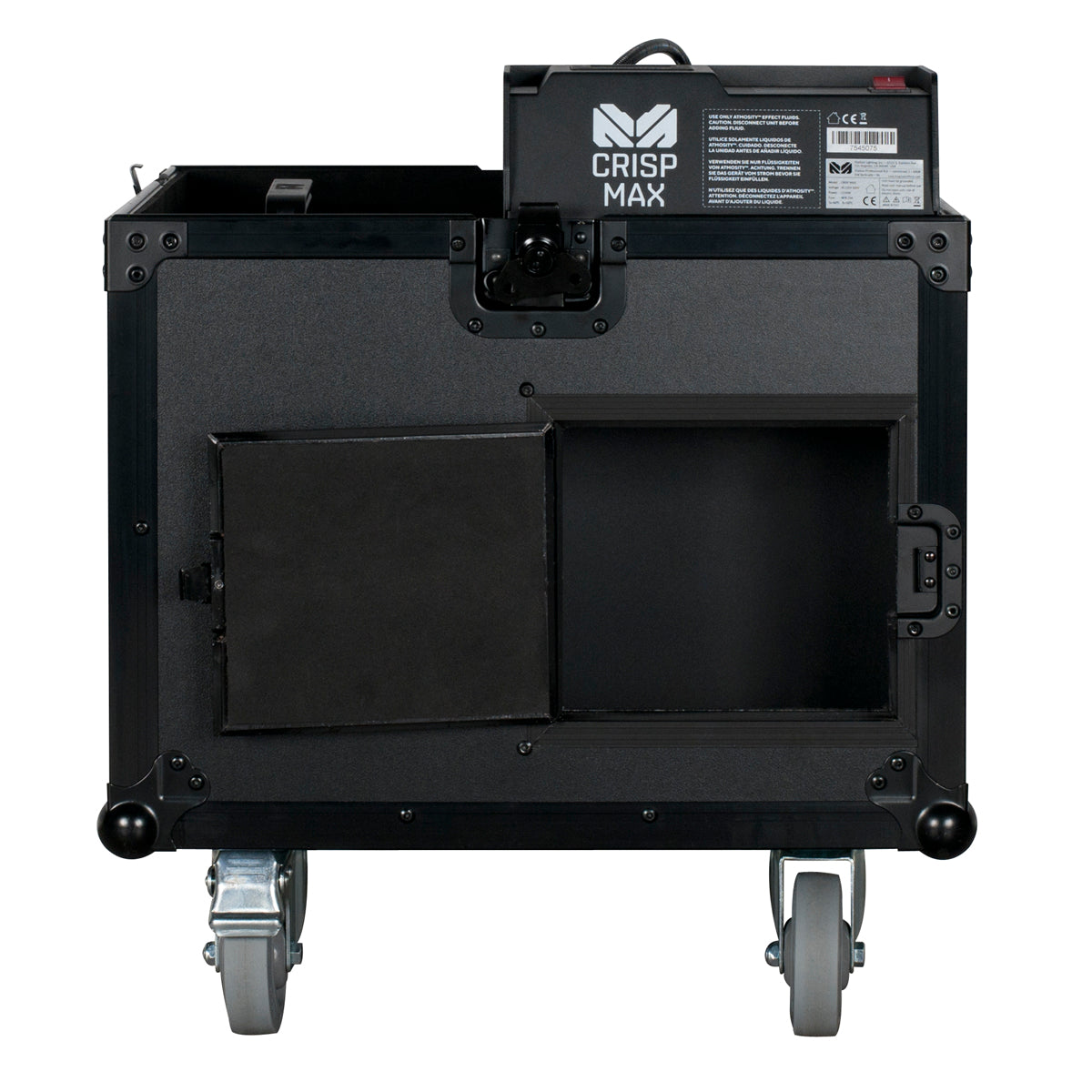

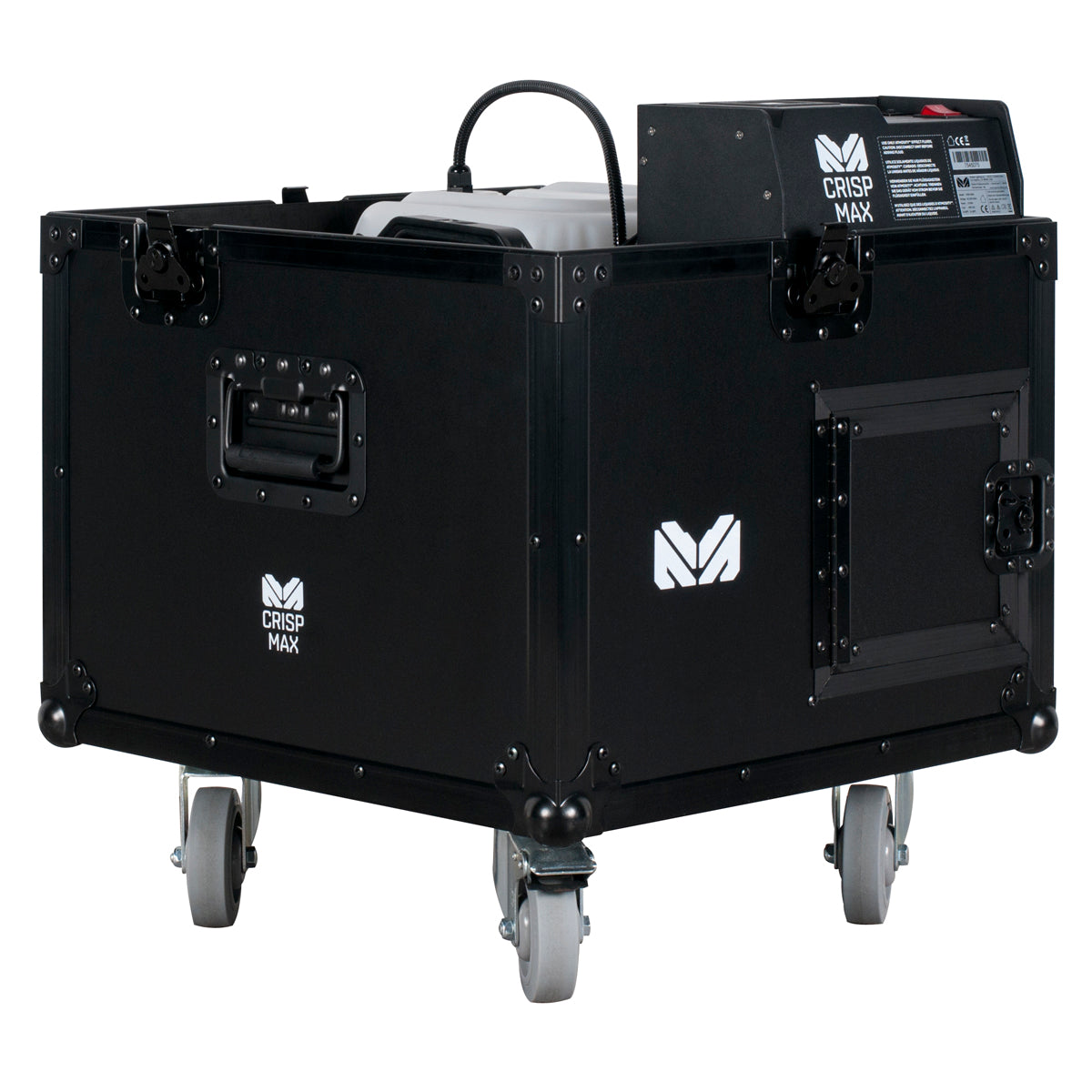

- Road case for outdoor operation and extra protection

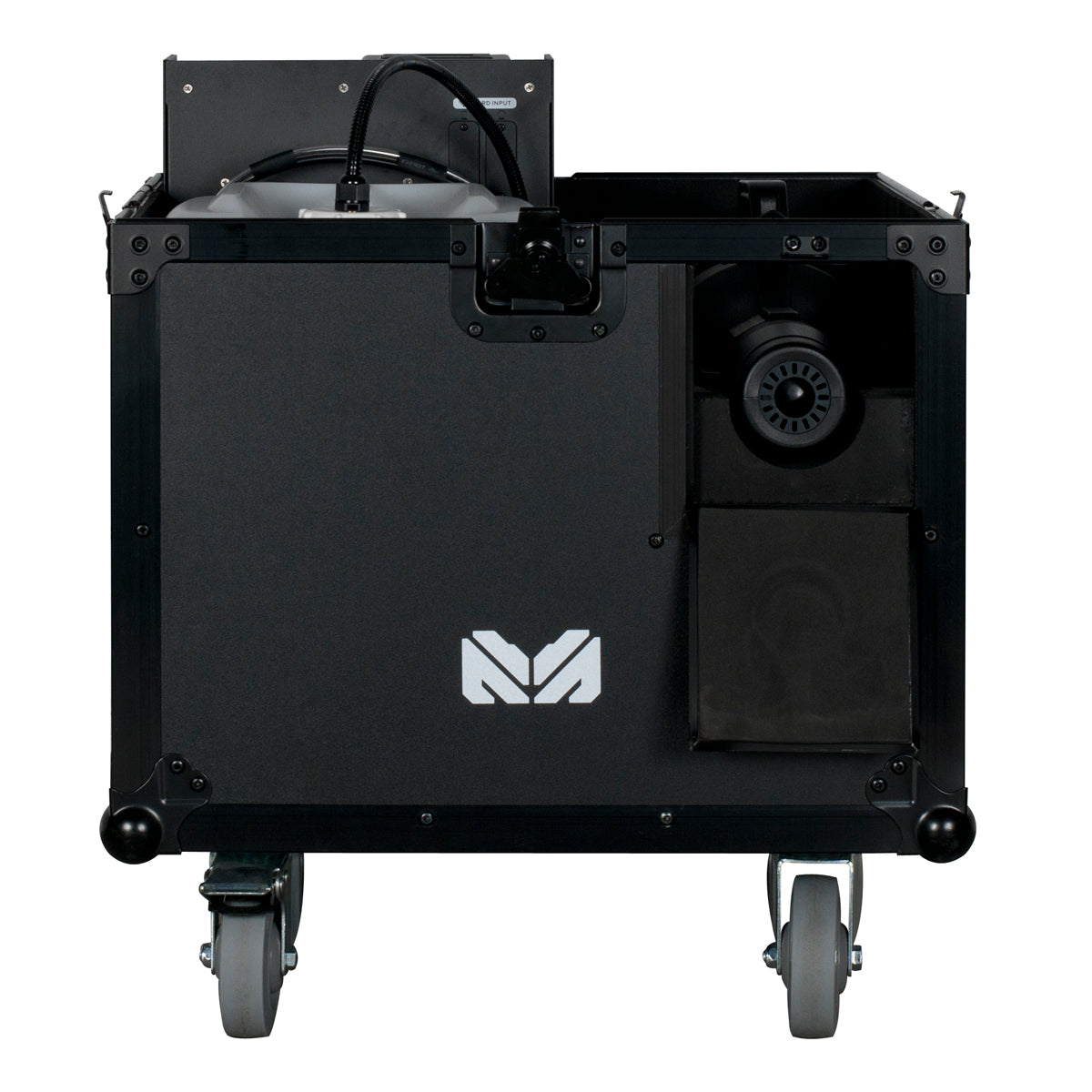

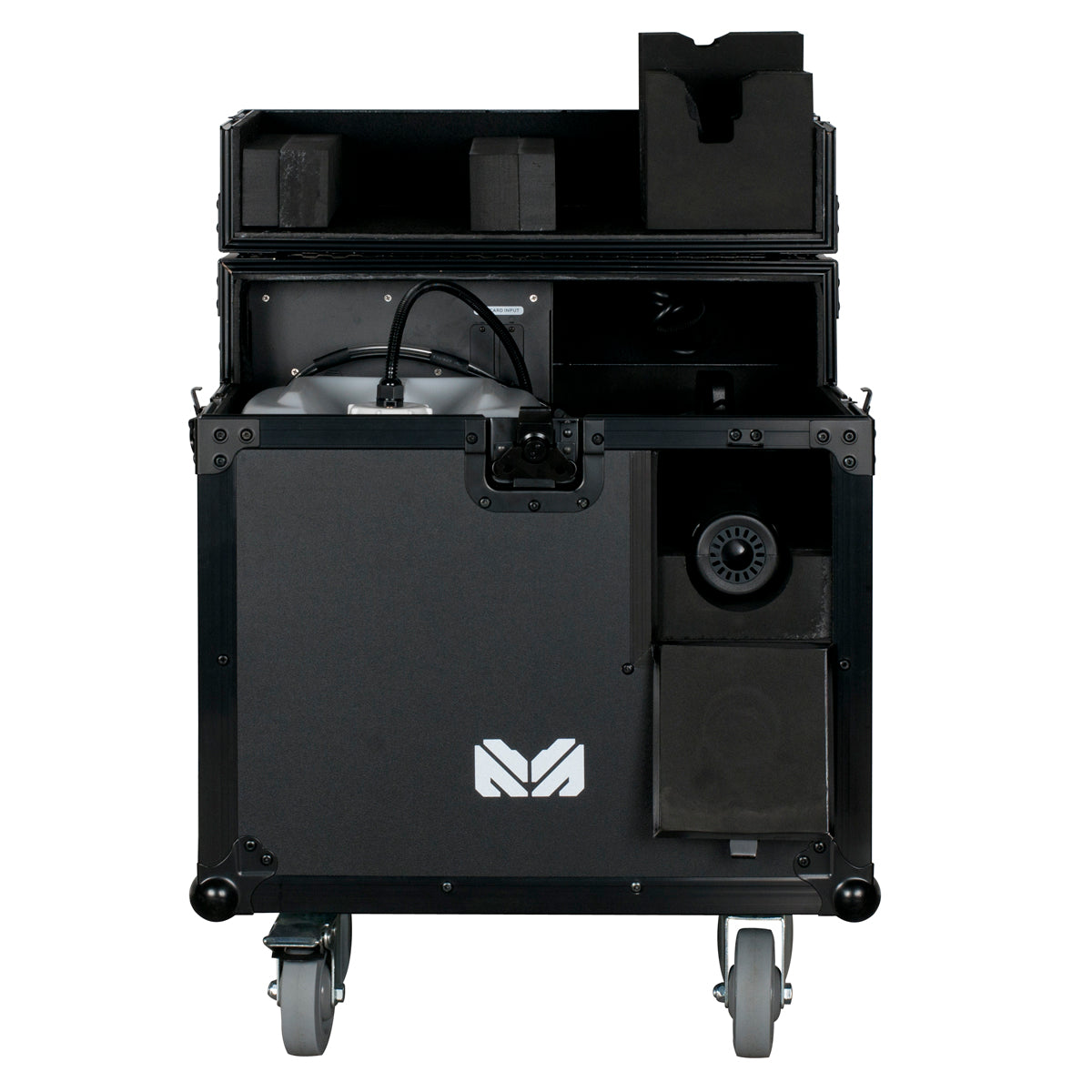

- Snow cannon can remain inside road case to minimize noise level
- IP Rating: IP20, dry location
Resources
Specification information
Guides/ Manuals
DMX/ RDM Traits
Drawings
CAD File
Test Results
Related Categories
Specifications
DYNAMIC EFFECTS:
Snow Adjustment: 0-100%
Fan Speed Adjustment: 50% or 100%
Auto-Cleaning Feature
Fan Speed Adjustment: 50% or 100%
Auto-Cleaning Feature
CONTROL:
2 Card Inputs for optional cards
RDM (Remote Device Management)
Control Protocol: DMX512
DMX Modes: 3 (1, 3 & 5 Channel)
On-Board Timing Control
5 Factory Presets
4-pin Wired Remote Input

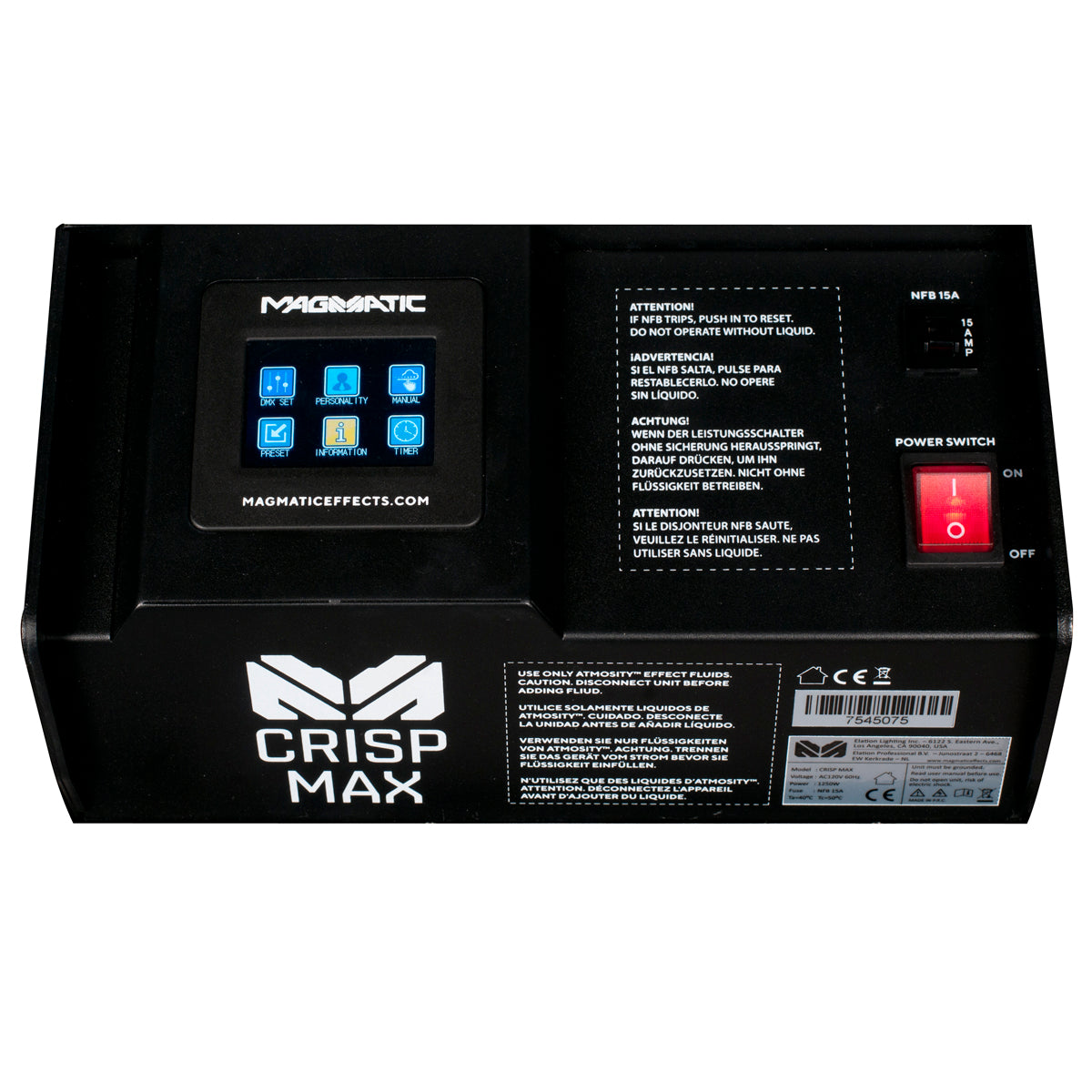

Touch Screen Display
Manual Trigger via Touch Display
RDM (Remote Device Management)
Control Protocol: DMX512
DMX Modes: 3 (1, 3 & 5 Channel)
On-Board Timing Control
5 Factory Presets
4-pin Wired Remote Input
Touch Screen Display
Manual Trigger via Touch Display
CONNECTIONS:
Data Connector: 5-pin XLR In / Out for DMX connections, 4-pin XLR for optional wired remote.
Locking Power Connector
Locking Power Connector
CONSTRUCTION / PHYSICAL / PERFORMANCE
Dimensions: (LxWxH) 21.3 x 21.1 x 24.5in / 540 x 535 x 623.5mm
Weight: 77.17lbs / 35kg
Fluid Tank Capacity: 20L
Fluid Consumption: 16.9 fl. oz/min (500ml/min)
Weight: 77.17lbs / 35kg
Fluid Tank Capacity: 20L
Fluid Consumption: 16.9 fl. oz/min (500ml/min)
COMPATIBLE FLUID
Recommended Fluid: Atmosity Premium Snow Fluid. APS-1LC (Concentrate = 20L) , APS-4LC (Conentrate = 80L), APS-10LC (Concentrate = 200L), APS-4L, APS-20L
ELECTRICAL:
Power Consumption: 1250w
Input Voltage: 120V, 230V, 240V, 50 & 60Hz
Breaker Size: 15A (120V Version)
Breaker Size: 9A (230V Version)
Input Voltage: 120V, 230V, 240V, 50 & 60Hz
Breaker Size: 15A (120V Version)
Breaker Size: 9A (230V Version)
CERTIFICATIONS / QUALIFICATIONS / THERMAL
IP Rating: IP20, dry location
Maximum Temperature (Ambient): 104°F (40°C)
Exterior Surface Temperature: 122°F (50°C)
CE / cETLus | UKCA
Maximum Temperature (Ambient): 104°F (40°C)
Exterior Surface Temperature: 122°F (50°C)
CE / cETLus | UKCA
WHAT'S INCLUDED:
Flight Case
14AWG Locking Power Cable
Snow Canon
10-Meter Long Hose
14AWG Locking Power Cable
Snow Canon
10-Meter Long Hose
OPTIONAL ACCESSORIES:
MagFLY Card
MagAPP Card "Still in development"
MagRF Card
PSCM Hose-10M (PSC100)
PM-DMX1
MagAPP Card "Still in development"
MagRF Card
PSCM Hose-10M (PSC100)
PM-DMX1
