MAGMAFAN 1 Atmospheric Fan
MAGMAFAN 1 is a compact all-purpose stage fan that features multiple control options, linear output control, low power consumption, adjustable blowing directions, and durable metal housing.
MAGMAFAN 1
Sale price$0.00
MAGMAFAN 1
MAGMAFAN 1 is a compact all-purpose stage fan that features multiple control options, linear output control, low power consumption, adjustable blowing directions, and durable metal housing.

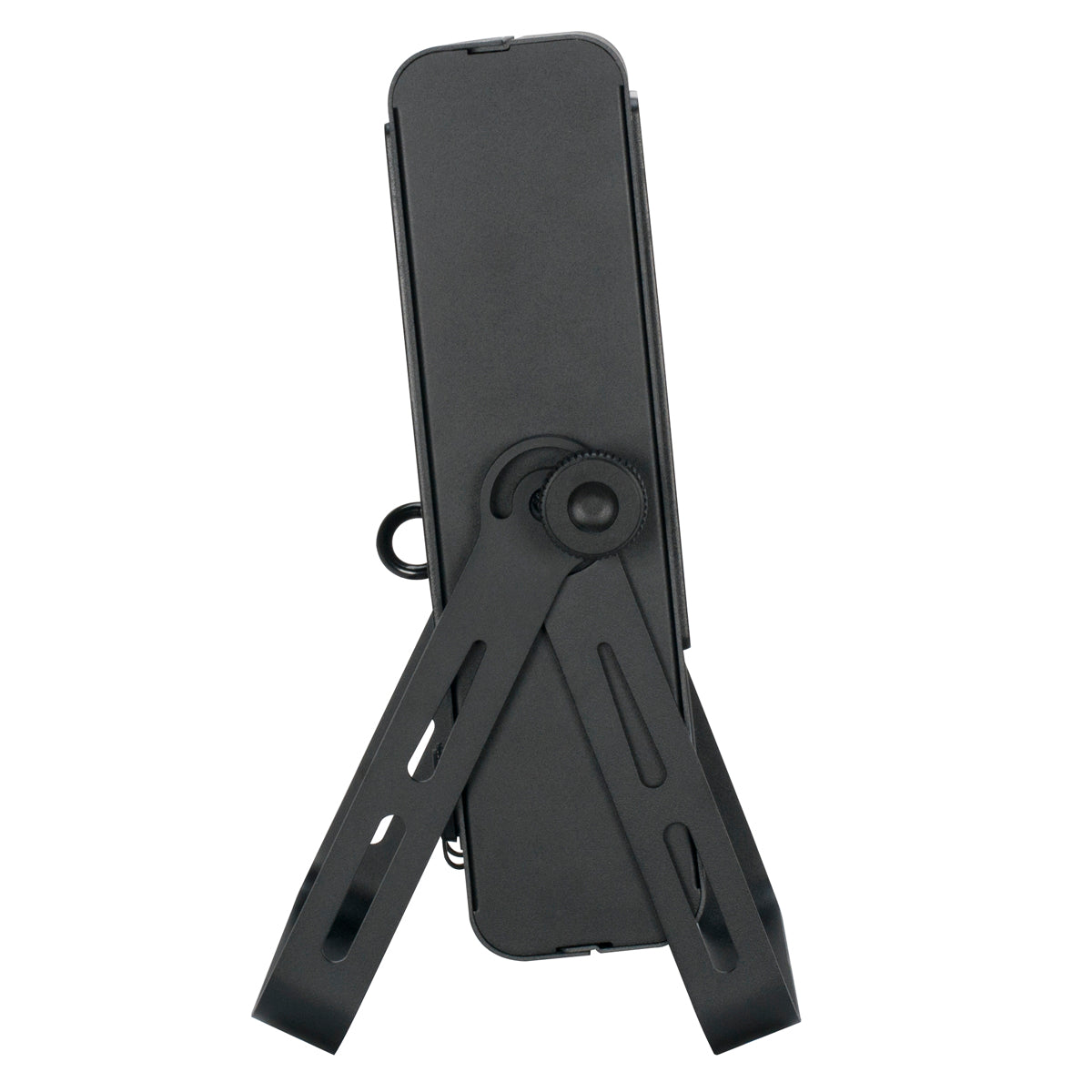

Low power consumption is only 80W, allowing you to put on the same circuit as your fog machine. The adjustable mounting/floor bracket included enables you to adjust the fan output 90 degrees. Easy to use onboard LCD touch screen control panel, intuitive DMX-512, and RDM control. Its durable aluminum housing design allows easy carry and storage, with optional wired and wireless remote control.
Intuitive DMX-512 and RDM control
Linear speed control
80W, low power consumption
LCD touch screen control panel
Compact durable metal housing
Specifications
PERFORMANCE
Rated Power: 165W
Max. fan volume: (17m3/min 600CFM (US) - 15m3/min 530CFM (EU)
Fan angle: 0-360°
Fan speed range: 750-2800rpm (US) - 750-2550rpm (EU)
CONSTRUCTION
Durable aluminum housing
Compact lightweight mobile design
CONTROL
3 DMX Channel Modes (1 / 2 / 4)

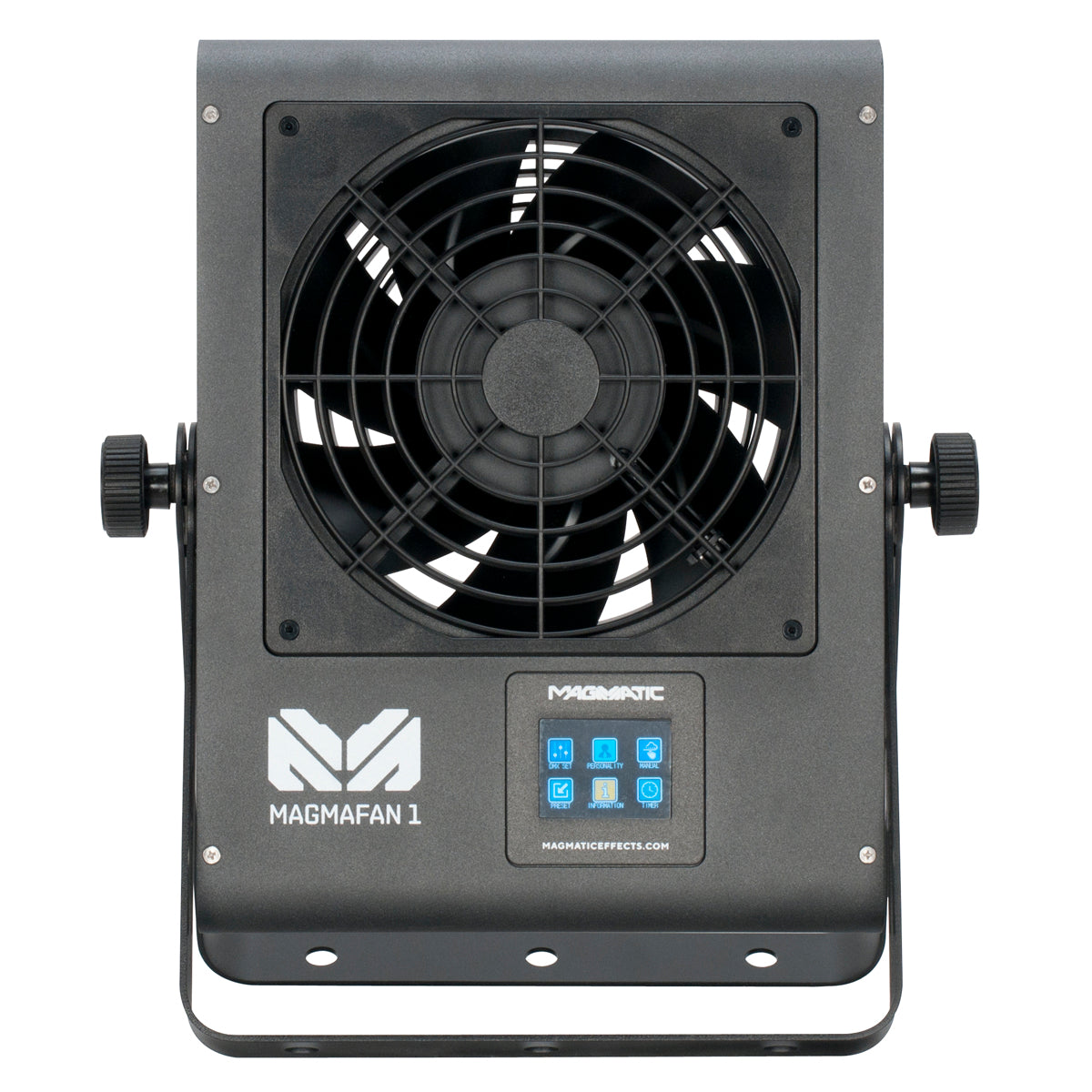

Onboard LCD Touch Control Panel
DMX-512 and RDM Protocol Support
Optional MAGFLY Wireless DMX Transceiver

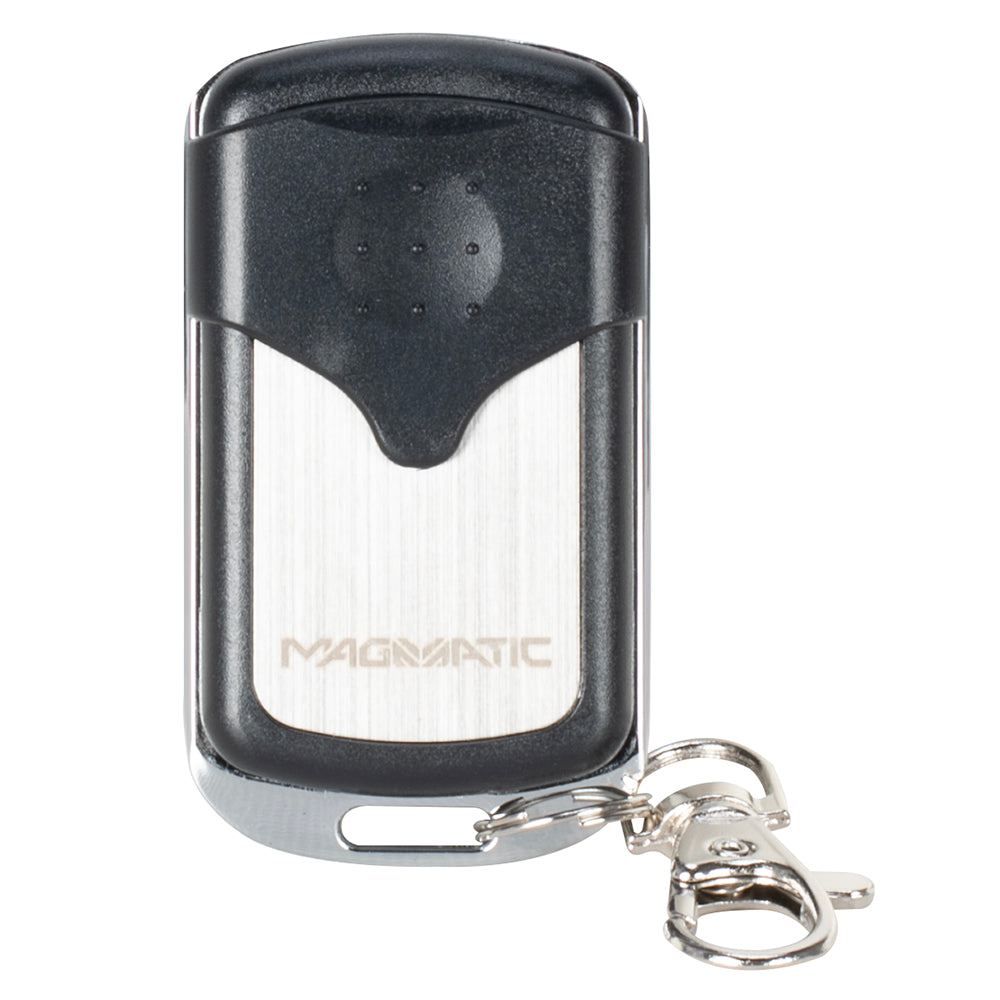

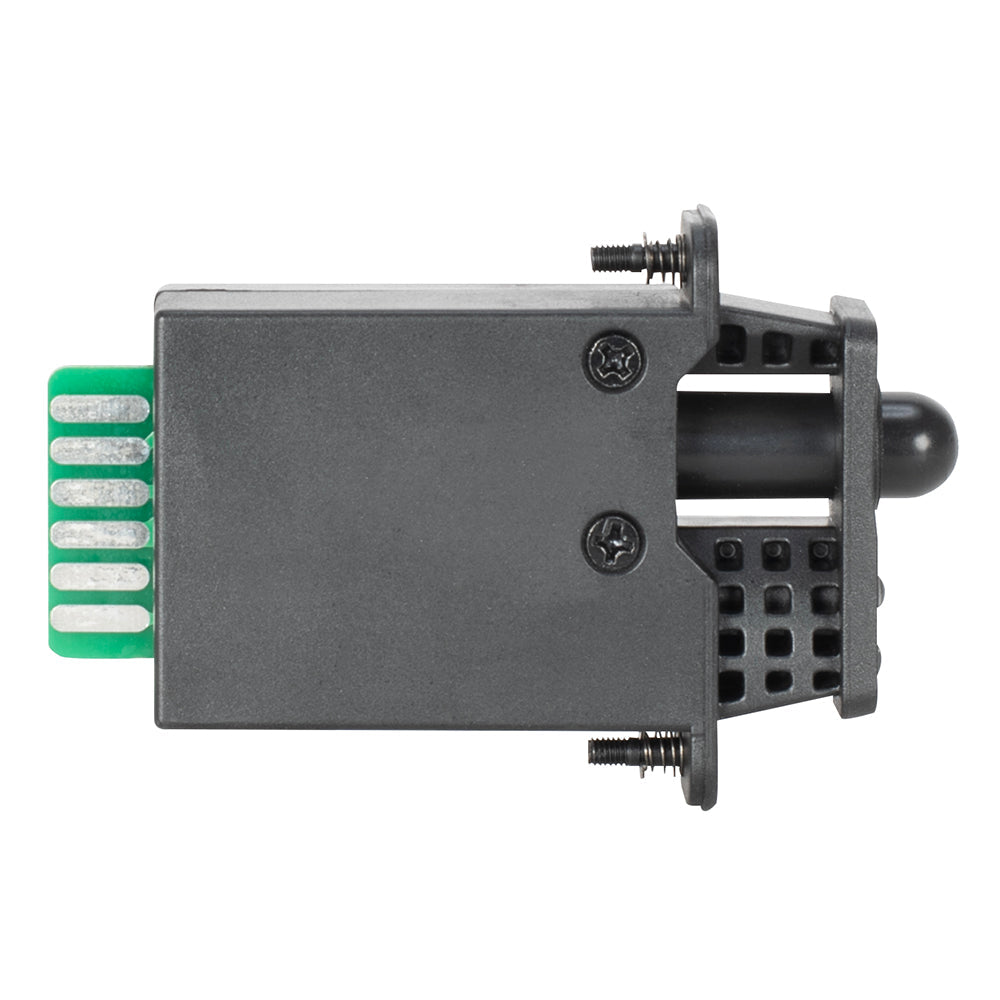

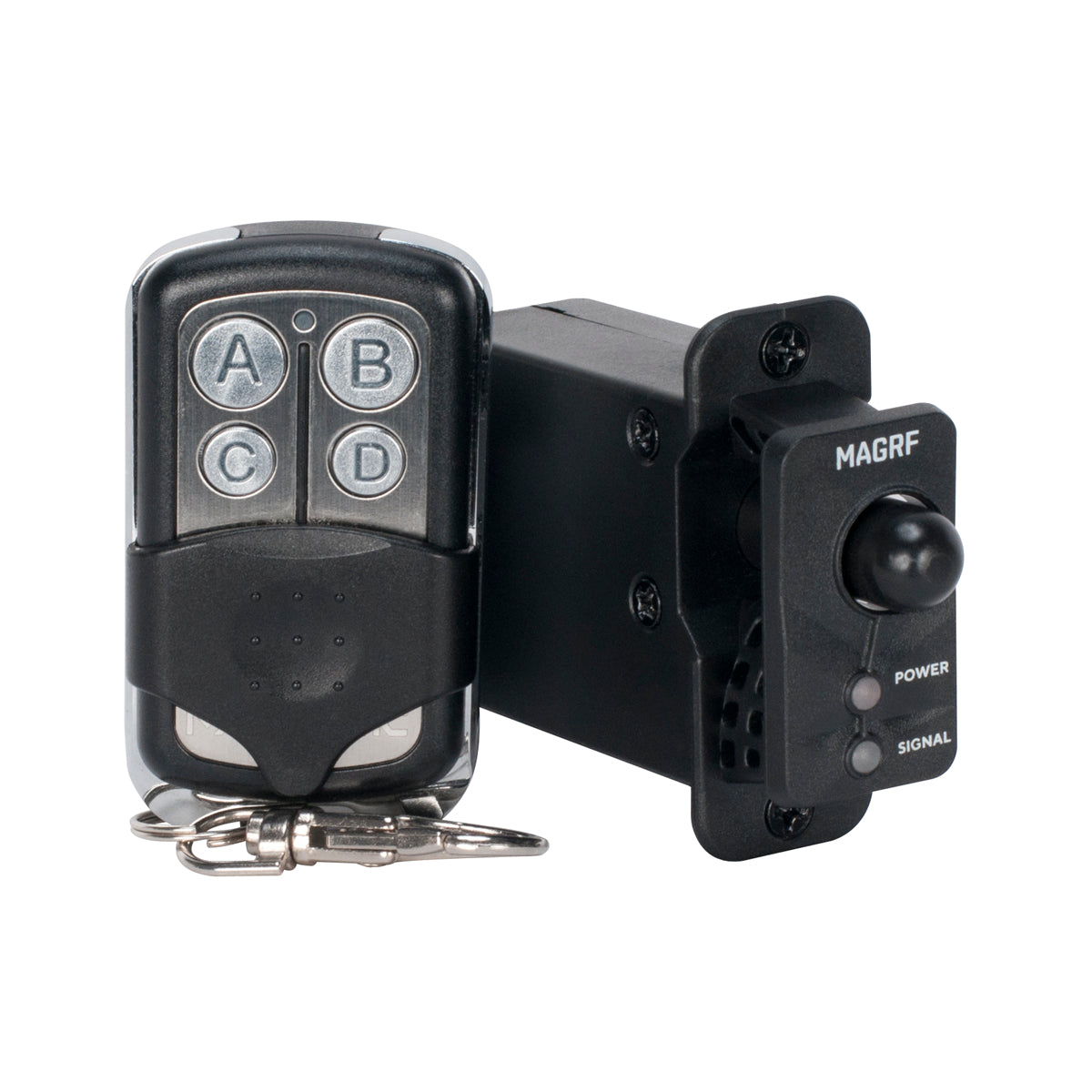

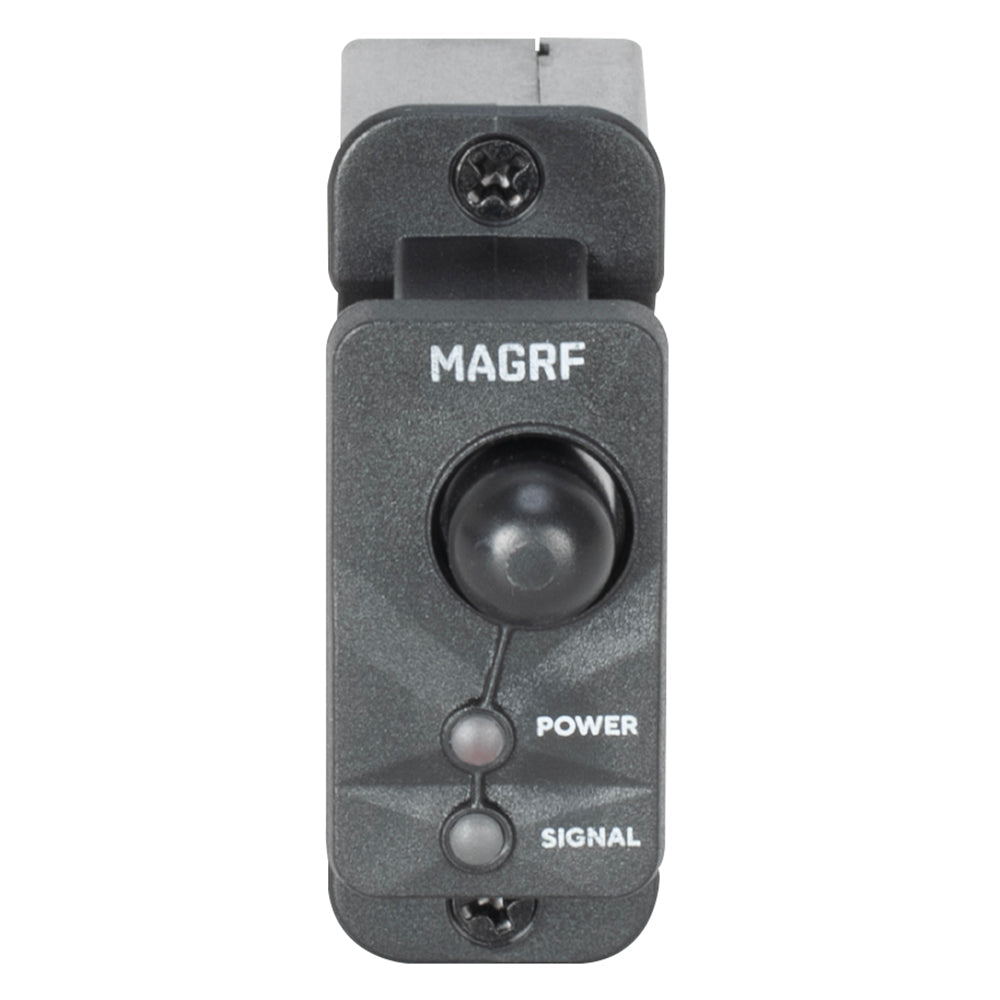

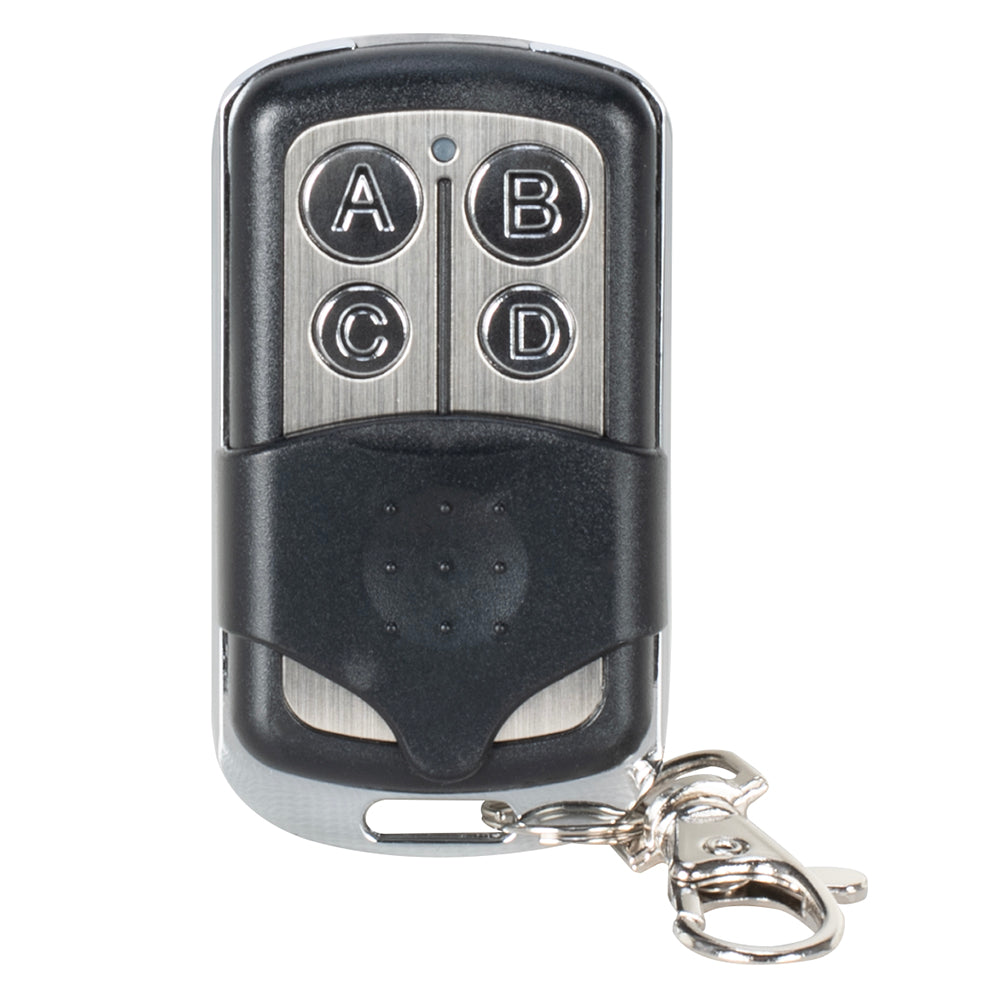

Optional MAGRF Wireless and Wired Remotes
MagRemote VIDI

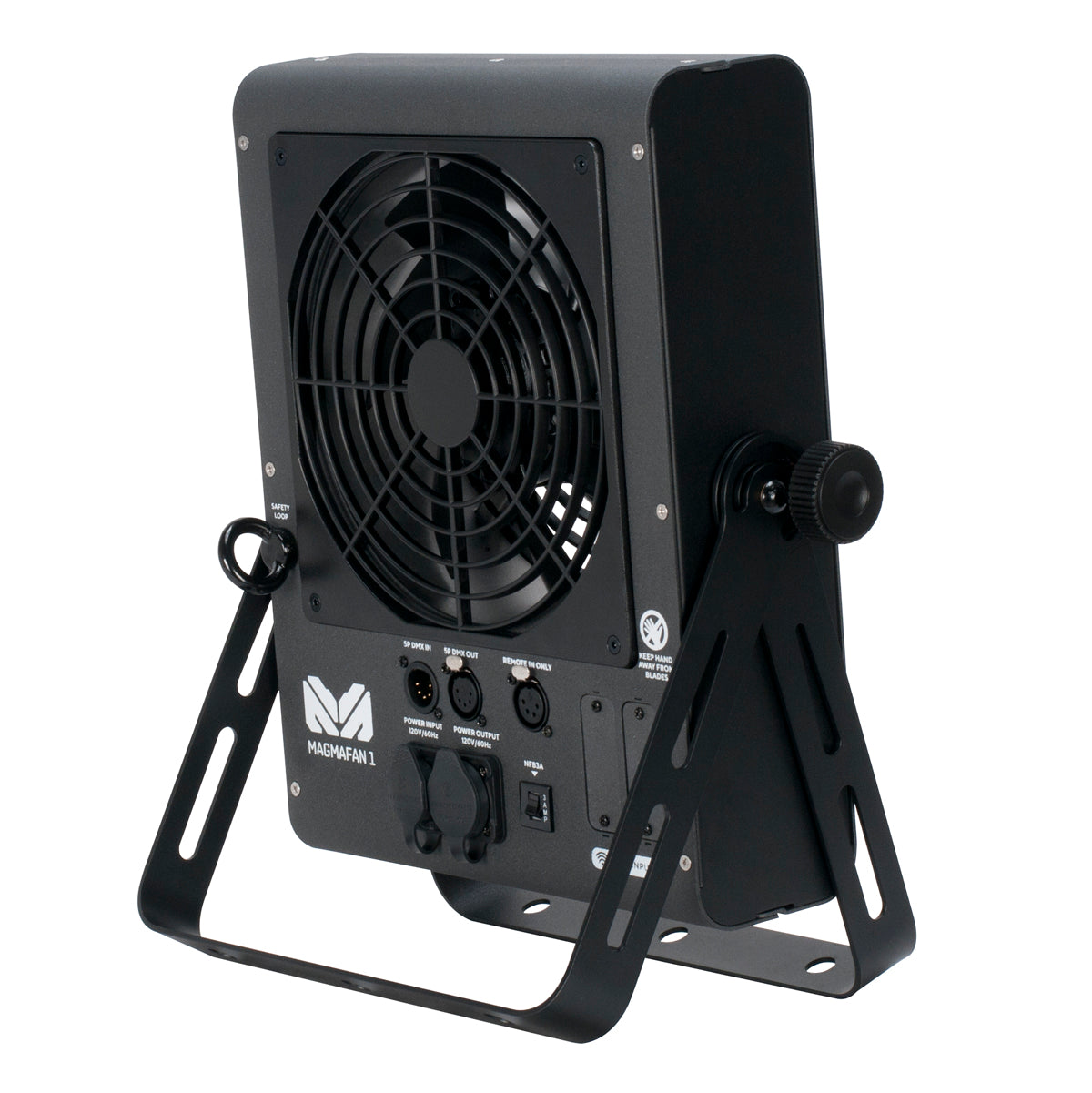

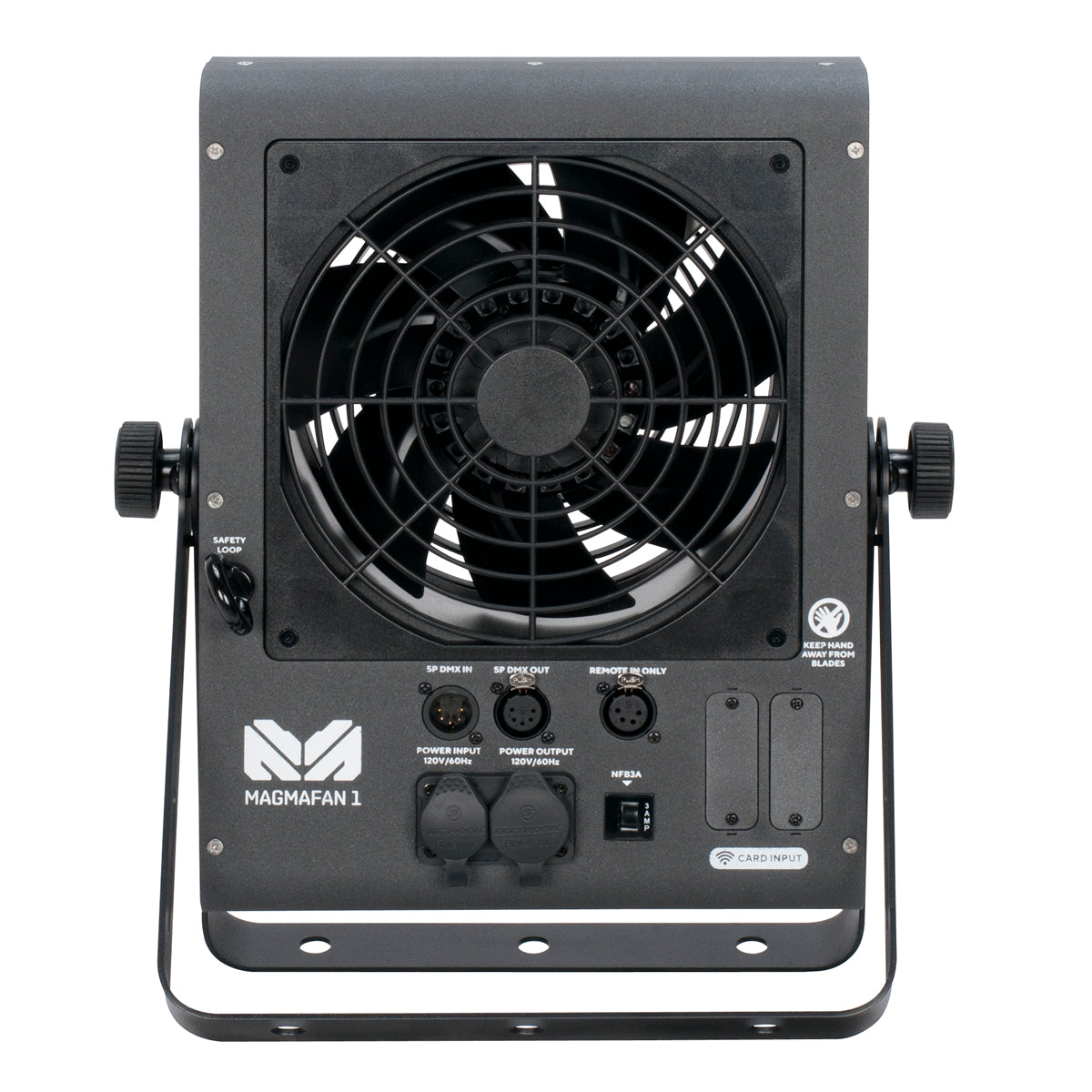

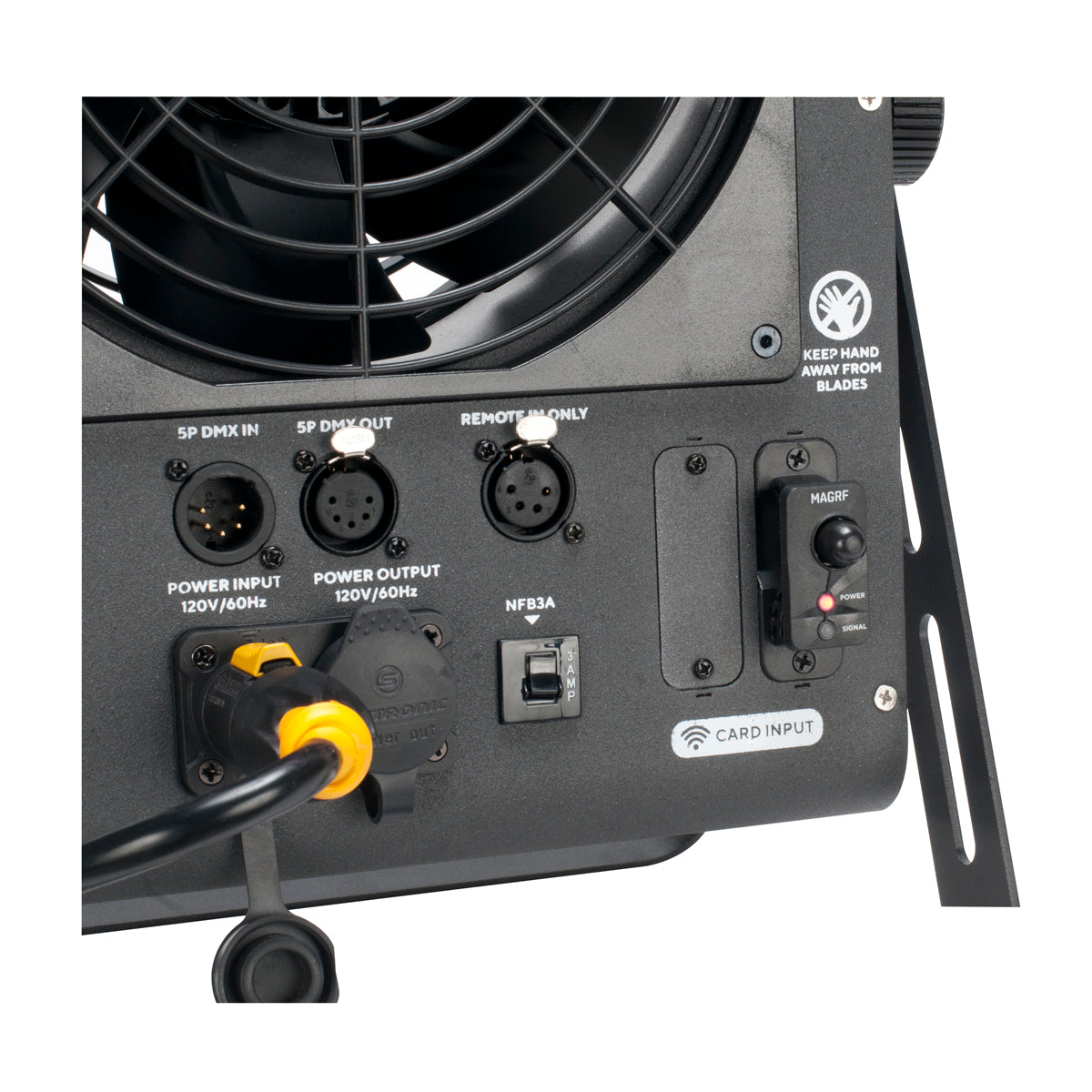

CONNECTIONS
Locking 5pin XLR Connector In/Out
IP65 Locking Power Connector In
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 13.2 in. (335mm)
Width: 4.9 in. (125mm)
Height: 15.6 in. (395mm)
Weight: 15 lbs. (6.8kg)
ELECTRICAL
US Version: 120VAC 60Hz, Europe Version: 230VAC/240VAC 50Hz
3A (NFB US Version)
2A (NFB EU Version)
Max Power Consumption: 165W
THERMAL
Maximum Ambient Temperature (Ta max) 104°F (40°C)
Exterior Surface Temperature, Steady State: 122°F (50°C)
OPTIONAL ACCESSORIES
MagFly
MagRF
APPROVALS / RATINGS
CE | cETLus | IPX4 | UKCA
Specifications and documentation subject to change without notice.
Downloads
Cad drawing
Dimensional drawings
Dmx traits
Specification sheet
User guide
User manual
