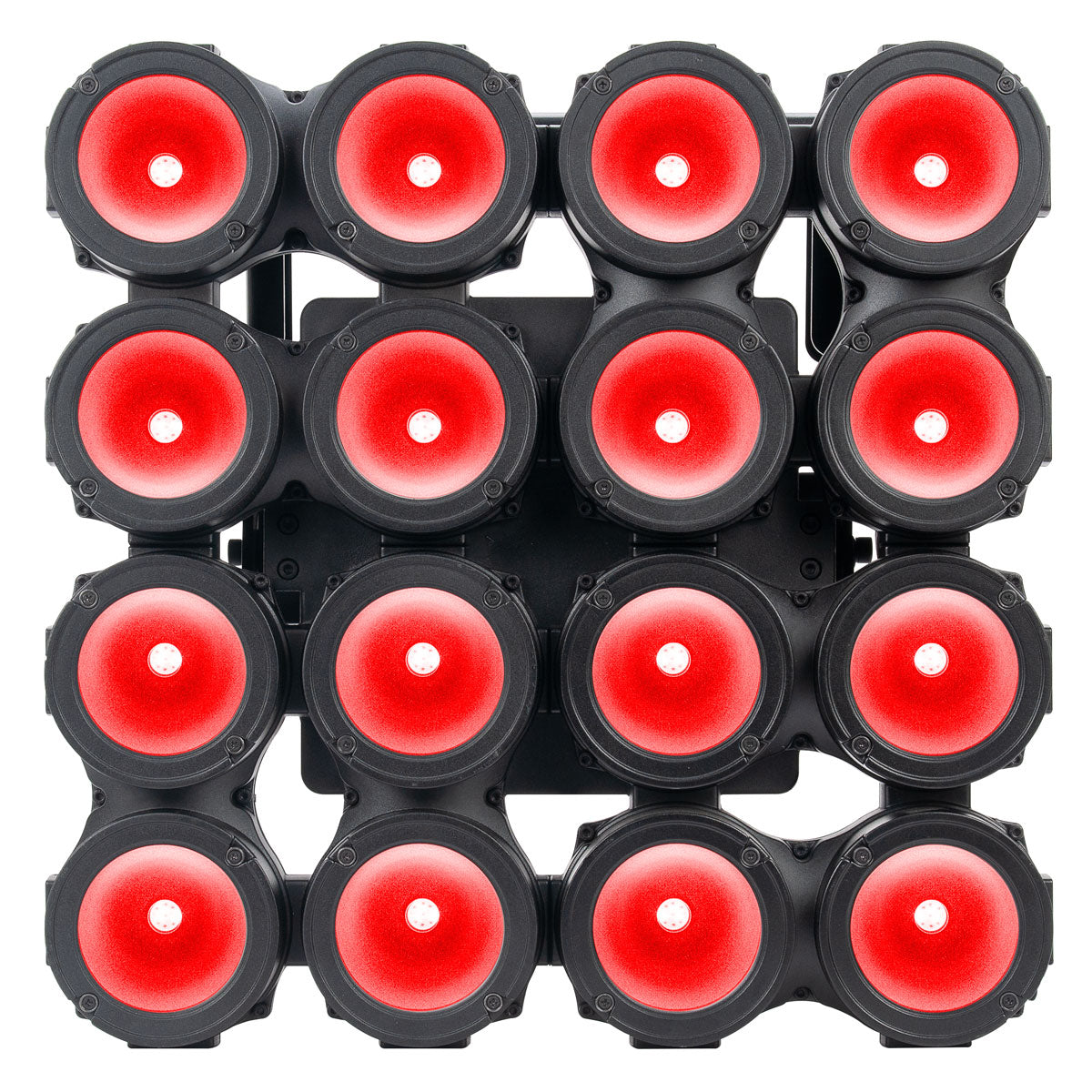

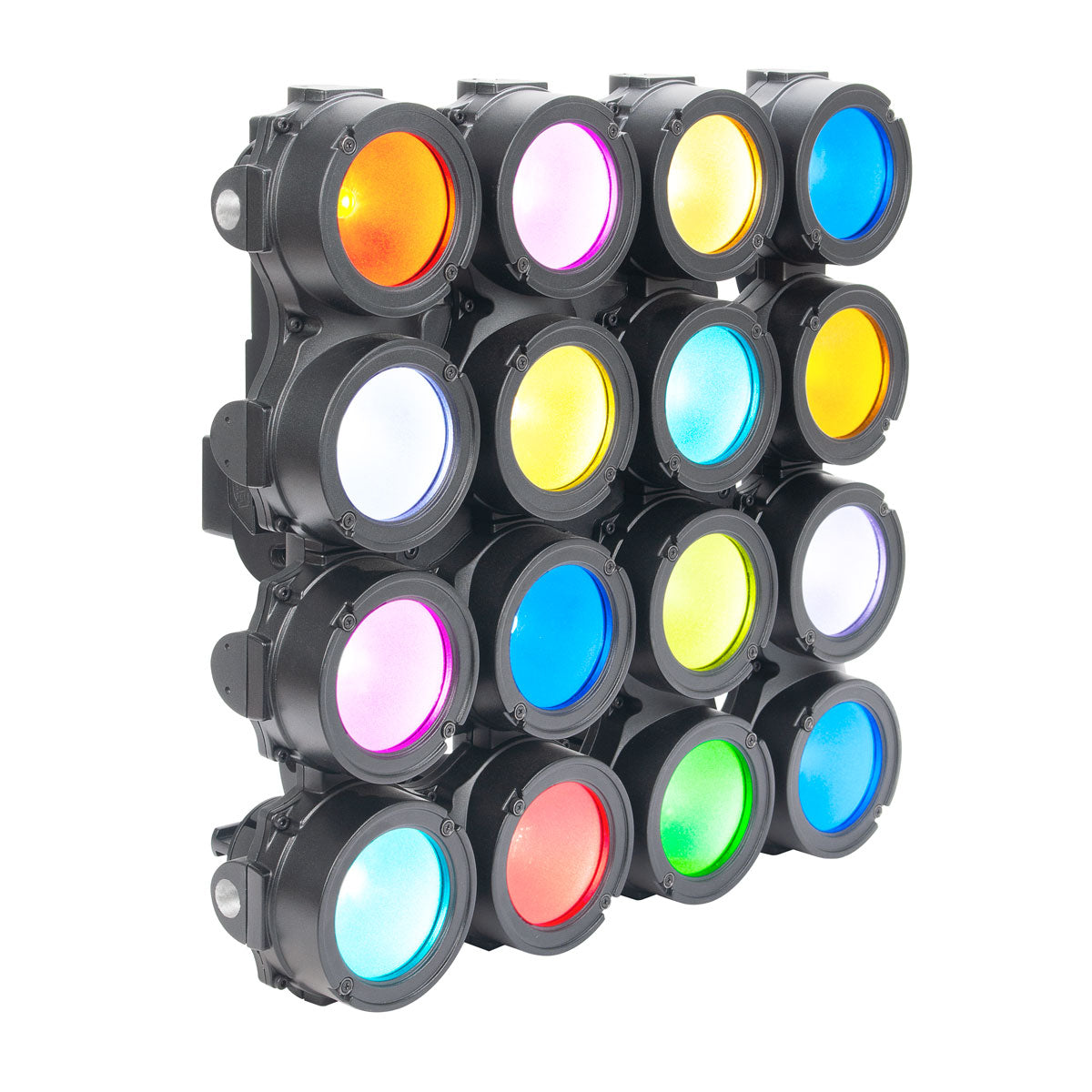

CUEPIX 16IP

Features

Versatile IP65 Outdoor Rated Effect Panel Luminaire

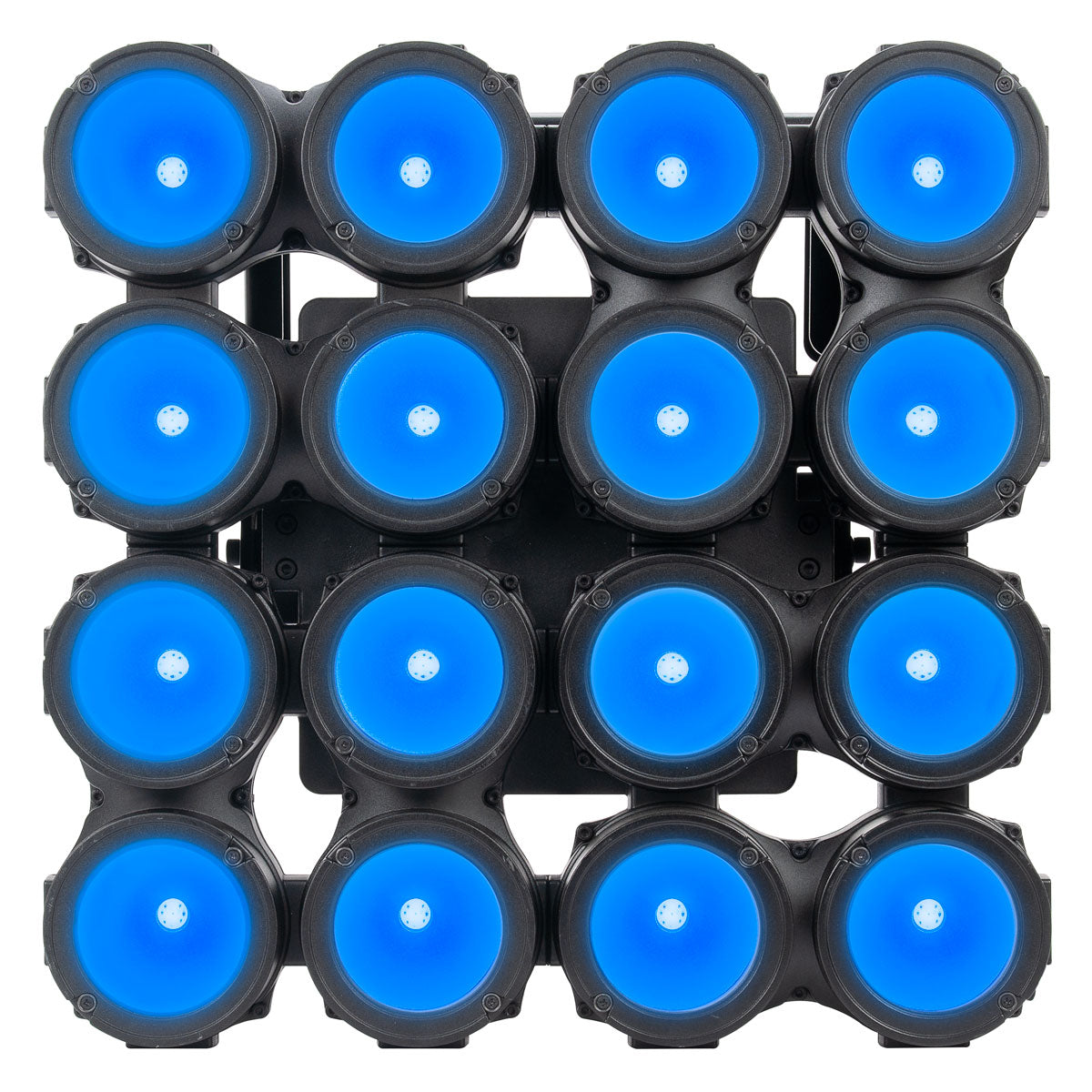

4x4 Array of 16 30W 4-in-1 RGBA COB LEDs
62° Beam and 87° Field Angles

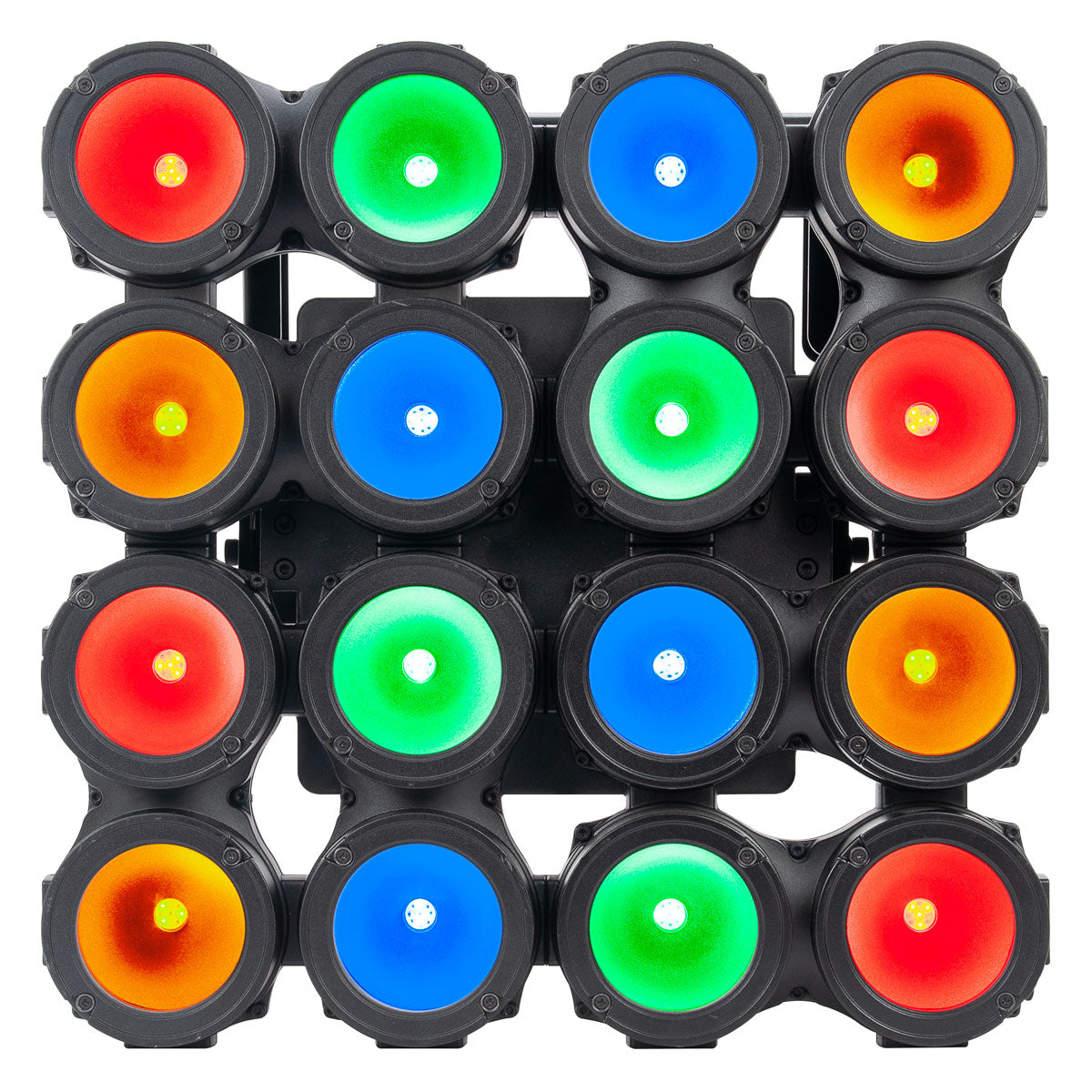

Full Pixel Control with Pixel Flip Modes

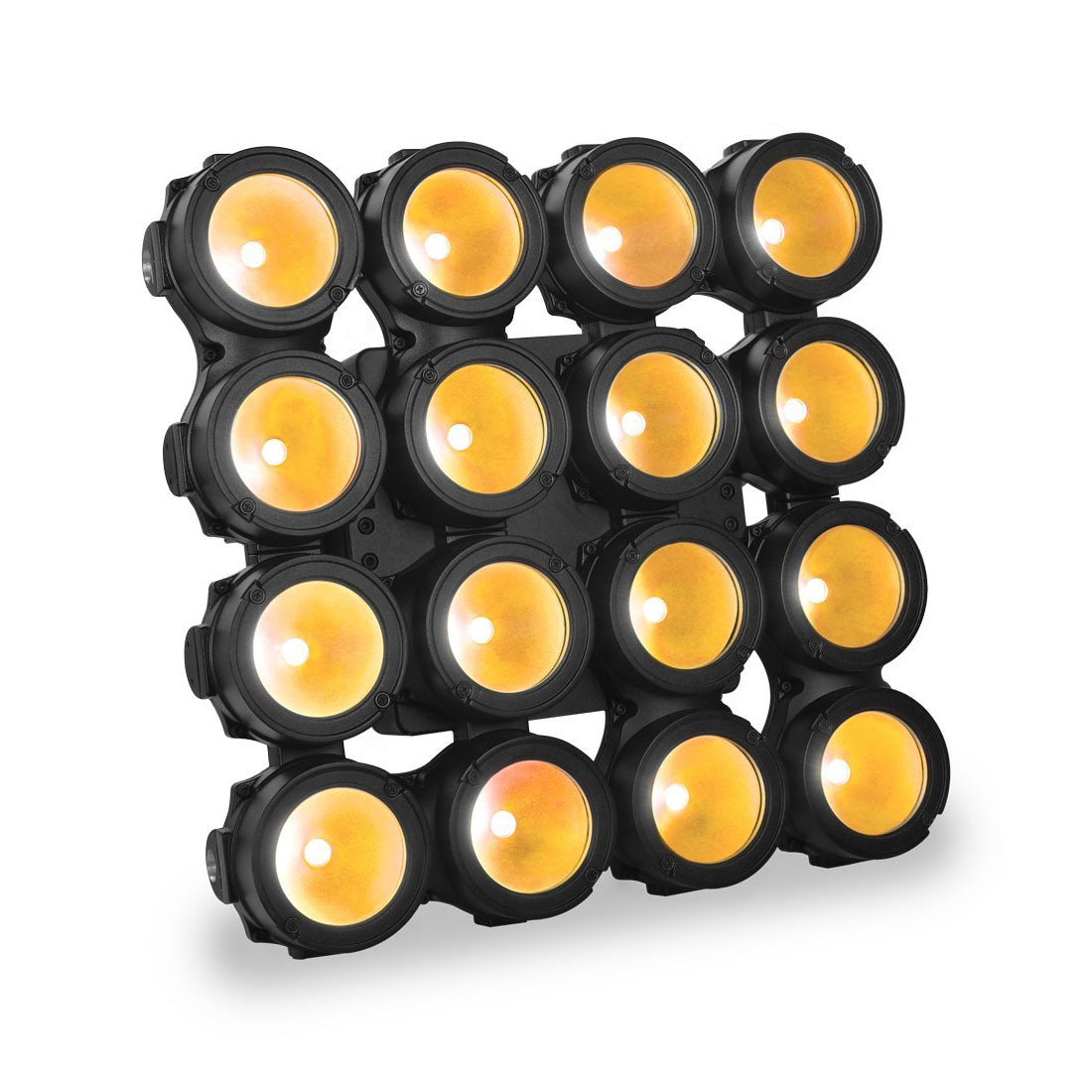

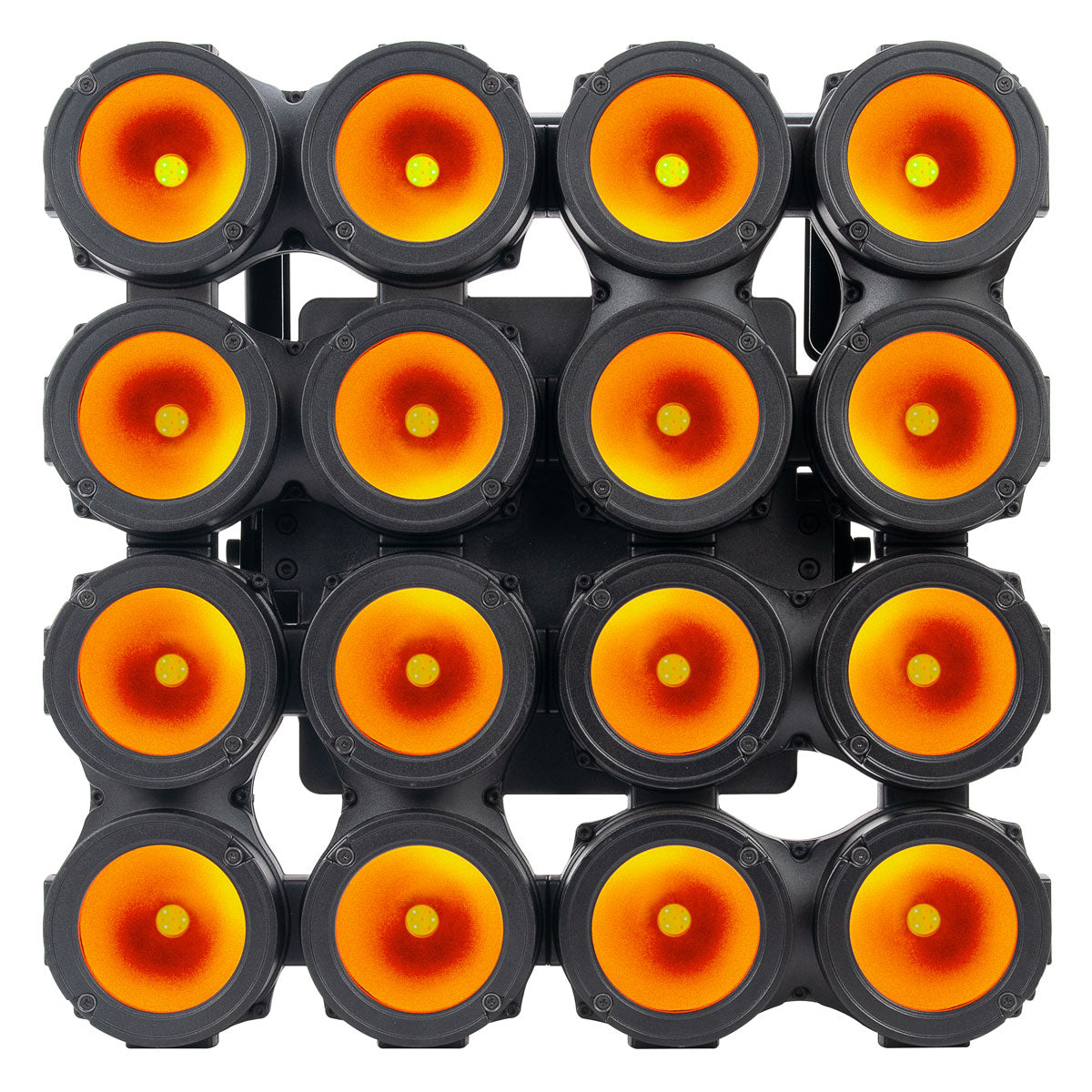

RGB+ Dynamic Amber Channel Mode
16-bit Dimming and Variable Dimming Curve Modes
High Speed Electronic Shutter and Strobe
Adjustable LED Refresh Rate Frequency and Gamma
Flicker Free Operation for Broadcast TV and FILM
No Fans for Noise-Sensitive Application
DMX, RDM, Kling-NET, and Art-NET Protocol Support

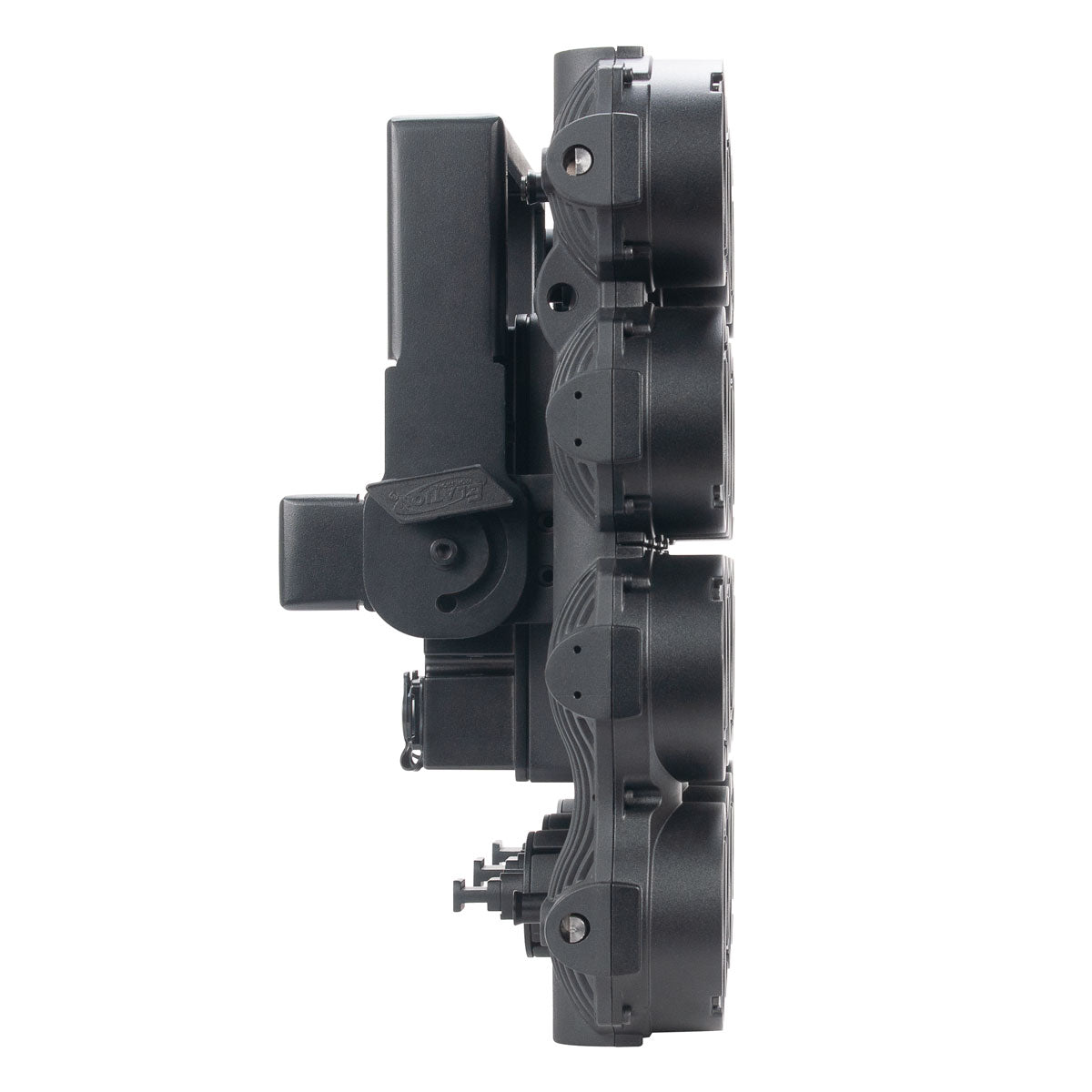

90° Adjustable and Fixed Yoke Brackets w/3-Position Holes

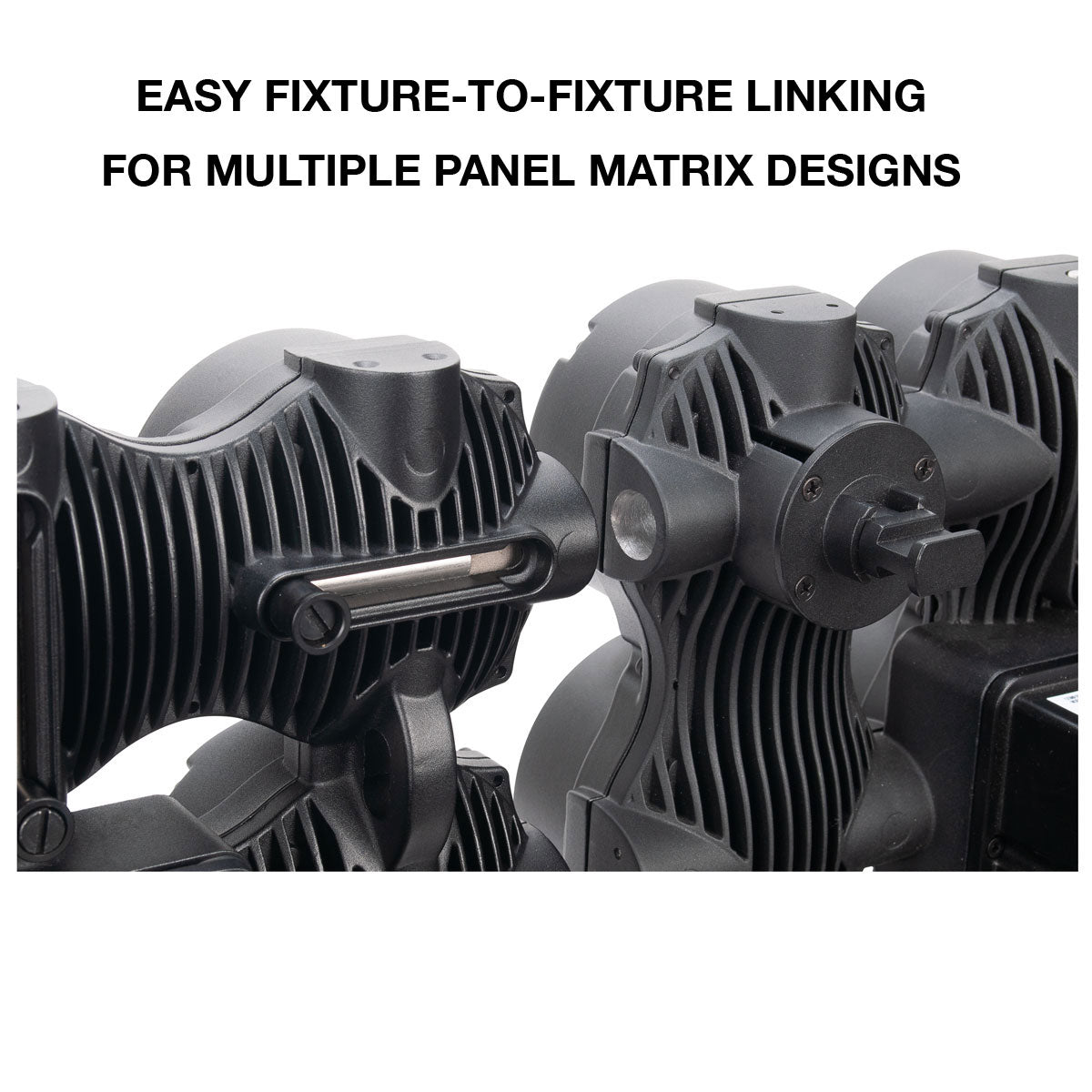

Integrated Fixture-to-Fixture Interlocking Alignment Pins/Locks
Optional 1/4 Turn Omega Brackets Available

Resources

Specifications Sheet

User Manual

Photometric Test Report

DMX Traits

Dimensional Drawing

CAD Drawing

Vectorworks Symbol

Specifications

SOURCE
16 30W 4-IN-1 RGBA COB LEDs
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA
6,400+ Total Lumen Output
62° Beam / 87° Field Angles
6,809 LUX 633 FC @3.3' (1m) (Full ON)

EFFECTS
Full Pixel Control with Pixel Flip Modes
RGB + Dynamic Amber Channel Modes
Smooth Color Mixing and 64 Internal Color Macros
High Speed Electronic Shutter and Strobe
16Bit Dimming and Variable Dimming Curve Modes

COLOR
RGBA

CONTROL / CONNECTIONS
14 DMX Channel Modes (128) total channels)
Adjustable Refresh Rate (900-25,000 (Hz)
Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)

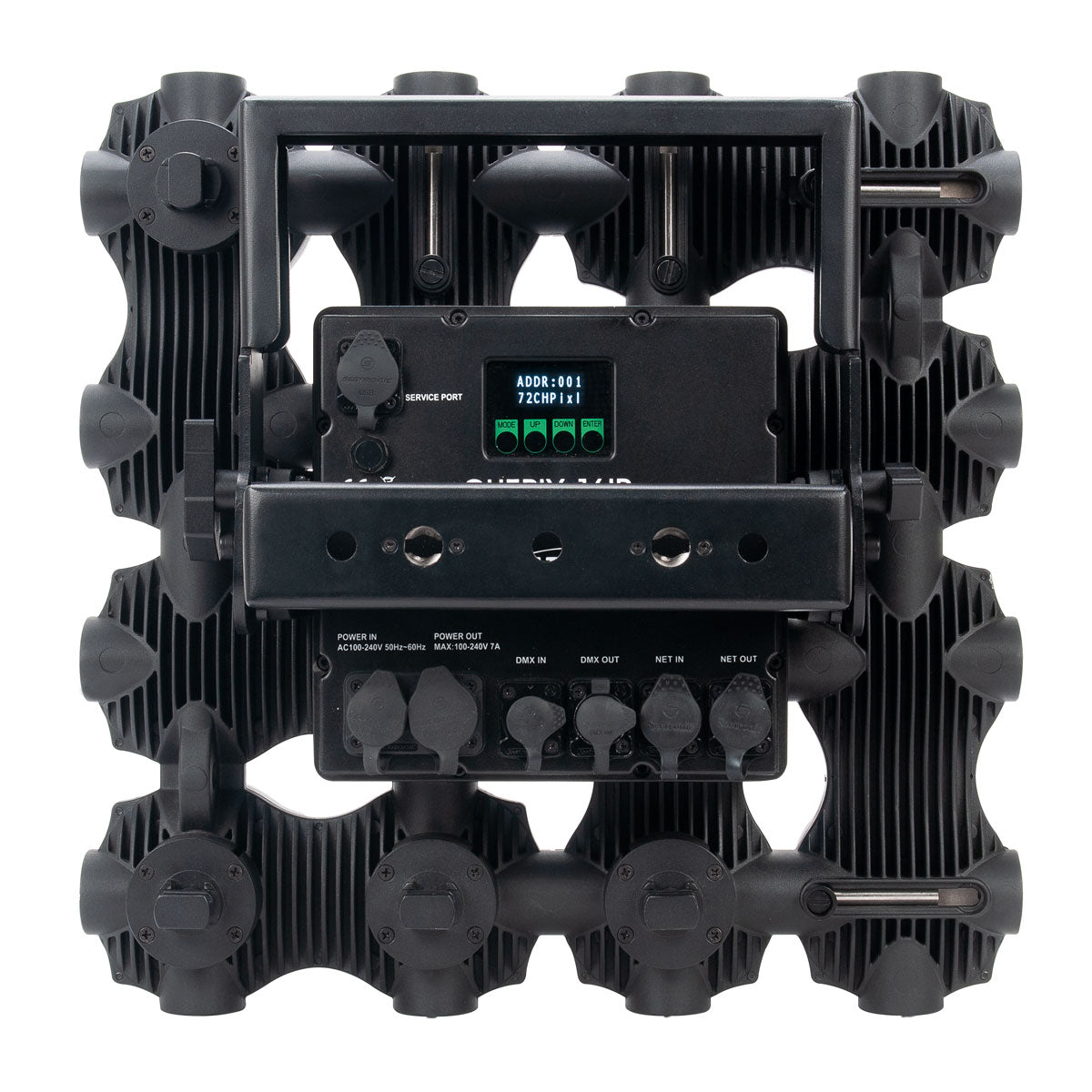

4 Button OLED Menu Control Display
DMX, RDM, Kling-Net, and Art-Net Protocol Support
IP65 5pin DMX, RJ45 Ethernet In/Out
IP65 Power In/Out

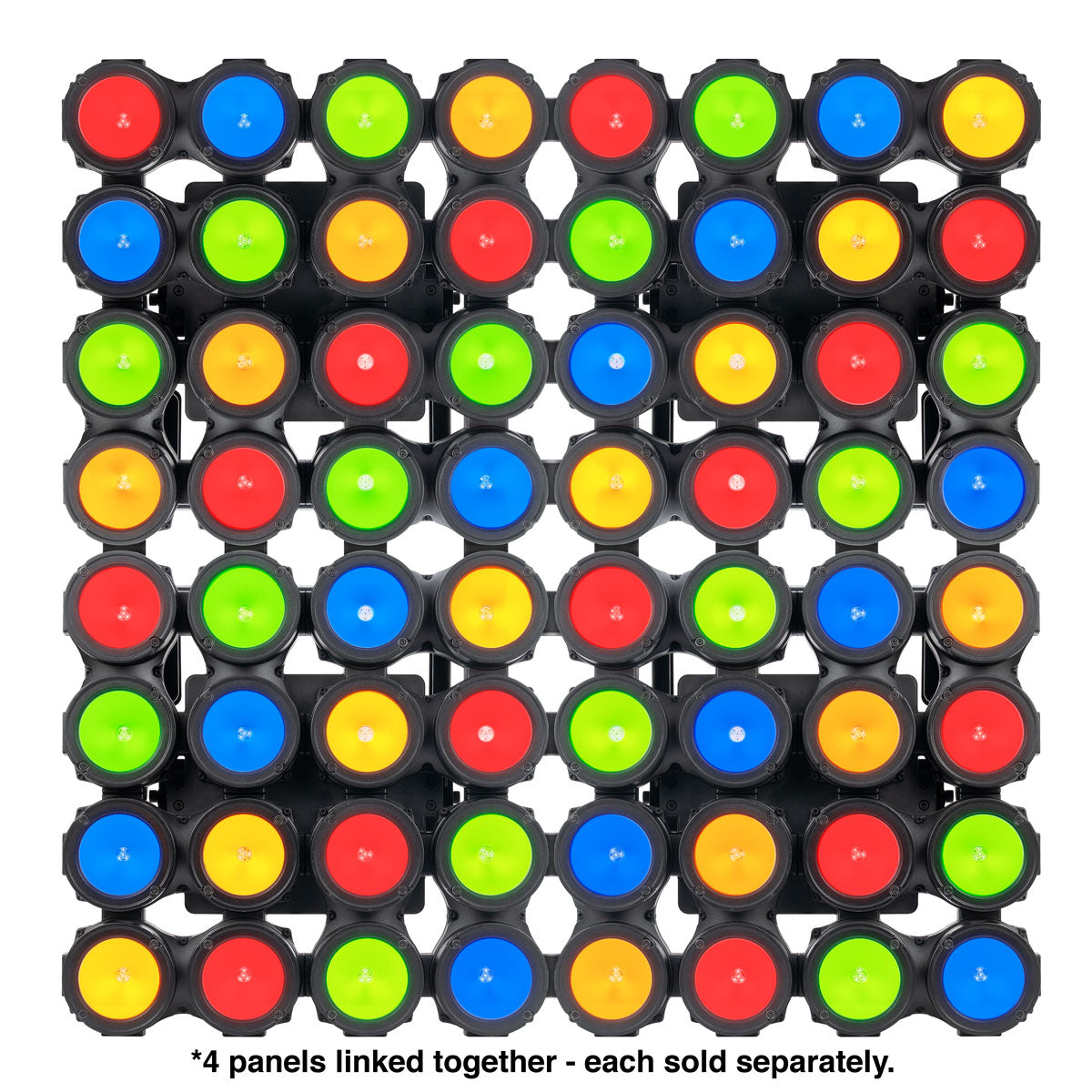

Fixture-to-Fixture Interlocking Alignment Pins/Locks
With Wired Digital Communication Network

SIZE / WEIGHT
Length: 17.3” (440mm)
Width: 8.1” (206mm)
Vertical Height: 17.3” (440mm)
Weight: 33.0 lbs. (15.0 kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
520W Max Power Consumption
14°F to 113°F (-10°C to 45°C)

APPROVALS / RATINGS
CE | IP65


Specifications and documentation subject to change without notice.
