CUEPIX BLINDER WW4
4x 100W WW LED Blinder
CUEPIX Blinder WW4 is a professional-grade lighting solution.
Replaced by

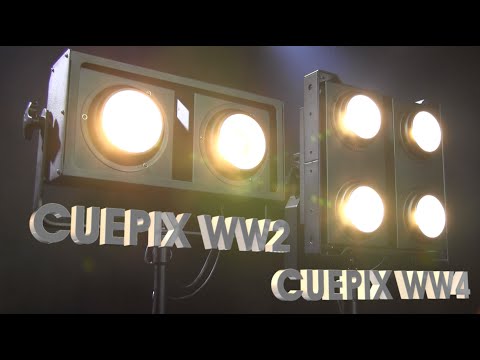

CUEPIX BLINDER WW4

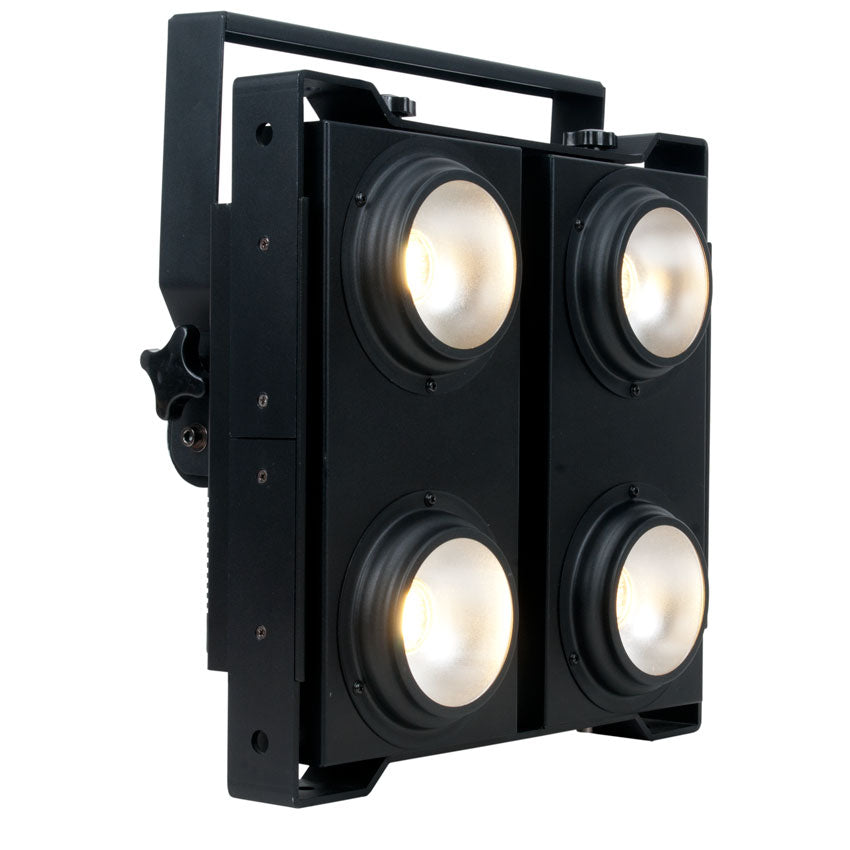

The CUEPIX Blinder WW4™ features (4) long life 100W Warm White 3,200K COB LEDs, a 62° beam angle, RDM (Remote Device Management), individual control of each COB module, manual pan focus, variable and selectable dimming curves, strobe effects, flicker free operation for TV and Film, 3pin and 5pin DMX and Locking Power Cable in/out connections, LCD menu display with 4 button control panel, integrated yoke and side mounting brackets, and a multi-voltage universal auto switching power supply (100-250v).
High Power Long Life Warm White COB LEDs
62° Beam Angle / 100° Field Angle
Individual Control of Each COB Module
5 Variable Dimming Curve Modes
RDM (Remote Device Management)
Flicker FREE Operation for TV and FILM
Specifications
SOURCE
(4) 100W Warm White 3,200K COB LEDs
100,000 Hour Average Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
12,300 LUX 1,143 FC @3.3’ (1M) / 3,200K
EFFECTS
Strobe
Dimming : 0% - 100% of Each COB Module
Variable Dimming Curves
CONTROL / CONNECTIONS
6 DMX Channel Modes (1 / 2 / 4 / 5 / 7 / 9)

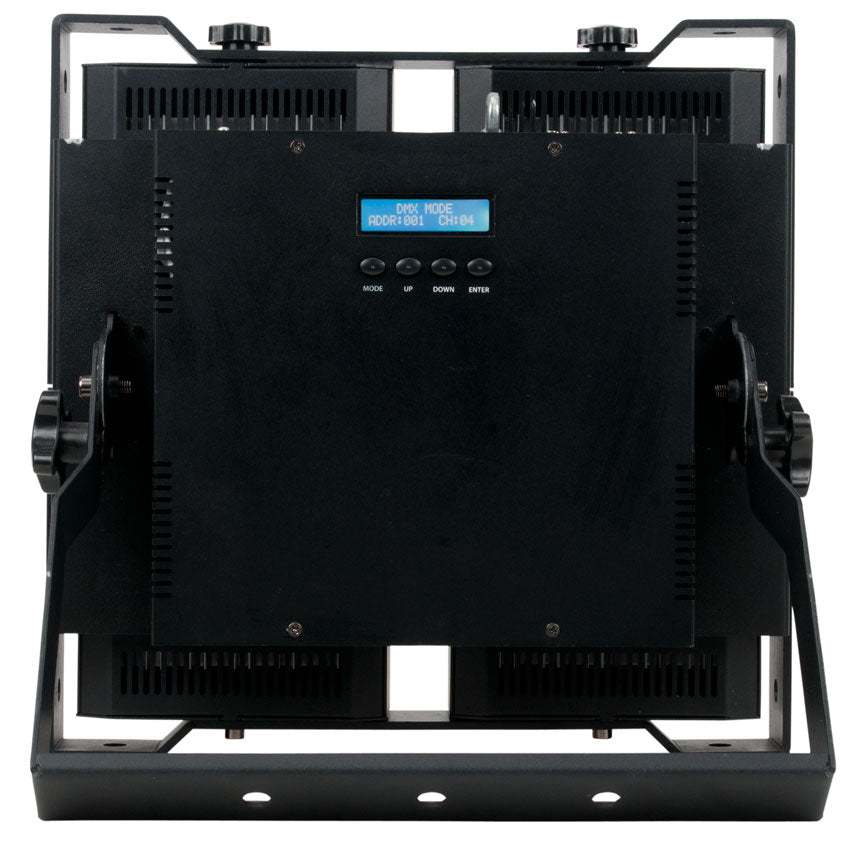

4 Button Control Panel and LCD Menu Display

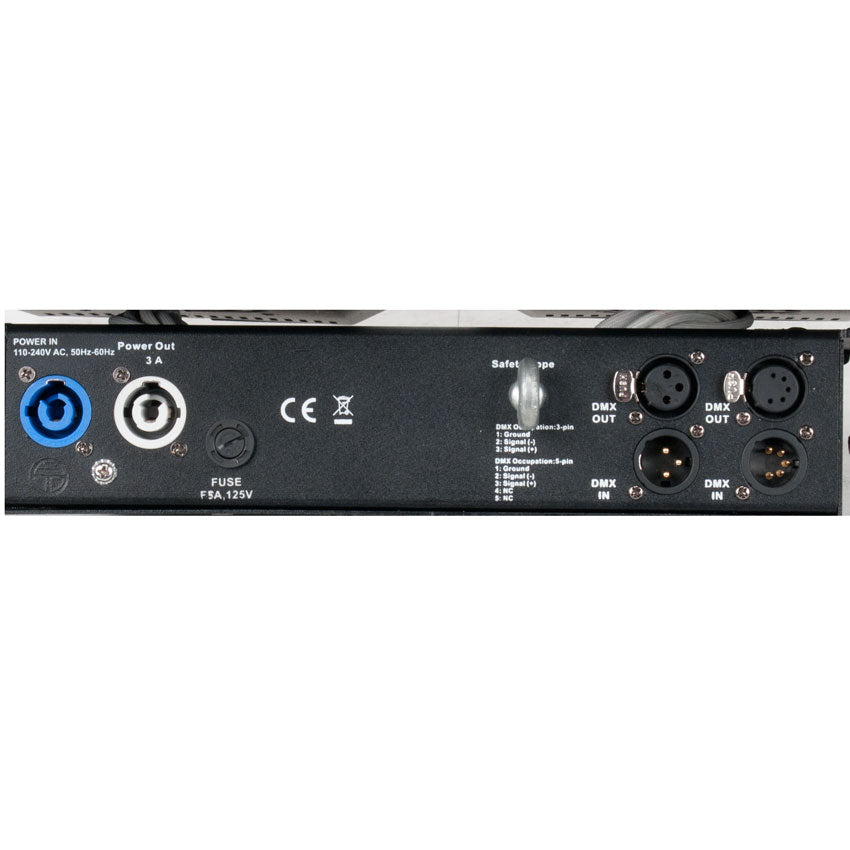

3pin and 5pin DMX In/Out
RDM* (Remote Device Management) *Software Version 1.13 or Higher
Locking Power Cable In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 15.7" (400mm)
Width: 6.9" (174mm)
Horizontal Height: 17.4" (441mm)
Weight: 21.0 lbs. (9.5kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
427W Max Power Consumption
14°F to 113°F (-10C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP20
FIRMWARE UPDATE
Current Version: V1.2.2
Click HERE for software updates
Specifications and documentation subject to change without notice.
Downloads
Cad drawing
Dimensional drawings
Dmx traits
Ies files
Photometrics
Specification sheet
User manual
Vectorworks symbol
CUEPIX BLINDER WW4 Parts & Service
Our CUEPIX BLINDER WW4 Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your CUEPIX BLINDER WW4. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
CUEPIX BLINDER WW4 Parts & Service
Dance America Productions lights dancesport with high-quality Elation lighting

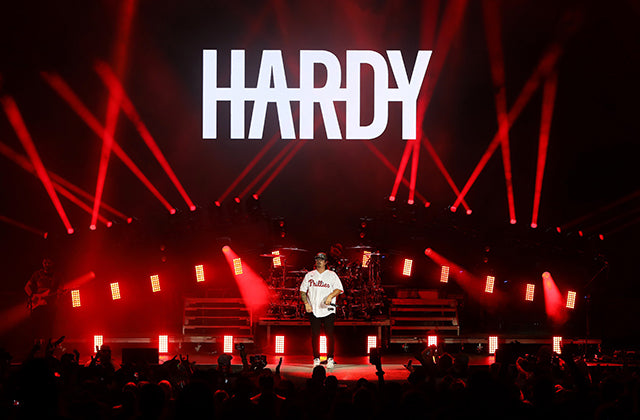

Rising country star Hardy out with Zac Coren-designed Elation rig
