CUEPIX Strip WW
CUEPIX Strip WW

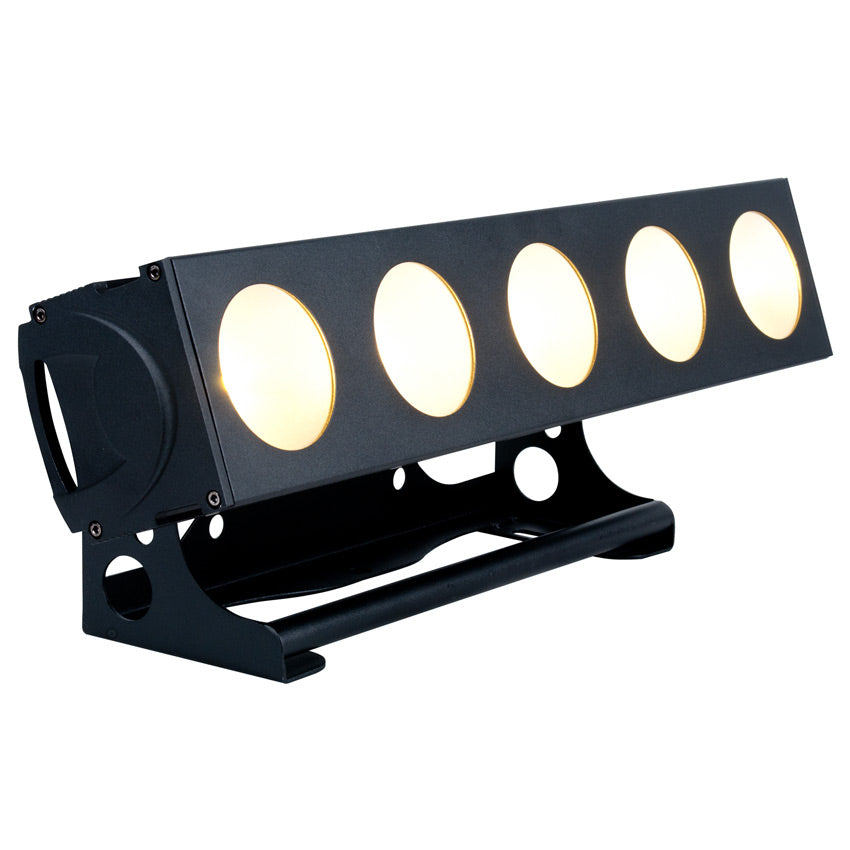

The CUEPIX Strip WW™ is a bar luminaire with (5) individual 30W Warm White 3,200K COB LEDs producing a 60° beam angle. Features include individual pixel control, strobe and zone chase effects, selectable dimming curves, DMX and RDM (Remote Device Management) support, 3/5pin XLR and powerCON in/out connections, (4) button LCD menu display control, 123W max power consumption, an and a multi-voltage universal auto switching power supply (100-240v).
Features
60° Beam Angle 3,200K Bar Luminaire
(5) Pixel Controlled 30W Warm White COB LEDs
Strobe and Zone Chase Effects
Selectable Dimming Curve Effects
DMX and RDM (Remote Device Management) Support
Flicker Free Operation for Broadcast TV and FILM
Integrated Rigging Bracket
Optional 15° Lens Kit Available
Resources
Specification information
Guides/ Manuals
PHOTOMETRIC DATA
PHOTOMETRIC DATA
PHOTOMETRIC DATA
DMX/ RDM Traits
Drawings
CAD File
CAD File
- CUEPIX Strip WW Vectorworks 2014 Symbol
- CUEPIX Strip WW Vectorworks 2015 Symbol
- CUEPIX Strip WW Vectorworks 2016 Symbol
Related Categories
Specifications
(5) 30W RGB 3-in-1 COB LEDs
100,000 Hour Average Lamp Life
PHOTOMETRIC DATA (60° Full ON)
4,170 LUX 387 FC @3.3’ (1m)
1,150 LUX 107 FC @6.6’ (2m)
540 LUX 50 FC @9.8’ (3m)
253 LUX 24 FC @13.1’ (4m)
157 LUX 15 FC @16.4’ (5m)
EFFECTS
Individual Pixel Control
Strobe and Zone Chase Effects
Selectable Dimming Curves

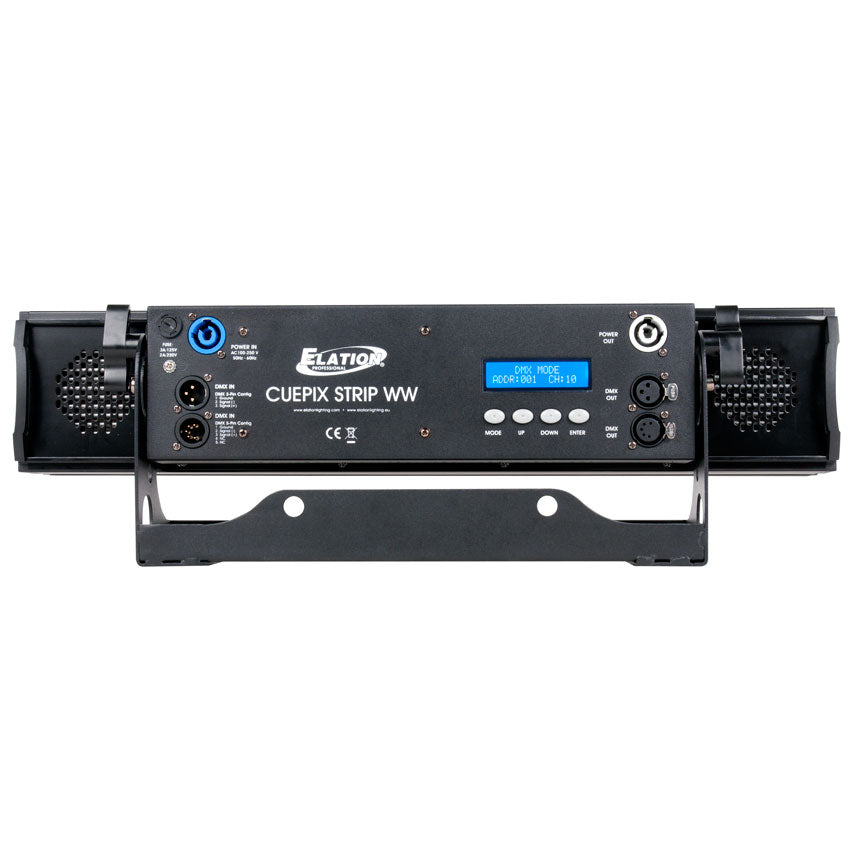

CONTROL / CONNECTIONS
(6) DMX Channel Modes (1 / 2 / 5 / 6 / 8 / 10)
RDM (Remote Device Management)
4 Button Touch Control Panel
3pin/5pin DMX In/Out
powerCON Power In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 21.6” (550mm)
Width: 6.4” (161.2mm)
Vertical Height: 6.8” (172.5mm)
Weight: 13.9 lbs. (6.3 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
123W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP20

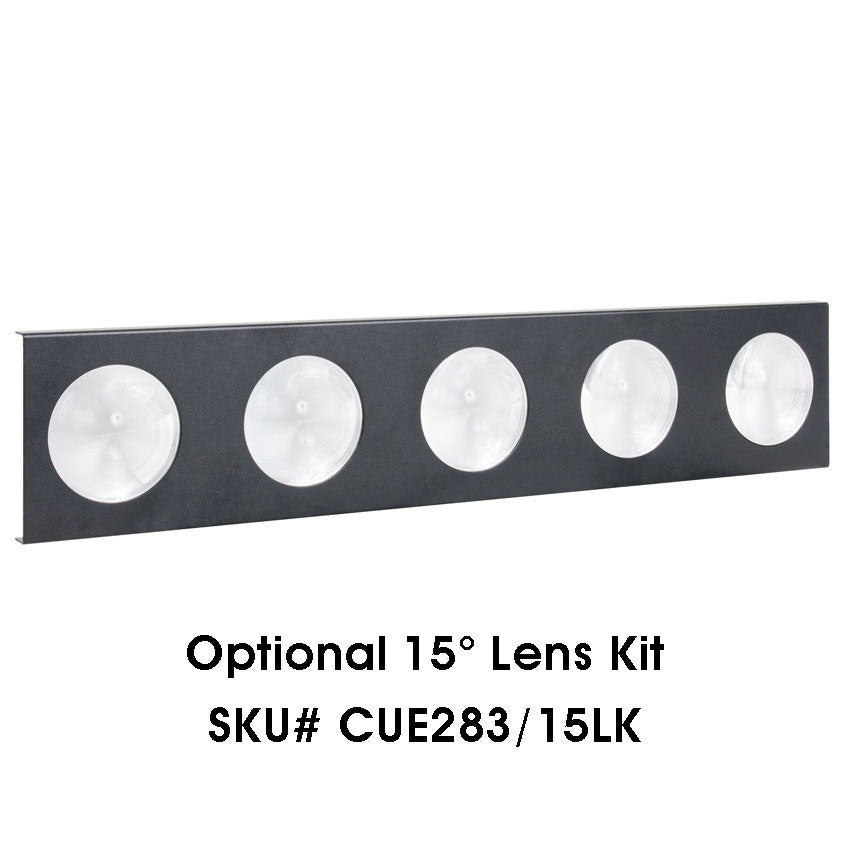

OPTIONAL ACCESSORIES:
15 DEGREE LENS KIT SKU# CUE283/15LK
Specifications and documentation subject to change without notice.
