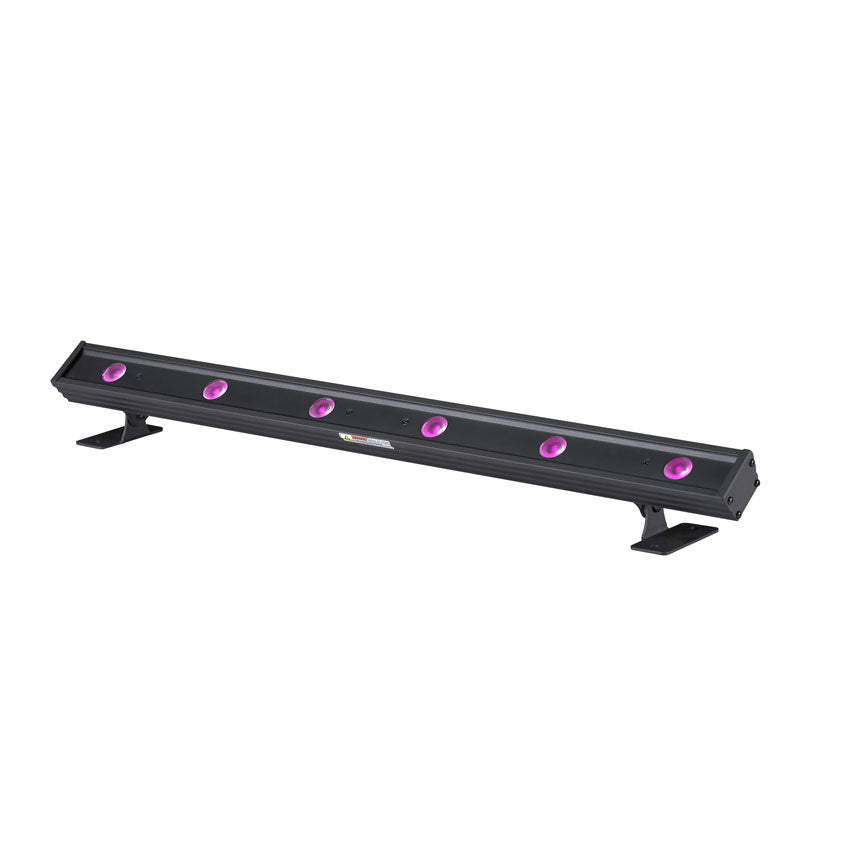

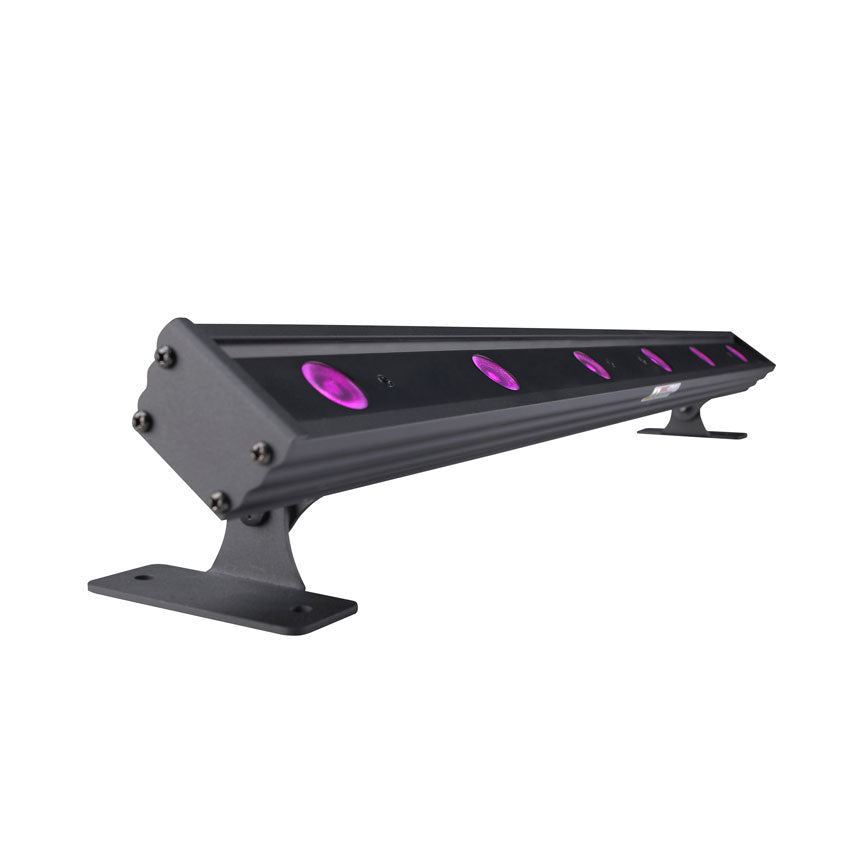

DarkFX Strip 510

Features

High Efficiency UV LED Bar
25 Degrees Narrow Beam Angle

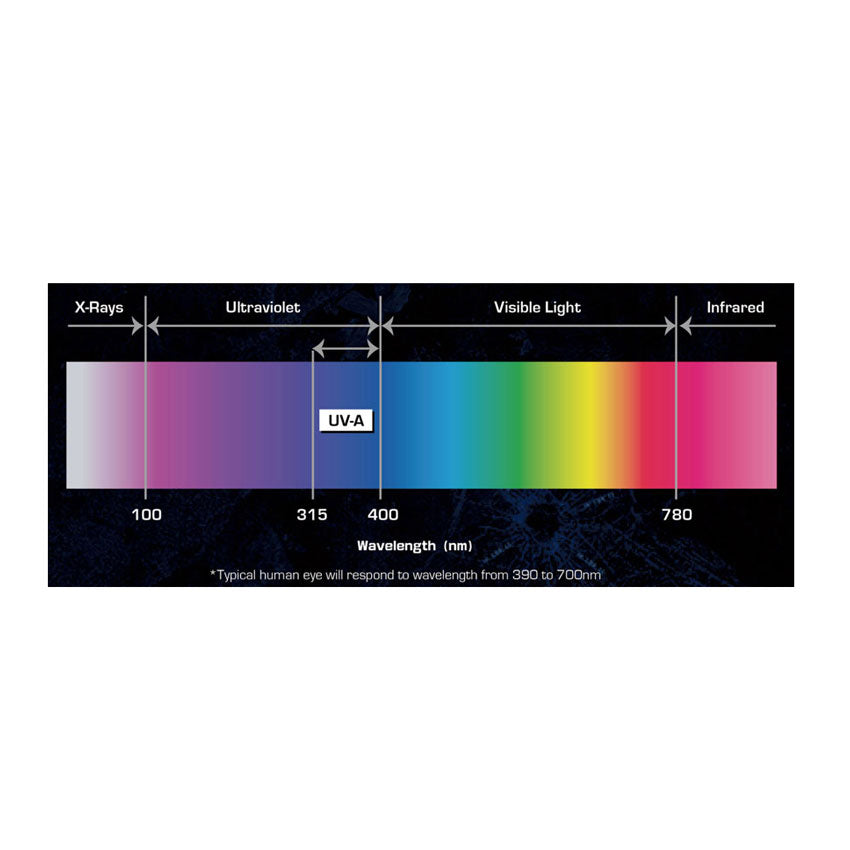

365nm Peak Wavelength with Minimum Visible Light
4500mW High Output at Full Intensity
Special Optics to Prevent Wear Degradation from High UV Exposure
Flicker Free Operation for TV and FILM

Resources

Specifications Sheet

User Manual

Specifications

SOURCE
 (6) 1.9W High Power UV LEDs
 20,000 Hour Average LED Life*
 *LED Life may vary depending on several factors including but not limited to:
  Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


 PHOTOMETRIC DATA
 Optics: 25 Degrees
 Peak Wavelength: 365nm
 Radiant Flux Output: 4500 mW

 CONTROL/CONNECTIONS
 DarkFX Drive 4 Power/DMX Fixture Driver (sold separately)
 Cable Connection: 22 AWG Bare Wire Power/Data Combo Cable

 SIZE / WEIGHT
 Dimensions (no mounting brackets)
 Length: 23.4” (593.2mm)
 Width: 1.78” (45mm)
 Vertical Height: 1.15” (29.15mm)
 Dimensions (including mounting brackets)
 Length: 23.4” (593.2mm)
 Width: 2.91” (74mm)
 Vertical Height: 2.85” (72.35mm)
 Dry Weight: 2.4 lbs. (1.08 kg)

 ELECTRICAL / THERMAL
 DC 20-24V
 12W Max Power Consumption

 APPROVALS / RATINGS
 CE | IP20 Indoor Use Only



 Specifications and documentation subject to change without notice.
