DarkFX UV Wash 2000IP

Features

IP65 Outdoor Rated

High Efficiency UV LEDs

25-Degree Beam Angle

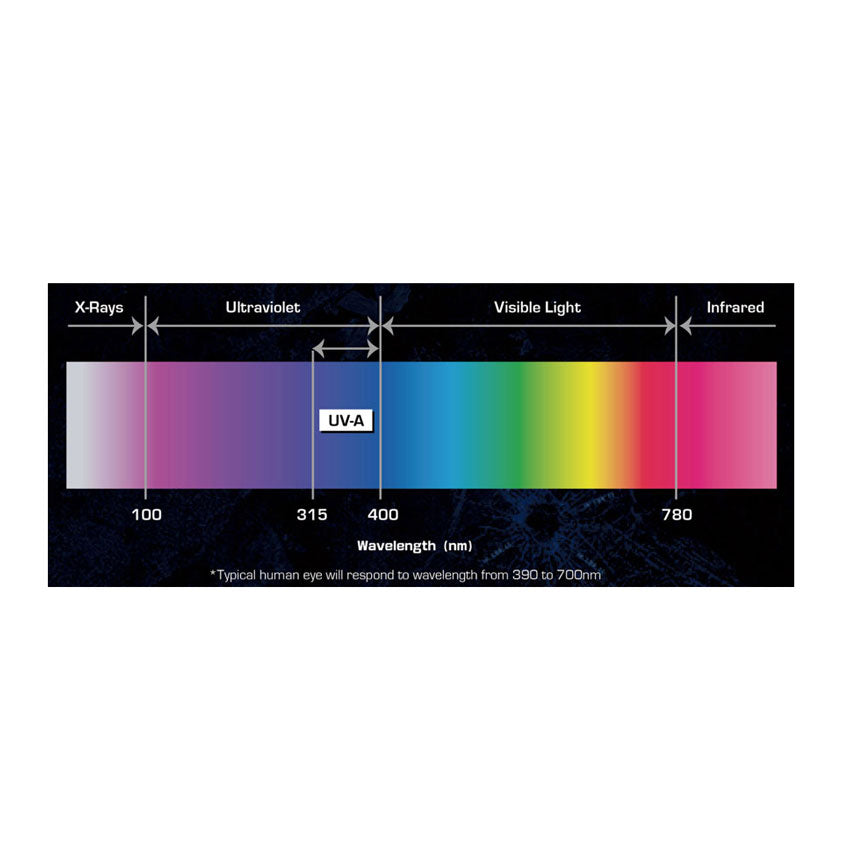

365nm Peak Wavelength

Minimum Visible Light Output

Special Optics To Prevent Wear Degradation from High UV Exposure

24,800mW High Output at Full intensity

Flicker Free Operation for TV and FILM

Resources

Specification information

Guides/ Manuals

Drawings

CAD File

Related Categories

Specifications

SOURCE
(33) 1.9W High Power UV LEDs
20,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


PHOTOMETRIC DATA
Optics: 25 Degrees
Peak Wavelength: 365nm
Radiant Flux Output: 24,800 mW


CONTROL / CONNECTIONS
Manual and DMX 512 Control
4 Touch Button Control Panel

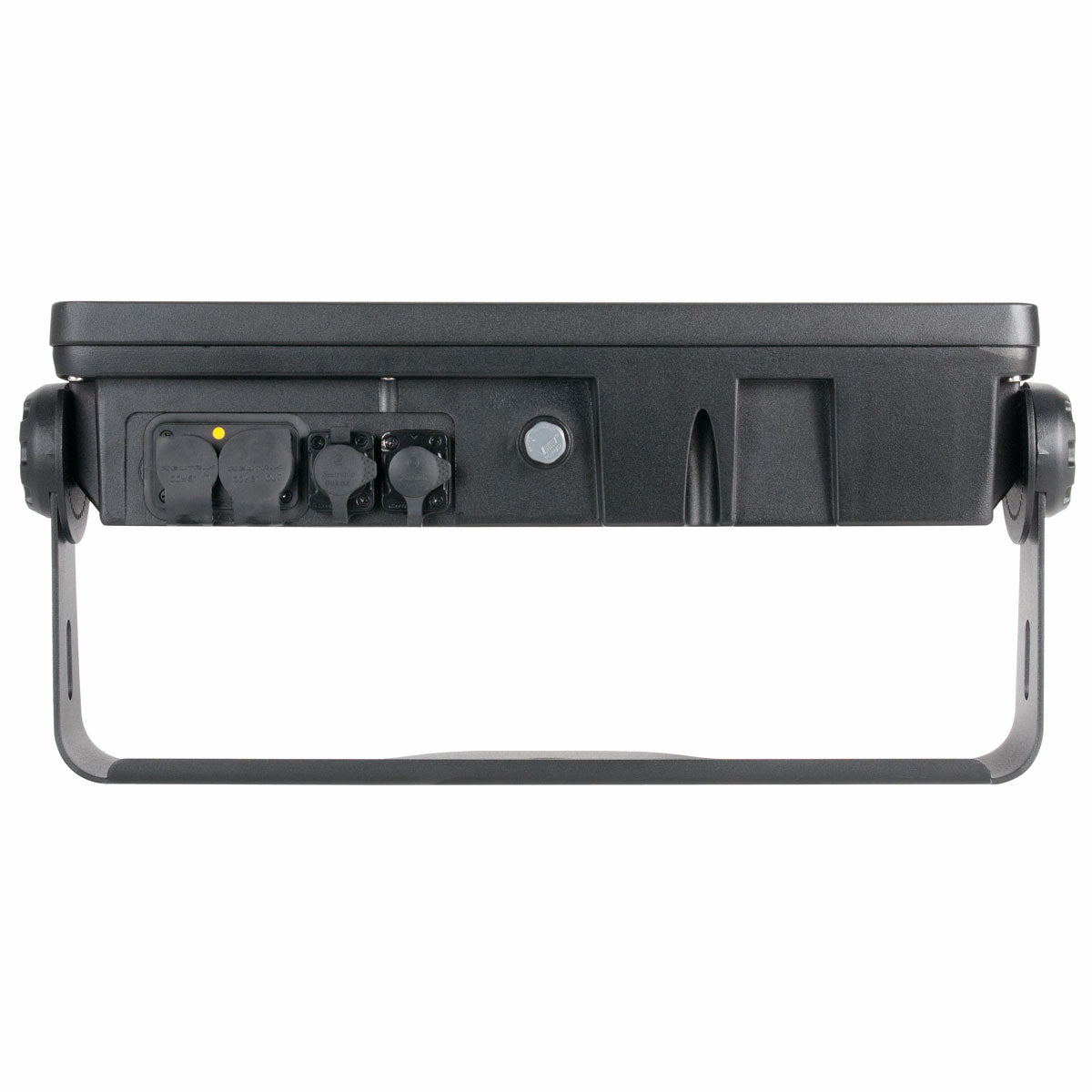

Waterproof 3pin DMX In/Out
powerCON TRUE1 In/Out


SIZE / WEIGHT

Length: 17.9” (454mm)
Width: 4.6” (116mm)
Vertical Height: 13.0” (331mm)
Weight: 22.9 lbs. (10.4 kg)


ELECTRICAL
AC100-240V 50-60Hz
69.9W @110VAC / 70.5W @220VAC Max Power Consumption


APPROVALS / RATINGS
CE | IP65



Specifications and documentation subject to change without notice.
