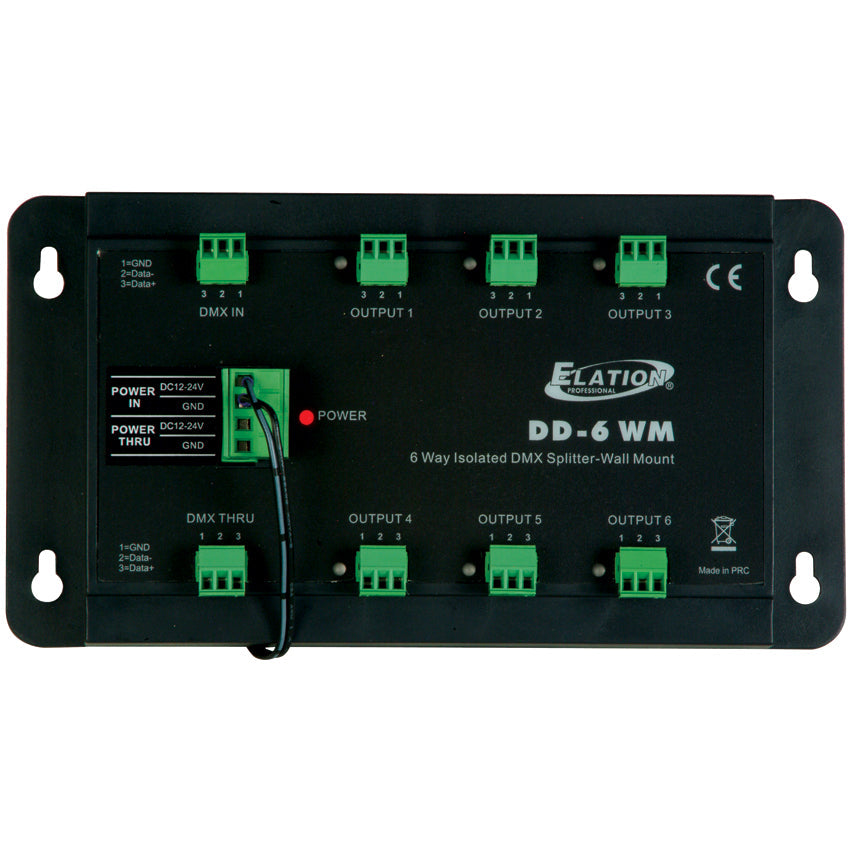

DD-WM6 - Wall Mount DMX Splitter



User Manual

Related Categories


• 6 way, DMX splitter/amplifier
• Permanent, wall mount, installation type
• Input, Thru and Outputs fitted with 3 pin Phoenix connectors
• Includes UL approved power supply
• Low profile, IP20 rated, polycarbonate housing
• All outputs optically isolated
• Data Input electrically isolated
• Power Input: 12-24VDC
• Weight: .5lbs (0.25kg)
• Dimensions: 7.68” (L) x 4.33” (W) x 0.86” (H) (195 x 110 x 22mm)
• Operation Temperature: 14º F to 122º F (-10º C to +50º C)
• Storage Temperature: -4º F to 158º F (-20º C to +70º C)
