Design Brick 70 II
Design Brick 70 II

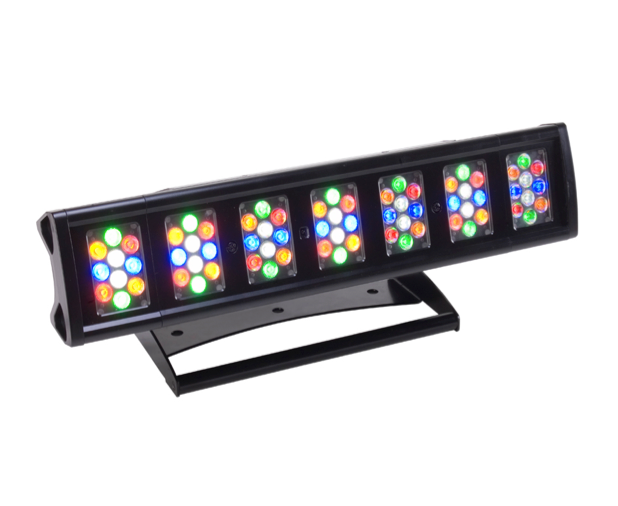

The DESIGN BRICK 70 II is a incredible powerful L.E.D. fixture offering amazing color mixing possibilities. With its additional white and amber L.E.D.s, any color with individual saturation and brightness can be set up. Even pastel colors or warm white or very warm yellow and orange colors can be achieved easily, always maintaining a perfect color mix in the beam with high light output. The II model features improved LED driver board with high frequency flicker free performance and smoother dimming.
Features
Resources
Guides/ Manuals
- Design Brick 70 Specification Sheet
- Design Brick 70 User Manual
- Design Brick 70 II Dimensional Drawings
- Design Brick 70 II CAD File
- Design Brick 70 II Photometric Data (25 Degree Lens)
- Design Brick 70 II Vectorworks 2013 Symbol
- Design Brick 70 II Vectorworks 2014 Symbol
- Design Brick 70 II Vectorworks 2015 Symbol
- Design Brick 70 II Vectorworks 2016 Symbol
Related Categories
Specifications
• 70 x 3W SSC L.E.D.s ( = 210 W Power)
• Single cell control
• RGB + white + amber
• 25 degree beam angle
• Extreme Light output
• Built-in macros + effects

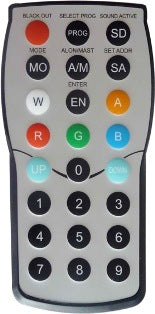

• Optional Wireless IR Remote - DLED70 IR-WR (DLE597)

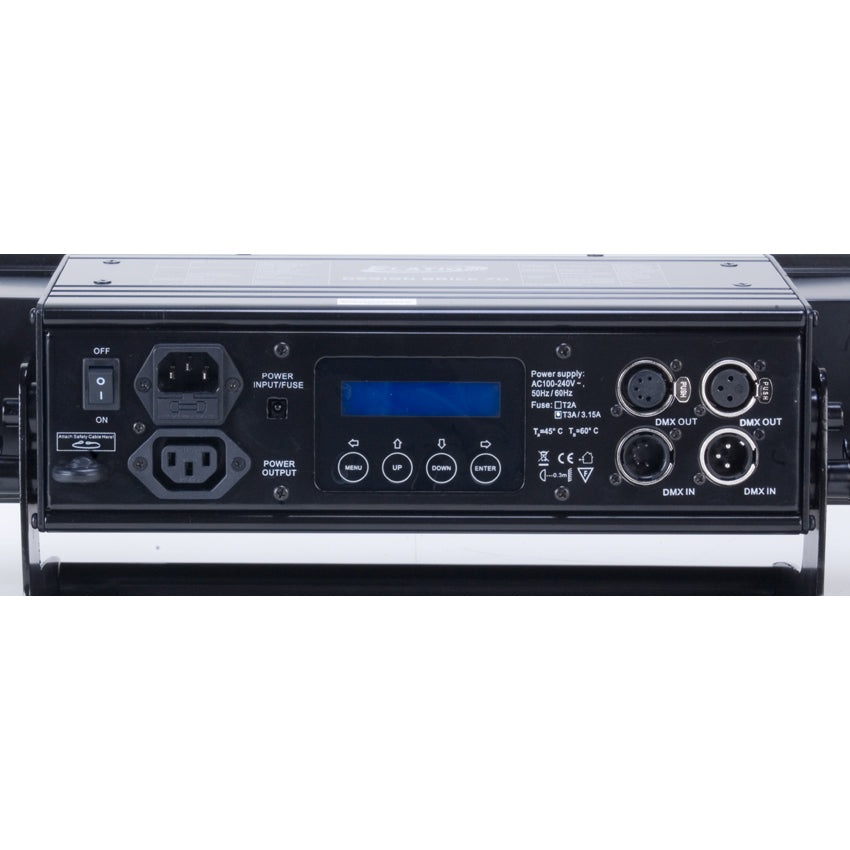

• LCD display menu setup
• 5 DMX modes available
• 210 Watt RGBWA LED BAR
• Red, Green, Blue, White, Amber
• Unlimited Color Mixing possibilities
• Digital LCD Display
• 7 Cell Pixel Control
• 4 DMX Modes - HSIC, RGBAW, Pixel, Individual
• Built In Macro Programs / Effects
• 3 pin or 5pin DMX in/out

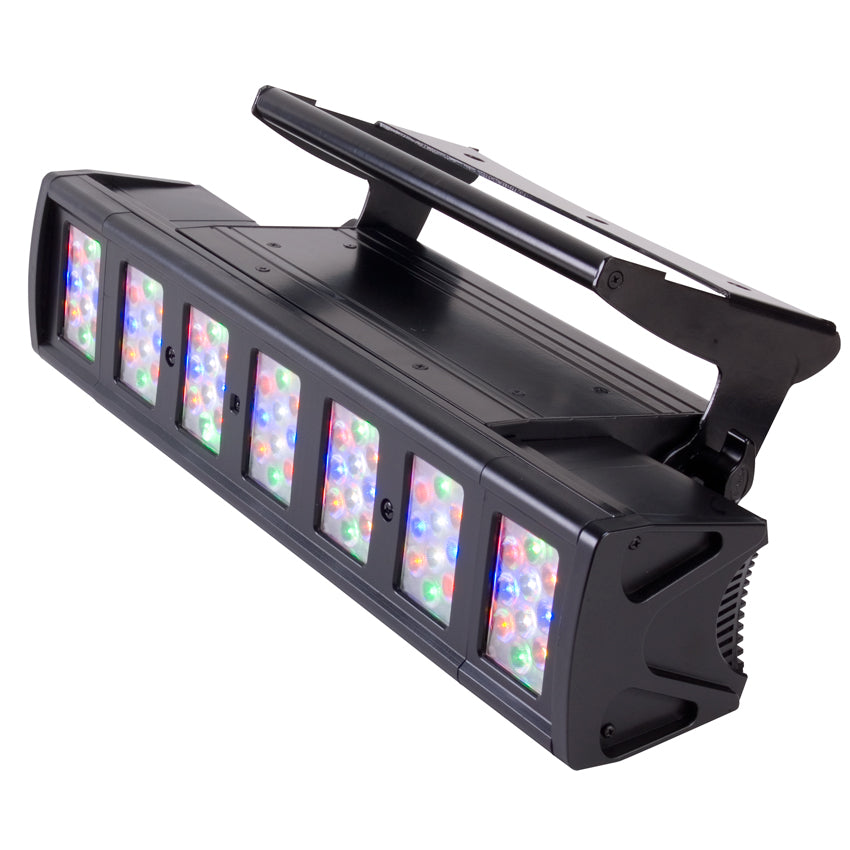

• Integrated Floor Stand / Yoke bracket
• 100-240V AC Multi Voltage PSU built in
Specifications and documentation subject to change without notice.
