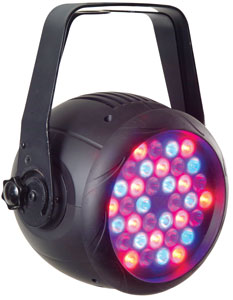

Design LED 36
Features
SYSTEM FEATURES:
• High Output L.E.D Color Changer
• 39º beam angle with diffusion filter
• Primary/Secondary auto program and music trigger
• 12 Position binary dip switch
• 4 Channel DMX operation – Built in Macro Channel, R.G.B.
• Fits into 12” x 12” truss easily for truss warmer use
• 36 x 1W LED’s – (12 Ea. R,G,B Luxeon)
• Long Life L.E.D. (rated at 100,000 Hours)
• Infinite Color possibilities
• Built-in Power Supply and DMX 512 Control
• 3-Pin XLR serial data connection built in
• On / Off Power switch 120v 60hz
• Compact Design
• Mounting bracket and safety I-hook installed
DIMENSIONS & WEIGHT:
• 8.75”W x 7”L x 10”H
• 9.5 lbs.
• High Output L.E.D Color Changer
• 39º beam angle with diffusion filter
• Primary/Secondary auto program and music trigger
• 12 Position binary dip switch
• 4 Channel DMX operation – Built in Macro Channel, R.G.B.
• Fits into 12” x 12” truss easily for truss warmer use
• 36 x 1W LED’s – (12 Ea. R,G,B Luxeon)
• Long Life L.E.D. (rated at 100,000 Hours)
• Infinite Color possibilities
• Built-in Power Supply and DMX 512 Control
• 3-Pin XLR serial data connection built in
• On / Off Power switch 120v 60hz
• Compact Design
• Mounting bracket and safety I-hook installed
DIMENSIONS & WEIGHT:
• 8.75”W x 7”L x 10”H
• 9.5 lbs.
