Design LED 36 Brick
Design LED 36 Brick
Discontinued
SKU# DLED 36 BRICK

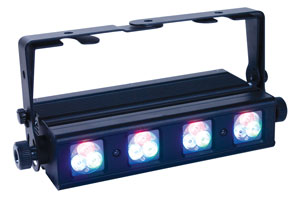

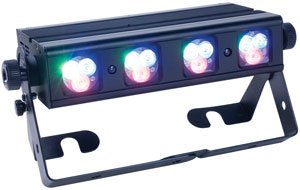

High Power RGB LED Brick with Pixel Control
12 x 3W RGB LED’s
. Two DMX Control modes
. Digital LCD Menu / DMX display
. 4 operational modes: Sound Active, Macro, Auto, & DMX

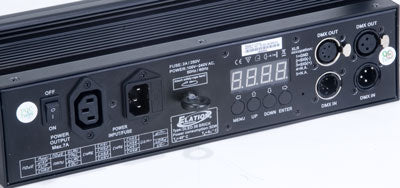

. 3-pin & 5-pin DMX Connections
. Dimming 0-100%
. Double hanging brackets – may be set on the floor
. Linking bracket included to make multiple units into one strip “up to 4pcs”
. Standard 25° Lens Kit: 14° Beam Angle, 26° Field Angle
. Optional 45° Lens Kit: 15° Beam Angle, 30° Field Angle
. Multi-voltage Internal PSU 100-240v
. Power Link In/Out
. 50W Total Power draw
