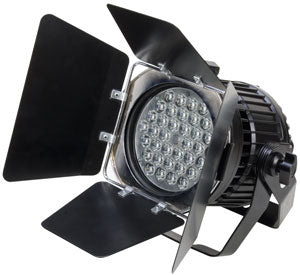

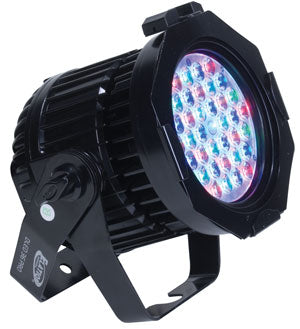

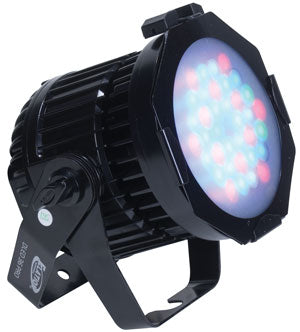

Design LED 36 Pro


The Design LED36Pro (DLED36pro) by Elation Professional is a high output, compact L.E.D. color changer featuring full RGB color mixing using 36 3Watt LED’s - 12 RED, 12 BLUE and 12 GREEN running at a total of 108Watts power. The unit is made of a high quality die cast metal case and is designed with convection cooled heat sinks for silent operation.
 Providing up to 100,000 hours estimated LED life. The DLED 36Pro is rated at IP 65 ideal for indoor or outdoor applications and includes outdoor rated power and data cables along with a/c power 120v input cable but unit can operate from 90 – 240v AC via the internal auto sensing electronic power supply. Control data cables are 3 pin DMX. The DLED 36Pro includes a dual yoke mounting bracket for fixed installation or can be used as a split bracket for floor standing uplights. The unit also features an on board weather protected 4 button control menu with 4 digit LED display for setting control address, modes, manual or auto programs. The unit comes fitted standard with a 15° lens kit which produces a 14° beam angle and a 25° field angle. Optional wide and narrow lens kits are available.

• 108Watt RGB Exterior par
• 36 x 3W (12 each R, G, B)
• Standard 15° Lens Kit: 14° beam angle, 25° field angle
• 4 Digit LED Display
• Long Life L.E.D. (rated at 100,000 Hours)
• Linear RGB color mixing allows for infinite color possibilities and smooth transitions
• Waterproof IP 65 outdoor rated
• Compact design die cast case
• 6 built-in programs with Speed control
• Master/ Slave auto program and sound trigger
• Silent operation, convection cooled (No fans)
• Built-in, auto switching power supply
• DMX controllable / Built-in Programs / Manual Control
• Linkable power / data IP rated cables supplied w/ fixture - 3' leads
• Smooth Color Mixing Flicker free


User Manual

Related Categories


• Control: USITT DMX 512
• 3, 4 & 6 CH DMX control modes
• LED display with easy to use function keys
• Cable Plug Type: IP Power in-out/Data in-out
• Cables include Edison 120v plug & 3pin XLR’s
• 6 built-in programs with Speed control
• Strobe effect (1-18 flashes per second)
• Selectable dim options (Standard & Linear)
• 0-100% dimming
• Master/ Slave auto program and sound trigger
• Split Yoke up-Light Bracket
• Molded eye hole for safety cable
• (25º & 45º optional lens kits available)
• Multi-voltage: 100-240VAC, 50/60Hz
• Power Consumption: 150 watts
• (LxWxH): 8.8” x 8” x 10.8” / 223.52 x 203.20 x 274.32mm
• 15.2 lbs. / 6 kgs.
