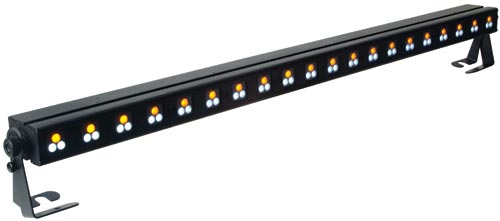

Design LED 60 Strip WA
Features
FEATURES:
• 60 x 1W Luxeon LED’s - (40x White, 20x Amber)
• Seamless color changing – warm to cool white (3200K – 5600K)
• 80º Beam Angle
• 919 lumens @ 1m
• Long Life L.E.D. (rated at 100,000 Hours)
• Low power consumption
• Low heat emissions
• Compact design: fits into 12-inch truss
• Built-in Power Supply and DMX 512 Control
• Flicker free operation for television and film
• Electronic Switching Power Supply (90-260V, 50/60Hz)
• 60 x 1W Luxeon LED’s - (40x White, 20x Amber)
• Seamless color changing – warm to cool white (3200K – 5600K)
• 80º Beam Angle
• 919 lumens @ 1m
• Long Life L.E.D. (rated at 100,000 Hours)
• Low power consumption
• Low heat emissions
• Compact design: fits into 12-inch truss
• Built-in Power Supply and DMX 512 Control
• Flicker free operation for television and film
• Electronic Switching Power Supply (90-260V, 50/60Hz)
Resources
Guides/ Manuals
- Design LED 60 Strip WA DMX Traits
- Design LED 60 Strip WA Cutsheet
- Design LED 60 Strip CAD File
- DLED 60 Strip WA User Manual
Related Categories
Specifications
CONTROL SPECIFICATIONS:
• USITT-DMX 512
• 2 Channel or 4 Channel operation modes
• 12 Position Binary dip switches
• 3 & 5 pin XLR in/out
• Linkable power supply up to 8 units (In/Out power connectors)
CONTROL FEATURES:
• Primary/Secondary auto program and music trigger
• 8 built-in programs with Speed control
• Strobe effect (1-18 flashed per second)
• Control each L.E.D. independently
• Sound controlled via built-in microphone
• 0-100% Dimming
POWER SUPPLY:
• 90-260V AC, 50/60Hz (Multi-voltage)
• On/Off Power switch
• Power Consumption: 140 watts
RIGGING:
• Mounting bracket and safety I-hook installed
DIMENSIONS & WEIGHT:
• (LxWxH) – no bracket): 68” x 8.5” x 3.25” / 1728x215x83 mm
• 24 lbs. / 10.5 kgs.
