Design LED Par Zoom
Design LED Par Zoom
Discontinued
SKU# EDL490

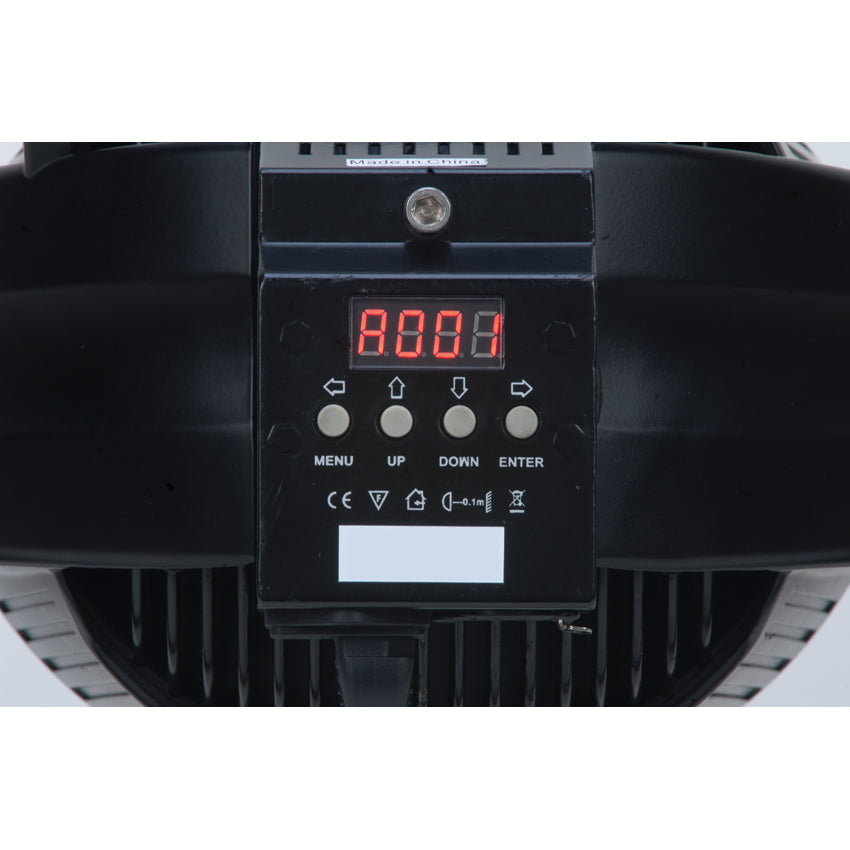

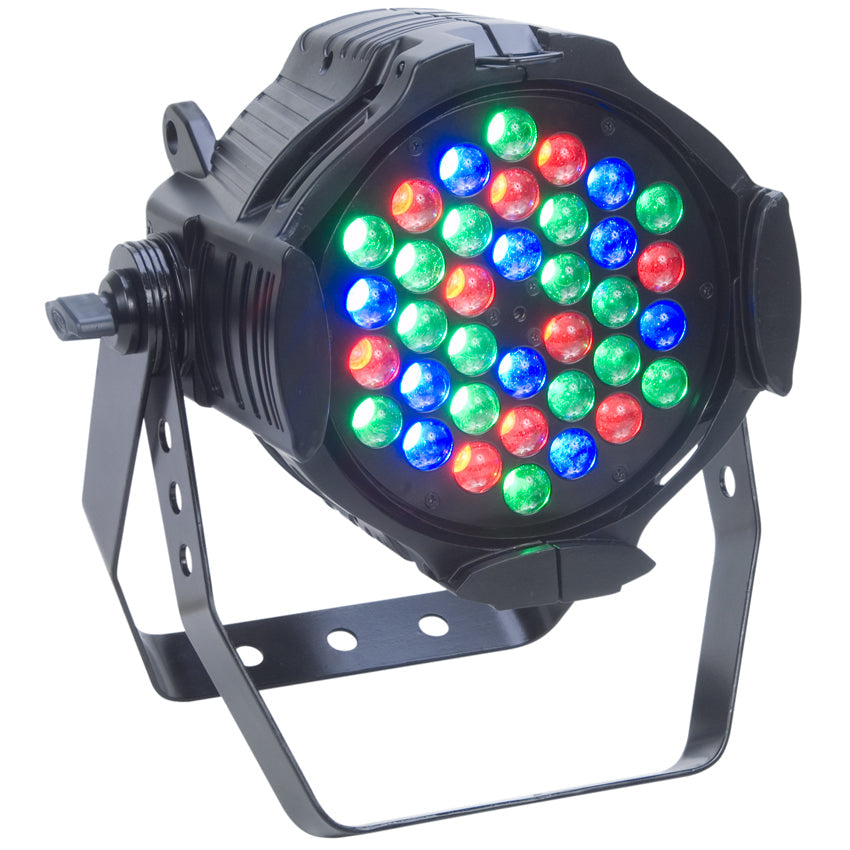

FEATURES • Motorized Zoom LED Pro Par • 36 (10 Red, 10 Blue & 16 Green) x 3W RGB LEDs • 7º to 49º motorized zoom • 4 Digit LED display-Flip Option • Manual mode On Board Control • Primary/Secondary mode • 8 Built in Chases – w/fade,speed,strobe • Sound Active mode • Built In Color Macros • Smooth Color Mixing Flicker Free • Die Cast Aluminum W/Gel Frame Holder • Gel Frame Included • Rugged Design Par • Case Color: Black • Split Yoke up-light bracket
Features
Resources
Guides/ Manuals
- Design LED Par Zoom Photometrics
- Design LED Par Zoom Dimensional Diagram
- Design LED Par Zoom User Manual ver 1.2
Related Categories
Specifications
TECHNICAL SPECIFICATIONS
• Control: USITT DMX-512
• DMX Channels: 8
• 3-Pin XLR In/Out
• Strobe: Strobe effect (1-18 flashes per second)
• Power Supply: 120 - 240v, 50/60Hz
• Power Consumption: 120W
• Ballast: Electronic Power supply
• Cooling: Fan Cooled (High-Auto setting)
• Cable / Plug Type: IEC Edison PPG 120v
• Approvals: CE Approved
• IP Rating: IP44
• Rigging: Split Yoke Bracket safety cable eye
• Lamps: 10 Red, 16 Green, 10 Blue 3W Leds
• Lamp Life: 50,000 hrs. life
• Lux 6600 / 613 fc @ 2.5M or 8’
• Dimensions: ( L x W x H)
• 13”L x 13.3”W x 20”H
• Weight: 15.4lbs
