Design Spot 250 Pro
Discontinued
Design Spot 250 Pro is a professional-grade lighting solution. 250W Pro Version of the Design Spot 250 Building on the success of our popular Design Spot 250, the Design Spot 250 Pro has all the same specifications and features, but with some important improvements requested by Lighting Designers and Touring production companies.
Design Spot 250 Pro
Sale price$0.00

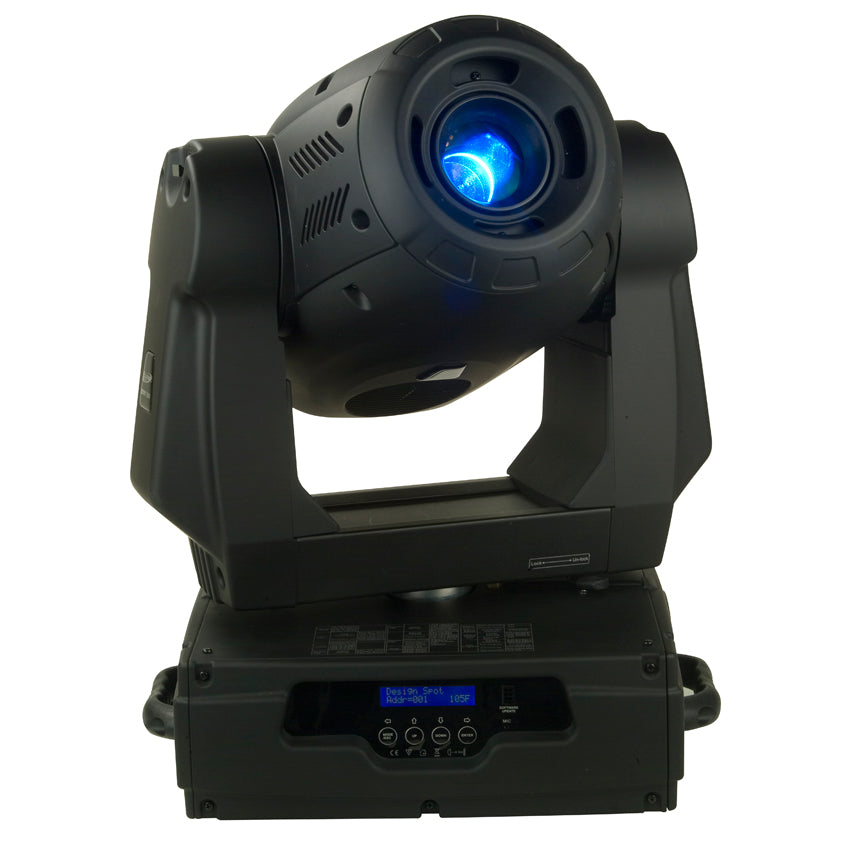

Design Spot 250 Pro
250W Pro Version of the Design Spot 250
Building on the success of our popular Design Spot 250, the Design Spot 250 Pro has all the same specifications and features, but with some important improvements requested by Lighting Designers and Touring production companies.
Features
. Sku # DESIGN SPOT 250 PRO
. Sku # DESIGN SPOT 250 PRO WHITE
. 8 colors + 2 x 7 gobos
. Phillips MSD 250/2 lamp
. Standard Beam Angle 14°
. Modular construction
. Prism + Iris + Variable Frost
Building on the success of our popular Design Spot 250, the Design Spot 250 Pro has all the same specifications and features, but with some important improvements requested by Lighting Designers and Touring production companies.
Features
. Sku # DESIGN SPOT 250 PRO
. Sku # DESIGN SPOT 250 PRO WHITE
. 8 colors + 2 x 7 gobos
. Phillips MSD 250/2 lamp
. Standard Beam Angle 14°
. Modular construction
. Prism + Iris + Variable Frost
Specifications
Colors
. 8 Replaceable Dichroic Filters, 7 color, UV + White
. Continuous, variable speed, color scrolling in both directions (rainbow effect)
. More color combinations possible by overlaying the multi-color dichroic gobo and the colors on the color wheel
Gobos
. 2 gobo wheels, 14 total gobos, 11 metal, 3 glass
. 7 interchangeable, indexable, rotating gobos plus open
. 7 interchangeable, static gobos plus open
. Metal Gobo Size: 26.9mm outside diameter, 23mm image diameter
. Glass Gobo Size: 26.7mm outside diameter, 23mm image diameter
. Gobo Overlay (Gobo Morphing)
Special Effects
. 3-facet rotating/Indexing Prism
. Both directions at variable speeds
. Macro-function for rotating gobos/rotating prisim combinations
. Variable Frost Control
. Hard edge to soft edge
. Beam narrow to wide (5% - 100%)
. Variable speed iris macros
. Small to large and large to small
Shutter/Dimmer
. Variable speed strobe effect (1-18) flashes per second
. Pre-set variable/random strobe and dimming pulse effect
. Dual Flag mechanical dimming system
Light Source
. 2,132 Lux / 198 FC @ 16 feet / 5 meters
. Lamp life: 3,000hrs 8,500°k, 250W
. Lamp: Phillips MSD 250/2
Optical System
. Standard Beam Angle 14°
. 20° replaceable beam angles lens (included)
. Motor driven focus from near to far
. Dichroic Glass Reflector
. High output luminous-parabolic dichroic reflector
. New glass reflector for improved output
. Improved lens coating for increased output and image quality
Movement
. Maximum PAN-movement 630° in 2.0s (default) or 540° (user selectable) / 16 bit
. Maximum TILT-movement 265° in 1.5s / 16 bit
. Automatic Pan / Tilt position correction
. Pan Tilt locking system for transport
Control
. 16 DMX Channels
. 4 Digit LCD Display
. USITT DMX-512 (16-bit resolution)
. RDMX - Remote DMX Addressing
. On board menu settings
. Built in DMX recorder with 10 shows
. Record from DMX or onboard menu control of each function
. Sound active mode
. Vector mode with blackout
Operation Parameters
. IP Rating: IP20
. Rigging: 2 x 1/4 turn omega clamps, 1 x safety cable, 1 x 3-pin DMX data cable
Power Supply
. Magnetic ballast
. Voltage: AC 98, 120, 220, 208, 230, 240V 50/60Hz
. Power consumption: 400W nominal
. Fuse: 8A (250V)
Connectors
. 3-pin 5-pin XLR serial input/output
Dimensions and Weight
. Dimensions (L x W x H): 16.75”x 16.75”x 19.75” / 429 x 362 x 583mm (Head up)
. Weight: 56.5lbs. / 25.6 kg
Approvals
. ETL approved
. 8 Replaceable Dichroic Filters, 7 color, UV + White
. Continuous, variable speed, color scrolling in both directions (rainbow effect)
. More color combinations possible by overlaying the multi-color dichroic gobo and the colors on the color wheel
Gobos
. 2 gobo wheels, 14 total gobos, 11 metal, 3 glass
. 7 interchangeable, indexable, rotating gobos plus open
. 7 interchangeable, static gobos plus open
. Metal Gobo Size: 26.9mm outside diameter, 23mm image diameter
. Glass Gobo Size: 26.7mm outside diameter, 23mm image diameter
. Gobo Overlay (Gobo Morphing)
Special Effects
. 3-facet rotating/Indexing Prism
. Both directions at variable speeds
. Macro-function for rotating gobos/rotating prisim combinations
. Variable Frost Control
. Hard edge to soft edge
. Beam narrow to wide (5% - 100%)
. Variable speed iris macros
. Small to large and large to small
Shutter/Dimmer
. Variable speed strobe effect (1-18) flashes per second
. Pre-set variable/random strobe and dimming pulse effect
. Dual Flag mechanical dimming system
Light Source
. 2,132 Lux / 198 FC @ 16 feet / 5 meters
. Lamp life: 3,000hrs 8,500°k, 250W
. Lamp: Phillips MSD 250/2
Optical System
. Standard Beam Angle 14°
. 20° replaceable beam angles lens (included)
. Motor driven focus from near to far
. Dichroic Glass Reflector
. High output luminous-parabolic dichroic reflector
. New glass reflector for improved output
. Improved lens coating for increased output and image quality
Movement
. Maximum PAN-movement 630° in 2.0s (default) or 540° (user selectable) / 16 bit
. Maximum TILT-movement 265° in 1.5s / 16 bit
. Automatic Pan / Tilt position correction
. Pan Tilt locking system for transport
Control
. 16 DMX Channels
. 4 Digit LCD Display
. USITT DMX-512 (16-bit resolution)
. RDMX - Remote DMX Addressing
. On board menu settings
. Built in DMX recorder with 10 shows
. Record from DMX or onboard menu control of each function
. Sound active mode
. Vector mode with blackout
Operation Parameters
. IP Rating: IP20
. Rigging: 2 x 1/4 turn omega clamps, 1 x safety cable, 1 x 3-pin DMX data cable
Power Supply
. Magnetic ballast
. Voltage: AC 98, 120, 220, 208, 230, 240V 50/60Hz
. Power consumption: 400W nominal
. Fuse: 8A (250V)
Connectors
. 3-pin 5-pin XLR serial input/output
Dimensions and Weight
. Dimensions (L x W x H): 16.75”x 16.75”x 19.75” / 429 x 362 x 583mm (Head up)
. Weight: 56.5lbs. / 25.6 kg
Approvals
. ETL approved
