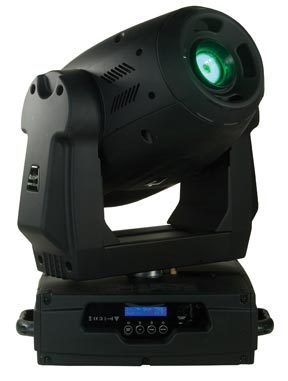

Design Spot 300E

-Full Featured Color Mixing 250 size fixture!

COLORS

• CMY color mixing

• 7 Interchangeable Dichroic filters + White

• Continuous, variable speed, color scrolling in both directions (rainbow effect)

• More color combinations possible by overlaying the multi-color dichroic gobo and the colors on the color wheel

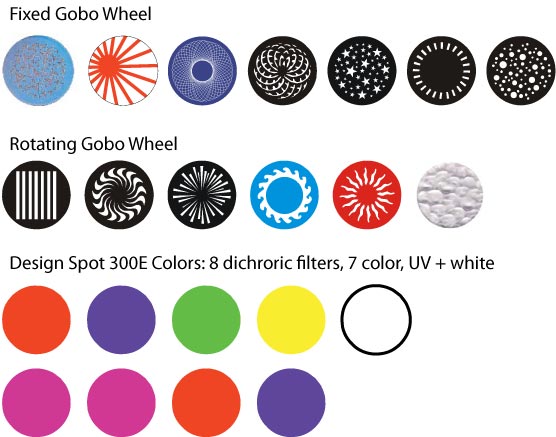

GOBOS

• 2 Gobo Wheels, 13 Total Gobos, 10 Metal, 3 Glass

• 6 Interchangeable, Indexable, Rotating Gobos plus open

• 7 Interchangeable, Static Gobos plus open

• Metal Gobo Size: 26.9mm outside diameter, 23mm image diameter

• Glass Gobo Size: 26.9mm outside diameter, 23mm image diameter

• Gobo Overlay (Gobo Morphing)

SHUTTER/DIMMER

• Variable speed strobe effect (1-13) flashes per second

• Pre-set variable/random strobe and dimming pulse effect

• Dual Flag mechanical dimming system

• Flicker free

IRIS

• Beam narrow to wide (5% - 100%)

• Variable speed iris macros

• Small to large and large to small

FROST

• Hard edge to soft edge frost

PRISM

• Effect wheel with 3-facet rotating/Indexing Prism 3D Glass Prism

• Both directions at variable speeds

• Macro-function for rotating gobos/rotating prisim combinations

FOCUS

• Motor driven focus from near to far

Control Features

• 21 DMX Channels

• RDMX - Remote DMX Addressing

• USITT DMX-512 (16-bit resoultion)

• Full Text LCD Display

• On board menu settings

• 3-pin 5-pin XLR serial input/output

OPTICAL SYSTEM

• High output luminous-parabolic dichroic reflector

• Beam Angle 22-degrees

LAMP

• Lamp Source: MSR 300

• Type: Discharge

• Wattage: 300W

• Base: Fast Fit Gold

• Rated Average Life: 1,000

• Color Temp: 8,500k

PAN/TILT

• Automatic Pan /Tilt position correction

• Pan/Tilt Lock

• Maximum PAN-movement 630° in 2.0 secs (default) or 540° (user selectable) / 16 bit

• Maximum TILT-movement 265° in 1.5 secs / 16 bit

• Vector Mode with blackout

POWER SUPPLY

• Electronic Power Supply - Multi-voltage: AC 98V ~ 240V 50/60Hz

DIMENSIONS WEIGHT

• (LxWxH): 15.83” x 17.68" x 20.11” - Head Level

• 58 lbs. 26.5 kgs.

Approvals

• ETL approved
