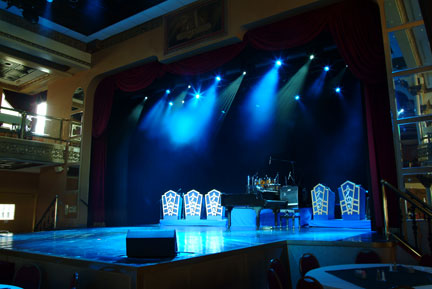

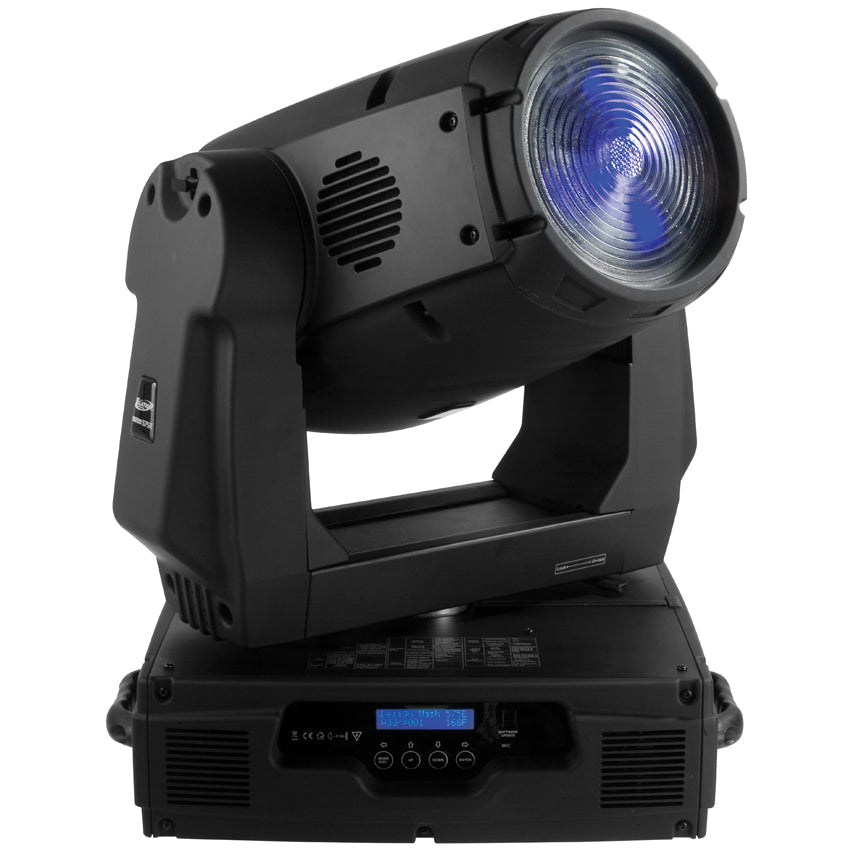

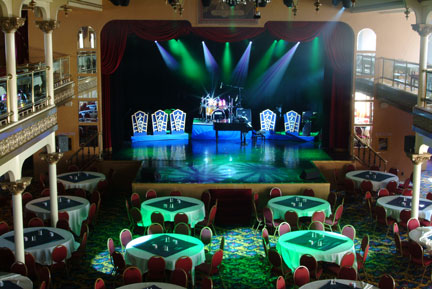

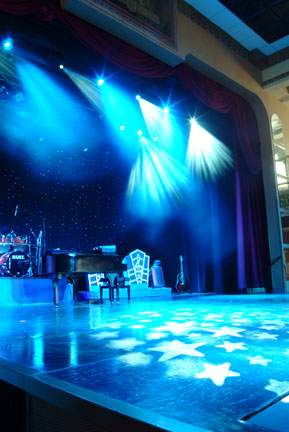

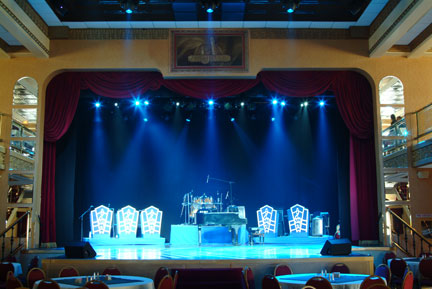

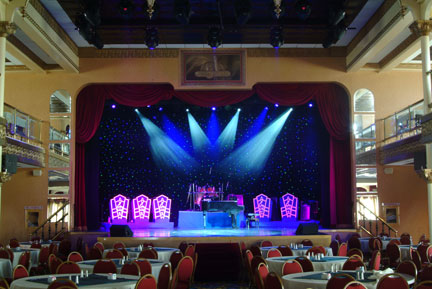

Design Spot 575E

OPTICAL SYSTEM

• High output luminous-parabolic dichroic reflector

• 15º to 30º linear Zoom

• All lenses are anti-reflection coated

• 29,700 lux @ 2.5M

COLORS

• Full Color mixing with CMY flag system

• 8 Dichroic filters, 7 color, UV + White

• Continuous, variable speed, color scrolling in both directions (rainbow effect)

• More color combinations possible by overlaying the multi-color dichroic gobo and the colors on the color wheel

GOBOS

• 2 gobo wheels, 12 total gobos, 6 metal, 6 glass

• 6 interchangeable, indexable, rotating gobos plus open

• 6 interchangeable, indexable, rotating gobos plus open

• Metal Gobo Size: 26.9mm outside diameter, 23mm image diameter

• Glass Gobo Size: 26.7mm outside diameter, 23mm image diameter

• Gobo Overlay (Gobo Morphing)

ANIMATION

• 1 rotating animation wheel

SHUTTER/DIMMER

• Variable speed strobe effect (1-13) flashes per second

• Pre-set variable/random strobe and dimming pulse effect

• Dual Flag mechanical dimming system

IRIS

• Beam narrow to wide (5% - 100%)

• Variable speed iris macros

• Small to large and large to small

FROST

• Variable Frost Control

• Hard edge to soft edge

PRISM

• 3-facet rotating/Indexing Prism

• Both directions at variable speeds

• Macro-function for rotating gobos/rotating prism combinations

FOCUS

• Motor driven focus from near to far

ZOOM

• 15 - 30 degree linear Zoom

CONTROL FEATURES

• RDMX - Remote DMX Addressing

• USITT DMX-512 (16-bit resolution)

• 24 DMX Channels

• 32-Character LCD display

• On board menu settings

• 3-pin XLR serial input/output

• Sound active mode

LAMP

• Phillips MSR575/SA2DE 7500K, 1000hr

PAN/TILT

• Automatic Pan / Tilit position correction

• Maximum PAN-movement 630° in 2.0 secs (default) or 540° (user selectable) / 16 bit

• Maximum TILT-movement 265° in 1.5 secs / 16 bit

• Vector Mode with blackout

RIGGING

• 2 X 1/4 Turn omega brackets

POWER SUPPLY

• Electronic Ballast

• Voltage 90- 240vAC 50/60Hz

• Power Consumption: 600W (120V = 7A)

OPTIONAL DUAL ROAD CASE

• DRC-700

Approvals

• ETL approved
