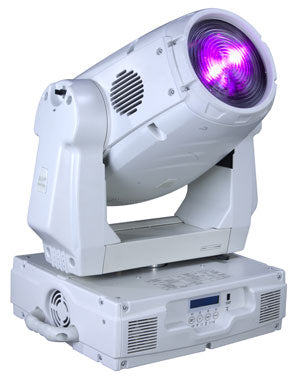

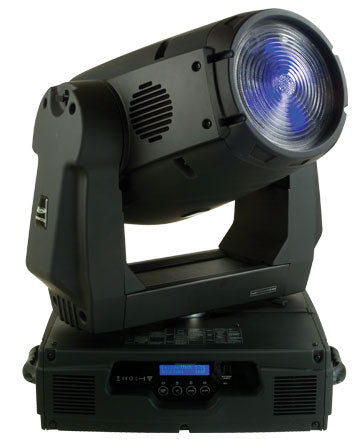

Design Wash 575E
Specifications
SPECIFICATIONS
• USITT DMX-512 (16-bit resolution)
• 16 DMX Channels
• 4-Digit Blue L.E.D. Display
• CMY Gradual Color Mixing
• 5 Dichroic Colors + UV, CTO & CTB
• 360-degree beam shaper
• 13-degree to 50-degree motorized zoom
• Electronic dimming
• Frost filter
• Strobe in any color
• Electronic Ballast: multi-voltage 100V ~ 240V, 50Hz/60Hz
• Lamp: Philips MSR-575/SA2DE (575W, 6500? K, 500 hrs)
• Dimensions (LxWxH): 18.75” x 14.5” x 25.5” / 475x365x620 mm
• Weight: 67 lbs. / 30 kgs.
Approvals
• ETL approved
