Design Wash LED Pro
Features
Resources
Guides/ Manuals
PHOTOMETRIC DATA
DMX/ RDM Traits
Drawings
CAD File
Related Categories
Specifications

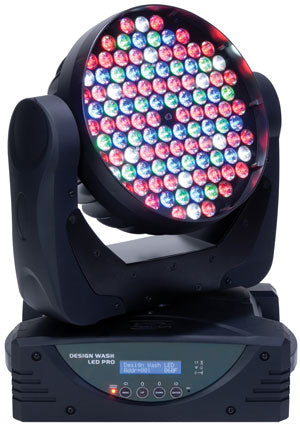

108 x 3W Rebel LED’s RGBW
. 52 Red ,22 Green, 22 Blue + 12 White
. 15° Lens = 23° Field Angle 9° Beam Angle
. Built in EWDMX Receiver for Wireless DMX

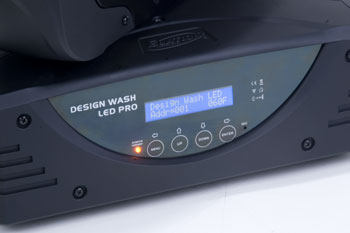

. Digital LCD Display
. Battery power on/off for LCD display

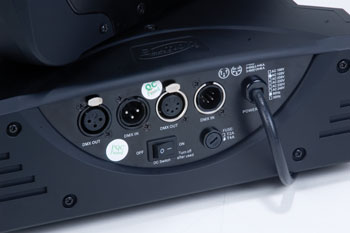

. 3 pin or 5pin DMX in/out
. 50,000 hour rated LED source
. Built in Color, Strobe, Dimming macros
. 13 DMX Channels
. 3 Phase motors for Faster Pan / Tilt
. 630° or 540° Pan x 265° Tilt
. 98-240v Multivoltage internal power supply
. Fan Cooled - Fans regulated by auto or dmx
. Rigging by single omega bracket
. 360 Watts at full power – 3A
. DB rating @ 1M = 59.6db
. 4,360 Lux @ 5M @ Full
. Size = 17.2” x 13” x 8.6”
. Weight = 20.6lbs.
. cETLus approved
