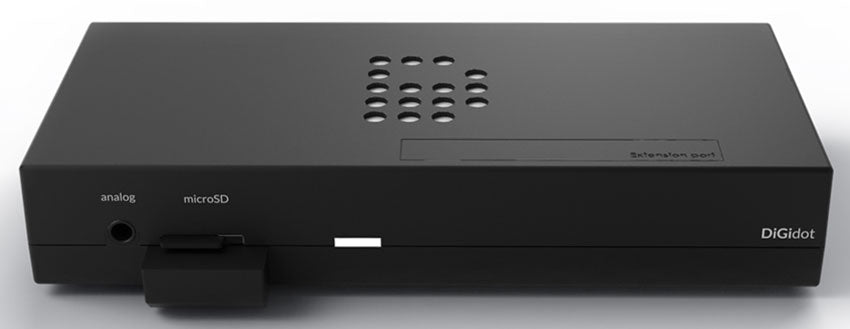

DiGidot C4 Live

Features

Amazing Output Volume

The DiGidot C4 Live can output to a maximum of 6000 individual LEDs and 2,000 RGB LEDs. The LEDs are spread over 4 Outputs, where each can have 3 Universes. Lights can be directly connected to the LED driver. The digital Ouputs of the DiGidot C4 Live can all have various settings. You can output both the SPi and DMX signal. Being able to directly connect to LED lights allows the creation of more cost efficient lighting installations. Ethernet nodes and switches are no longer a neccessity, since the DiGidot C4 combines those features. Several DiGidot C4s can be connected together and run the lighting installation as one.


12 Universes          2,000 RGB Pixels          6,000 Channels


Compatibility

The DiGidot C4 is compatible with more than 40 ICs. DiGidot has been active in professional lighting for more 10 years and assures compatibility with 80% of LED lights used in professional lighting. Even if the IC is not yet in the list below, we can always make it available.


40+ Supported IC's

APA102             MY9221                        TM1814            WS2801

APA104          MY9231                   TM1914A       WS2803

APA106          PC5XS301V0500     UCS1903        WS2811

BS0901          SK6812                    UCS1904        WS2812

DM412           SK6822                    UCS2903        WS2812B

DMX               SM16703                 UCS2904        WS2812S

DMX TTL       SM16716                  UCS2912        WS2813

GW6205        SM16726                  UCS512B3      WS2818

INK1003        TM1803                    UCS8904

LD1510          TM1804                    UCS9812

LPD6803       TM1809                    WES9412

MBI6024        TM1812                    WES943


Can’t find your IC type? Please send an e-mail to info@digidot.eu. We will do our best to add it to the next firmware release.


User Interface

Full device control from its web-based interface.

Whether you use Mac or Windows, the responsive HTML5 interface works on all well known platforms, such as Chrome and Safari. With its clean look and clear explanations at every button it has a minimal learning curve. By typing the standard IP address 10.254.254.254 in your web browser the built-in user interface will help you setup the DiGidot C4 according to your project requirements. You can adjust the number of universes, the type of LED (the LED light IC chip) and route them to a preferred output. Are you using multiple DiGidot C4’s daisy-chained or in a network? Name them the way you want and give them a unique IP address to easily recognize them in your project!


Software

Works well with all professional lighting control systems.

The DiGidot C4 Controller works well with most common LED software used in professional event lighting. The device was thoroughly tested with MADRIX, but we can assure it works well with other software, such as: ArKaos, Chromateq, Pharos and Resolume. Nonetheless, the DiGidot C4 was used numerous times with grandMA consoles.


Click link below for Startup Guide
DiGidot C4 Startup Guide

Resources

Specifications Sheet

Software

Related Categories

Specifications

SIZE / WEIGHT:

Length: 6.02" (153MM)

Width: 2.91" (74MM)

Height: 1.10" (28MM)


ELECTRICAL SPECIFICATIONS

Working Voltage: 5 – 24V

Maximum Power Consumption: 5W


CAPACITY

6000 Individual pixels (at 30 fps)

2000 RGB pixels


CONNECTORS

2 x RJ45 Connectors

3.5 mm TRRS Analog Jack

6-pin Input/Output Connector

40-pin Extension Port


SIGNAL INPUTS

Articstic License Art-Net 3

DMX 512

1-10V Analog Input (can be used for switches/triggers)

DiGidot C4 IOS/Google Play App


SIGNAL OUTPUTS

Artistic License Art-Net 3

DMX 512 (2 Outputs)

DMX TTL (4 Outputs)

Various LED IC Types: WS2812, WS2812B, TM1803, UCS8904, WS2811, APA102, WS2801, TM1809 (see the digidot.eu site for a complete list of IC types. A new IC type can be added on request)


LIGHT OUTPUTS

LED Strips

LED Wall Washers

LED Downlights

LED Video Screens

Any type of Dynamic LED light


PROGRAMMING & CONTROL

User Interface (accessible through Google Chrome Internet browser)

Any type of Art-Net Software/Device (contact us for a complete list of supported software)


MOUNTING OPTIONS: din-rail (clip not included), tie-strap, screws.

INCLUDED ACCESSORIESNone


Specifications and documentation subject to change without notice.
