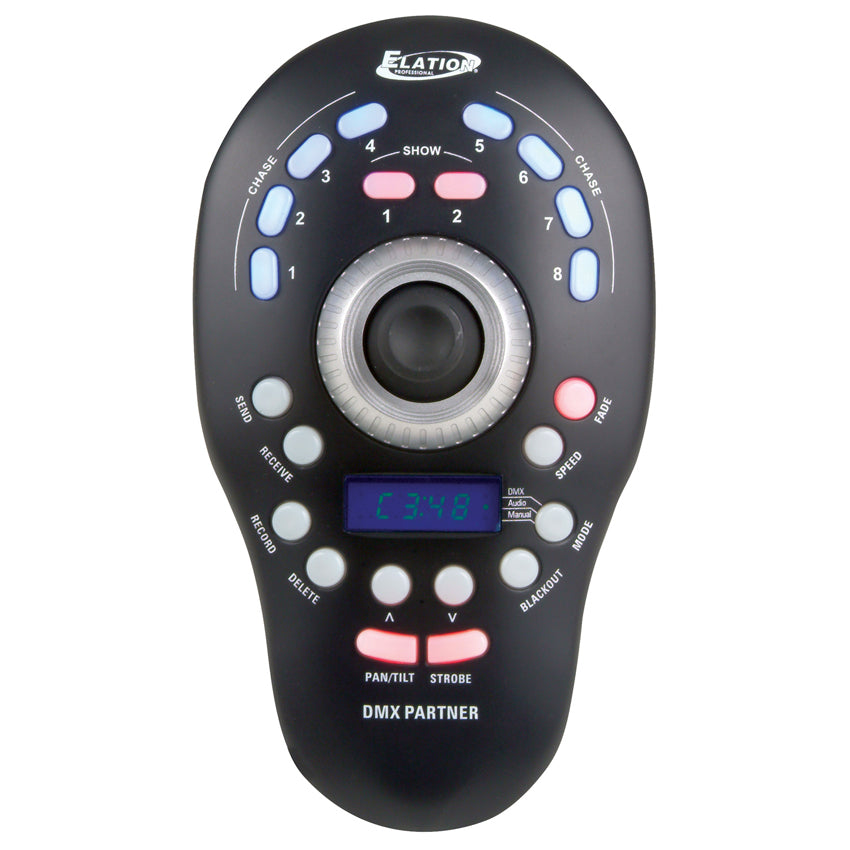

DMX Partner



User Manual


• 96 channel DMX hand-held recorder/playback unit
• 8 chases (up to 99 steps each)
• 2 shows (up to 99 steps each with separate speed and fade time adjustment)
• 3 operational modes: DMX, Audio or Manual
• Playback chases and shows in sequence mode (One chase at a time)
• Playback chases and shows in mixed mode - (All 8 chases + 2 shows can playback at one time) - incorporates HTP Principle (Highest Takes Precedence)
• Includes XLR In, XLR Out and RS-232 connections
• Transfer data between any universal DMX Controller and DMX Partner via DMX In/Out connections
• Transfer data from one DMX Partner to another via RS-232
• Transfer data to and from the DMX Partner and a personal computer via RS-232 using Elations proprietary RS-232 software (available at
• Assignable joystick for Pan and Tilt control
• Programmable Strobe function
• Password protected record feature
• Blackout control
• 4-character LED display
• 21-back lit buttons
• Includes power supply (DC 12V, 300mA)
• Dimensions (LxWxH): 7.75” x 4.5” x 3” / 198x112x75 mm
• Weight: 1.5 lbs. / 0.7 kg.
