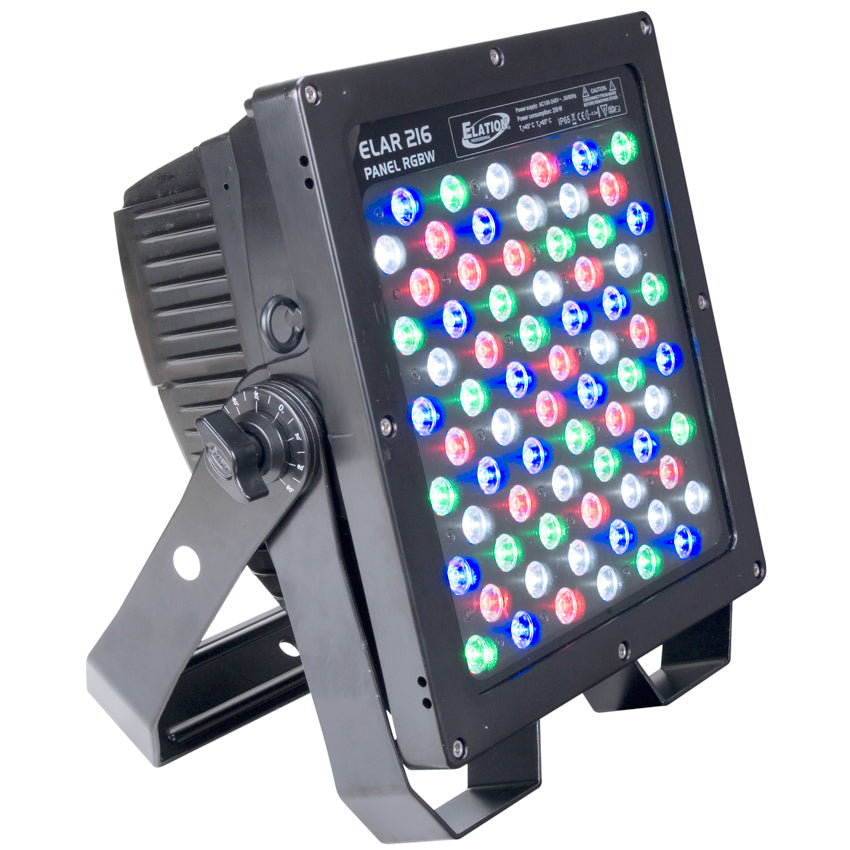

ELAR 216 PANEL RGBW
Features
Resources
Guides/ Manuals
- ELAR 216 PANEL RGBW DIMENSIONAL DRAWINGS
- ELAR 216 PANEL RGBW USER MANUAL
- ELAR 216 Panel RGBW Photometric Data
- ELAR 216 Panel RGBW Cutsheet
- ELAR 216 PANEL RGBW DMX TRAITS
Related Categories
Specifications
Colors
. 72 x 3W LEDs
. Linear RGBW color mixing, infinite color possibilities
Shutter/Dimmer
. Strobe: 25 ?ashes per second
. 0-100% continuous dimming
Light Source
. Lux: 10,430 lux / 969 fc @ 2.5m / 8’ @ full
. 72 x 3W LEDs
. 18 Red, 18 Blue, 18 Green, 18 White
. LED Life: Rated 100,000 hours
Optical System
. 10° beam angle, 22° field angle
Control
. DMX channels: 4 DMX modes - 4/5/7/9 Channels
. USITT DMX-512
. Built In color macros, auto & manual control
. 7 built-in programs
. Software Update via SUP (E-Loader) Box
Operation Parameters
. Maximum Ambient Temperature: 113°F / 45°C
. IP Rating: IP65
. Rugged die cast aluminum case design
Power Supply
. Ballast: Electronic Switching Power supply
. Power Supply: 100-240V 50/60Hz
. Power Consumption: 250W
Connectors
. 3 Pin & DMX
Dimensions and Weight
. Dimensions: (L x W x H) 13” x 7.75” x 15” / 341 x 197 x 377mm
. Weight: 26.5 lbs. / 12 Kgs
Optional Accessories
. E-Loader: software update
. cETLus pending approval
