ELAR EX TRIBAR

Features

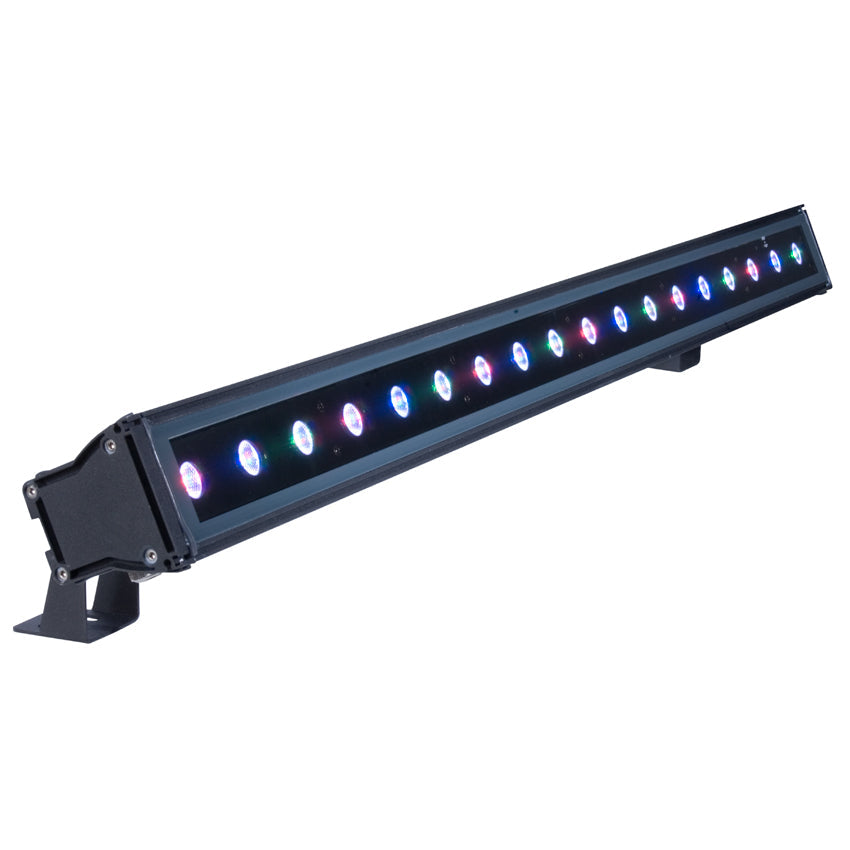

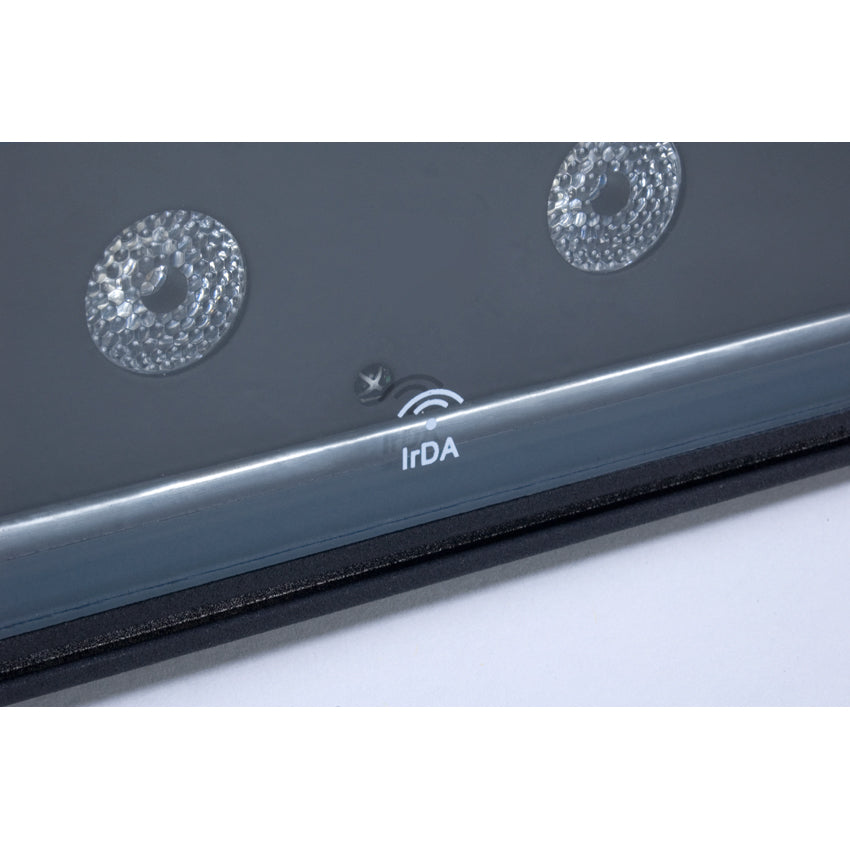

The Elar EX Tri-Bar from Elation Architectural is a one meter long IP65 rated exterior linear LED fixture featuring tri-color RGB LED diodes. With a total power consumption of 80Watts the Elar EX Tri-Bar is an energy efficient fixture capable of providing a smooth linear wall wash effect. Set up and control is done via a wireless remote IR receiver which is on the face of the unit. Once set up, the unit can be operated from DMX with 4 different DMX control modes, and features built in macro programs all of which can be accessed via DMX or the optional wireless remote IR controller. Designed and built with a rugged aluminum die cast housing and internal thermal protection to ensure long life and operation.

 Product Features
 . Tri Color LED Exterior IP65 Tri Bar
 . 18 x TRI Color LED’s
 . 40° Beam Angle
 . IP 65 Rugged Die Cast Aluminum Case Design
 . IR Wireless Remote Setup and DMX control - Wireless remote required
 . Wireless Remote Not Included (Item # ELAR WR)
 . Selectable built in programs, dimming mode,
   auto run, DMX mode or Primary/Secondary

Resources

Guides/ Manuals

Related Categories

Specifications

TECHNICAL SPECIFICATIONS
 . DMX Channels: 11 DMX Channels,
   4 DMX Modes: 3, 4, 9 or 11
 . Cooling: Thermal overheat protection built in


 Electrical Specifications
 . Power Supply: 90-240v / 50-60hz
 . Power Consumption: 80W
 . Operating temperature: -20c to +40c
 . LED Lamp Life Rating: 50,000 hours
 . Dimensions: (LxWxH) 40” x 3.15” x 3”
   / 1000 x 80 x 75mm
 . Weight: 11.2 lbs. (5.1 Kgs)
