ELAR EXTQW BAR HP
ELAR EXTQW BAR HP
Discontinued
SKU# ELA961

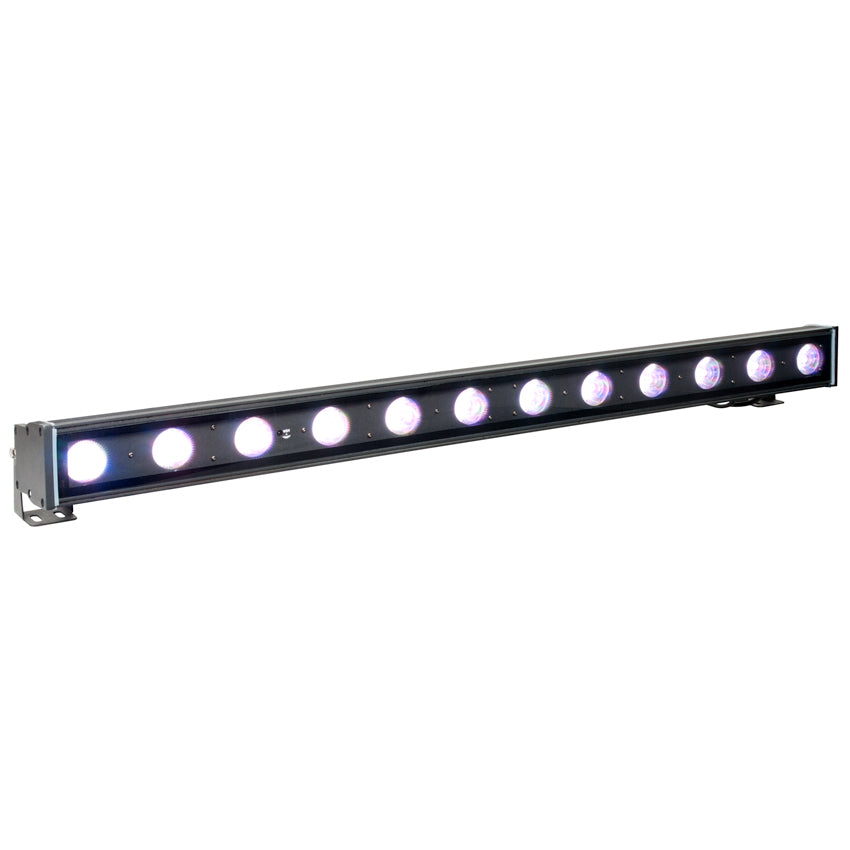

The IP65 Rated ELAR EXTQW BAR HP™ features (12) 5W QUAD RGBW Color LEDs, a 25° beam angle, variable color and strobe effects, 3 DMX channel modes, flicker free operation for TV and FILM, 3pin in/out DMX and 4pin power in/out connections, (2) integrated adjustable mounting brackets, linkable power for up to (7) units at 120V and (14) units at 240V, 90W max power consumption, programmable IR remote (sold separately) and a multi-voltage universal auto switching power supply (100-240v).
Features
IP65 Rated
25° Beam Angle
Die-Cast Aluminum Housing / Tempered Glass
IR Remote Programmable
Flicker Free Operation for TV and FILM
Resources
Guides/ Manuals
Related Categories
Specifications
SOURCE
12 x 5W QUAD Color (RGBW) LEDs
50,000 Hour Average Life
PHOTOMETRIC DATA
1430 LUX (133 FC) @9.8 ft. (3m) 25° Full ON
EFFECTS
Color + Variable Strobe Macros
Electronic Dimming: 0% - 100%
COLOR
RGBW (Red, Green, Blue, White)
CONTROL / CONNECTIONS
3 DMX Channel Modes (7/11/51)

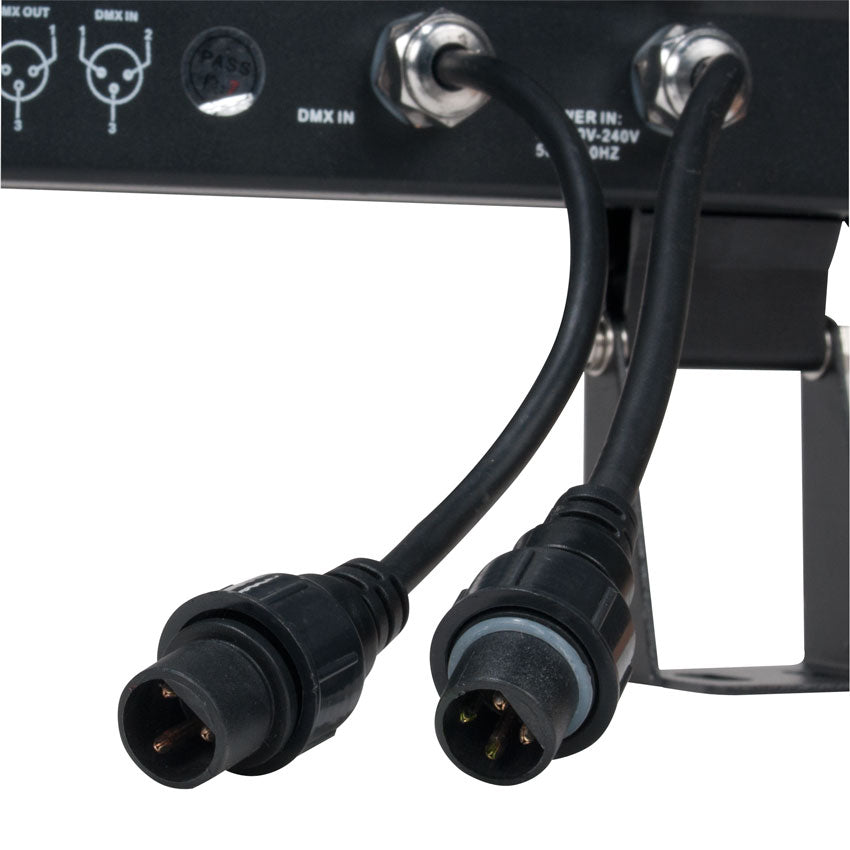

3pin DMX In/Out

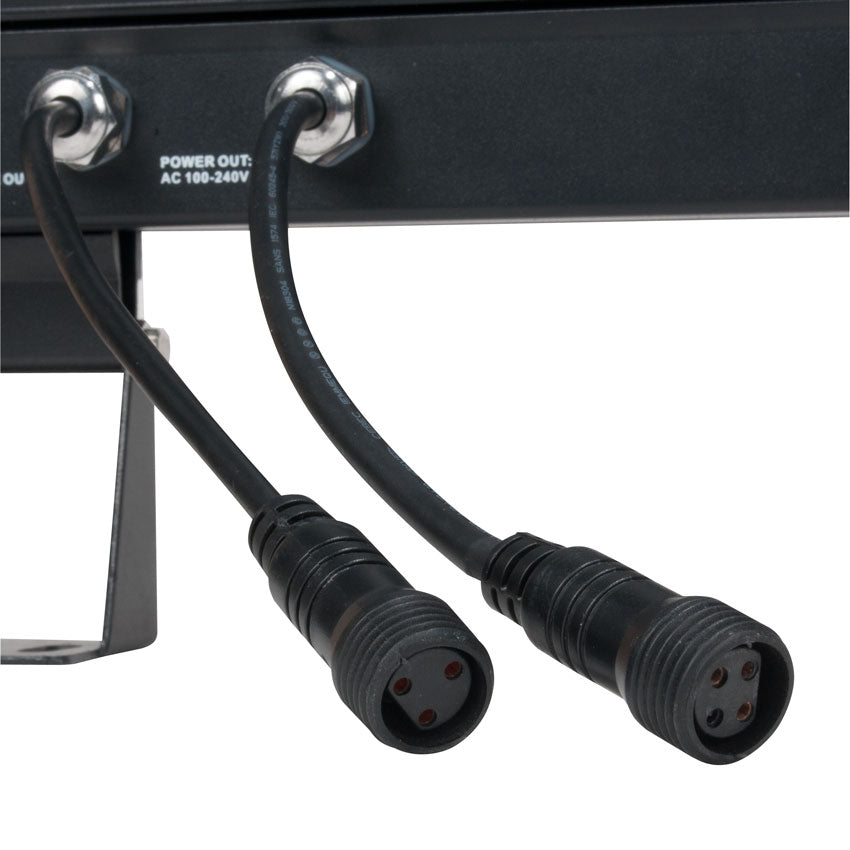

4pin Power In/Out
Power Link Multiple Units - (7) at 120V (14) at 240V
SIZE / WEIGHT
Length: 39.4” (1000mm)
Width: 3.5” (90mm)
Vertical Height: 7.1” (181mm)
Weight: 11.5 lbs. (5.2kg)
ELECTRICAL
AC 100-240V - 50/60Hz
90W Max Power Consumption
APPROVALS / RATINGS
CE | IP65
INSTALLATION

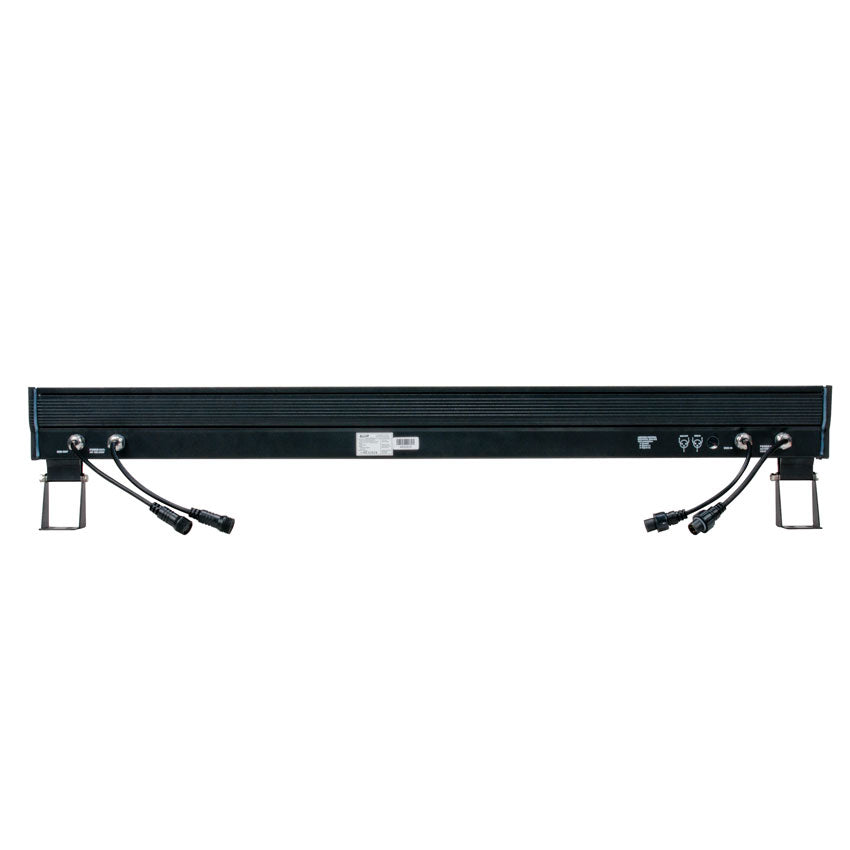

Rigging: Integrated Adjustable Mounting Brackets (x2)
Working Position: Any (360°)
INCLUDED ITEMS
(1) 4pin Female IP to Edison Power Cable
(1) 3pin Male IP to 3pin Female DMX Cable
(1) 3pin Female IP to 3pin Male DMX Cable
(1) Bag of (2) DMX End Caps
(2) Mounting Brackets
REQUIRED ACCESSORY:
ELAR WR II (click for more info)
OPTIONAL ACCESSORIES:
ELA958/3MPEC: 3m Power Ext/Link Cable
ELAR 3C-1M: ELAR 1m Extension Signal Cable
ELAR 3C-5M: ELAR 5m Extension Signal Cable
Specifications and documentation subject to change without notice.
