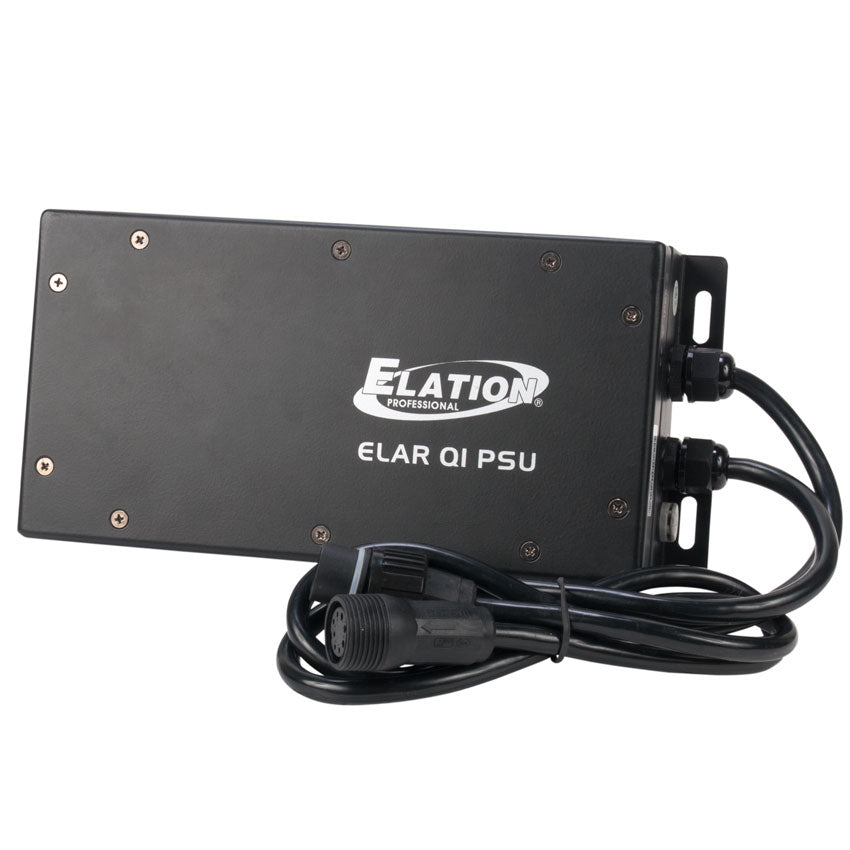

ELAR Q1 PSU
ELAR Q1 PSU
* * * S P E C I A L O R D E R * * *
The IP65 rated ELAR Q1 PSU™ power supply unit features 24VDC output which can support (15) max linked ELAR Q1™ units each, 8pin power IP cable in/out, 300W max power consumption, and a multi-voltage universal power supply (100-240v 50/60Hz).
The IP65 rated ELAR Q1 PSU™ power supply unit features 24VDC output which can support (15) max linked ELAR Q1™ units each, 8pin power IP cable in/out, 300W max power consumption, and a multi-voltage universal power supply (100-240v 50/60Hz).
Features
IP65 Rated
24VAC Output
Max (15) Linked EALR Q1™ Units Each
Resources
Specification information
Guides/ Manuals
Drawings
CAD File
Specifications
CONNECTIONS
8pin Power IP Cables In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 12.4” (315mm)
Width: 5.7” (145mm)
Vertical Height: 2.6” (67mm)
Weight: 2.2 lbs. (1.0kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
300W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
APPROVALS / RATINGS
CE | IP65
ACCESSORIES: * * * SPECIAL ORDER * * *
60413010144 - ELAR Q1 IP Starter Y-Cable
60413010149 - ELAR Q1 IP Extension Y-Cable
60413010146 - ELAR Q1 PSU IP Power Cable
60413010145 - ELAR Q1 IP Extension Cable 3.3 ft (1m)
60413990038 - ELAR Q1 IP Extension Cable 9.8 ft (3m)
Specifications and documentation subject to change without notice.
