ELAR QUAD BAR
Discontinued
ELAR QUAD BAR
Sale price$0.00
ELAR QUAD BAR
Specifications
- 4 X 10W Cree Quad Color RGBW LED
- Pixel Control
- 1830 Lux @ 2,5m
- 11,5° beam angle, 21° field angle
- IP65 die cast aluminum body
- Flicker free operation for television and film

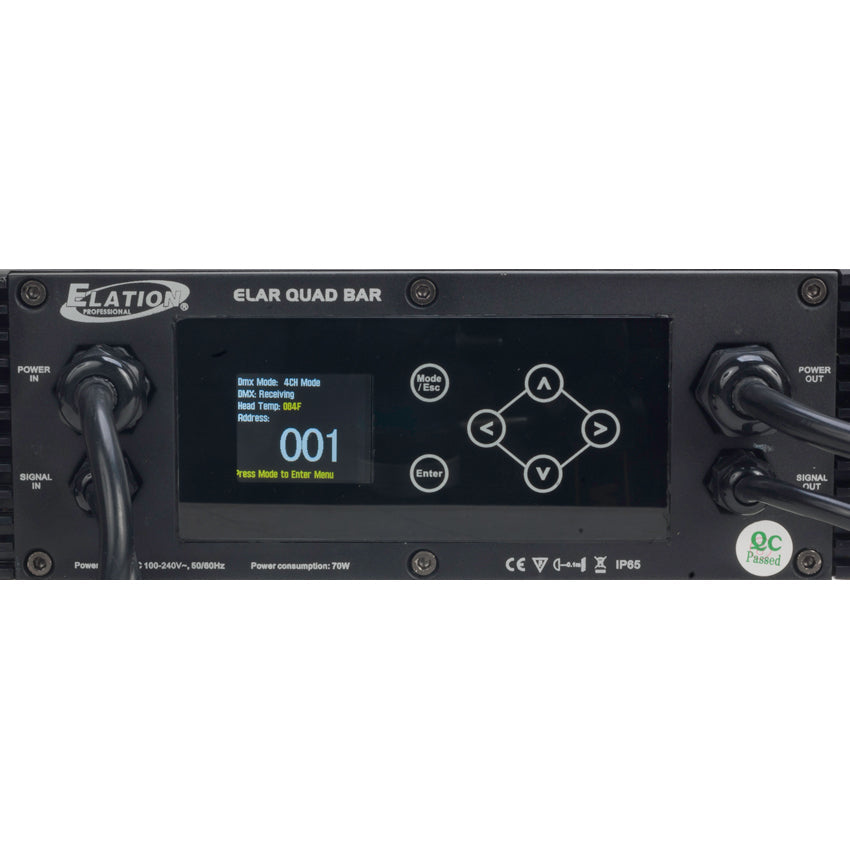

- Color LCD touch menu Display
- USITT DMX 512
- 4/5/6/8/16 Channel operation mode
- Built In Color Macros, Auto amp; Manual control
- Holds last state when power off
- 0-100% Dimming
- Strobe effect (1-25 flashes per second)
- 3-pin XLR in/out link cables supplied
- Power in/out linkable IP cables
- Electronic Switching Power Supply
- Power Consumption: 75 watts
- 100-240V AC, 50/60Hz (Multi-voltage)
- Dimensions (LxWxH): 500x150x156 mm
- CE | cETLus | IP65
- Pixel Control
- 1830 Lux @ 2,5m
- 11,5° beam angle, 21° field angle
- IP65 die cast aluminum body
- Flicker free operation for television and film
- Color LCD touch menu Display
- USITT DMX 512
- 4/5/6/8/16 Channel operation mode
- Built In Color Macros, Auto amp; Manual control
- Holds last state when power off
- 0-100% Dimming
- Strobe effect (1-25 flashes per second)
- 3-pin XLR in/out link cables supplied
- Power in/out linkable IP cables
- Electronic Switching Power Supply
- Power Consumption: 75 watts
- 100-240V AC, 50/60Hz (Multi-voltage)
- Dimensions (LxWxH): 500x150x156 mm
- CE | cETLus | IP65
Downloads
Cut sheet
Dimensional drawings
Dmx traits
Photometrics
User manual
ELAR QUAD BAR Parts & Service
Our ELAR QUAD BAR Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your ELAR QUAD BAR. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
ELAR QUAD BAR Parts & Service
