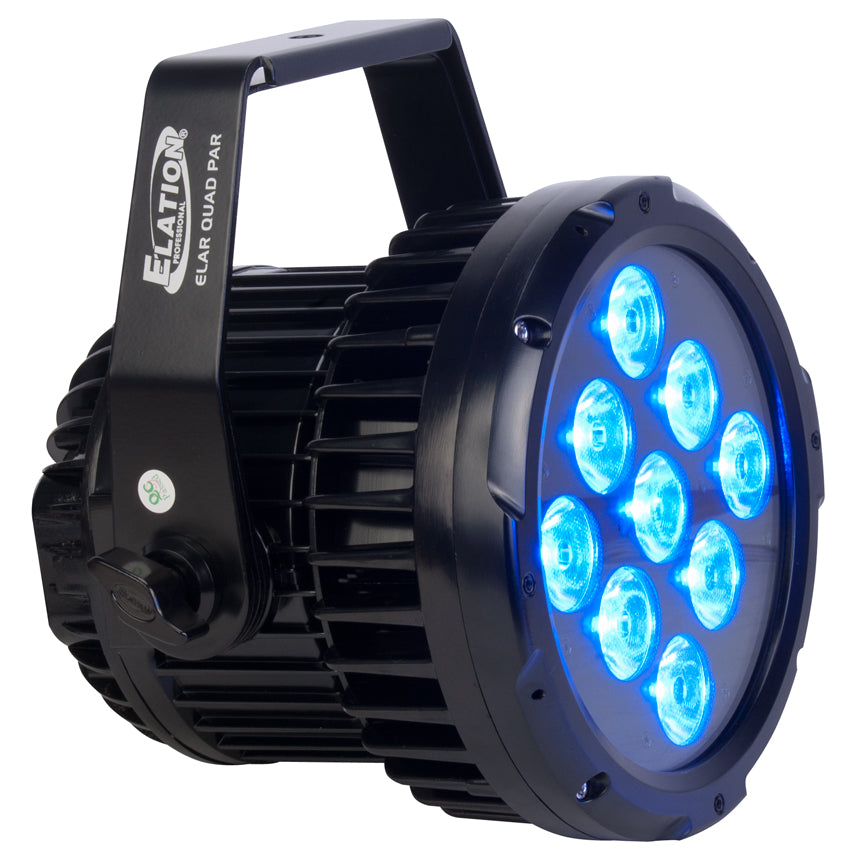

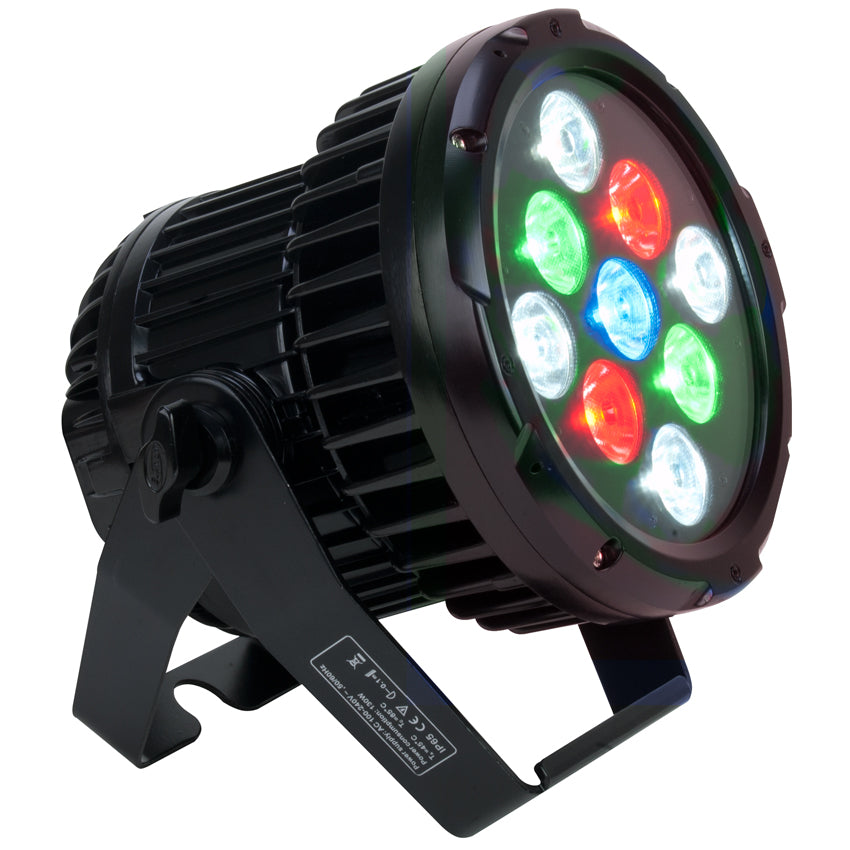

ELAR QUAD PAR
Discontinued
ELAR QUAD PAR
Sale price$0.00
ELAR QUAD PAR
Specifications
- 9 x 10W CREE Quad LED
- No colored shadows and perfect color mixing
- Single Pixel Control Mode
- 14250 Lux @ 2,0m
- 25° beam angle
- IP65 die cast aluminum body
- Flicker free operation for television and film

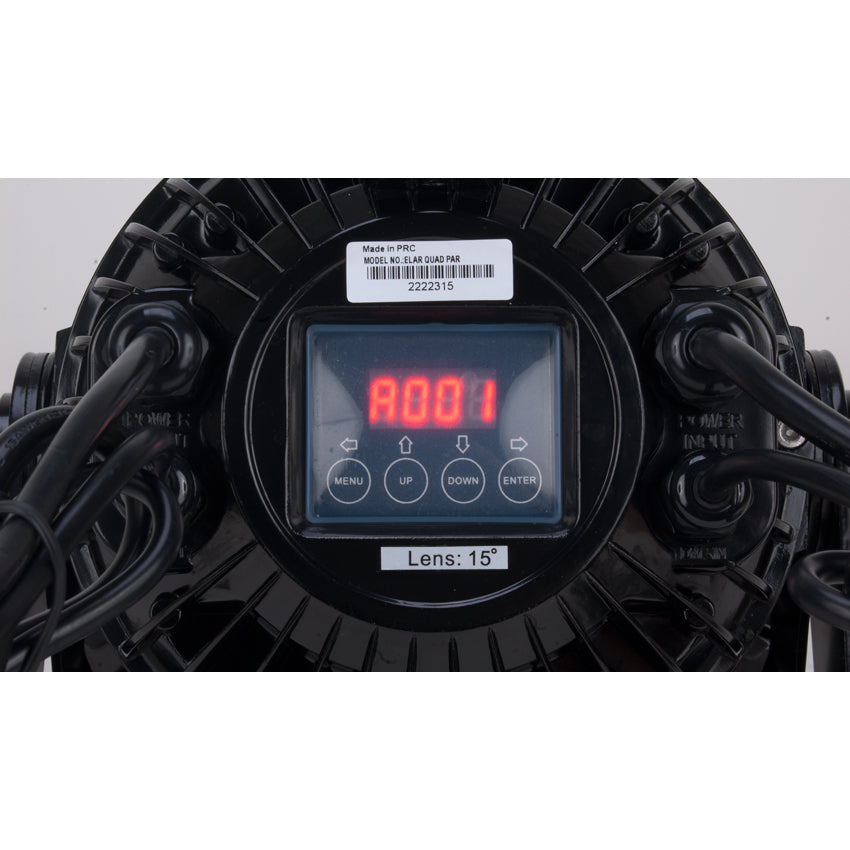

- Color LCD Display
- USITT DMX 512
- 4/5/7/9/18/36 Channel operation mode
- Built In Color Macros, Auto amp; Manual control
- Holds last state when power off
- 0-100% Dimming
- Strobe effect (1-25 flashes per second)
- Integrated Floor Stand / Dual Yoke bracket
- 3-pin XLR in/out
- Power in/out linkable
- Electronic Switching Power Supply
- Power Consumption: 125 watts
- 100-240V AC, 50/60Hz (Multi-voltage)
- Dimensions (LxWxH): 267x232x246 mm
- Weight: 16 lbs. / 7.25 kg
- CE | cETLus | IP65
- No colored shadows and perfect color mixing
- Single Pixel Control Mode
- 14250 Lux @ 2,0m
- 25° beam angle
- IP65 die cast aluminum body
- Flicker free operation for television and film
- Color LCD Display
- USITT DMX 512
- 4/5/7/9/18/36 Channel operation mode
- Built In Color Macros, Auto amp; Manual control
- Holds last state when power off
- 0-100% Dimming
- Strobe effect (1-25 flashes per second)
- Integrated Floor Stand / Dual Yoke bracket
- 3-pin XLR in/out
- Power in/out linkable
- Electronic Switching Power Supply
- Power Consumption: 125 watts
- 100-240V AC, 50/60Hz (Multi-voltage)
- Dimensions (LxWxH): 267x232x246 mm
- Weight: 16 lbs. / 7.25 kg
- CE | cETLus | IP65
Downloads
Cad drawing
Cut sheet
Dimensional drawings
User manual
Generic
ELAR QUAD PAR Parts & Service
Our ELAR QUAD PAR Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your ELAR QUAD PAR. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
