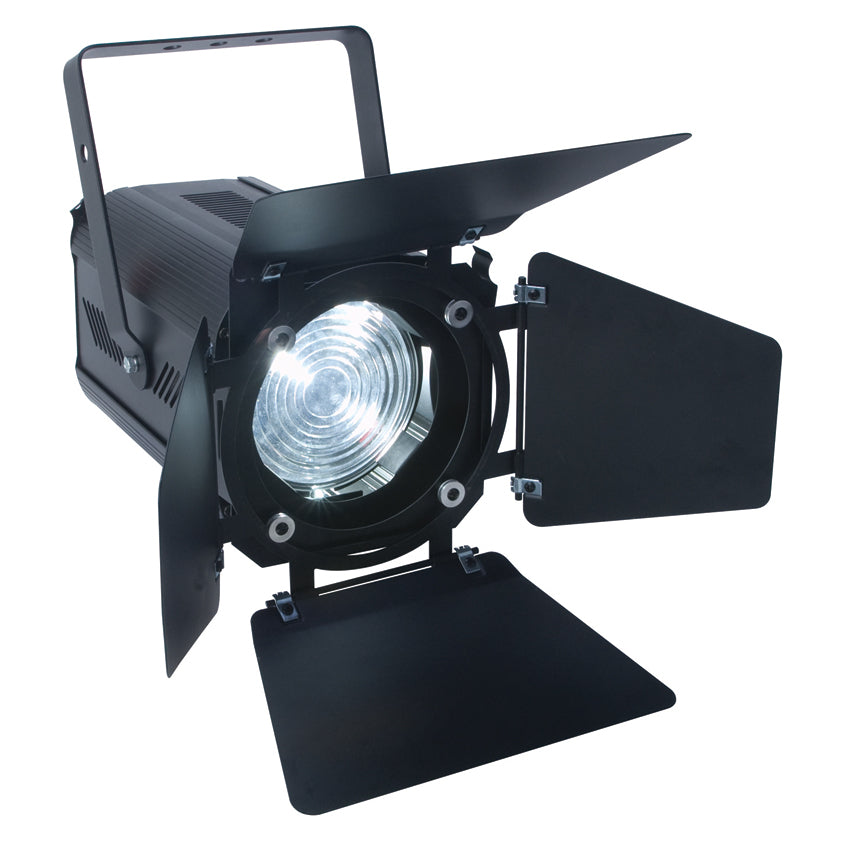

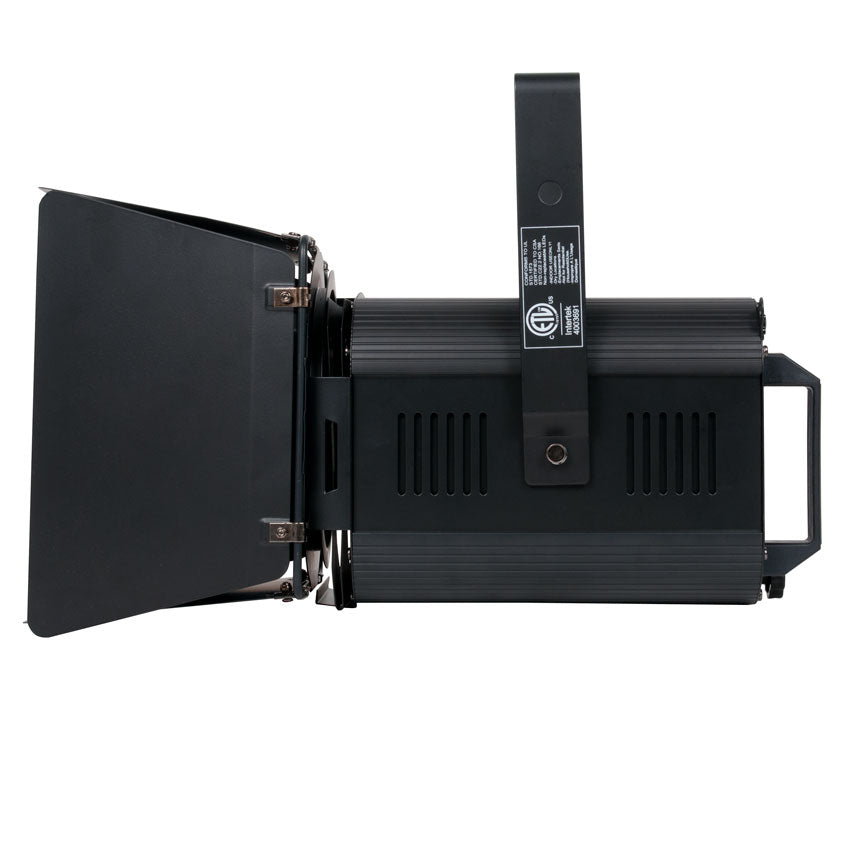

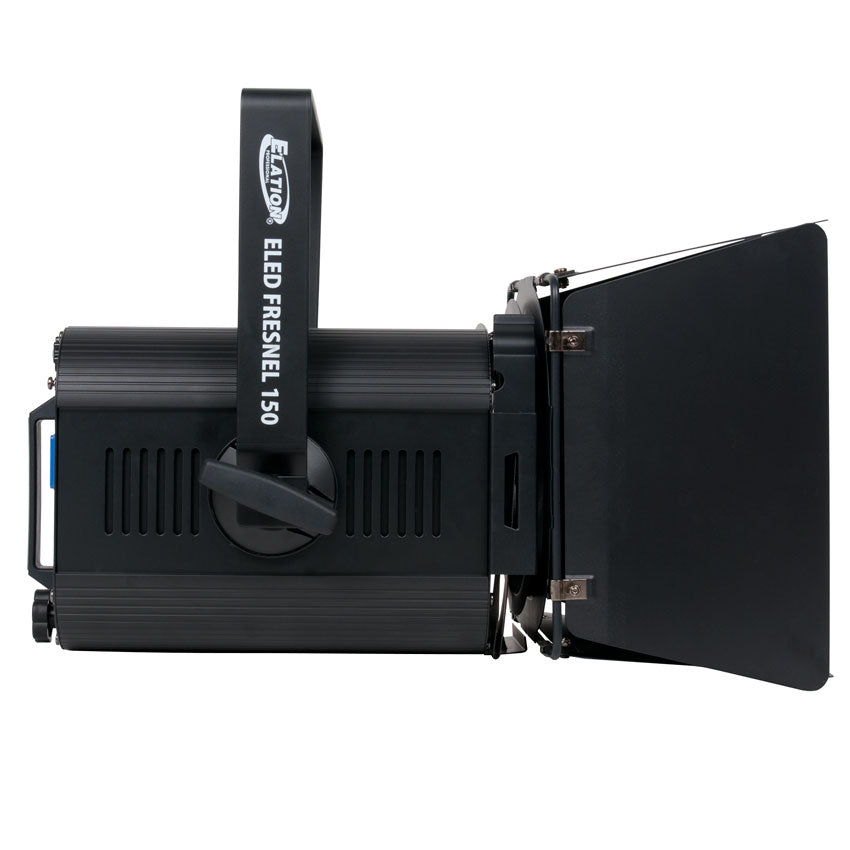

ELED Fresnel 150
ELED Fresnel 150
The ELED Fresnel Series brings all the advantages of Light Emitting Diodes into Stage Lighting. Featuring a 150W LED light source and amazing zoom range it offers reliable, easy and cost saving lighting in Clubs, Theaters, Schools and Churches as well as at exhibitions, trade fairs and at commercial applications. Imagine a “unbreakable” light source and ultra low heat development (compared to conventional halogen lights), full DMX control, and improved zoom capabilities. There is no need for running thick power multicores, installing expensive dimmer racks and high-power current supply anymore while at the same time expiring the whole advantage of LED based lighting.
Features
The ELED Fresnel Series brings all the advantages of Light Emitting Diodes into Stage Lighting. Featuring a 150W LED light source and amazing zoom range it offers reliable, easy and cost saving lighting in Clubs, Theaters, Schools and Churches as well as at exhibitions, trade fairs and at commercial applications. Imagine a “unbreakable” light source and ultra low heat development (compared to conventional halogen lights), full DMX control, and improved zoom capabilities. There is no need for running thick power multicores, installing expensive dimmer racks and high-power current supply anymore while at the same time expiring the whole advantage of LED based lighting.
Features
. NEW Bridgelux LED Engine
. 4,000k 80 CRI 150Watt engine
. 150Watts
. DMX 5pin in/out
. Quiet operation
. Includes barn doors
Resources
Guides/ Manuals
Related Categories
Specifications
Colors
. 150W LED Warm White Light Source
. Barn doors included
. Filter frame included
Shutter/Dimmer
. Strobe: Strobe effect (1-18 flashes per second)
. Dimmer: 0- 100% Smooth Dimming via DMX
. Flicker Free
Light Source
. Lux: 979 Lux / 91 FC at 10’ / 3M at full
. Lamp: 1 x 150 Watt Bridgelux LED
. Lamp Life: 150W, 4,000K, 50,000 hrs. life
Optical System
. 10° to 50° manual zoom
Control
. DMX Channels: 3 DMX Modes: 1 Channel mode, 2 Channel Mode - Mode 1 & Mode 2
. LED Menu Display
. USITT DMX-512
. Internal DMX control for dimmer/strobe
. Silent Fan Cooling
. On Board Control
. Stand Alone
Operation Parameters
. IP Rating: IP 20
. Rigging: Single Yoke Bracket / safety and data cable optional
Power Supply
. Power Supply: Electronic, multi-voltage 120v-240V 50/60hz
. Power Consumption: 150W max

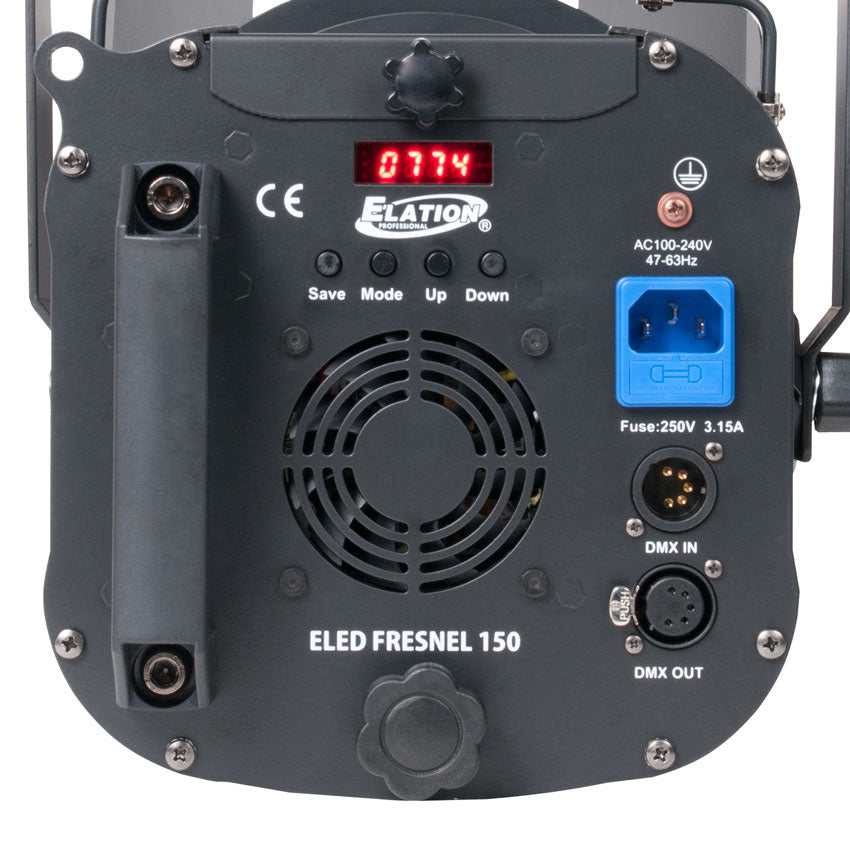

Connectors
. 5 pin XLR data input & output
. Cable / Plug Type: IEC 120v US
Dimensions and Weight
. Dimensions: (LxWxH) 10.75" x 7.75" x 15" / 270 x 195 x 380mm
. Weight: 16.68 kgs / 37 lbs
Approvals
. CE Approved - cETLus Approved
