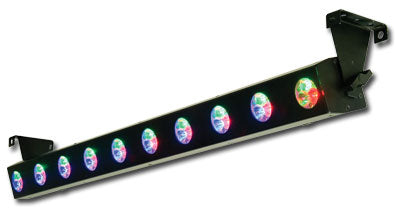

ELED Strip 100 RGB

Features

FEATURES:

• 30 x 1 Watt LEDs - (10 Red, 10 Green, 10 Blue)

• 1118 LUX @ 1M / 410 LUX @ 2M

• Seamless RGB color mixing + pixel control

• Infinite Color possibilities

• 25-degree beam angle

• Long Life L.E.D. (rated at 50,000 Hours)

• Low power consumption

• Low heat emissions

• Flicker free operation for television and film (520Hz)

• Daisy-chain power from one unit to another (up to 20 fixtures)

Resources

Guides/ Manuals

Related Categories

Specifications

CONTROL SPECIFICATIONS:

• USITT-DMX 512

• 6 DMX modes; 3, 5, 2x 6, 15 & 30 channel modes

• LCD display with 3-button DMX control

• 3-pin and 5-pin XLR in/out

• Built-in microphone (for use with music mode)

 CONTROL FEATURES:

• 4 control modes: DMX; Preset; RGB; Sound active

• 12 pre-installed programs (Macros)

• Strobe in any color (slow to fast strobe speeds)

• 0-100% Dimming

 POWER SUPPLY

• Built-in Electronic Switching Power Supply (90-260V, 50/60Hz)

• Power Consumption: 75W

 RIGGING:

• Mounting brackets on each side of fixture

• Fly point on rear panel

• Clamp mounting holes

 DIMENSIONS & WEIGHT:

• Dimensions (LxWxH): 41.5”x4”x6” /1050x104x150mm

• Weight: 8 lbs. / 5.4 kgs.
