EPT6IP
EPT6IP

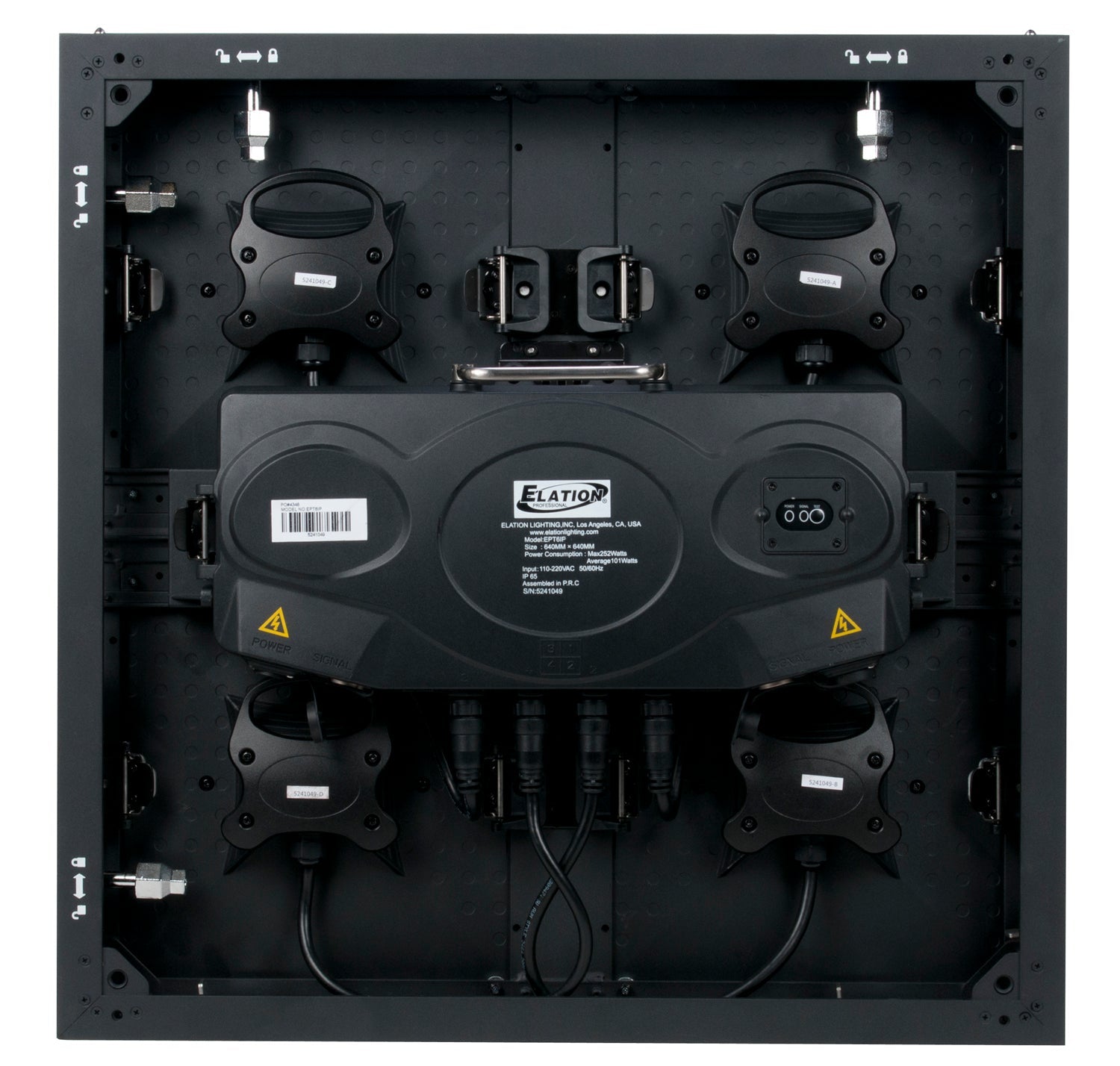

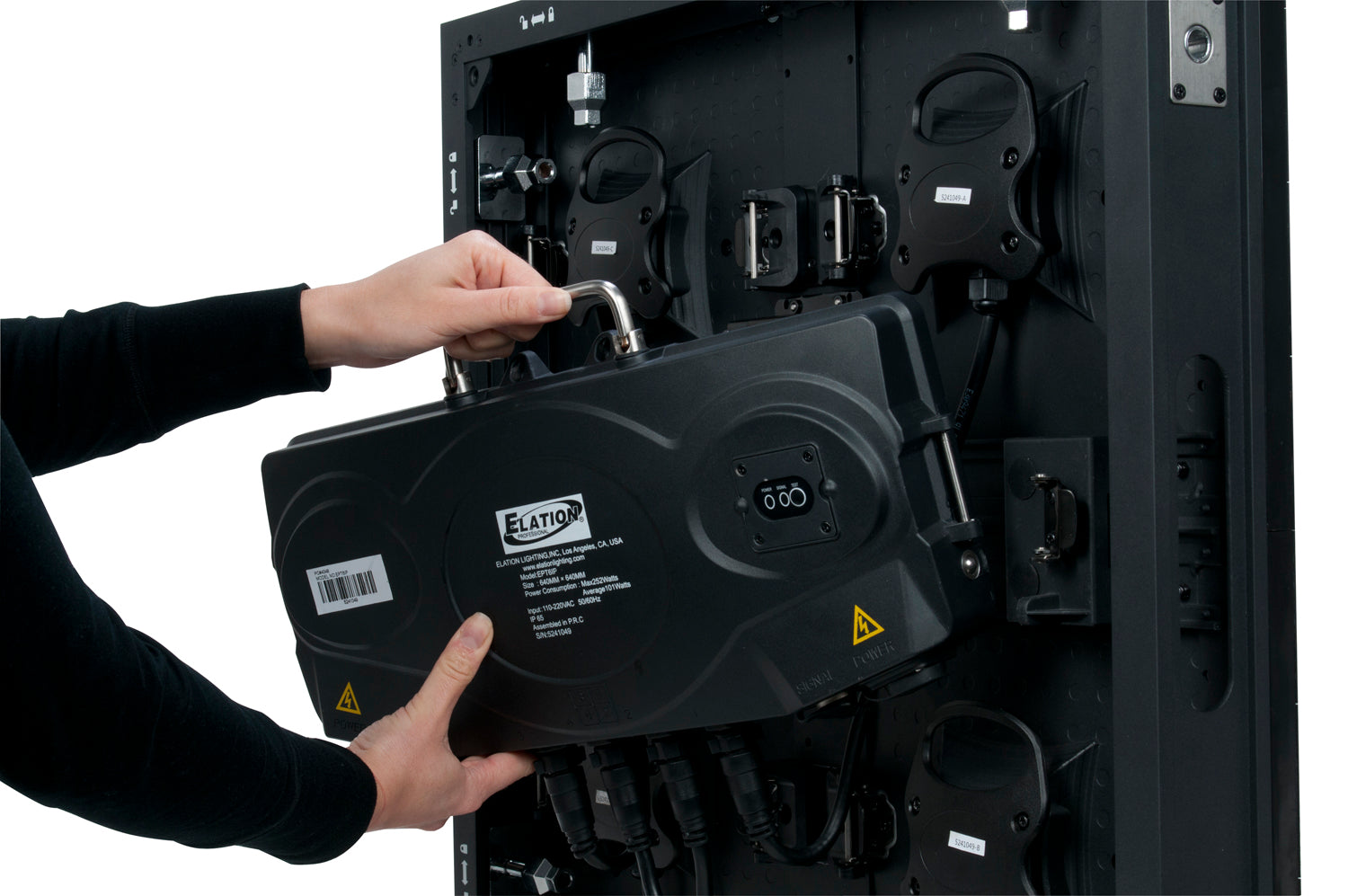

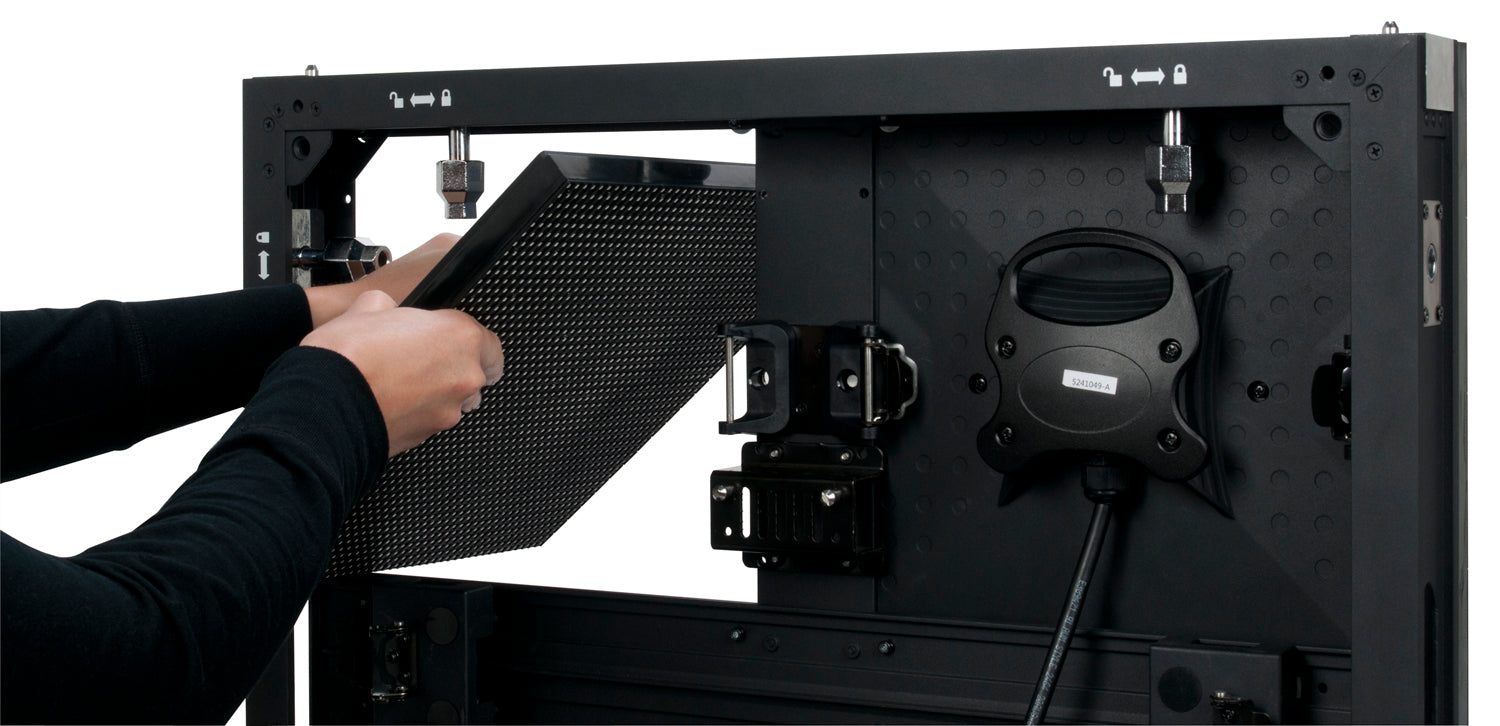

The EPT6IP™ is a new 6mm pixel pitch modular outdoor rated Pro Touring LED display. It’s light weight durable die-cast aluminum frame and (4) piece modular design, allows for easy installation and service. The EPT6IP uses the latest dot correction technology which provides full color uniformity and brightness. The EPT6IP™ is ideal for outdoor Pro Touring portable installations.
Specifications
Pixel Pitch: 6.67mm
Physical Density: 22,500(dots/m2)
LED Configuration: 1R1G1B
LED Type: SMD Chip
Module Size: 320x320mm
Module resolution: 48x48
Drive Model: MBI5151
Scanning Mode: 1/6
Horizontal and Vertical View angle: 120°
Brightness: 5000cd/m2
Gray Scale: 14bit
Refresh rate: 1920Hz
Cabinet Resolution: 96x96
Cabinet Max Power Consumption: 252W
Cabinet Average Power Consumption: 101W
Cabinet Size: 640x640mm
Cabinet Weight: 38.6 lbs. (17.5kg)
Cabinet Material: Aluminum
Input Voltage: AC110V220V+/-10%, 50/60Hz
Life Span: 100,000 Hour
Protection Level: IP65
Calibration Module
APPROVALS / RATINGS
CE | cETLus | IP65
Specifications are subject to change without any prior written notice.
