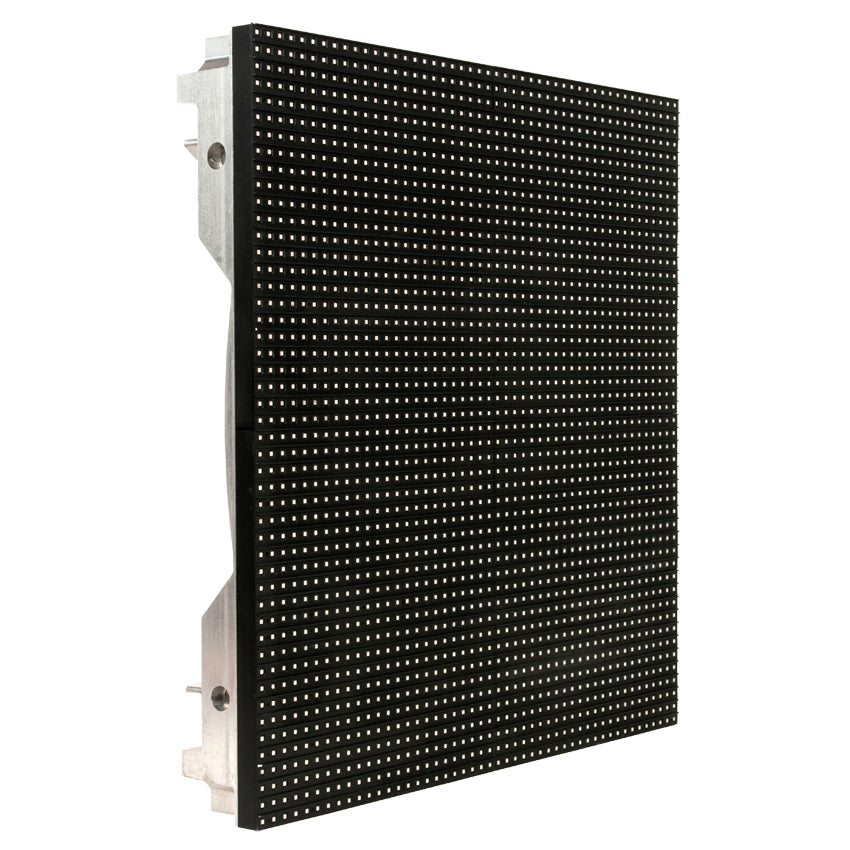

EPV10 IP

Features

Related Categories

Specifications

IP65 Die Cast Case Front and Back
 Easy rigging and assembly
 Sturdy / Light weight cabinet design
 Quick release IP68 connectors for data / power in/out
 Cat5 Cable for signal
 Self Test Button on panels
 Pixel Pitch 10.4mm
 Brightness 4,200 Nits (after calibration)
 Cabinet Size 19.7" x 19.7" x 2.9" (500mm x 500mm x 75mm)
 Weight 20.9lbs / 9.5kg
 2,304 Pixels (48 x 48)
 9,217 pixel per sq mtr
 Viewing Angle H120/V120
 Contrast Ratio 2000:1
 LED Type SMD 3535
 LED Life 100,000hrs
 Processing Depth 16bit
 Grey Scale 65,536 levels
 Refresh Rate 1000hz
 1/4 Scan Rate Constant Current
 Min. Viewing Distance 21' (6.5M)
 Operating Temperature -30c to +50c
 Operating Humidity 10- 90%
 Power Supply 100-240v AC, 50.60hz - auto sensing multi-voltage
 Max Power 320w / Avg Power 200W
 cETLus and CE Pending

 Preliminary Information
