EPV762

Specifications

Introducing the (EPV) Elation Pro Video Series
 High Resolution LED Video Panel
 Innovative, Creative and Professional LED Video Product Solution
 Ideal for Event, Display and Stage


 . High Resolution LED Video Panel

 . Slim Cabinet Design

 . Seamless Mechanical System

 . Easy To Hang / Rig

 . Ideal For Rental / Production / Install

 . Wide Viewing Angle (H 135° / V 110°)

 . High Contrast Levels

 . High Refresh Rates For Flicker Free Performance

 . 7.62mm Pixel Pitch

 . Indoor Rated

 . 2,000 NITS

 . 3-in-1 3528 SMD LED

 . 2,000hz refresh rate

 . 16-bit processing

 . 6m min. Viewing Distance

 . 17,222 pixels per sq mtr

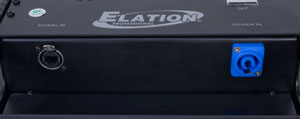

 . Ethercon In/Out for Video Signal

 . powerCON In/Out for power link

 . 100-240v built in psu

 . 320watts (210w avg)

 . Frame Size: 488mm x 488mm (19.2” x 19.2”)

 . Pixels Per Panel: 64 x 64 (4,096 pixels total per panel)

 . 28.7lbs / 13kg

 . cETLus Approved

 NOTE: Specifications and improvements in the design of this unit are subject to change without any prior written notice.
