EPV762 MH

Specifications

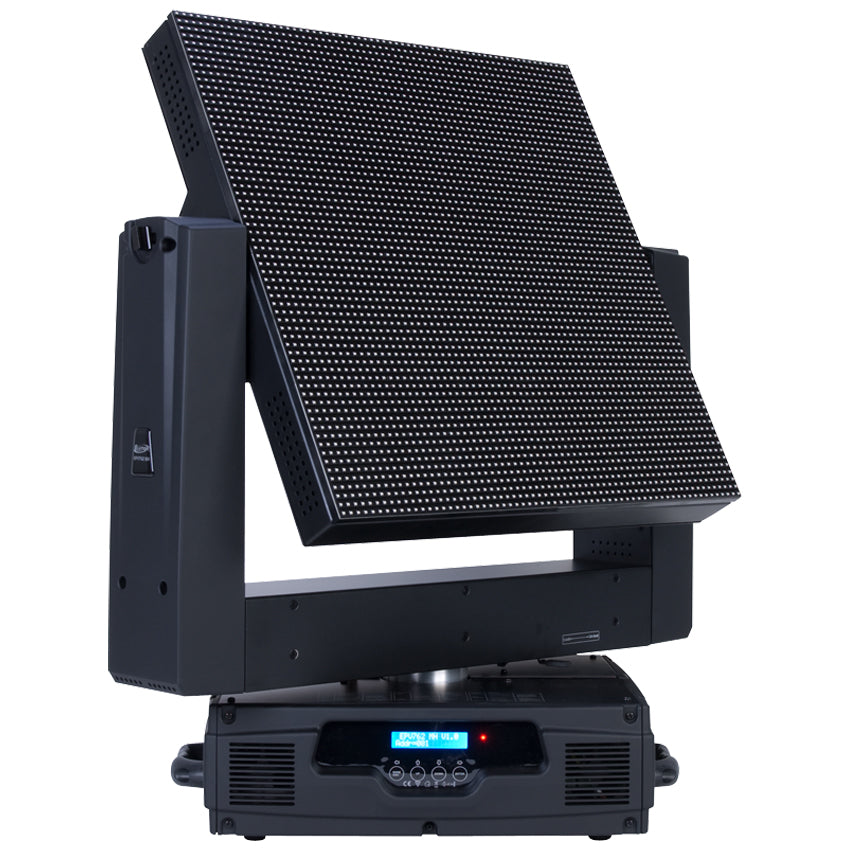

Introducing the (EPV) Elation Pro Video Series
 High Res LED Moving Head Video Panel
 Innovative, Creative and Professional LED Video Product Solution
 Ideal for Event, Display and Stage


 . 3-in-1 3528 SMD LED

 . 7.62mm pixel pitch

 . 2,000hz refresh rate

 . 540 x 265 degree pan / tilt

 . Pan / Tilt Lock

 . 16-Bit Processing

 . 2,000 NITS

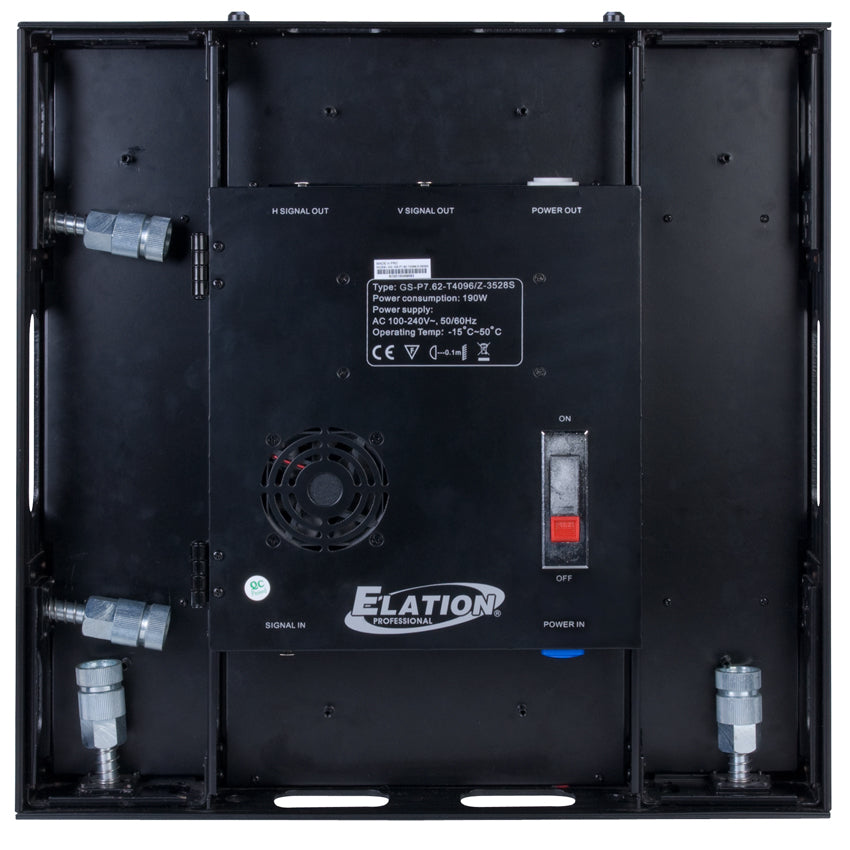

 . 3pin & 5pin DMX Inputs for Pan/Tilt Control

 . Ethercon In/Out for Video Signal

 . powerCON In/Out for power link

 . 6m min. Viewing Distance

 . 17,222 pixels per sq mtr

 . cETLus Approval

 . Indoor rated

 . 100-240v built in psu

 . 350watts (230w avg)

 . Frame Size: 488mm x 488mm (19.2” x 19.2”)

 . Pixels Per Panel: 64 x 64 (4,096 pixels total per panel)

 . 53lbs / 24kg

 . For use with EPV VSC or EPV Image VSC Video Processor

 . cETLus approved
