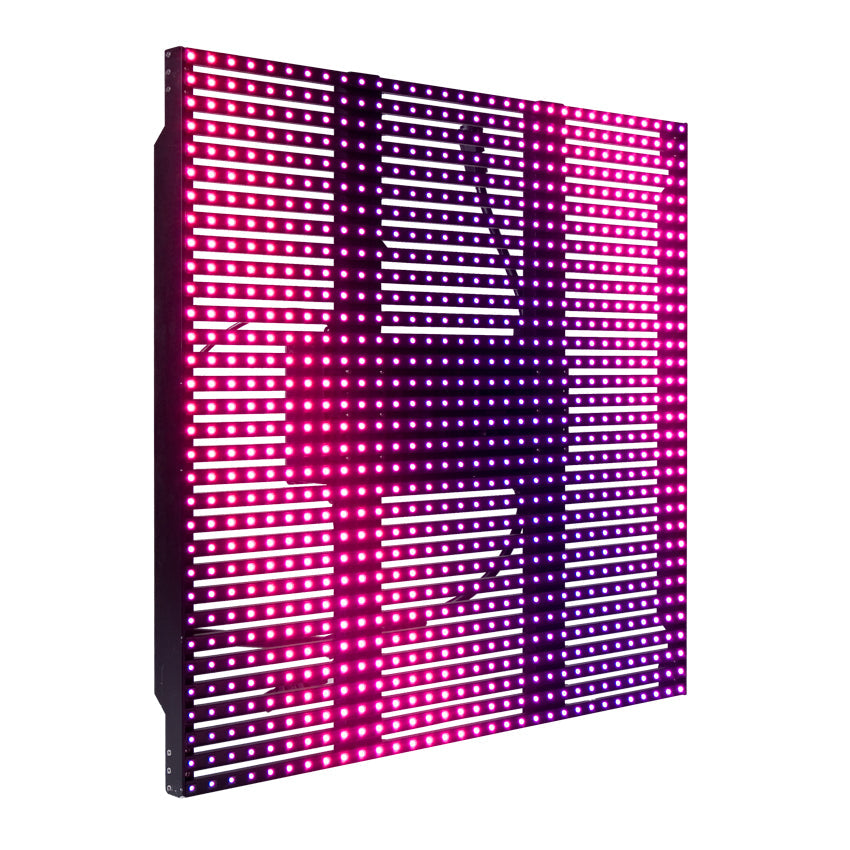

EVLED1024SMD - 20mm LED Video Screen

Features

20MM Pitch - IP 65 Rated Light Weight Medium Resolution Transparent LED Video Screen with Tri Color SMD LEDs


• Transparency: 35%

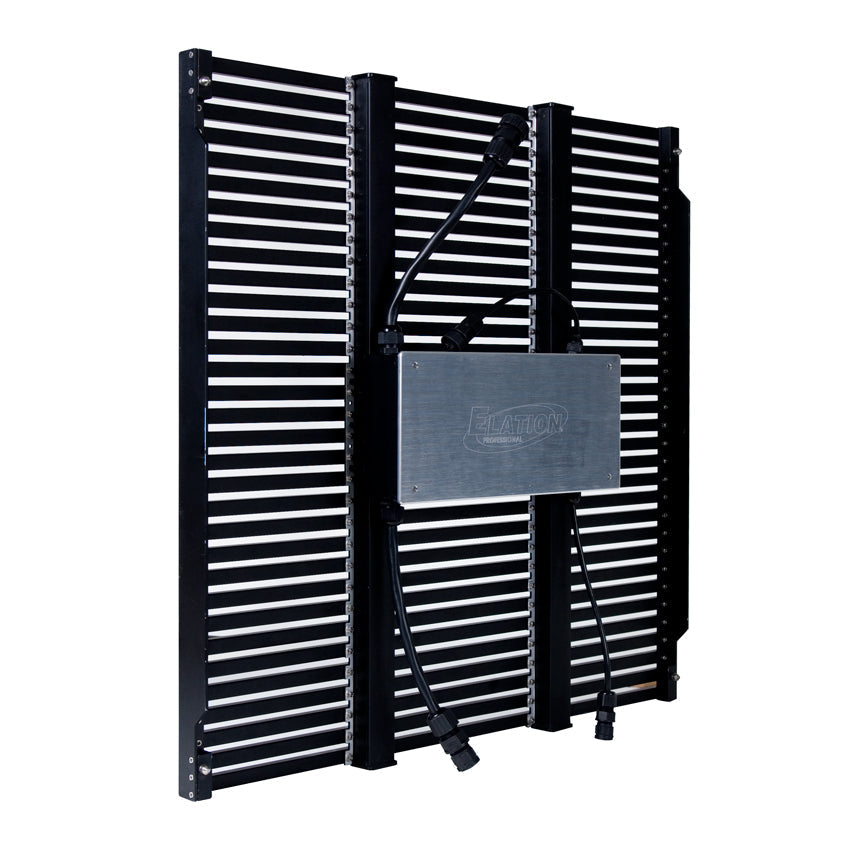

• Screen Composition: Al-alloy frame, rubber compound for weatherproof

• Tile Size: 640 x 640 x 75mm/tile (25.2" x 25.2")

• Tile Weight: 8.7 kg/tile (19.2lbs)

• Tile Area: 0.4096m2/tile

• Pixel Pitch : 20 mm

• Luminosity: 4000 nits

• Color Temperature: 6500 k

• Visual Angle 150 / 150° (50% brightness)

• Visual Range: 160 / 160°

• Pixel Configuration: 1R 1G 1B (3-in-1 SMD TRI COLOR)

• Tile Rsolution: 32 x 32 pixels/tile

• Pixel Resolution: 2500 pixels/m2

• LED Quantity: 1024 per tile

• Color Number: 14 Trillion

• Processing Depth: 14 bits

• Contrast Ration: 2,000:1

• Life Span: 100,000 hours - LED: 50,000-70,000 hour - floor body

• Frame Rate : 60Hz

• Data Refresh Rate: 800Hz

• Display Mode: Synchronous with video source

• LED Failure Rate: 1/10,000

• MTBF: > 10,000 hours

• Drive Mode: Static, Constant Current Drive

• Power Supply: AC 100-240V, 50Hz or 60 Hz

• Working Voltage: DC 5V

• Power Consumption: 380 w/m2(max): 220 w/m2(average)300Watts per unit @ 100%)

• Ingress Protection: Front: IP65, Back: IP65

• Ambient Temperature: -20 to +50 Celsius Degree

• Relative Humidity: 10% to 99%
